24×36 Heavy Timber Barn Plan

$127.00

SKU: 8707 Categories: , , , Tag:

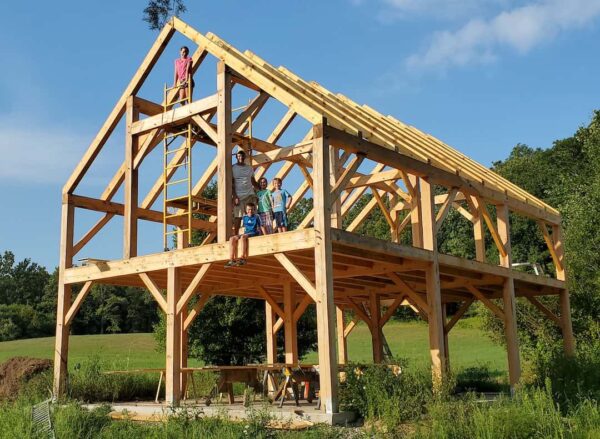

Take a good look at this versatile two-level 24x36 heavy timber barn! You can build this to become your barn or your barn home - it has a total of 1,728 square feet. The proportions make it suitable for a variety of uses. Add windows and doors wherever they suit you, or you could even add dormers to the roof to bring in extra light to the second floor.

The second level ceiling peaks at almost fifteen feet above the floor, creating a high-volume interior. You can leave the ceiling vaulted or floor in all or part of the area above the upper bent girt for a storage attic. The first floor could adapt to a sloping lot to become a walkout basement. Use it for more living space, a workshop or garage – or a bit of both!  We have sized the frame so you can have 4x walls mounted to the exterior of the frame and keep your foundation at a true 24x36, trust us your foundation guys will love it.

The drawings are formatted in PDF so you download them instantly once you make your purchase. They are sized to print on 24"x36” paper, so you can run them off easily from a local printer and see everything clearly. We have included a timber list to expedite shopping for your lumber, and a production list itemizing each member of the frame. The production list corresponds to the piece drawings for easy reference. The plan set includes 4 pages of 2D and 3D drawings and 33 pages of piece drawings, showing each cut to be made on every timber.


This plan is also included in the Master Plan Bundle and the Timber Frame Home Plan Bundle 1.

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 23’-3 ¾”’ wide 35′-33/4″’ long outside of post to outside of the post
  • No overhangs on any side
  • Height to Top of Girt 9’3”
  • Height to Top of Plate 15’
  • Height to Peak of Roof 25’1” with 10/12 Roof Pitch

Timbers

  • Posts – 8×8
  • Girts – 8×10 and 8×12
  • Plates – 8×10
  • Purlins – 8×10
  • Rafters – 6×8
  • Braces – 4×6
  • Joists – 6×8

Plans

  • 40 Pages Total
  • Construction Drawings – 4 Pages (36×24)
  • Detailed Piece Drawings – 33 Pages (17×11)
  • Materials Lists – 3 Pages (8-½x11)
