Pavilion Plans

16x24 Plan

16×24 Timber Frame Plan

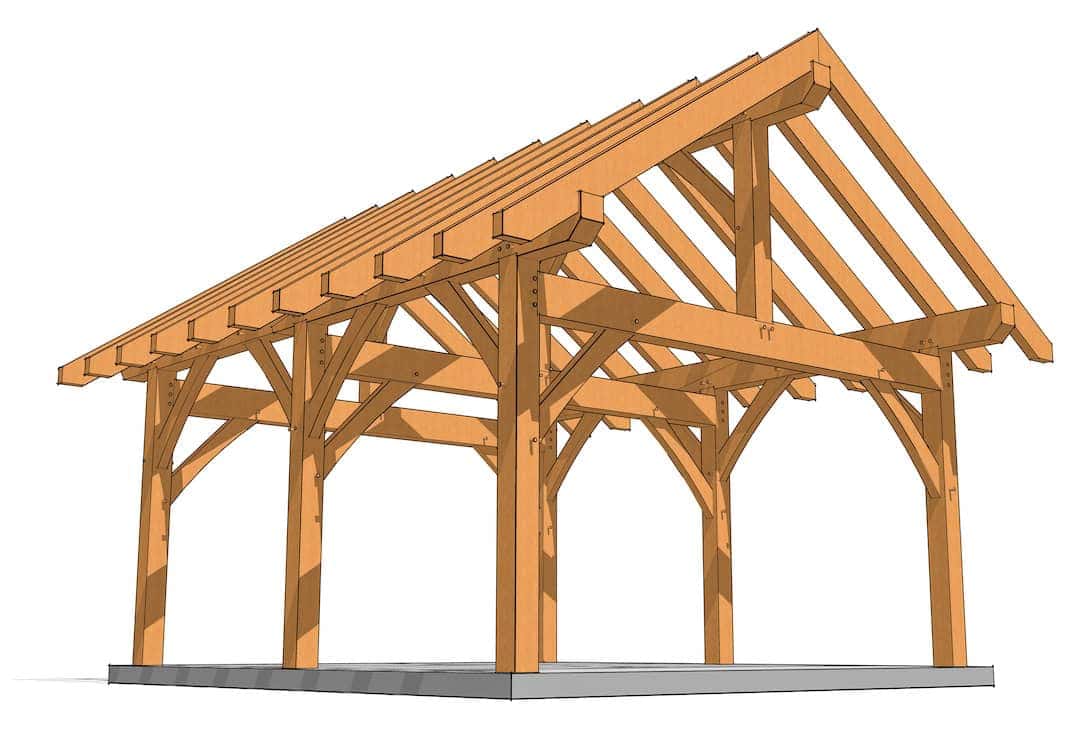

Description Specifications 30 – Day Guarantee  Fastener Kit This versatile plan could be finished out as a storage shed, a picnic pavilion or even a glamping cabin. It measures 16’ wide by 24’ deep, with two generous bays. Enclose the …

16×24 Timber Frame Plan Read More »

Hipped Timber Frame Pavilion

16×24 Hipped Roof Pavilion

Have you been looking for a timber frame with a symmetrical roof? If so, check out this 16×24 hipped roof pavilion! If you live in a snowy or windy area, a hipped roof is a good choice because of its sturdiness. This frame is designed with simple trusses with cross braces.

Hexagonal Gazebo Plan with models

Hexagonal Pergola Plan

This hexagonal timber frame gazebo plan was originally designed as a barbeque gathering area holding a smoker. It would be a great enhancement to any garden! The posts are cut from 12×12 timbers to fit the hexagonal shape. This frame has a commanding presence with an overall height of a bit over 16’-5”. The top of the 4×8 collar beams are 10 feet high, and the roof pitch is a bit over 8 in 12. It is designed to be constructed of Western Red Cedar, maple or hemlock.
