20×24 Timber Frame Plan with Loft


SKU: 5038 Categories: , , Tag:

This small 20x24 timber frame plan with loft is a perfect design for a cabin or or small home.  It has a loft on the upper level that would be a great space for a bedroom and measures 12'x20" which provides enough room a queen size bed and a small closet.  The lower level has a great room with a vaulted ceiling creating the feeling of living large in a smaller home. It has enough room for a fireplace, a couple of couches and a small dining table.  Under the loft would be a great space for the kitchen and a nice bathroom area.

  • The frame utilizes queen post to allow for centered windows in the gables.
  • 2 foot overhangs, overhangs can be omitted if not needed with SIP panels.
  • 36 pages full of plan views, elevations section drawings and individual piece drawings in an instant downloadable PDF file.
  • Full timber list

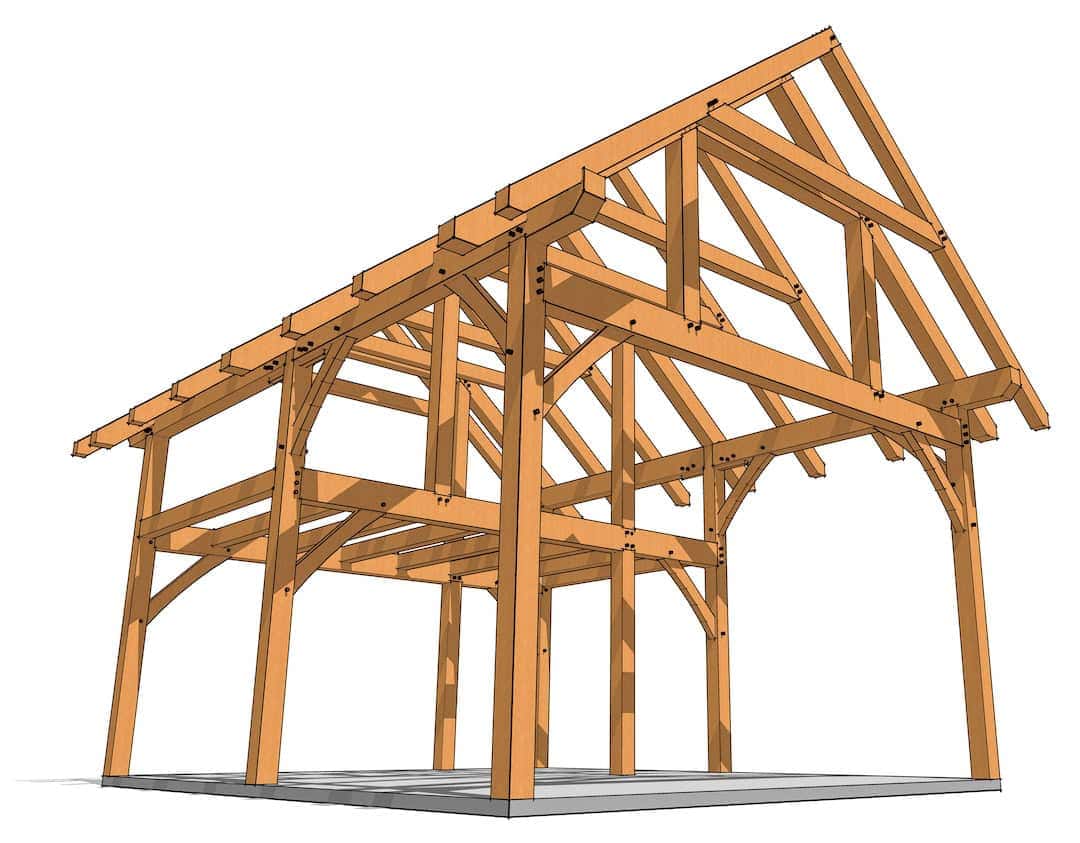

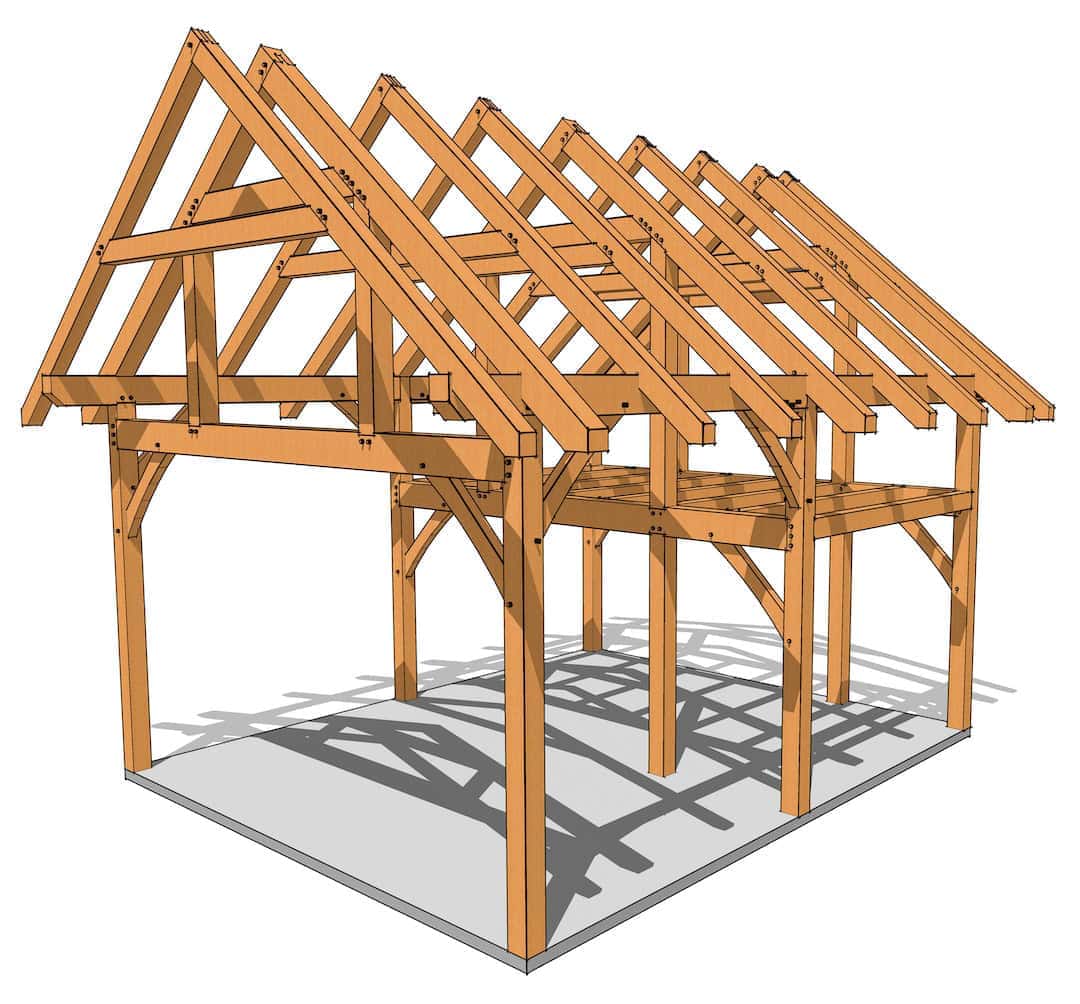

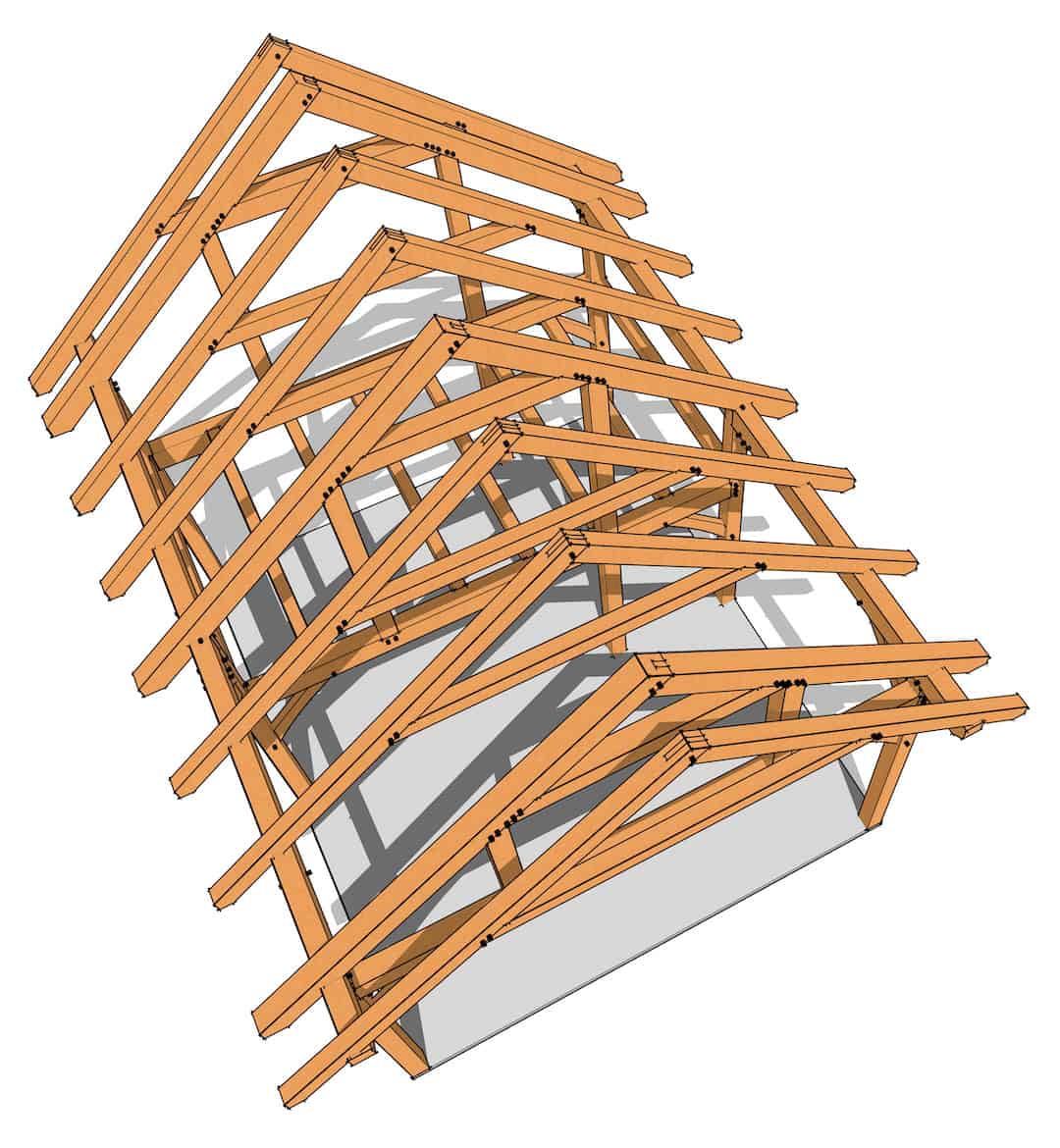

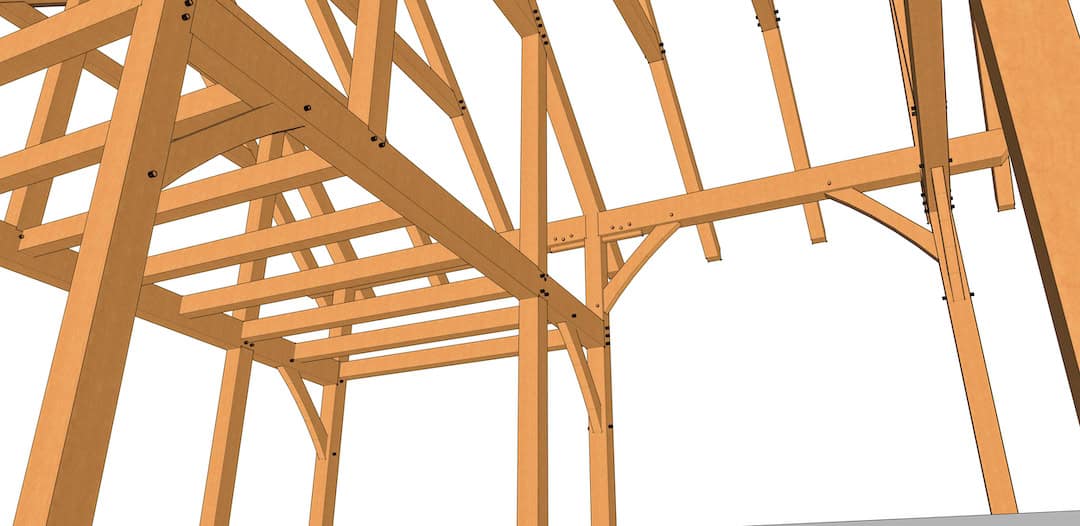

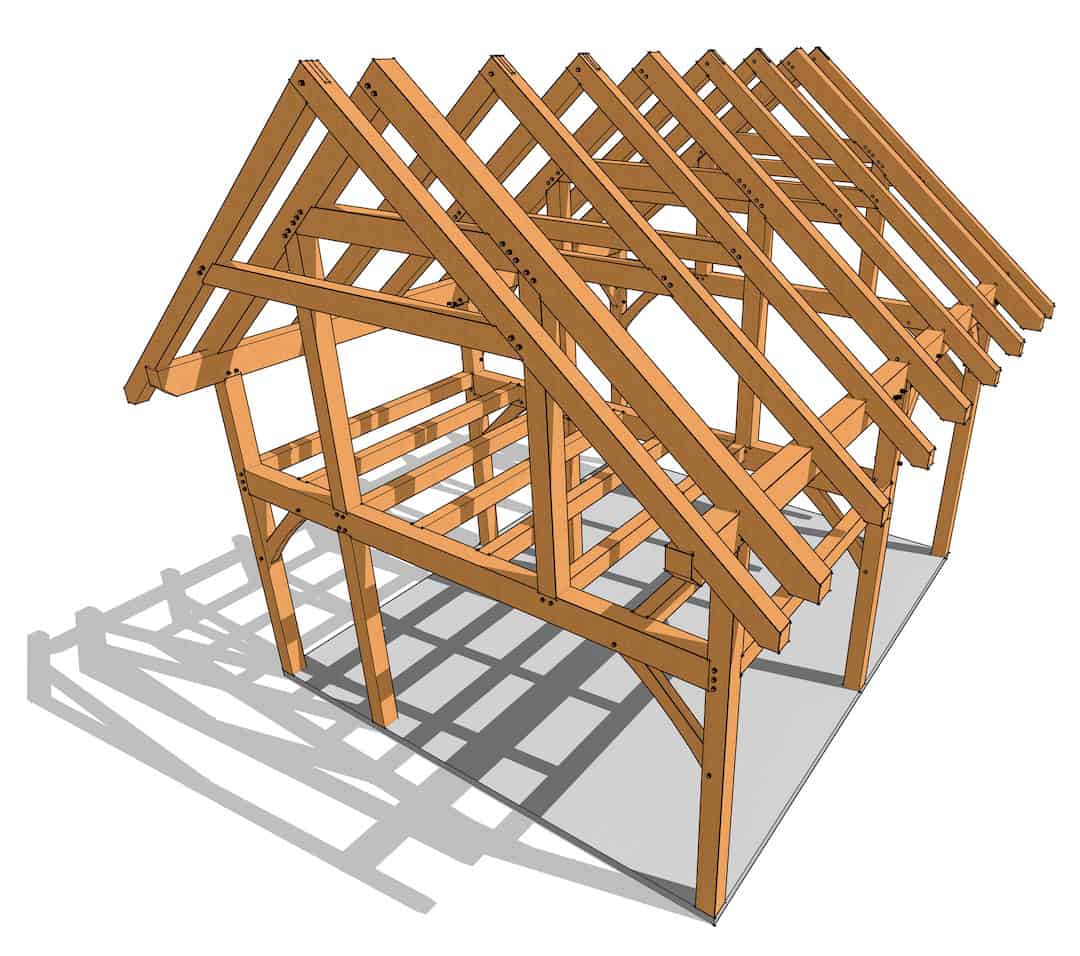

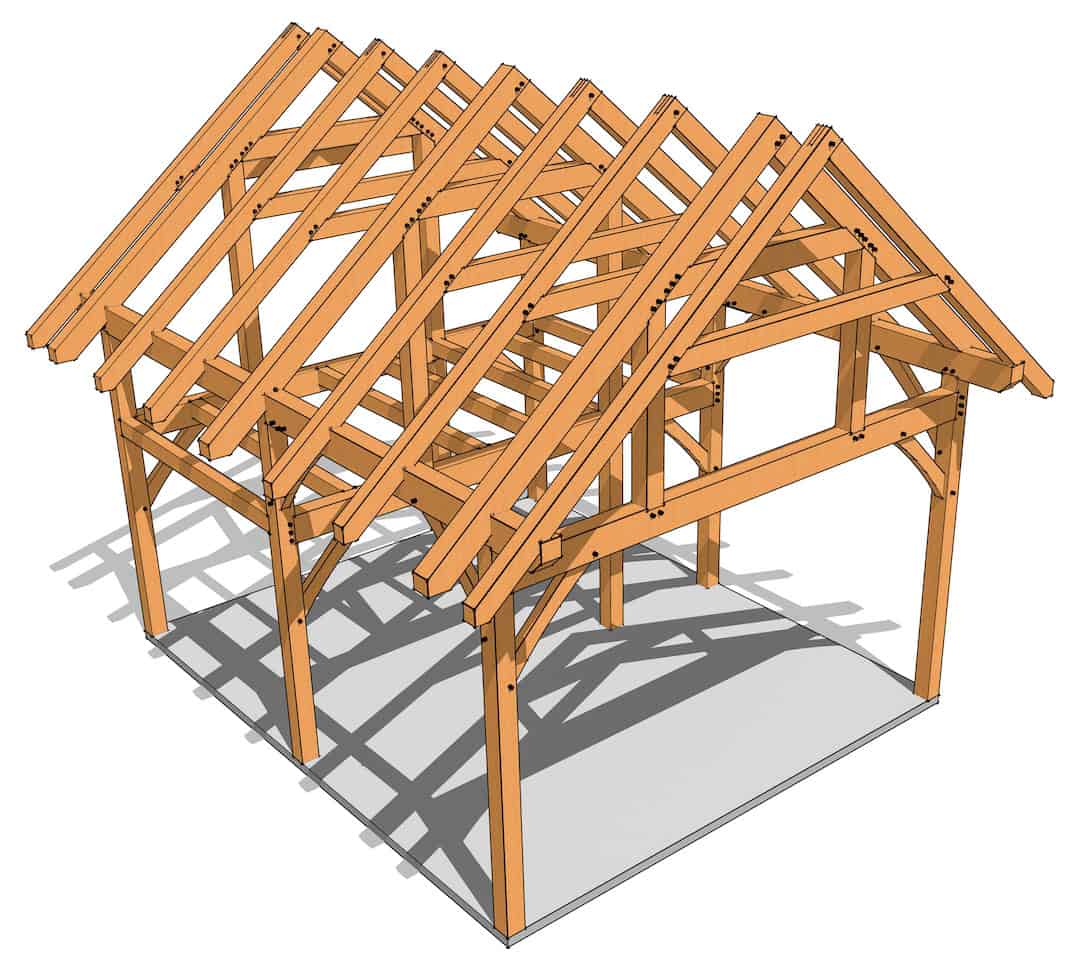

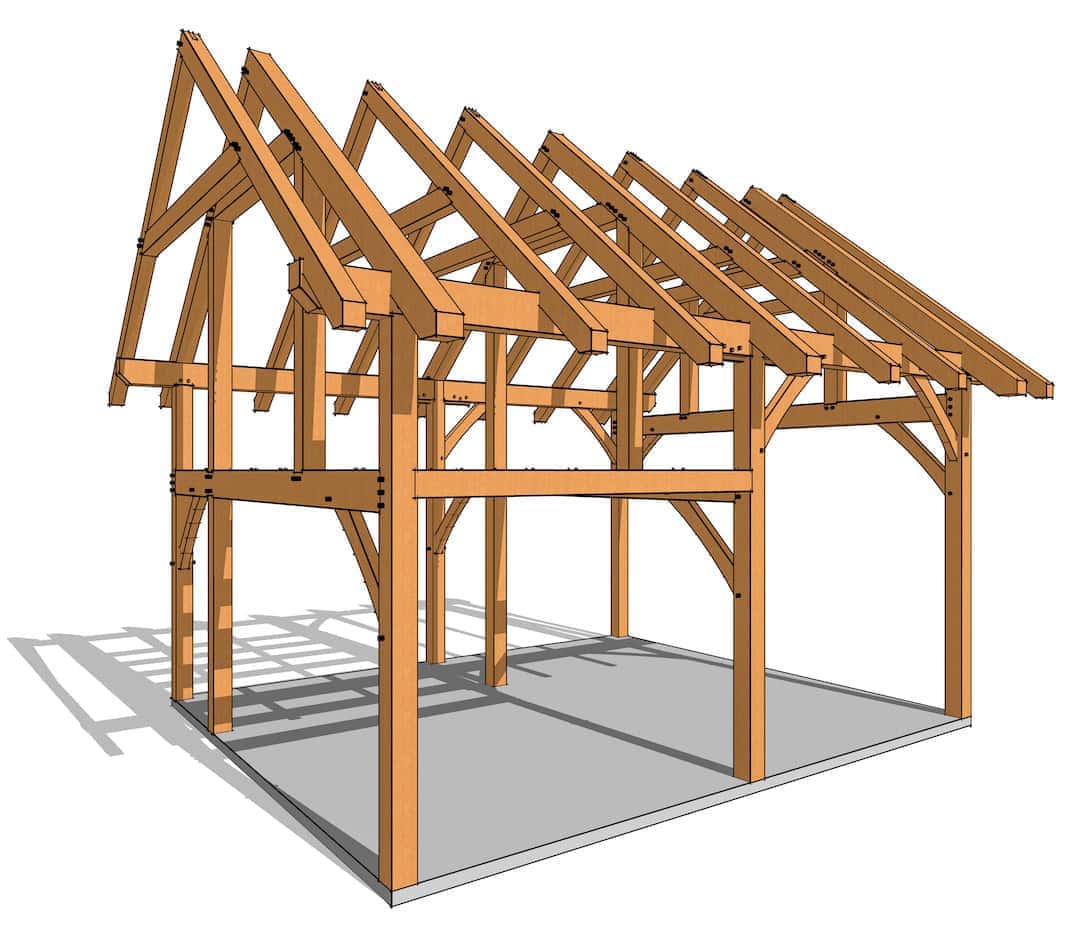

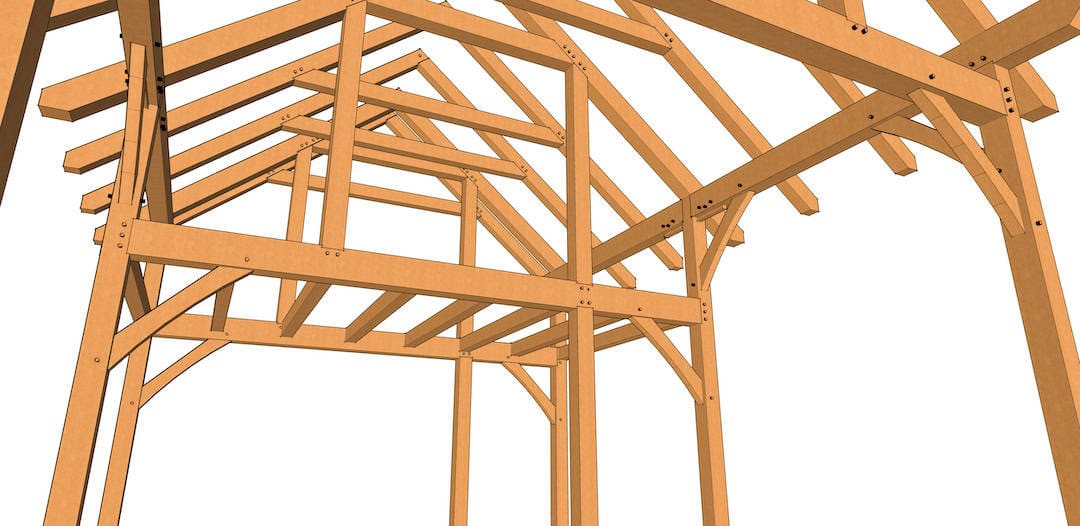

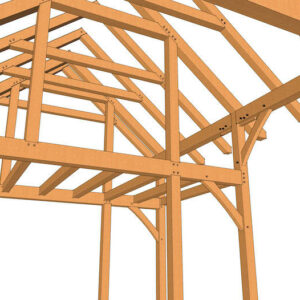

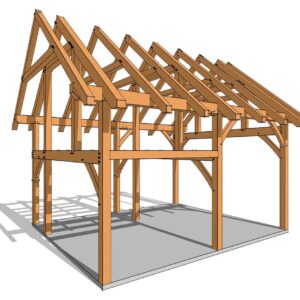

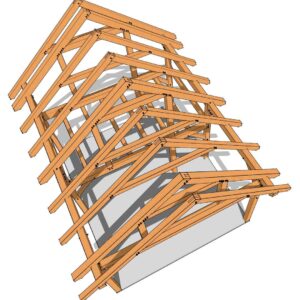

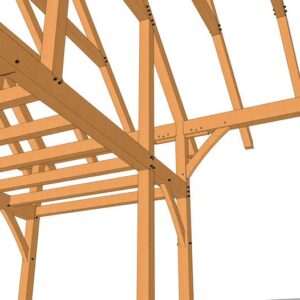

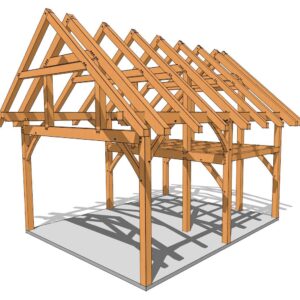

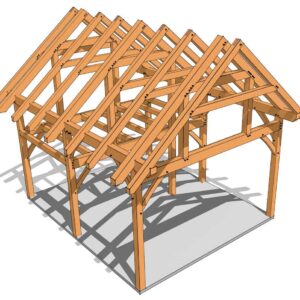

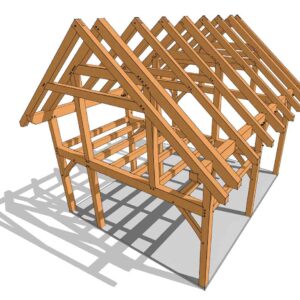

  • 3d renderings including x-ray views to show you all the details to help you visualize the frame
  • 10 inch roof pitch (39.81 degrees)

This plan is also included in the:

20x24 Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.



  • 20’ wide by 24’ long outside of post to outside of post
  • 2’ overhangs on all four sides
  • Height to Top of Plate 13’-7 ⅛”
  • Height to Peak of Roof 22’-5 3/16” with 10:12  Roof Pitch


  • Posts –8×8
  • Bent Girts – 8×12
  • Joists–6×8
  • Rafters – 6×8, 8×10
  • Plates – 8×12
  • Collar Ties – 6×8, 8×10
  • Braces – 4×8


  • 37 pages total
  • Construction Drawings – 36 pages (8 1/2×11)
  • Timber List – 1 page (8.5×11)
