Timberlinx A475
Timberlinx A475

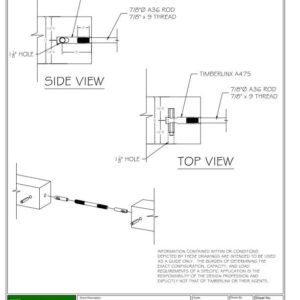

Timber Linx Post Base Drawing
Timberlinx - A475
Timberlinx - A475
Timber Linx Post Base Connection

Timberlinx – A475

$32.00

SKU: 39905 Category: Tags: ,
  • 4.75″ Pipe. ‘Half-connector’ with one pin at one end and one slot with 7/8″ internal thread at the other end.  This allows you to adjust the length of your connection.
  • Overall length 4-3/4″
  • Pinhole center from end of timber is 3-7/8″ and 5″ for a post base application.
  • Pinhole center to center = 7-7/8″ + exposed threaded rod (when you use two A475 + threaded rods to customize your own TIMBERLINX)
  • Also available in stainless steel (A475SS)
  • Use in conjunction with the Simpson CSP7 Standoff Base

Please allow 2 to 3 weeks for delivery. Contact us for expedited shipping.

APPLICATIONS FOR A475

  • Designed to customize any length of TIMBERLINX you require
  • Concealed hold-down, wood to concrete, Post Base Connector
  • (A475 attached to 7/8″ concrete expansion anchor)
  • Join wood to steel
  • (A475 attached to 7/8″ threaded rod with 7/8″ nut and washer)
  • Customers are discovering new uses for A475 every day

Connectors ship with 4″ pins

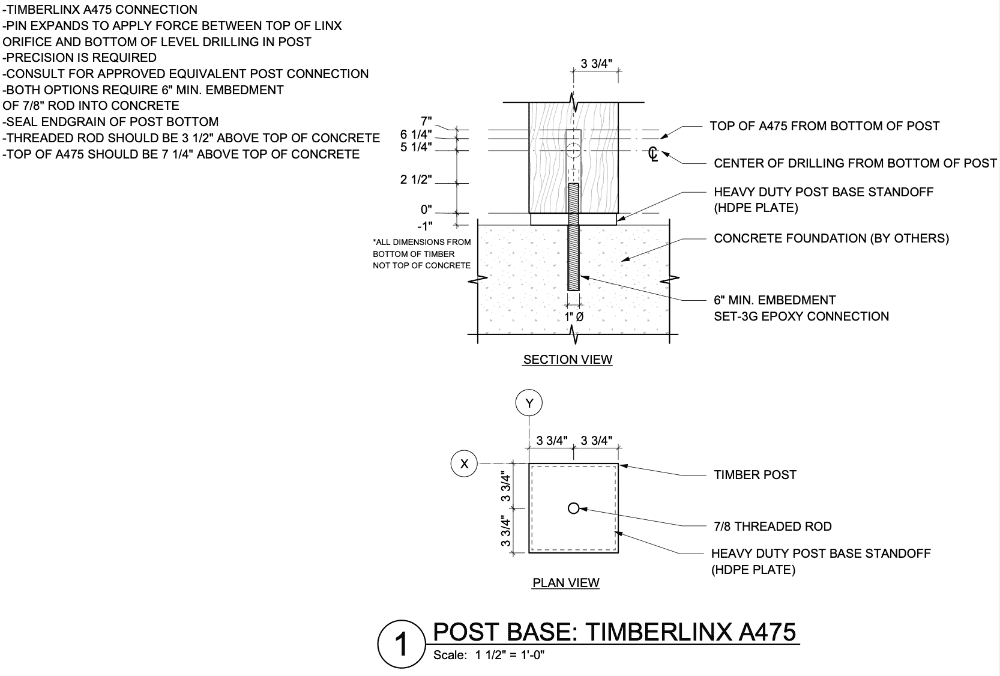

Timber Linx Post Base Drawing

Download Common Joint Configurations

Download the Installation Manual

Download  the CCMC Engineering Report on the Timberlinx connector

Please allow 2 to 3 weeks for delivery. Contact us for expedited shipping.

Photos courtesy of Timberlinx.
