Timber Frame Twin Bunk Bed Plan

$47.00

SKU: 50366 Category: Tag:

Your kids will love this  timber frame twin bunk bed plan, and  you will love showing off your skills! This would make a good beginner timber framer’s project because of the small quantity and size of the timbers. There is plenty of joinery, though, to perfect your skills.

  • This frame is designed to fit a twin size mattress, 38”x75”.

  • 6x6 posts and 6” rails make this  timber frame twin bunk bed super strong.

  • Personalize the headboard and footboard with any kind of 1” material.

We will email you links to download the plans when you make your purchase. You’ll get the 6-page construction set  showing the bunk bed in 3D views, both  constructed and disassembled. We include  plan views and elevations with all the information you need to build this frame. The 12-page piece drawing set shows every cut you’ll be making, and it’s keyed to the disassembled 3D drawing so you know where everything goes. We also provide connector and timber lists  so you know exactly what you need to purchase.


This plan is also included in the Master Plan Bundle and the Furniture Plan Bundle.

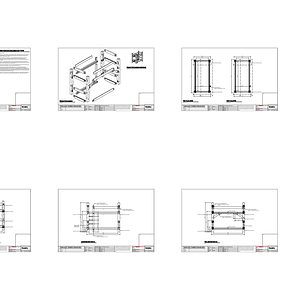

Timber Frame Twin Bunk Bed (50366) - Plan Overview
Timber Frame Twin Bunk Bed (50366) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow reproduction or modifications of our designs, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Specifications

Dimensions

  • 3’-8”wide by 7’-4” long outside of post to outside of post
  • Height to Top of Post 6’-6”

Timbers

  • Posts –6×6
  • Rails – 2×6, 3×6, 4×4, 4×6
  • Tie Beam – 4×6
  • 242 Board Feet

Plans

  • 20 pages total
  • Construction Drawings – 6 pages (11×17)
  • Detailed Piece Drawings – 12 pages (11×17)
  • Materials Lists – 2 pages (8.5×11)

30-Day Guarantee

We are so confident that you’ll love the plan, we stand behind it 100% with our 30-Day Money-Back Guarantee. It means you have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company in the business. You can buy from us with full confidence that we’ll be here to help if something goes wrong, or if the plan just doesn’t end up working out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. If for some reason it’s not working out, you can return it for a full refund. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues whatsoever with your plan, even if you’re not sure you want to return it, please get in touch with us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-Day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Ryan Whitlow

Really like the plans that are provided. Love this company
