Heavy Timber Bed Swing Plan


SKU: 40900 Categories: , , Tag:

Don’t we all dream of lazy afternoons in our gardens, relaxing in comfort? That could be your dream come true if you craft this heavy timber bed swing! It is designed to accommodate a twin-size mattress, with plenty of room for supportive pillows.  Lay back and enjoy your handiwork after cutting the mortise and tenon joinery.

  • Bed swing footprint measures 8’5”x 4’5”
  • Overall dimensions 9'9”x 5'9 1/2” x 8’5 3/4” tall
  • 6”x6” posts and top plates
  • 4”x6” braces
  • 6”x6” beams and purlins
  • Bed frame, mattress, cushions, and pillows, along with chains and swing attachment hardware to be designed and provided by the owner.

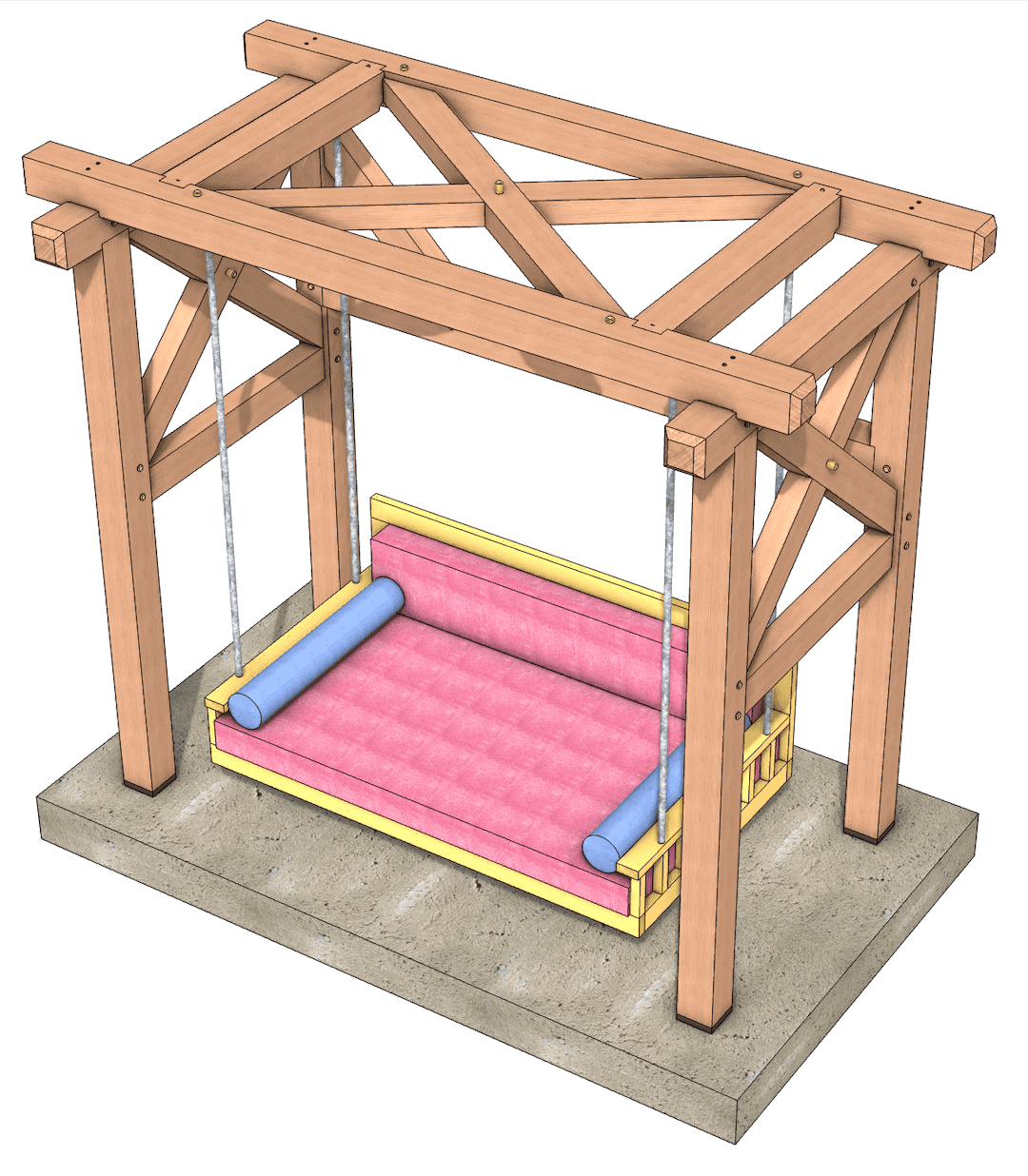

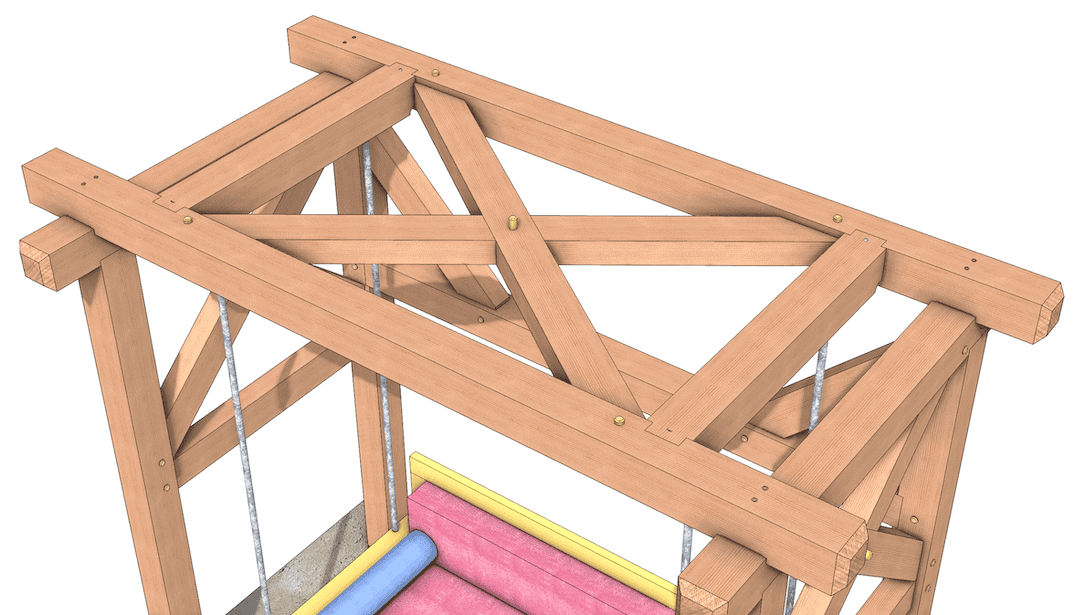

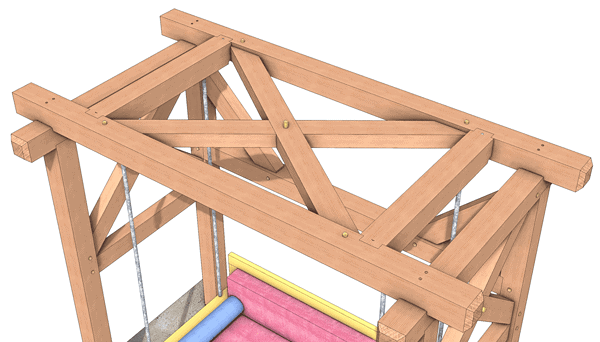

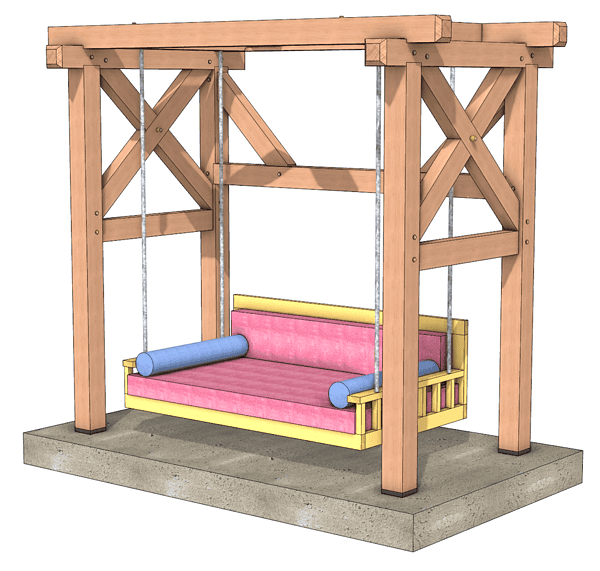

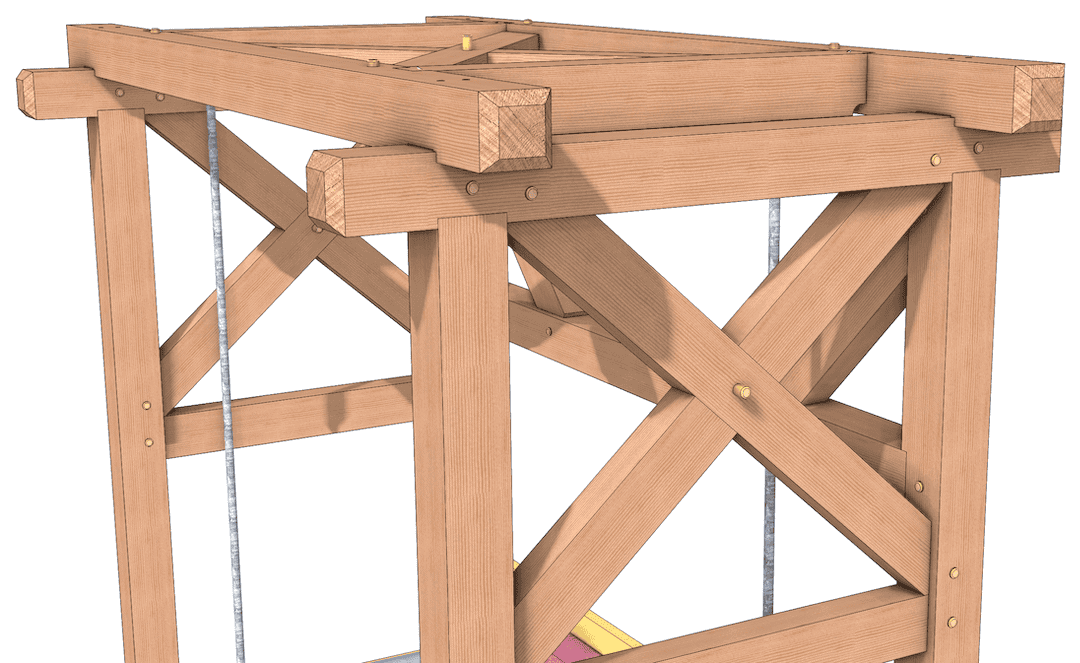

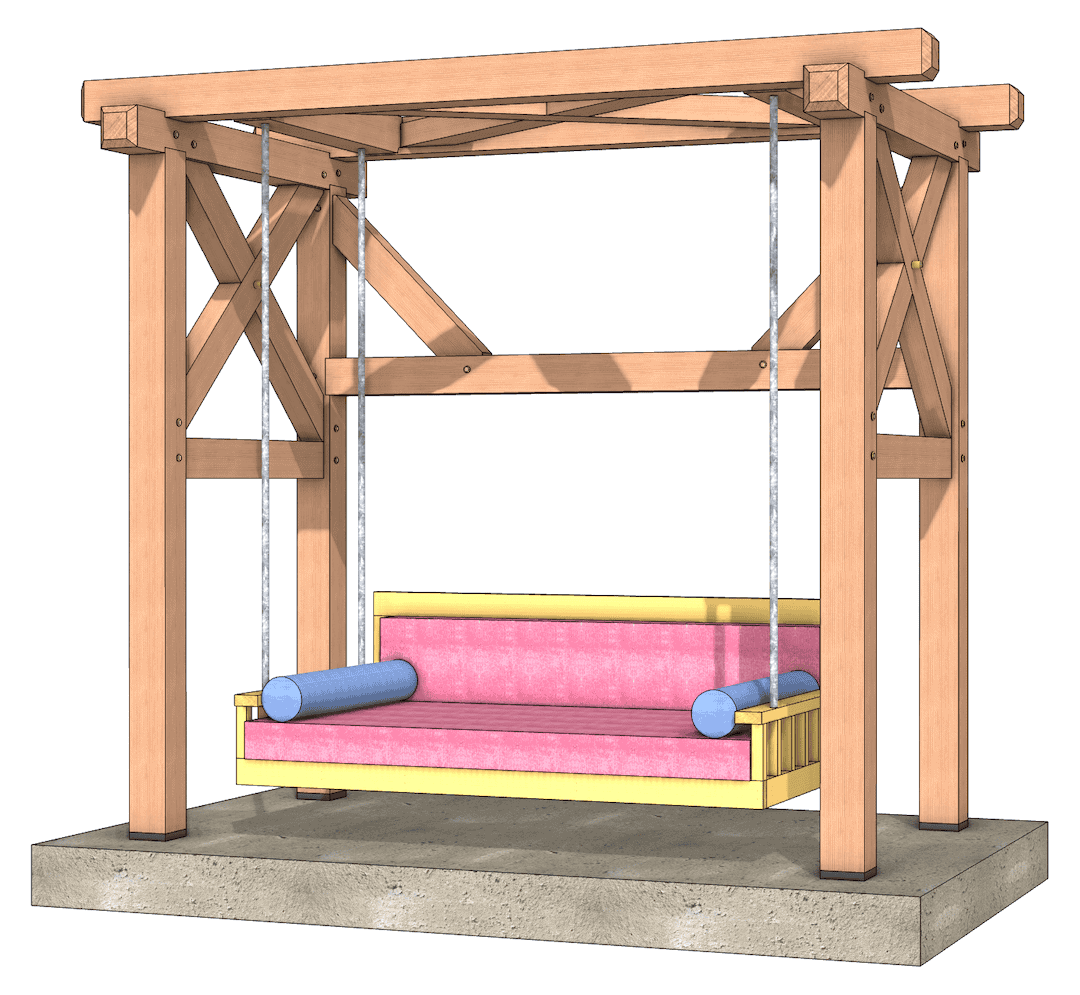

You will receive plenty of information on the instant-download plans for this bed swing as soon as you make your purchase. The 8-page plan set includes 3D drawings and renderings, dimensioned plan and elevation drawings, and plenty of notes to make everything clear. We also include 14 pages of piece drawings, showing each cut you will make on every timber. In addition, You'll receive timber and connector lists to make your purchasing process easier.
