Twin Size Timber Frame Bed Plan

$37.00

SKU: 54887 Category: Tag:

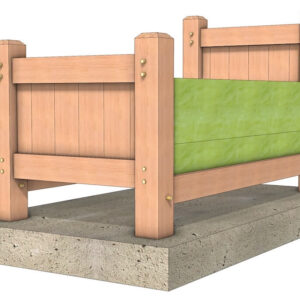

The smallest of our bed designs, this twin size timber frame bed plan still  has the elegant, honest simplicity of the rest in the series.  The chamfered tops give the  rugged 6×6 posts a bit of embellishment.  Crafting this bed is a great way to bring the strength and beauty of timber frames into your guest room or kid’s bedroom.  There’s plenty of traditional mortise and tenon joinery to show off to your friends!

  • Overall dimensions 3’-8” x 7’-4”
  • Headboard 4’-3 ¾” tall; footboard 3’-3 ¾” tall
  • 1 ¼” x 1” channel for decking for headboard and footboard decking,  or use the material of your choice.
  • The platform for the bed to be determined by the purchaser if the box spring is not utilized.

You will receive links to download the plan set pdfs as soon as you make your purchase. The construction set contains 3 pages of fully dimensioned and notated drawings so you can clearly understand how to cut and assemble the bed frame. There are 7 pages in the piece drawing set, including  2D and 3D drawings of every timber, with each cut clearly dimensioned. And we also include  peg and timber lists, so that you know exactly what to purchase to get started building your bed.

For more information about this plan please visit its page at Twin Size Timber Frame Bed.  This plan is included in our Plan Bundle.

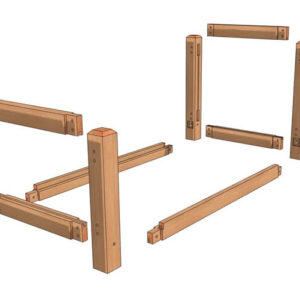

Twin Size Timber Frame Bed (54887) Interactive 3d Model

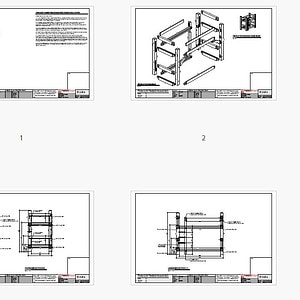

Twin Size Timber Frame Bed Plan (54887) - Plan
Twin Size Timber Frame Bed Plan (54887) - Piece Drawings

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.

Specifications

Dimensions

  • 3’-8”x wide by  x7’-4 .long outside of post to outside of post
  • Headboard 4’-3 ¾” tall
  • Footboard 3’-3 ¾” tall

Timbers

  • Posts –6×6
  • Rail – 4×6
  • Tie Beams – 4×6
  • Total of 118 Board Feet

Plans

  • 12 pages total
  • Construction Drawings – 3 pages (11×17)
  • Detailed Piece Drawings – 7 pages (11×17)
  • Materials Lists – 2 pages (8 1/2×11)
