24×36 A-Frame House Plan

$197.00

SKU: 6762 Categories: , Tags: ,

This 24x36  A-Frame House Plan is a truly unique and exciting design! The steeply pitched roof creates a soaring ceiling, ample  headroom in the loft bedroom and has a timber frame interior. There is plenty of opportunity to bring in natural light in the four A-frame exterior faces. And the cruck-style braces and curved collars create  great character.

  • Overall dimensions 22-11 ¾” x 34’-11 ¾”
  • Roof pitch 24:12
  • Bedroom loft overlooks the great room and kitchen.
  • Ridge height +21’-6 ⅞”; top of rafters +21’-10 ⅜”

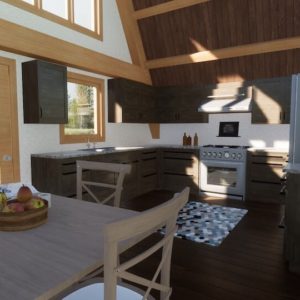

  • Plan set includes layout of kitchen, bath, stairs and loft bedroom.

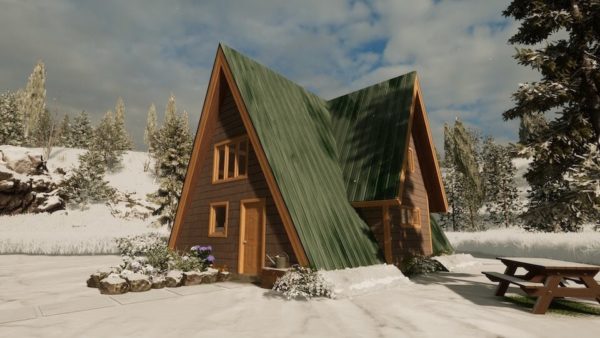

A Frame Cabin in the Snow

The information we provide with this plan is extensive!  When you make your purchase you will receive  links to download the plan set PDFs. The construction set has 19 pages full of 3D drawings,  post, beam and roof plans, and several transverse and longitudinal sections.  There are plenty of detail drawings and elevations. The piece drawing set has a whopping 60 pages showing you every timber in 2D and 3D, with all the cuts dimensioned. And we include timber and connector lists so there is no guesswork in procuring your materials.


This plan is also included in the Master Plan Bundle and the Timber Frame Home Plan Bundle 1.

24x36 A-Frame Plan (06762) Interactive 3D Model
24x36 A-Frame Plan Plan Overview
24x36 A-Frame Plan Piece Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 21’-8 ¾” wide by 34’-11 ¾” long outside of post to outside of post
  • Height to Top of Girt  +8’-0 ½”
  • Height to Peak of Roof 21’-10 ⅜” ” with 24:12 Roof Pitch

Design

  • First Floor 756 s/f; Second Floor 312 s/f; Total Heated 1068 s/f
  • Loft Bedroom
  • One Bathroom
  • Washer Dryer Closet (Stacked)

Timbers

  • Posts – 8×8
  • Girts – 8×10, 8×12
  • Collar Ties – 8×12
  • Ridge –6×10
  • Rafters – 8×10
  • Purlins –6×6
  • Ridge Beam –6×10
  • Braces – Wind Braces- 8×10

Plans

  • 81 pages total
  • Construction Drawings – 19 pages (11×17)
  • Detailed Piece Drawings – 60 (11×17)
  • Materials Lists – 2 pages (8 ½ x 11)
