24×36 Gambrel Barn Home Plan

$197.00

SKU: 43608 Categories: , , Tags: , ,

 The dual roof pitches give this gambrel timber frame barn home its characteristic shape, and gives you more space on the second level. This plan can be used to create a three bedroom home or a barn for storage or horses. You can tuck plenty of storage into the space outside of the loft posts. This plan is designed with a large dormer to bring light into the second level, and a shed roof along the first level to use as a delightful sitting porch (of course, you have the option to enclose it).

Plan Specifications:

  • Main floor 864 sq ft
  • Loft approx. 315 sq ft
  • Porch approx. 435 sq ft
  • 3 Bedrooms
  • 2 1/2 Baths

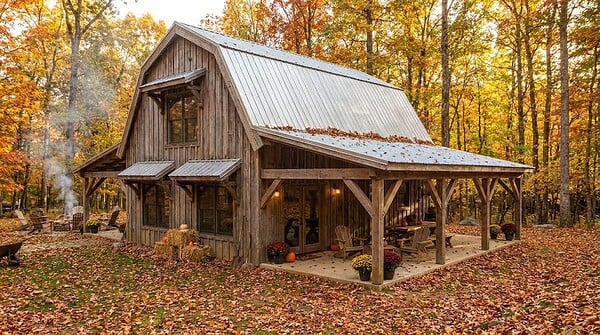

24x36 Gambrel Barn Home Plan Exterior

Bonus! When you buy this plan, you will also gain access to the 24x36 Gambrel Barn Plan -  a version of it designed  as a barn (with no allowance for 6" exterior walls). It measures actual 24x36 from outside to outside of the posts. Two plans for the price of one!


This plan is also included in the Master Plan Bundle and the Timber Frame Home Plan Bundle 1.

24x36 Gambrel Barn Home Plan (43608) Interactive 3D Model
