If you are looking for an artistic frame to show off your skills, we have just the thing for you with this 12x24 Gothic arch timber frame! This frame is so graceful and is also the perfect size for many different purposes. With 288 square feet between the posts, this would serve well as a dining/kitchen pavilion, a backyard retreat or a beautiful greenhouse frame.

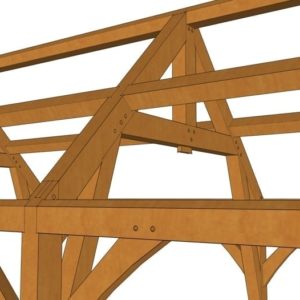

The pegged mortise and tenon joints between the rafters, collar tie, and struts create a beautiful rhythm. And the king post to ridge connections top off the frame at a generous height of 15 feet creating a high volume ceiling. The sharp angle of the struts give this arbor its gothic feel. The purlins in the 12 in 12 pitch roof will support your choice of material.
This frame utilizes 6x8 and 6x6 material, and these smaller-sized members make moving material around your shop easier. With only two bays, you’ll be able to cut and raise this frame in short order.
The plan set consists of 28 pages of instantly-downloadable drawings including three-dimensional renderings so that you can visualize the finished product. We also provide plan, elevation and section drawings, as well as detailed dimensioned drawings of every timber, showing each cut you will make to create this 12x24 Gothic arch timber frame. We also include a materials list so you can easily create a budget and procure your materials.
Frequently Asked Questions
Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.
Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE.
If that is something that would interest you, fill out the brief questionnaire HERE or click Get Started Today on the main Design Page from above.
As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting. Please allow a few days for our team to respond.
Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.
The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements. Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.
We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire. Armed with that information, we can get our heads into your project before we speak. That way we are best prepared to answer all of your questions.
As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.
100% Money Back Guarantee for 30-Days
Purchase With Confidence...It's Risk Free!
If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
