16×18 Timber Frame Plan

$97.00

This 16x18 timber frame king post plan is big on the charm factor! The plate stands over 9 feet high, and the ceiling soars up from there at an 8:12 pitch. That makes the peak almost fourteen feet high! The upper bents connecting the king posts add lots of interest to space, as do the slight curve on the knee braces. The ample 24-inch overhangs provide plenty of protection from sun and rain.

There are many possibilities of how this frame could be finished… a roomy workshop, a living area addition to your home, a freestanding outdoor kitchen with plenty of space for a dining area. Let your imagination run wild! The interior space is 288 square feet, but the ceiling volume makes it feel much bigger than that.

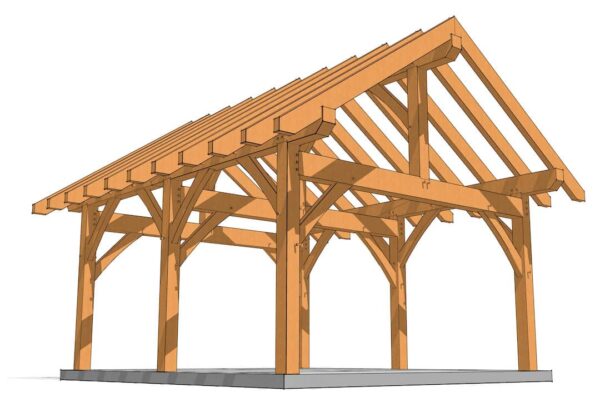

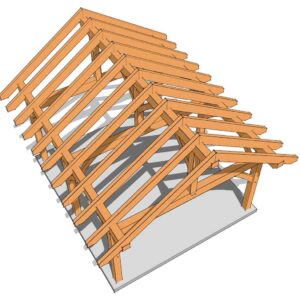

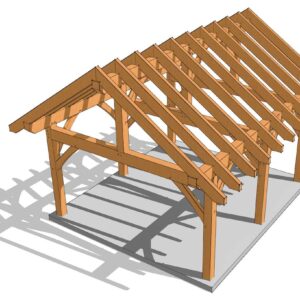

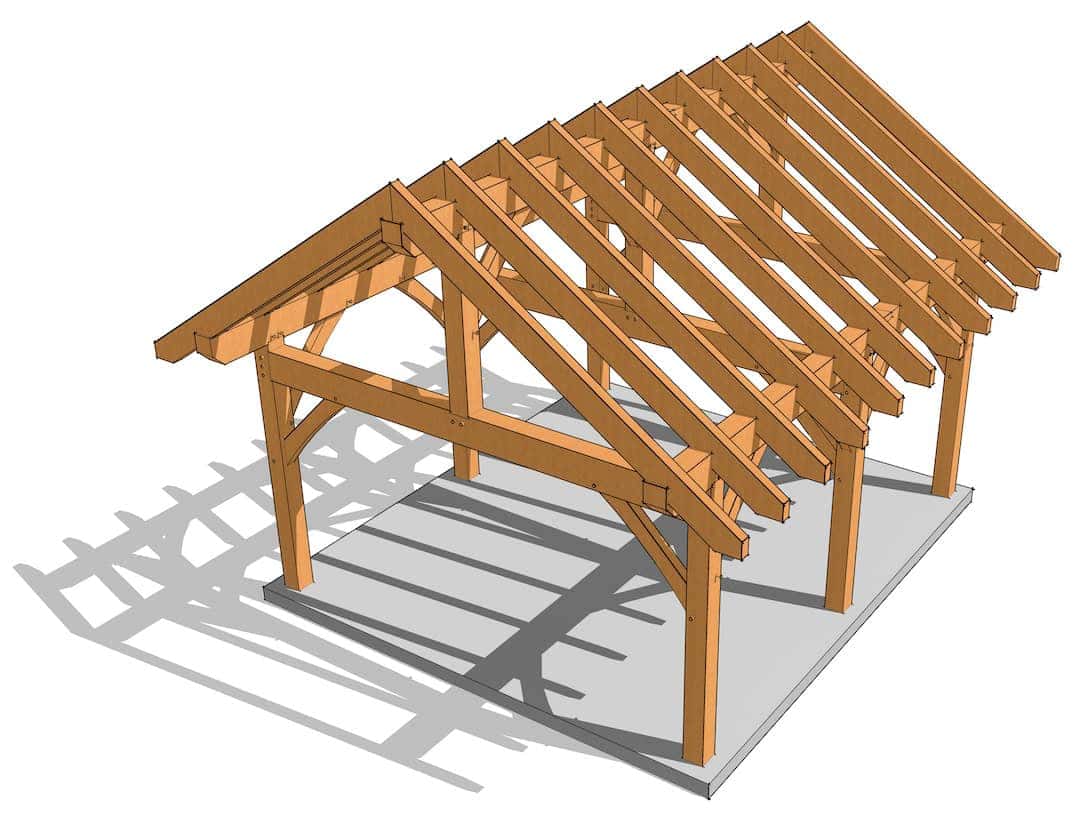

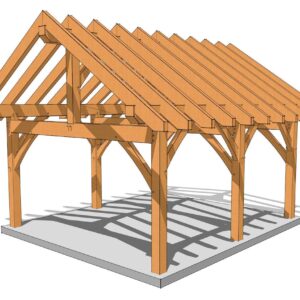

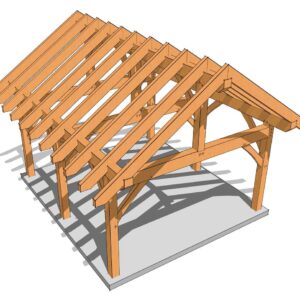

We provide a drawing set full of plan views, elevations, section drawings, and individual piece drawings. There is a full timber list to expedite your timber purchase. We also include 3D renderings, including x-ray views to show you all the details and joinery to help you visualize the frame. The drawings are formatted in PDF for instant download. They are sized at 8-½” x 11”, for easy printing at home.

16×18 Timber Frame Plan Interactive 3d Model

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 16’  wide by 18’ long outside of post to outside of post
  • 2’ overhangs on all four sides
  • Height to Top of Plate 9’-10”
  • Height to Peak of Roof 15’-9” with 8:12 Roof Pitch

Timbers

  • Posts –8×8
  • Ridge –8×12
  • Rafters – 4×10
  • Plates – 8×12
  • Tie Beams – 8×12
  • Braces – 4×8

Plans

  • 34 pages total
  • Construction Drawings – 23 pages (8.5×11)
  • Post and Beam Conversion  Drawings – 7 pages (8.5×11)
  • Roof Pitch Options – 3 pages (8.5×11)
  • Timber List – 1 page (8.5×11)

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
