16×24 King Post Plan

$97.00

This timber frame is perfect for a small shop, pavilion, garage or cabin and would be a great first project for you.  The frame measures 16’ wide and 24′ deep from post to post, providing 2 bays and a 2′ overhang on all four sides.  The plate height is 9’10 allowing plenty of head height.   The frame is cut with 8x timbers and can be finished out to provide a strong durable building that will be fun to cut and raise.


  • Instant 33 page PDF download formatted in 8.5″ x 11″ for easy printing at home.
  • Detailed individual piece drawings
  • 8″ roof pitch with bonus drawings for 3″ through 12″ pitch roof plans
  • Full timber list
  • Post and Beam Conversion Plan
This lake side pavilion will be a great place to host a picnic, wedding or any other family event.

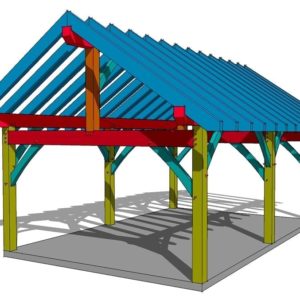

16x24 King Post 3d Interactive Model

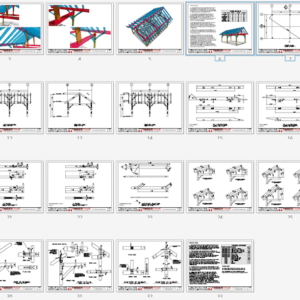

16x24 Plan Overview Compiled

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

PLAN PURCHASES AND GRANT OF LICENSE

This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).

Grant of License.

Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).

This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.

Use of License.

Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.

Ownership.

All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.

Fees.

The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).

Termination of License

This Agreement and the License granted hereunder will terminate immediately upon:

(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.

(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.

Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.

No Derivative Works. No Reproduction. No Modification.

You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.

Reservation of Rights.

Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

DISCLAIMER OF WARRANTIES.

EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.

Plan Purchase Options

Instant Download, Instant Download + Printed Set

Specifications

Dimensions

  • 16′ wide 24′ long outside of the post to outside of the post
  • 2′ overhangs on all 4 sides
  • Height to Tie Beam 8’8″
  • Height to Top Plate 9’10”
  • Height to Peak of Roof 15’8″ w/8/12 Roof Pitch
  • Roof pitch drawings from 3/12 through 12/12
  • Post and Beam Conversion Plan included

Timbers

  • Posts – 8×8
  • Tie Beam – 8×12 – Can be modified to a 8×10
  • Plate – 8×12 or 8×10
  • Ridge – 8×12 or 8×10
  • Rafters – 4×10
  • Knee Braces – 4×8

Plans

  • 33 pages
  • Printable at 8.5″x11″ (Letter)
  • Construction Drawings – 14 pages
  • Detailed Piece Drawings – 9 pages
  • Roof Pitch Variations – 3 pages
  • Post and Beam Conversion Plan – 7 pages

30-Day Guarantee

We are so confident that you’ll love the plan, we stand behind it 100% with our 30-Day Money-Back Guarantee. It means you have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company in the business. You can buy from us with full confidence that we’ll be here to help if something goes wrong, or if the plan just doesn’t end up working out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. If for some reason it’s not working out, you can return it for a full refund. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues whatsoever with your plan, even if you’re not sure you want to return it, please get in touch with us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-Day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.

Fastener Kits

Procuring the hardware for your project is easy with our timber frame parts kit!  Just purchase what you need from Timber Frame HQ with one click!  You don’t need to scrounge around for your pegs or find just the right screws for your rafters and we always throw in some extra just in case. We’ve got you covered! With this kit, you get:

  • 10% Discount for purchasing as a fastener kit bundle rather than separately!
  • (60) 260 mm TBS screws, for attaching the rafters to the plates and securing the scarf joints.
  • (30) 300 mm TBS screws, for attaching rafters to the ridge.

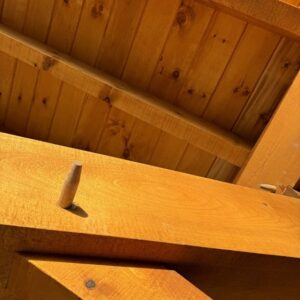

  • (86) Hardwood Pegs for securing your mortise and tenon joinery. We provide 25mm diameter pegs to use with our Wood Owl Bits (1″ nominal, 25mm actual).
  • Optional: (1) Wood Owl Ultra Smooth Auger Bit at a 10% discount, perfect for drilling the fastest and smoothest holes for your pegs.

This kit is tailor-made for use with the 16×24 King Post Plan when constructed as a timber frame structure. The kit does not include any post base hardware, which is also available in the TFHQ shop.

Please allow 3-4 weeks for delivery.

Learn More

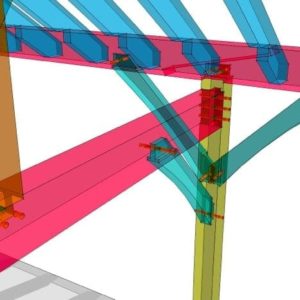

Post and Beam Fastener Kit

With this kit, you get:

  • (6) 200 mm Alumidi Connectors for junctions between posts and tie beams
  • (3) 160 mm Alumidi Connectors for junctions between tie-beams and king posts
  • (9) Simplex Barrel Bolts for junctions between plates and posts, and plates and king posts
  • (56) 155 mm SBD self-drilling screws, for fastening the Alumidi connectors (We throw in 10% extra in case of loss or errors).
  • (66) 240 mm TBS+evo screws, for attaching the rafters to the plates, please refer to the plans for other options and quantity counts. (We throw in 10% extra in case of loss or errors).
  • (4) 200 mm TBS+evo screws, for securing the scarf joints
  • (79) 7 mm x 180 mm VGZ structural screws, for securing the knee braces. (We throw in 10% extra in case of loss or errors).

Timber Kit

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N

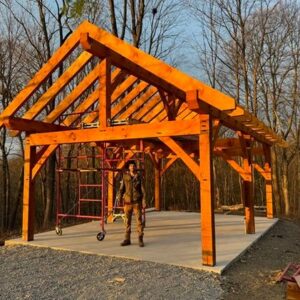

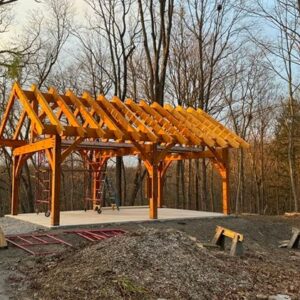

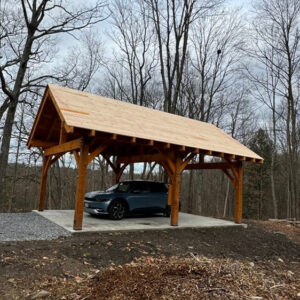

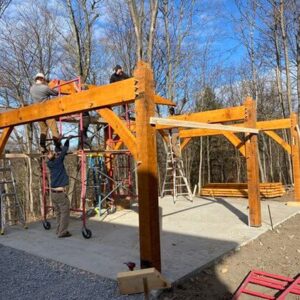

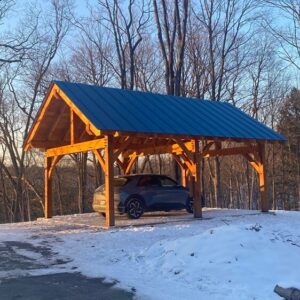

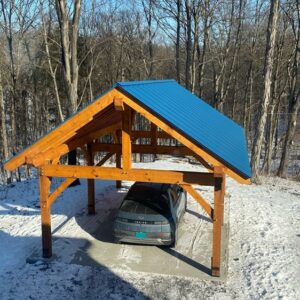

Nick Ehrman
