12×36 Timber Frame Plan with Loft

$97.00

SKU: 5792 Categories: , , Tags: ,

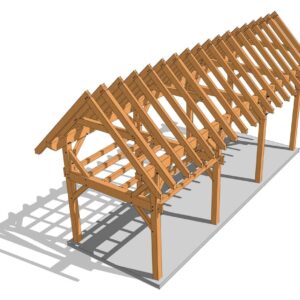

Constructed with simple common trusses and girders, this 12×36 timber frame plan with loft will be an exciting and challenging project. The frame measures 12’ wide x 36’ long, has a 12/12 roof pitch (45 degrees) and can be easily modified to be shorter to meet your requirements. The basic roof system simplifies the raising process and with the loft you gain quite a bit of space. Use this plan design as a small cabin, open air pavilion, or any use that suits you.

Please note that, unlike most of our plans, this frame is designed as  rough-sawn. The piece drawings are shown dimensioned at the actual size of 8x8.

The plan is available in instant-download PDF format. Your plan package contains (26) pages of drawings, 3d renderings and a timber list providing you with everything that you will need to order materials and cut the timber.


This plan is also included in the Master Plan Bundle and the Timber Frame Tiny House Plan Bundle.

12x36 2d Plan Overview
