14×16 Timber Frame

$97.00

SKU: 2460 Categories: , , Tag:

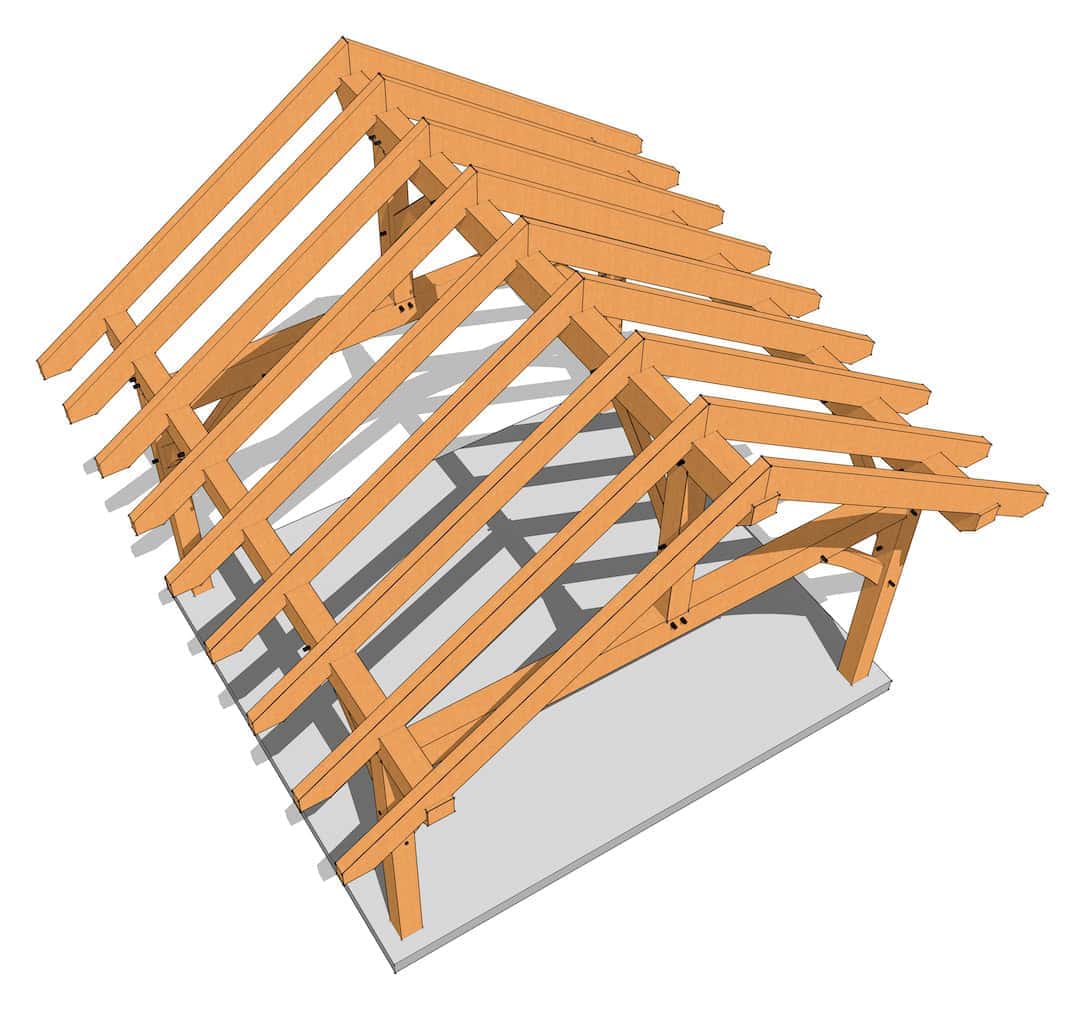

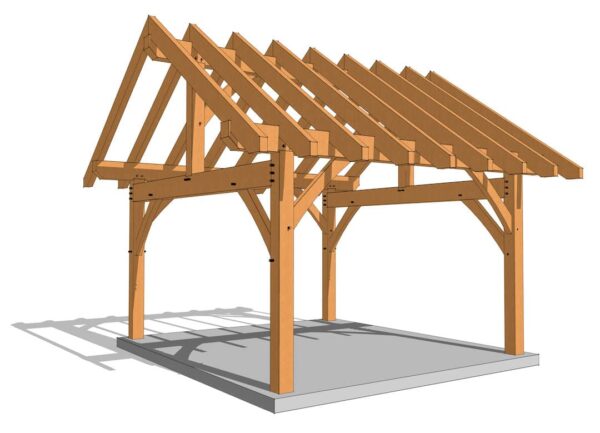

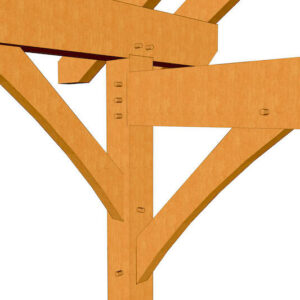

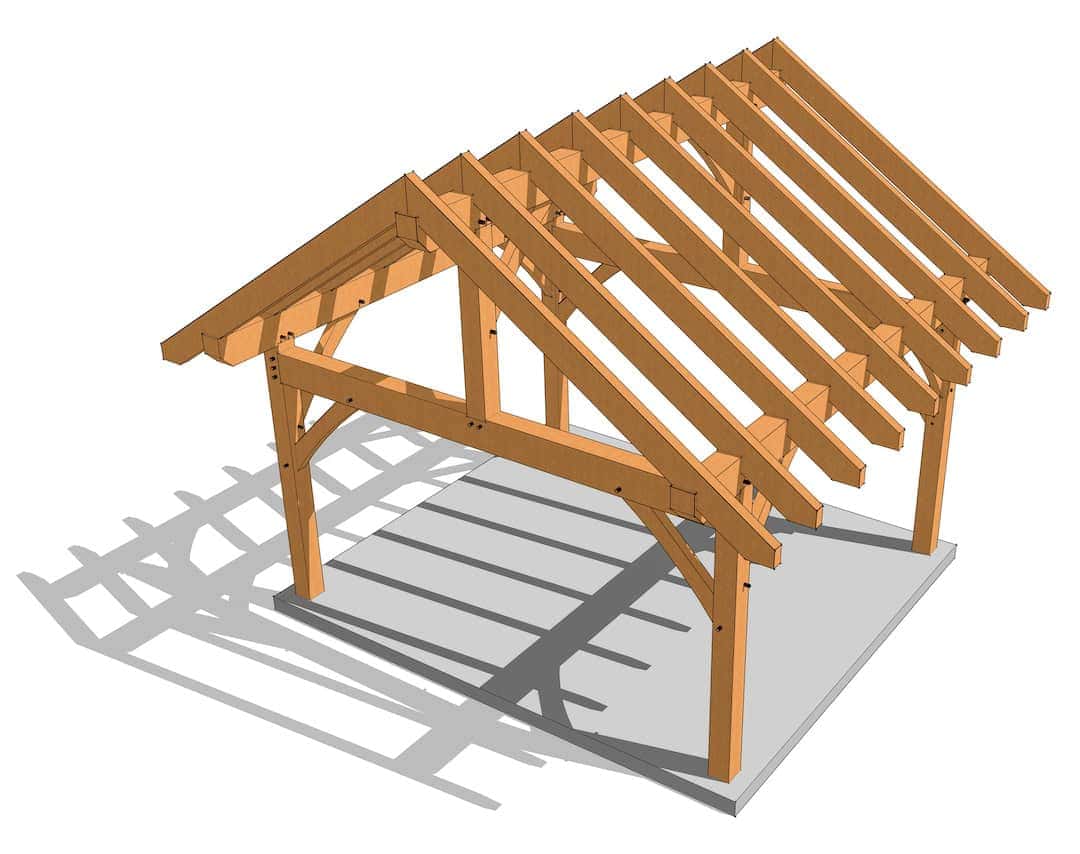

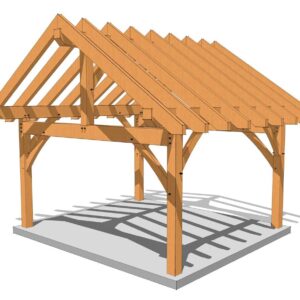

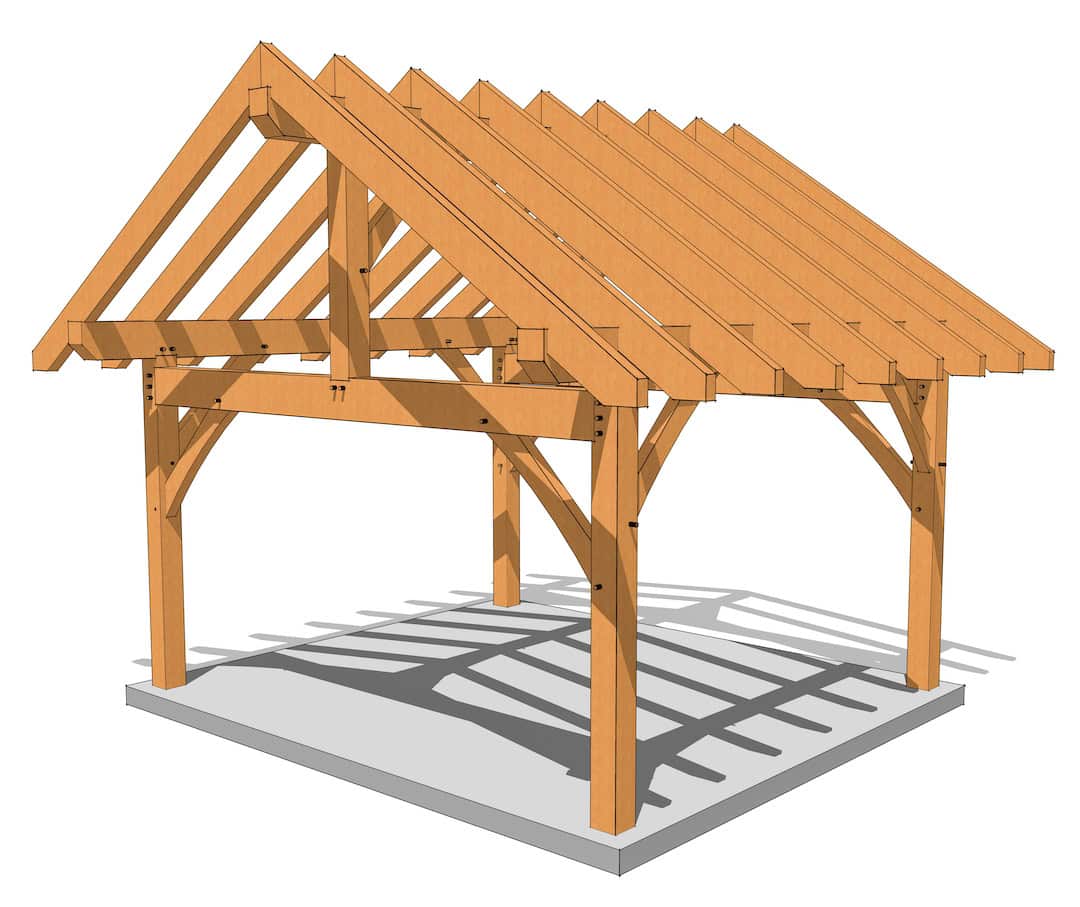

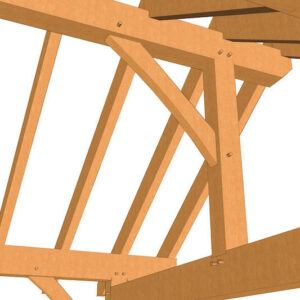

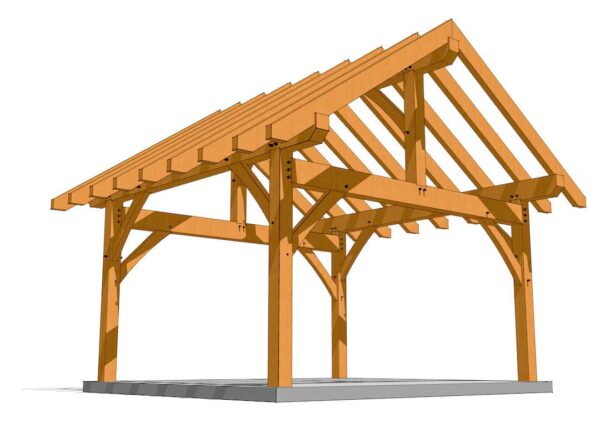

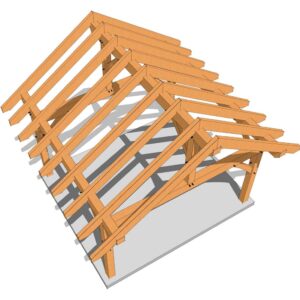

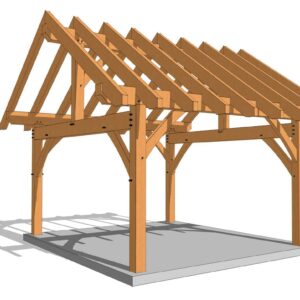

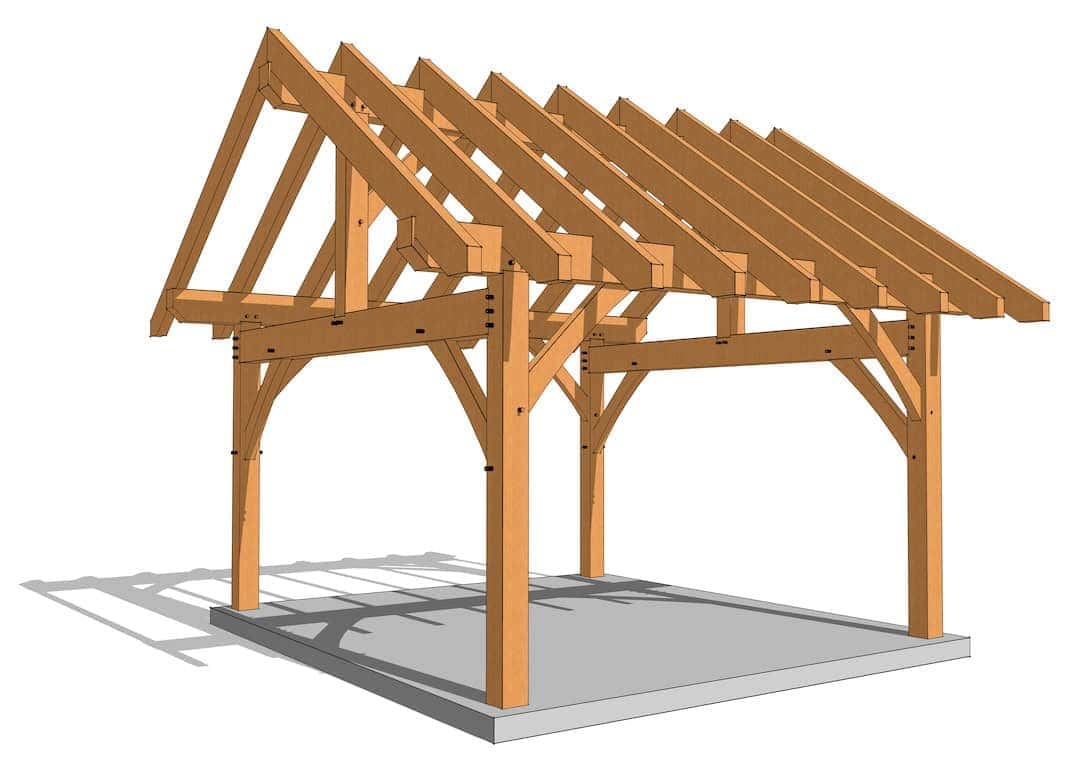

Adding a couple of feet to the dimensions of our popular DIY 16×12 plan, this 16 wide x 14 deep timber frame plan is the perfect size for a gracious front entry or an inviting canopy for a patio or deck. The rectangular size is at home as a shed or workshop, and the 8:12 roofline is attractive and simple to construct.  While the plan has an 8″ roof pitch by default we have added the dimensions for 3, 4, 5, 6, 7, 9, 10, 11, 12-inch roof pitches to allow you the option to choose.

This instantly downloadable PDF package consists of 21 pages of drawings, materials lists, and renderings, making this a fantastic project for any DIY craftsman who wants to learn about timber frame construction techniques from the ground up. Whether you’re building a patio cover or additional space for yard equipment storage, this design is simple for beginners and goes together with ease. Build this timber frame design on a concrete base or build a flooring system to create the base for an enclosed structure. Add windows, a door and walls for a simple shed. You can create a potting shed, craft studio or private getaway with this attractive package.

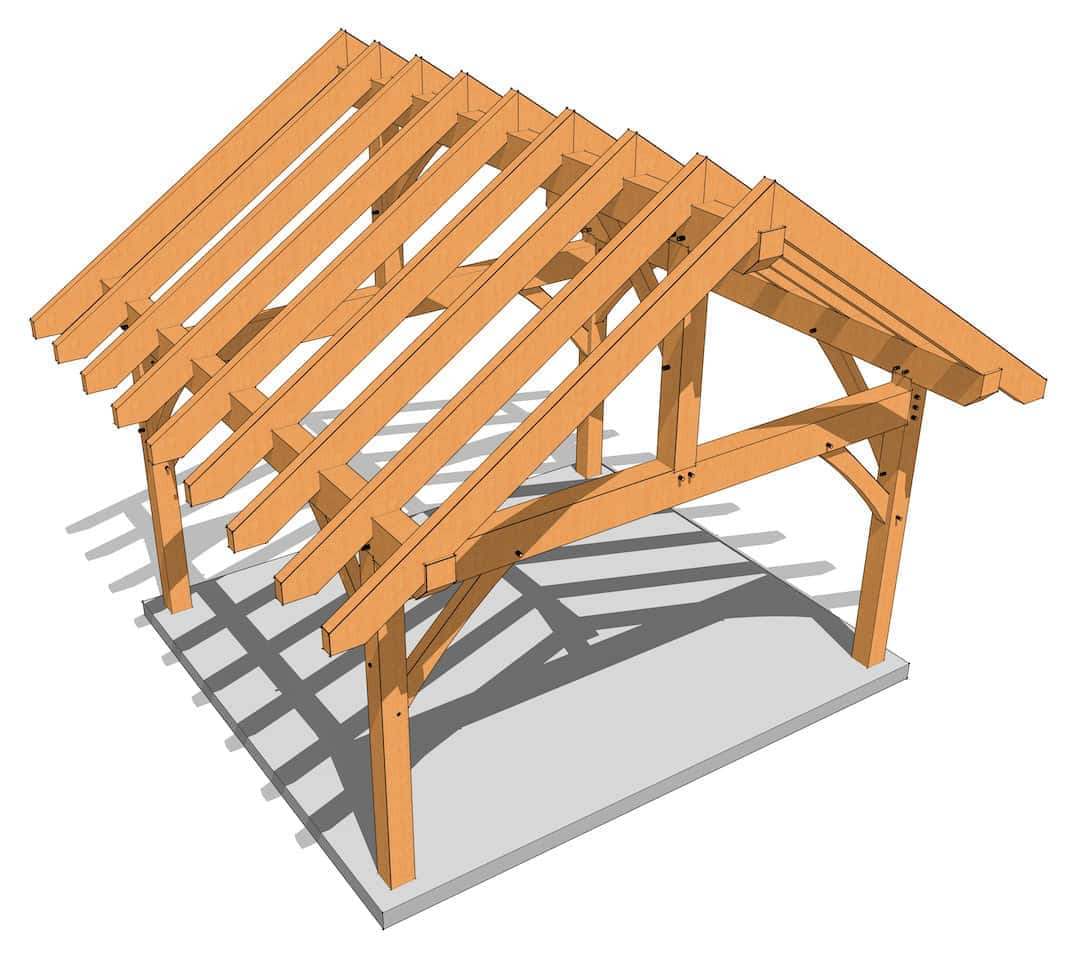

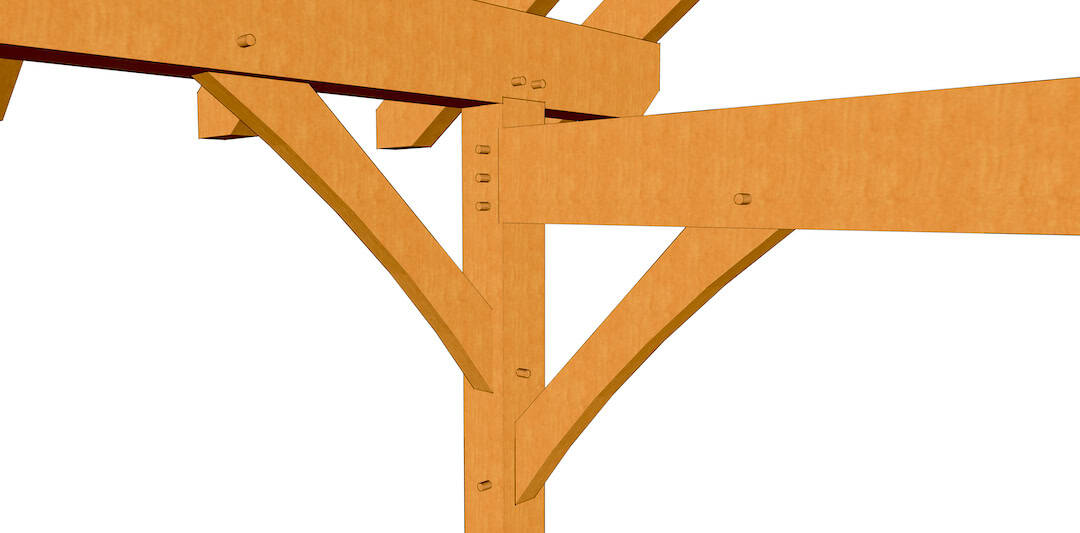

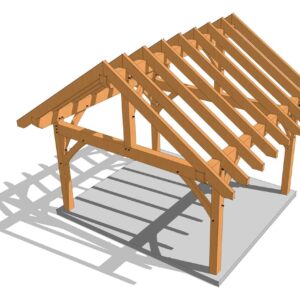

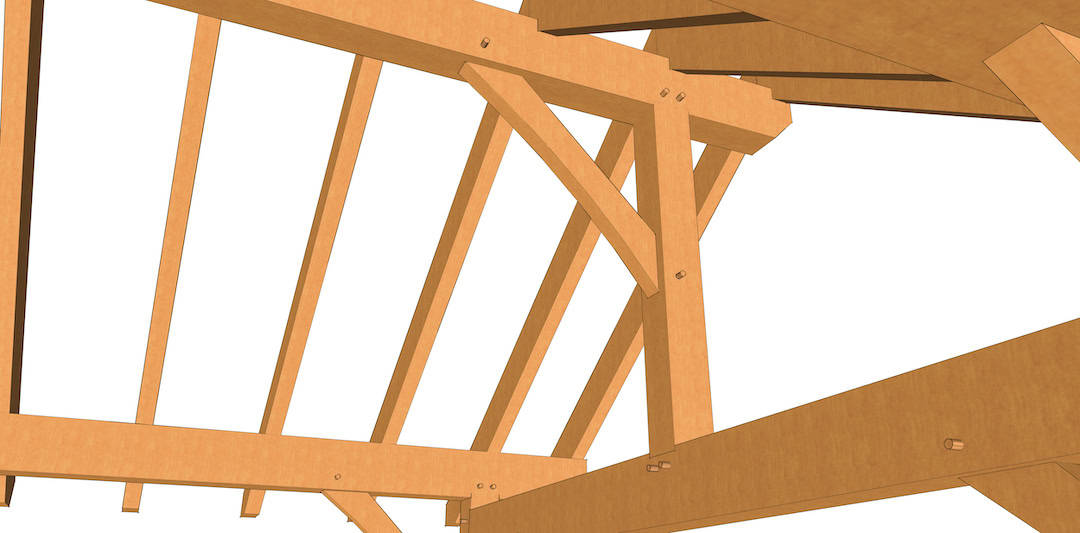

The 8/12 roofline has a generous overhang on all sides, which adds an attractive architectural feature to the building. The king posts on each end of the structure reinforces the sturdy, good looks of timber frame construction and the diagonal reinforcing members add stability as well as a rustic, handcrafted look.


This plan is included in our Plan Bundle.

14x16 Plan Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 14’ wide by 16’ long outside of post to outside of post (14’ parallel with the ridge and 16’ parallel with the gable end)
  • 2’ overhangs on all four sides
  • Height to Top of Plate 9’-10”
  • Height to Top of Ridge  14’-9” with 8:12 Roof Pitch

Timbers

  • Posts –8×8
  • Ridge –8×12
  • Rafters – 4×10
  • Plates – 8×12
  • Tie Beams – 8×12
  • Braces – 4×8

Plans

  • 32 pages total
  • Construction Drawings – 21 pages (8.5×11)
  • Post and Beam Conversion Plans – 7 pages  (8.5×11)
  • Roof Pitch Options – 3 pages  (8.5×11)
  • Timber List –  1page (8.5×11)

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
