12×24 Post and Beam Pavilion

$97.00

If you love the look and durability of timber frames but want to avoid cutting all that joinery, this 12x24 post and beam pavilion may just fit the bill! The beautiful heavy timbers in this frame are joined with T Rex connectors, Timberlinx and structural screws, which gives it plenty of strength. In fact, it was originally designed to withstand the snow loads of the High Sierras. This medium sized frame will fit into many spaces, but it is large enough to accommodate a wide variety of activities. You could make this a great outdoor kitchen/dining pavilion!

  • King post truss design with rafters, purlins and batten roof structure
  • 288 square feet between the posts
  • Designed for +/- 10 foot tall posts, which can be shortened if desired
  • Maximum overall height just under 15 feet
  • Top of tie beam is approximately 10’-3” above the ground
  • Roof pitch is 7:12

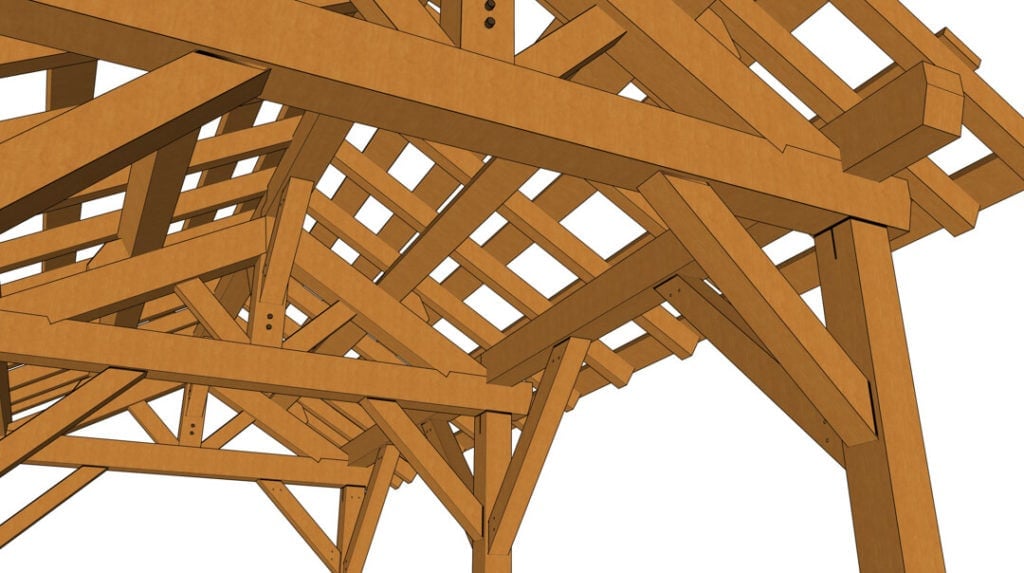

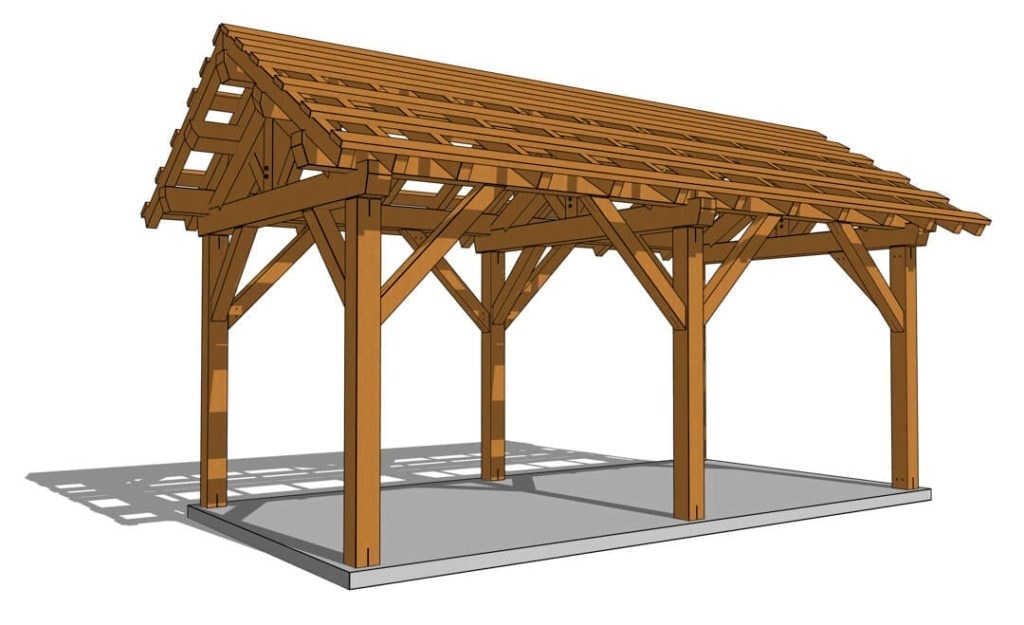

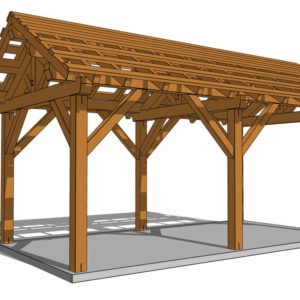

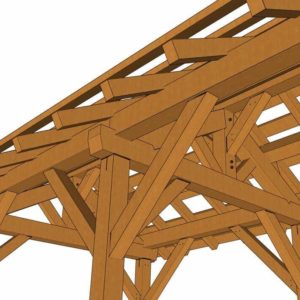

We don’t leave you scratching your head trying to puzzle out how to complete the build of this 12x24 post and beam pavilion ! Our plans give you all the information you need to get the job done. The 10-page construction set has 3D drawings, including an X-ray axonometric so you can see how everything goes together. There are dimensioned post and roof plans, elevations and sections with plenty of callouts showing where the connectors go. The 11-page piece set shows every timber with dimensions for each cut on it. You will receive a link to download the pdf plans as soon as you make your purchase. They are best printed at 11”x17”, but you can print them on letter for study purposes.


This plan is also included in the Master Plan Bundle and the Timber Frame Pavilion Plan Bundle.

12x24 Post and Beam Pavilion (42202) Construction Overview
12x24 Post and Beam Pavilion (42202) Piece Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
