18×24 Timber Frame Pavilion Plan

$97.00

Check out this great 18x24 timber frame plan!  If you want to make the structure longer or shorter than 24 feet, that can be done easily with only slight modification to the plan. All you need to do is increase the length of the plates and purlins, and increase the spacing between the posts.

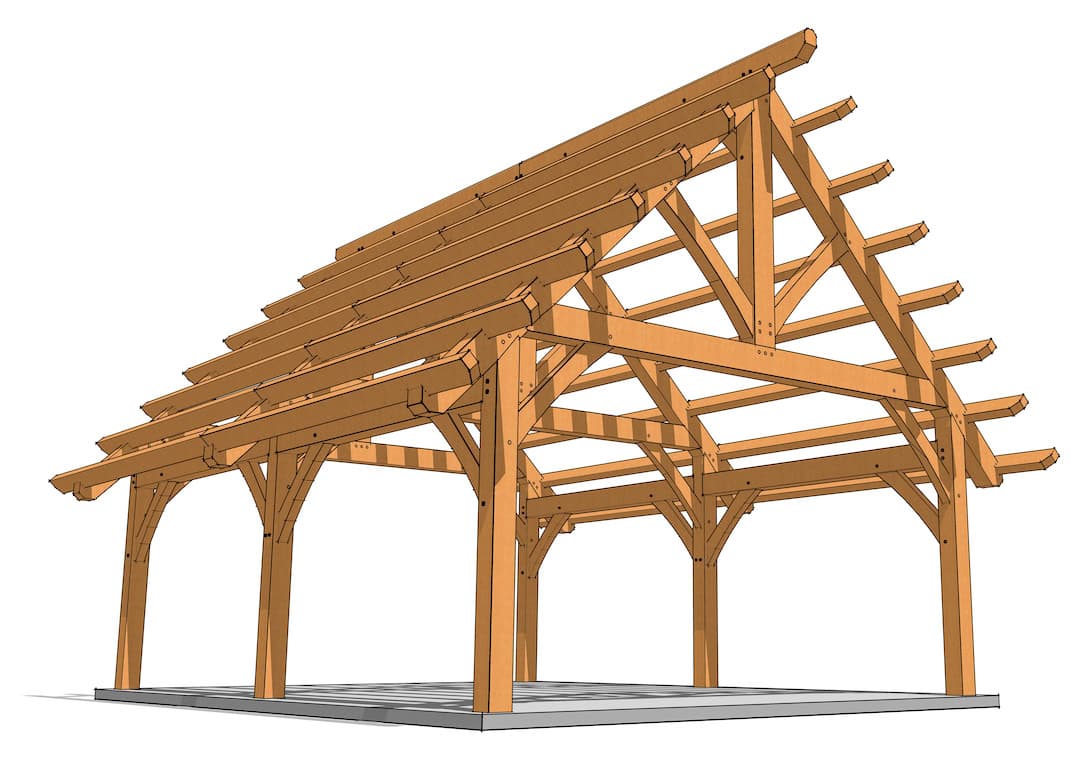

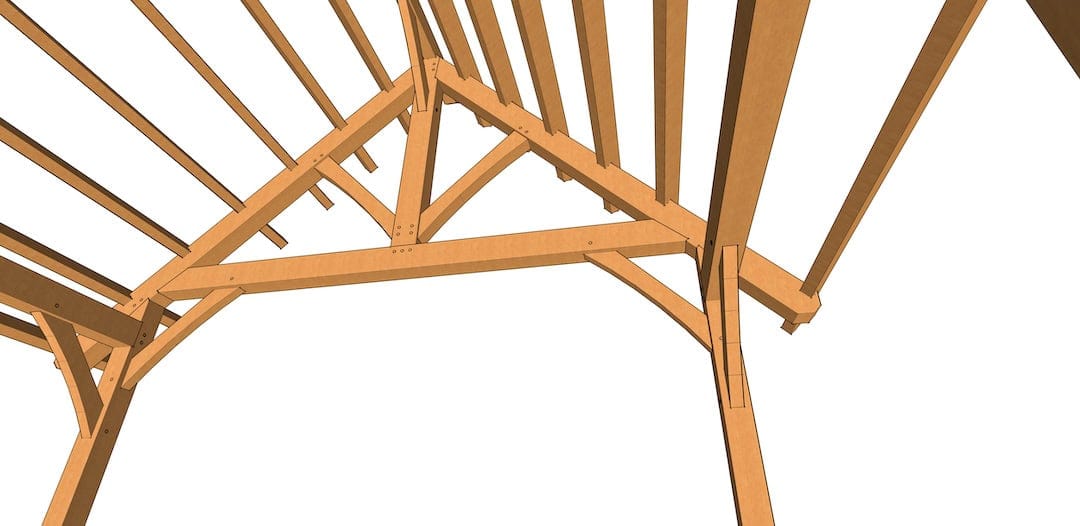

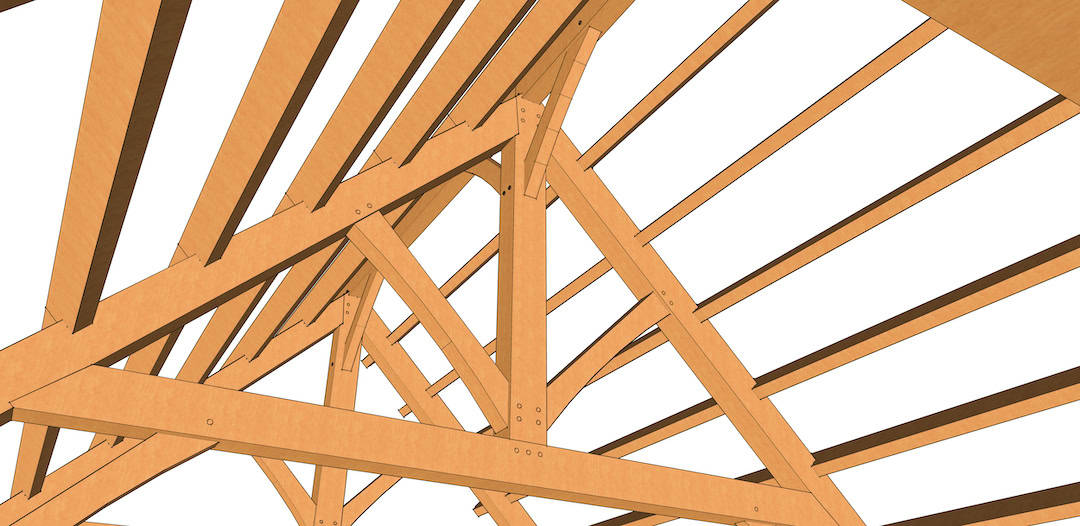

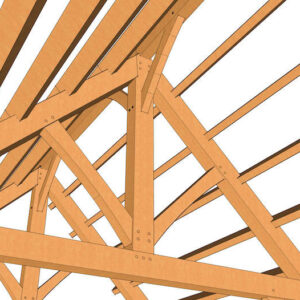

There is great architectural detailing in this timber frame pavilion. The curved struts in the king post trusses, and the curved knee braces, set the tone. The heavy timbers used in the posts and trusses make for a sturdy building, suitable for many uses.

Thinking of a storage loft or crawl-in sleeping loft? The 12 in 12 pitch creates enough headroom that you could add a floor over part of the space. This 432 square foot frame could make a fantastic workshop, camping cabin or backyard guest house.

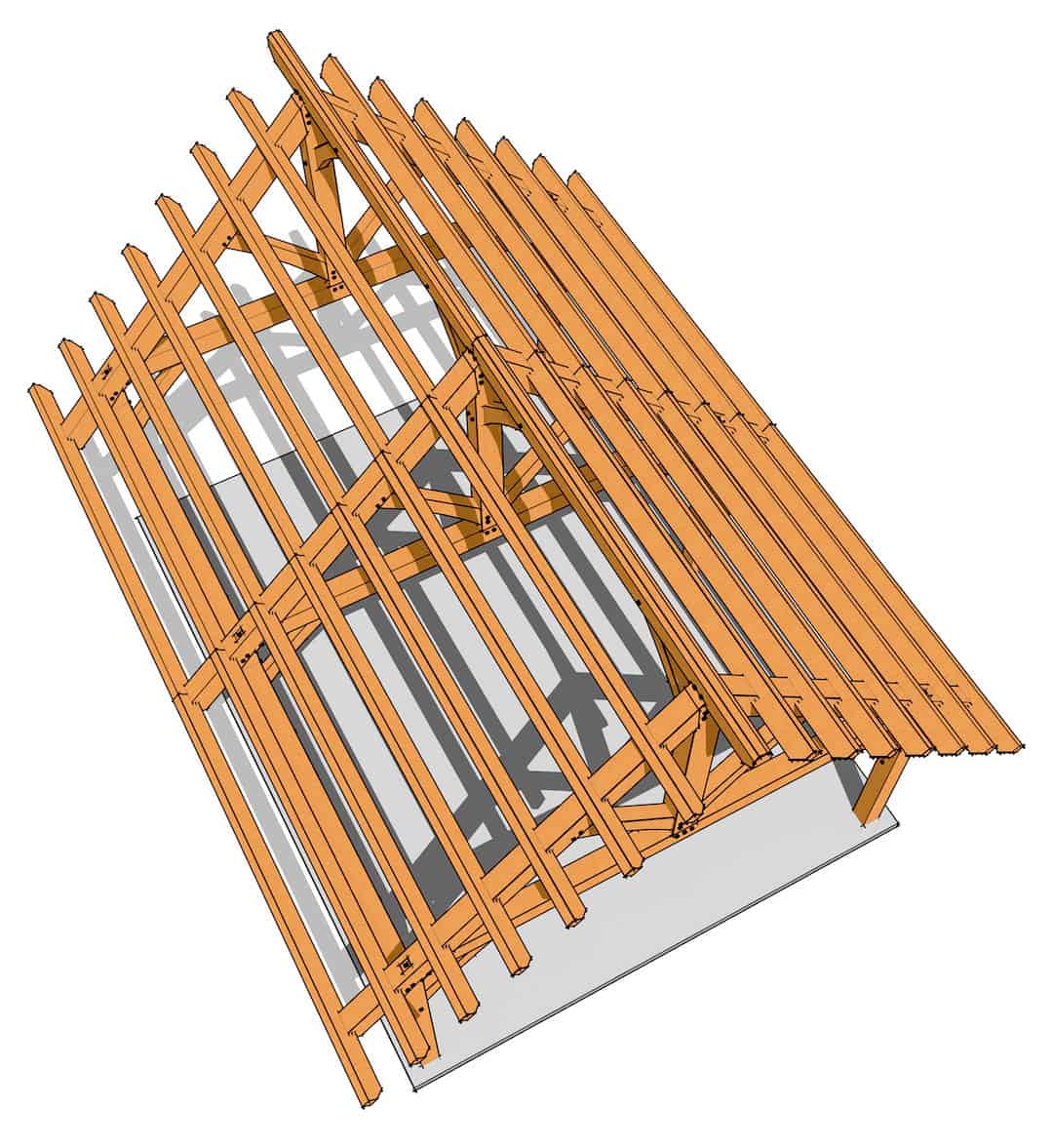

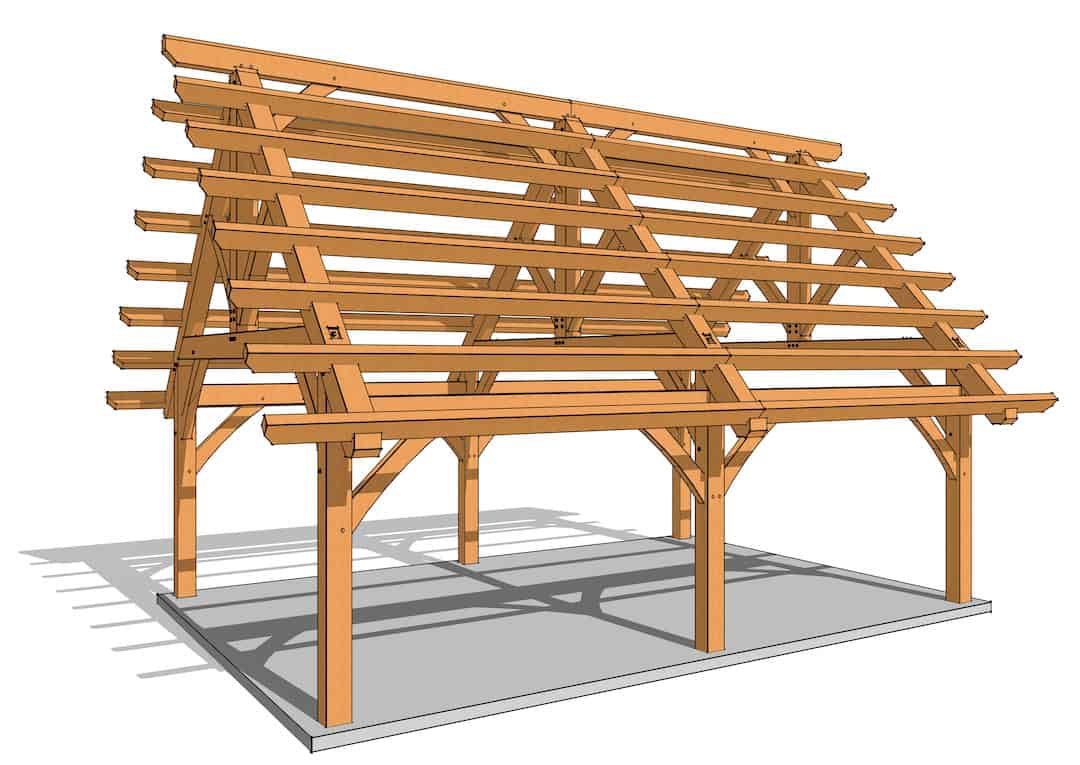

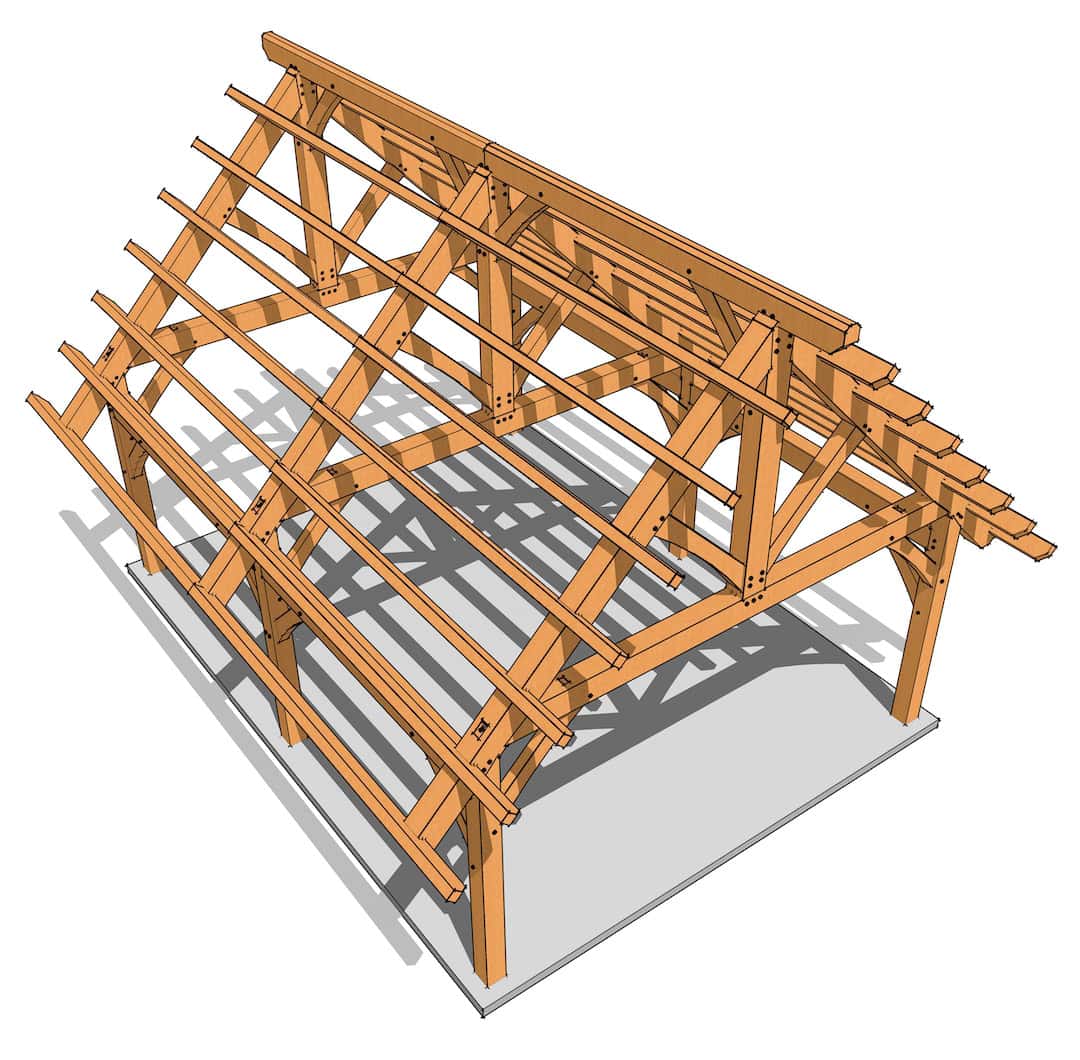

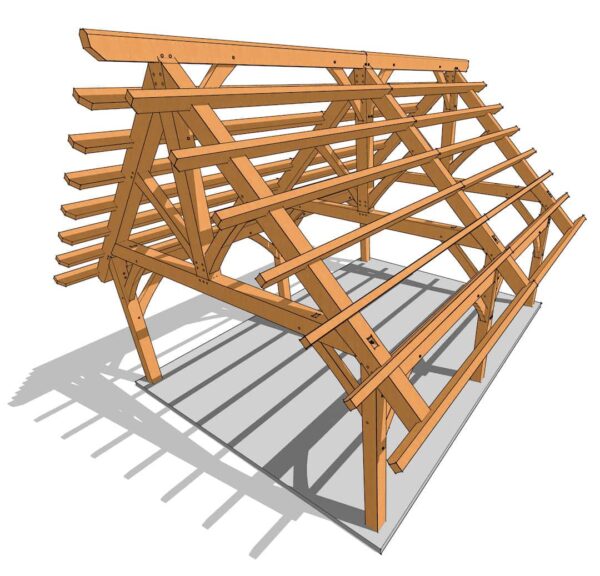

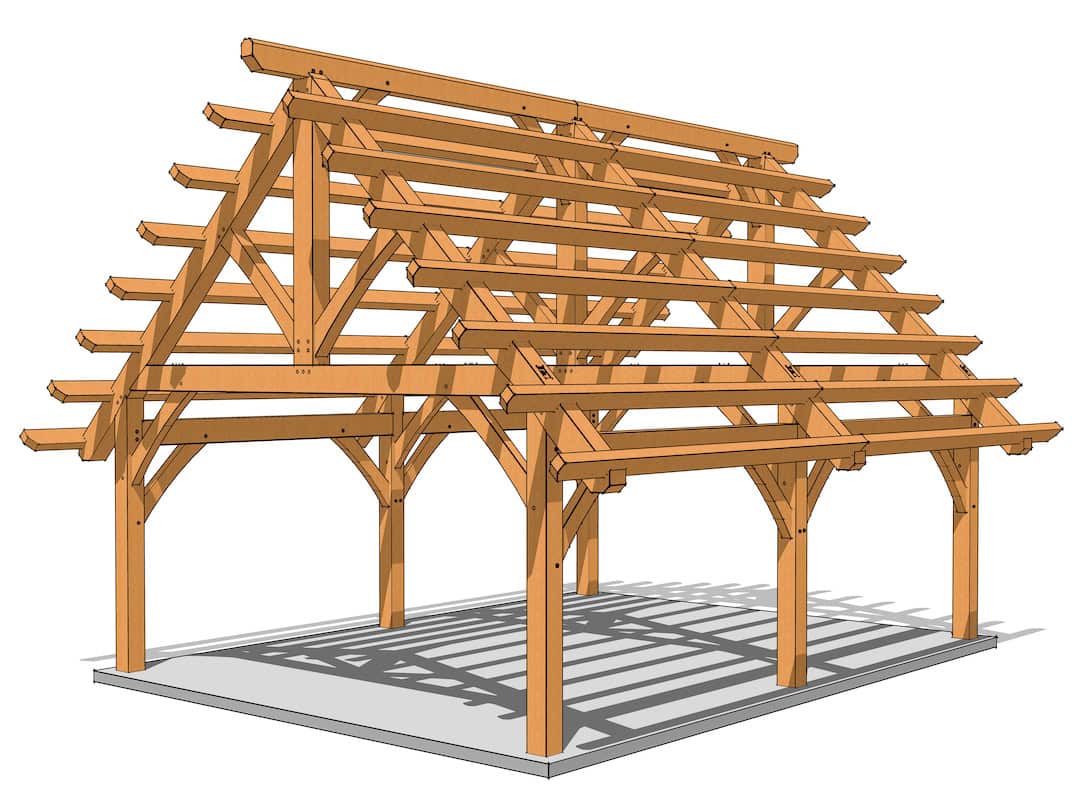

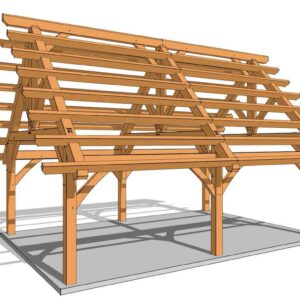

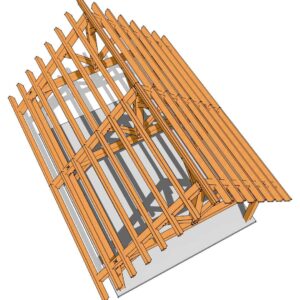

The instant-download PDF drawings consist of 25 sheets, which includes renderings, a timber schedule, plan, elevation and sectional drawings, along with all the piece and joinery details you will need to build this small timber frame. There are also 3D drawings so you can visualize the project. The plan set is formatted in an instantly downloadable PDF for easy printing at home on 8-½” x 11’ paper.


This plan is also included in the Master Plan Bundle and the Timber Frame Carport Plan Bundle.

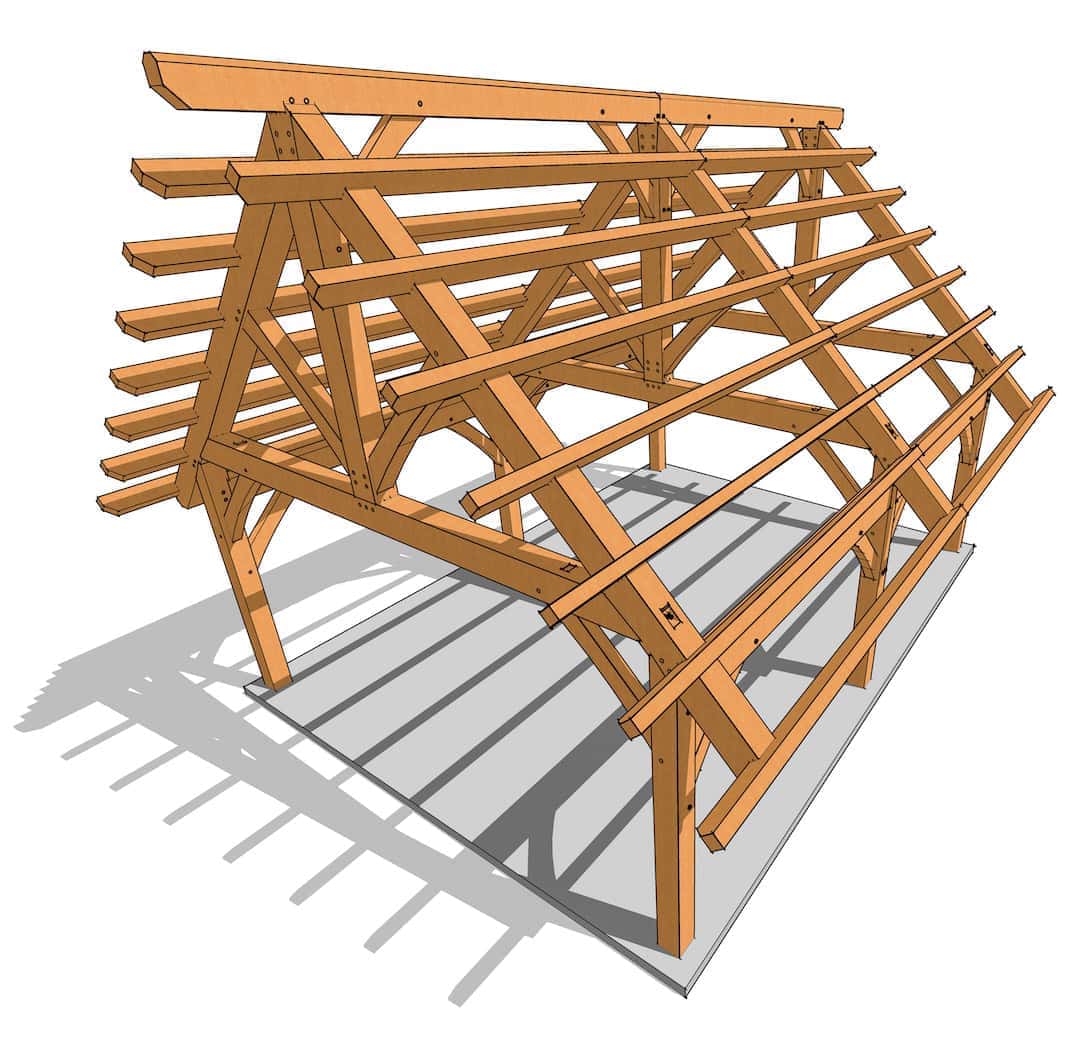

18x24 pavilion with purlins plan overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
