10×10 Post and Beam Plan

$97.00

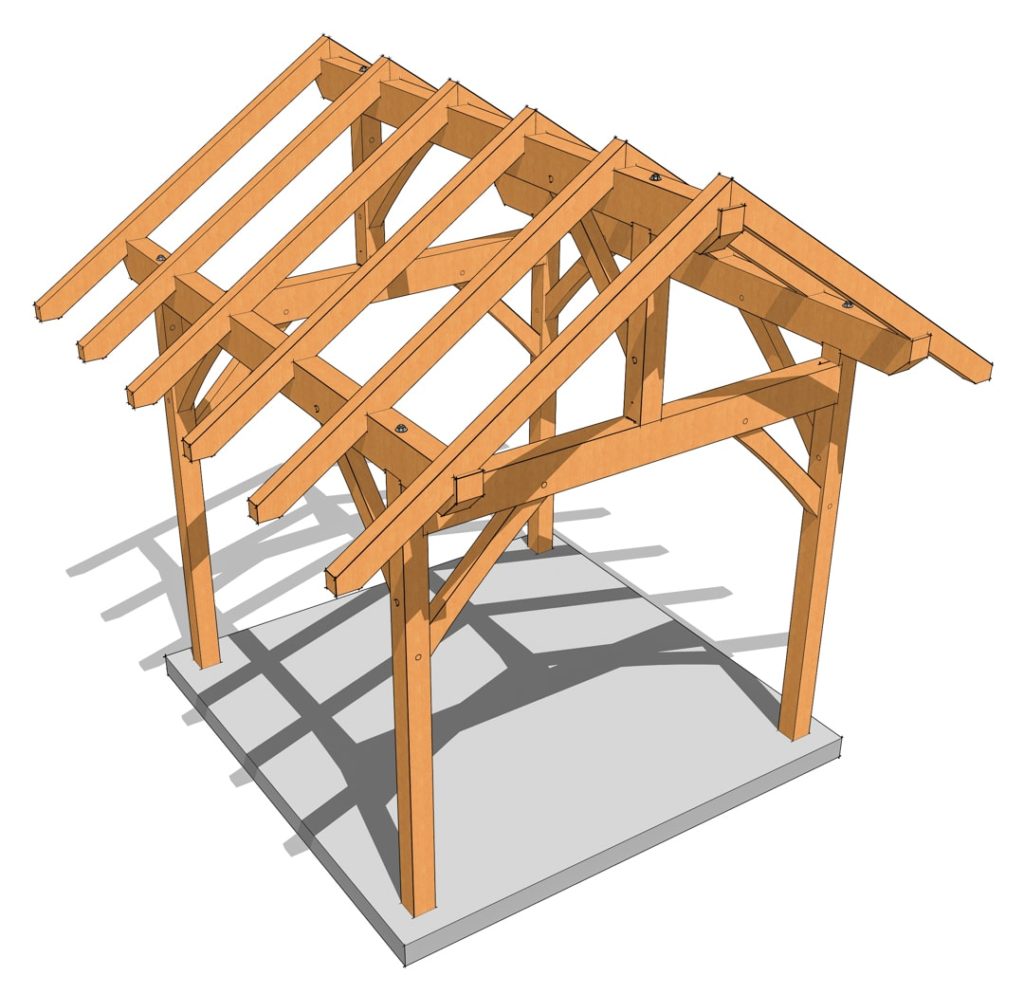

This 10x10 Post and Beam King Post Plan is big enough to accommodate many different types of activities but small enough to fit comfortably into even a modest outdoor space. The pavilion has generous overhangs to give plenty of protection from the elements. Use it for a hot tub enclosure, garden shed of an outdoor dining area. Cover the purlins with metal, thatch or shingle roofing for protection from the rain, or leave them exposed for an attractive sunscreen.

The 8 in 12 roof pitch gives this pavilion a nice presence and plenty of headroom. Leave the frame open to use as a pergola, or enclose it and use it as a small workshop or garden shed. You could even use acrylic panels to create a backyard greenhouse.

With hidden metal connectors instead of traditional hand cut joinery, this frame has all the stature of a traditional timber frame with a lot less work.

The plan set contains 22 sheets in a pdf that print on 8.5″x11″ and includes piece drawings for all the parts in the frame. We have also included drawings of each timber with each cut dimensioned out. The drawings are ready for instant download and are easy to run off from your home printer.


This plan is also included in the:

Plan Overview - 10x10 King Post – Post and Beam Plan

Frequently Asked Questions

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
