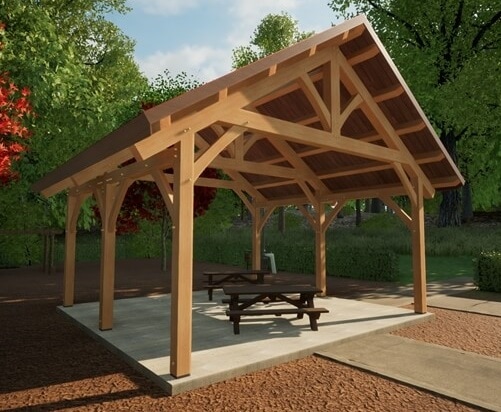

Let your imagination take flight with the ways to use this 20x20 Pavilion! It’s a medium-sized frame with perfect dimensions for a carport, ample workshop, or guest cabin. Because it only has two bays, its 400 square feet allows you to do as you wish. There is plenty of traditional joinery in this King Post Truss for you to show off, from the spline joints at the center posts to the haunched king post/chord connections.
The truss and purlin system is ready for you to cover with the roofing of your choice and will make a beautiful ceiling in your finished frame. The space will have plenty of volume - the tie beams stand over 9’ tall, and the ceiling rises from over 17 feet to the top of the king post. Generous 2-foot overhangs all around provide excellent protection from sun and precipitation.
We will email you links to download the PDFs of the plan sets as soon as you purchase them. The construction set has ten pages of drawings with the information you need for a successful project. We show several 3D images of the frame, both built and disassembled. We include post and roof plans and section and detail drawings. The piece drawing set has 12 pages of 2D and 3D drawings of every timber, with each cut dimensioned for you. We provide you with connector and timber lists, so there is no guesswork in buying your materials.
20’ wide by 20’ long outside of post to outside of post
2’ overhangs on all four sides
Height to Top of Collar 11’-7 7/16”
Height to Top of Ridge 17-10 5/8” with 8:12 Roof Pitch
Chords – 8x10
Tie Beams – 8x8
Braces – 4x8
Total of 3168.1 Board Feet
24 pages total
Construction Drawings – 10 pages (11x17)
Detailed Piece Drawings – 12 pages (11x17)
Materials Lists – 2 pages (8 1/2x11)
We are so confident that you’ll love the plan, we stand behind it 100% with our 30-Day Money-Back Guarantee. It means you have 30 days to initiate a return with us for any reason.
It’s the best Return and Warranty Policy of any company in the business. You can buy from us with full confidence that we’ll be here to help if something goes wrong, or if the plan just doesn’t end up working out for you.
Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. If for some reason it’s not working out, you can return it for a full refund. Here’s how that works:
Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.
And remember, if you have any issues whatsoever with your plan, even if you’re not sure you want to return it, please get in touch with us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.
Please note the 30-Day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
Frequently Asked Questions
Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE.
If that is something that would interest you, fill out the brief questionnaire HERE or click Get Started Today on the main Design Page from above.
As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting. Please allow a few days for our team to respond.
Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.
The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements. Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.
We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire. Armed with that information, we can get our heads into your project before we speak. That way we are best prepared to answer all of your questions.
As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.
100% Money Back Guarantee for 30-Days
Purchase With Confidence...It's Risk Free!
If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
