8×10 Pavilion

8x10 Pavilion
  • Description

  • SPECIFICATIONS

  • 30 Day Guarantee

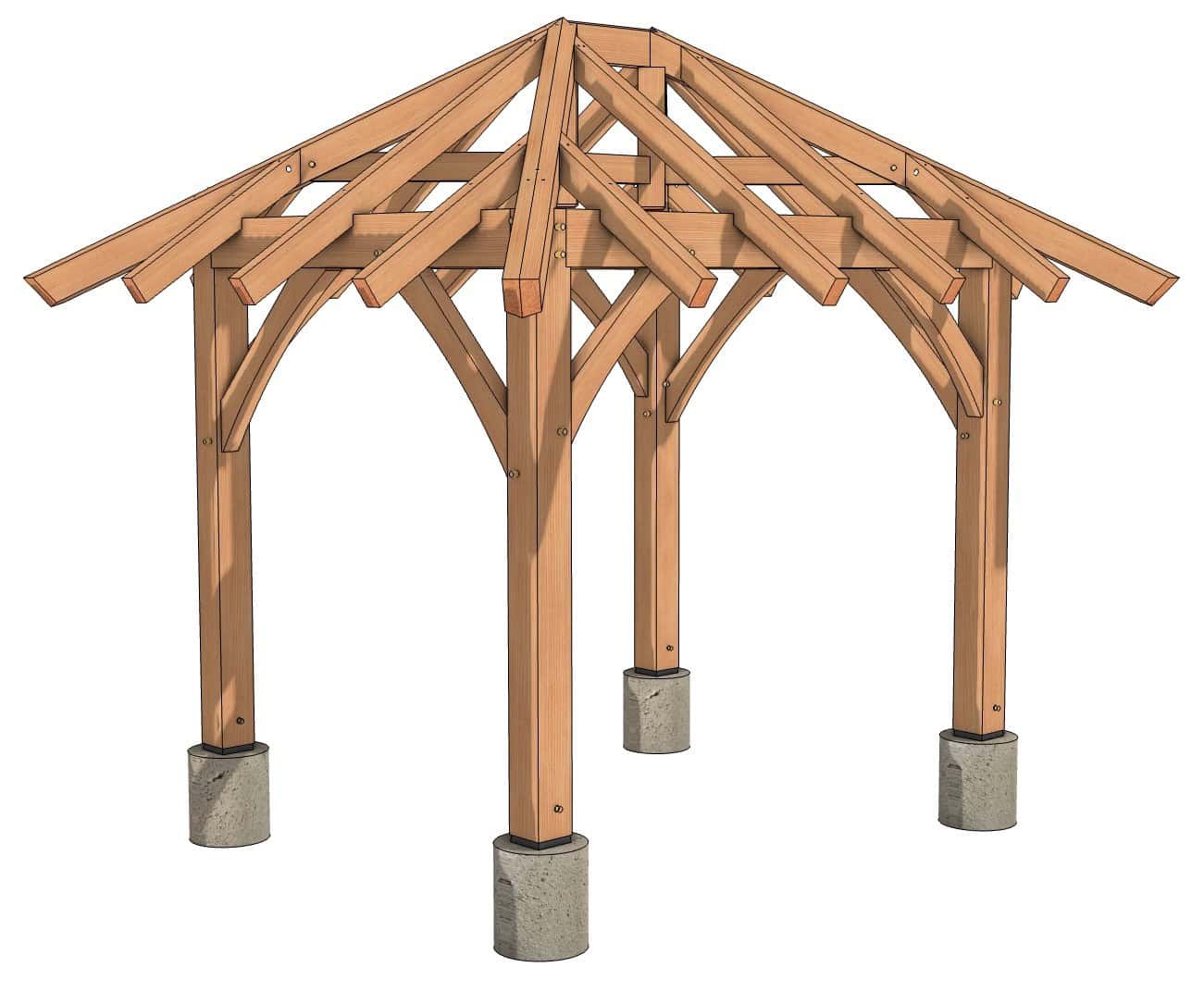

Are you looking for a petite yet classically stylish timber frame for your landscape? Look no further than this 8x10 hip pavilion! All four sides of this roof slope downwards at an 8:12 pitch. Because of that,  this frame will shed rain and snow easily, and weather windy conditions as well. You will enjoy this frame as a hot tub or hammock pavilion, or enclose it for a backyard shed.

You should have a bit of experience cutting a frame before you begin this project.   The hip roof contains jack rafters and some complex joinery. But if you have a couple of frames under your belt, this will make a great project. And all the timbers except the 8x8 posts are smaller 4x and 6x sizes. This plan utilizes structural screws for the rafters to simplify the cutting and add strength, yet there is plenty of  beautiful joinery visible in the rest of the frame.

We will email you links to the PDF plan sets as soon as you purchase this plan. The construction set contains 12 pages of information including 3D drawings, post and roof plans, sections and elevations.  The 23-page piece drawing set shows you 2D and 3D views of every timber with all the joinery dimensioned. And we include timber and hardware lists to make your purchasing process easier.

For more information about this plan please visit its shop page at 8x10 Hip Pavilion Plan.  This plan is included in our Plan Bundle.

8x10 Hip Pavilion Plan (53268) Interactive 3D Model
8x10 Hip Pavilion Plan (53268) - Plan Overview
8x10 Hip Pavilion Plan (53268) - Piece Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
