18×12 Timber Frame Pavilion

18x12 Timber Frame Pavilion (02218) ISOMETRIC
  • Description

  • SPECIFICATIONS

  • 30 Day Guarantee

This lovely 18x12 timber frame pavilion plan  is a perfect size to fit in practically any landscape, yet large enough for so many purposes.  You could  create a dining pavilion, great workshop or sweet backyard retreat. We actually give you two plans when you purchase this 18x12 timber frame pavilion! We  include a full plan set designed as a standalone structure, and a second one planned as a porch to be attached to an exterior wall of your home. You will love showing off your skills with the gently curved braces and embellished rafter ends.

This structure measures 18 feet x 12 feet  from outside to outside of the posts. It is a single bay design that creates a totally clear floor space. There are generous  2 foot overhangs. The top of the top plate stands at  +9’-3” high,and the  top of the rafters are  +17’-7” high. The roof pitch is 8 in 12.  This frame utilizes 2218 board feet  including 8x8, 8x10, 6x8,  and 6x10 timbers

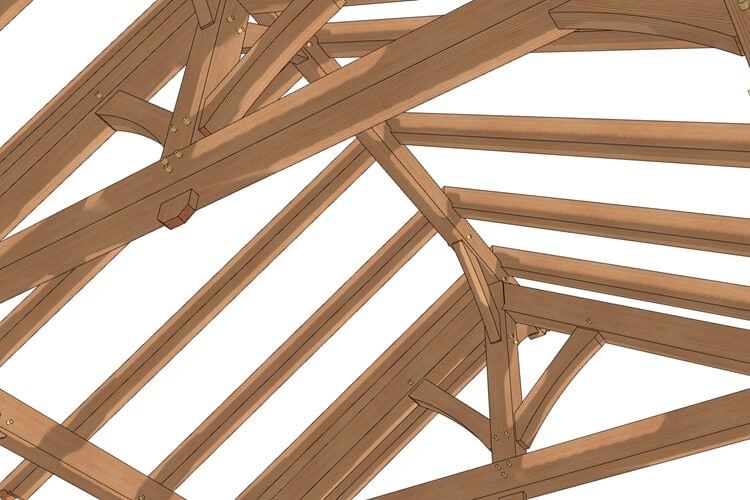

As soon as  you make your purchase, you will receive links to download the pdfs of the plan sets. They are formatted to print best on 11”x17” paper, but you can print a set from home on letter size paper for study purposes.  Both plan sets include 10 pages full of all the information you need for success: 3D drawings, post and rafter plans, section drawings, and detail drawings of the more complex areas of the frame. Both piece drawings sets include 17 pages showing you every cut you will make on each timber. And the pieces are labeled to match the 3D drawings on the plan sets, so you know exactly where each one fits in the frame.

For more information about this plan please visit its shop page at 18×12 Timber Frame Pavilion Plan.  This plan is included in our Plan Bundle.

18x12 Timber Frame Pavilion (02218) Interactive 3D Model
18x12 Timber Frame Pavilion (02218) - Plan Overview
18x12 Timber Frame Pavilion (02218) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

PLAN PURCHASES AND GRANT OF LICENSE

This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).

Grant of License.

Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).

This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.

Use of License.

Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.

Ownership.

All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.

Fees.

The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).

Termination of License

This Agreement and the License granted hereunder will terminate immediately upon:

(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.

(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.

Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.

No Derivative Works. No Reproduction. No Modification.

You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.

Reservation of Rights.

Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

DISCLAIMER OF WARRANTIES.

EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.

16 thoughts on “18×12 Timber Frame Pavilion”

  1. This looks awesome!
    Is it possible (would it be difficult) to double this up for an 18×24? That would be perfect for my workshop.

    Mark

  2. That would not be a problem, you would just need to mirror the frame. We are happy to make that adjustment in our custom design dept. or that would be easy to do in your shop.

  3. Katrina Williams

    We do take on custom projects and would like to talk to you further about yours. Check out our page, HERE, describing what we offer and the process of our custom design services.

    Fill out the design questionnaire so we can understand your needs. That’s the best way to communicate with our team and get an estimate for design services. With that being said, extending a frame parallel with the ridge is one of the lesser expensive alterations.

  4. What is the roofing sheathing typical for timber frame pavilions? It looks like some kind of 2x material and not plywood. Thank you in advance.

  5. There are many options for roofing your timber frame. If you want to use tongue and groove so it looks amazing from the inside, here is what we recommend:

    You can use 3/4″ T&G then put 2×4’s length-wise as a spacer, then put metal roofing straight on the 2x4s and screw them off. If using shingles you will need to add a layer of sheathing to give you the nail base on the 2×4’s. This will also give you space to run any electrical wires.

    Alternatively, you can use 2x T&G and put the roofing straight onto that.

  6. Katrina Williams

    Yes it could, it would require quite a bit of custom design. Check out our page, HERE, describing what we offer and the process of our custom design services.

  7. Katrina Williams

    The collar would need to be deeper, how deep depends on the snow load on the roof. However, a 15′ clear span could possibly work. If you would like help with the changes, please check out our Custom Design page.

  8. Katrina Williams

    That would be a custom design. Check out our page, HERE, describing what we offer and the process of our custom design services. Fill out the design questionnaire so we can understand your needs.

  9. do you know what the maximum snow load is for this plan? we get up to 24″ of snow some winters.

  10. Katrina Williams

    Roof loads depend on factors like seismic areas, wind load, wind exposure, timber species and more. When in doubt we recommend that you consult an engineer. We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, go to our Custom Design Project Information Form and fill it out to communicate with our team.
