Have you been noticing the popularity of Barndominiums? Take a look at this 24x48 timber frame barndominium and you’ll understand the appeal! Its classic, rustic form creates a solid frame to build your home. And the timeless design will look good for years to come!
This 24x48 timber frame barndominium has oodles of space in all three dimensions. Finished out with SIPs, the first floor has 1152 square feet, and the second level has 568. The first floor has a ceiling height of almost 12 feet, and that’s not including the super-high ceiling in the great room that’s open all the way to the rafters! The second level knee walls start at 5’-7” and soars 10 feet up from there.
We have fleshed out the design for this plan as a comfortable, three bedroom family home. The main level has an open-concept great room/dining/kitchen area. The ground floor master bedroom has a walk-in closet and en-suite bath. There is a generous laundry room, and a convenient half bath on the main floor as well. The second level has two bedrooms and a hall bath. We added a comfortable 8 foot deep porch, for great outdoor living and great curb appeal.

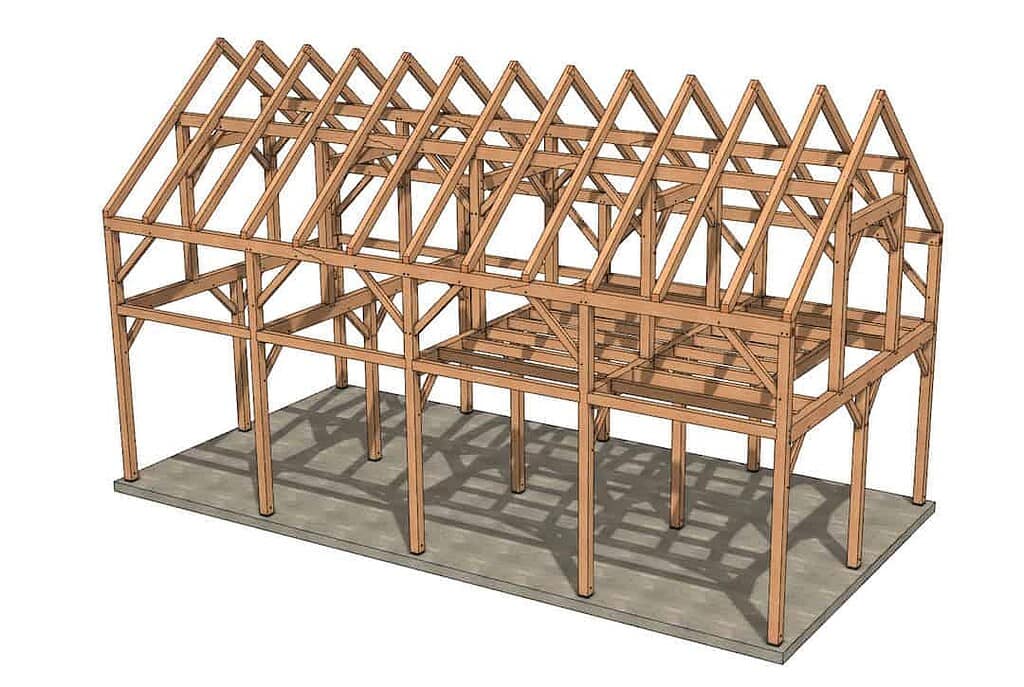

When you buy this plan , we will send you links to download the pdfs. The construction set shows plenty of 3D views of the frame. There are also post, loft and roof plans, and sections and elevations so you can really understand the frame. There are 10 detail drawings explaining the particulars. The piece drawing set shows you every cut you’ll be making on each timber, fully dimensioned. And the pieces are keyed to the 3D drawing of the frame so you know where they all fit in the frame. Then we include timber and connector lists so you know everything you need to buy to get your dream house started!
23’-3 ¾”wide by 47’-3 ¾” long outside of post to outside of post
No overhangs on all four sides (overhangs can be created with SIPs)
Height to Top of Plate 17’- 11 ½”
Height to Peak of Roof 28’-1” with 10:12 Roof Pitch
● 3 bedrooms and 3 ½ bathrooms
● Master suite on first floor
● Open concept kitchen/dining/living
● 1152 sq ft 1st floor, 568 sq ft 2nd floor, total of 1720 sq ft
● Generous laundry room
● Full width, 8’ deep porch
Bent Girts- 8x10, 8x12, 8x14
Rafters – 6x8
Plates – 8x10
Wall Girt – 6x8
Braces – 4x6
Total of 8151 Board Feet
53 pages total
Construction Drawings – 15 pages (11x17)
Detailed Piece Drawings – 31 pages (11x17)
Architectural Drawings - 5 pages (11x17)
Materials Lists – 2 pages (8.5x11)
