24×48 Timber Frame Barndominium Plan

$197.00

SKU: 49870 Categories: , Tags: , ,

When you look at this 24x48 timber frame barndominium plan you’ll understand why they are becoming so popular! Its classic, rustic form makes for a timeless design that will look good for years to come!

We have detailed this plan as a welcoming three bedroom family home. It has an open-concept great room/dining/kitchen area. The master bedroom is on the ground floor and has a walk-in closet and en-suite bath. The main floor has a generous laundry room, and a half bath. Two bedrooms and a hall bath are on the second floor. You will will enjoy the  8 foot deep porch, for great outdoor living and enticing curb appeal.

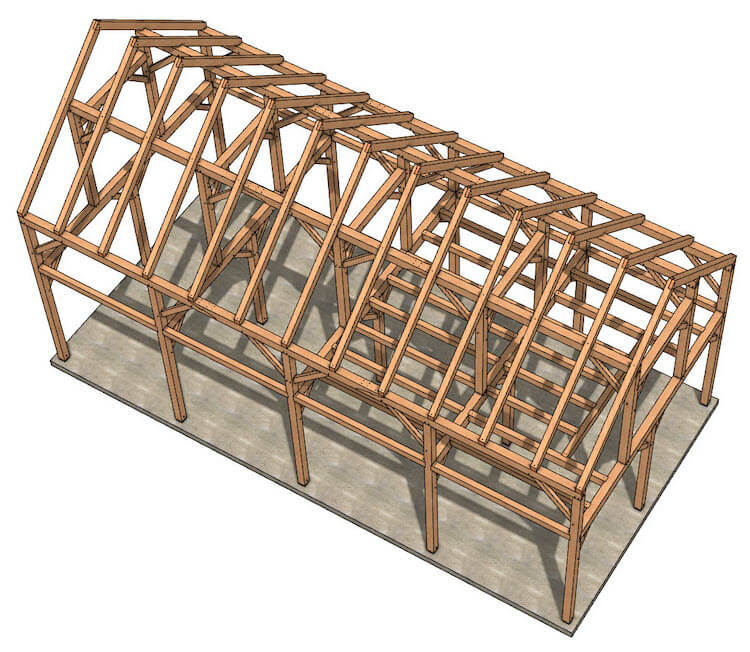

We will email you links to download the pdfs as soon as you make your purchase. The construction set has many 3D views of the frame, and post, loft and roof plans.  It also contains sections and elevations. There are 10 detail drawings showing the complexities. You’ll see every cut you’ll be making on each timber, fully dimensioned, in the piece drawing set. And the timbers are keyed to the 3D drawing of the frame so you know where everything goes. We also include timber and connector lists so you know everything you need to buy to get your dream house started!

  • Big volume spaces!
  • First floor has 1152 square feet, and the second level has 568.
  • First floor has an almost 12 foot ceiling.
  • Great room has volume ceiling that’s open all the way to the rafters!
  • Second level knee walls start at 5’-7” and climbs 10 feet up from there.

For more information about this plan please visit its post page at 24×48 Timber Frame Barndominium. This plan is included in our Plan Bundle.

24×48 Timber Frame Barndominium Plan (49780) Interactive 3d Model
24x48 Barndominium Architectural Plan Overview
24x48 Barndominium Construction Plan Overview
24x48 Barndominium Piece Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

PLAN PURCHASES AND GRANT OF LICENSE

This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).

Grant of License.

Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).

This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.

Use of License.

Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.

Ownership.

All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.

Fees.

The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).

Termination of License

This Agreement and the License granted hereunder will terminate immediately upon:

(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.

(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.

Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.

No Derivative Works. No Reproduction. No Modification.

You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.

Reservation of Rights.

Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

DISCLAIMER OF WARRANTIES.

EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.

Specifications

Dimensions

  • 23’-3 ¾”wide by 47’-3 ¾” long outside of post to outside of post
  • No overhangs on all four sides (overhangs can be created with SIPs)
  • Height to Top of Plate 17’- 11 ½”
  • Height to Peak of Roof 28’-1”  with 10:12 Roof Pitch

Design

  •         3 bedrooms and 3 ½ bathrooms
  •         Master suite on first floor
  •         Open concept kitchen/dining/living
  •         1152 sq ft 1st floor,  568 sq ft 2nd floor, total of 1720 sq ft
  •         Generous laundry room
  •         Full width, 8’ deep porch

Timbers

  • Posts –8×8
  • Bent Girts- 8×10, 8×12, 8×14
  • Joists- 6×8
  • Rafters – 6×8
  • Plates – 8×10
  • Wall Girt – 6×8
  • Braces – 4×6
  • Total of 8151 Board Feet

Plans

  • 53 pages total
  • Construction Drawings – 15 pages (11×17)
  • Detailed Piece Drawings – 31 pages (11×17)
  • Architectural Drawings – 5 pages (11×17)
  • Materials Lists – 2 pages (8.5×11)

30-Day Guarantee

We are so confident that you’ll love the plan, we stand behind it 100% with our 30-Day Money-Back Guarantee. It means you have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company in the business. You can buy from us with full confidence that we’ll be here to help if something goes wrong, or if the plan just doesn’t end up working out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. If for some reason it’s not working out, you can return it for a full refund. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues whatsoever with your plan, even if you’re not sure you want to return it, please get in touch with us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-Day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
