VGS Structural Screw

$73.13$731.25

SKU: 8930 Category: Tag:

Total thread connector with countersunk head
Carbon steel with white galvanic zinc coating

VGS Packaging

PACKAGING
Box + CE paper + BIT

VGS Steel

SPECIAL STEEL
Deep thread and high-resistance
steel (fy,k = 1000 N/mm2) for excellent
tensile performance

VGS Head

Countersunk head for use on
steel plates

VGS Diameters

Optimise the minimum dimensions
of the beams to be joined

Solid-wood, glulam, X-Lam,
LVL, wood-based-panel joints,
reinforcements and couplings.
Service classes 1 and 2

STEEL – WOOD

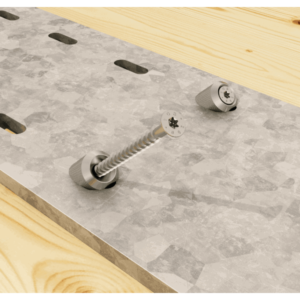

The use of the connector inclined at 45° in combination with a steel plate guarantees high sliding resistance and rigidity of the joint

LIFTING

The connector is ideal for lifting and transporting wood elements, thanks to the geometry of the
head and the high-performance thread with excellent tensile strength

REINFORCEMENT

The total thread and head
geometry, in combination with a steel plate, make it possible to avoid crushing the wood grain due to perpendicular compression

VGS Range

APPLICATIONS  -

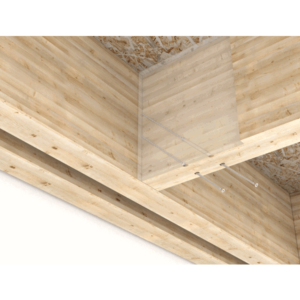

  • Fastening of wood beams
    hanging from a steel beam
  • Fastening of LVL wood beams
  • Retractable junction for large beams with 11 mm diameter connectors
VGS Applications
VGS Codes
VGS Geometry

Click here for technical data sheets

Please allow 1 to two weeks for delivery. Contact us  for expedited shipping.

Photos courtesy of Rothoblaas.

Diameter

,

Length

, , , , , , , , , , , , ,

Quantity

25-pack, 50-pack
