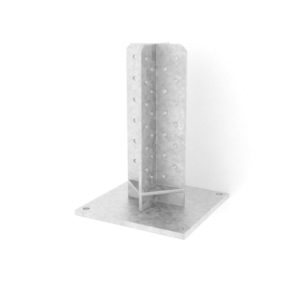

TYP X10 – Cross-shaped post base

$140.80$219.20

Clear
SKU: N/A Category: Tags: ,

FIXED END
Moment-resisting joint
for fixed-end constraints

TYP X10  Innovative

INNOVATIVE
Patent application filed

TWO VERSIONS
Without holes for use with self drilling dowels,
smooth dowels or bolts; with holes,
for use with epoxy resin

VERSATILE
Different strength levels depending on the
fixing configuration selected

MOMENT RESISTING JOINT
The cross shaped configuration and the fastener disposition are
designed to guarantee a moment-resisting capacity, creating a semi-rigid constraint at the base

FREE STRUCTURES
The base constraint can absorb horizontal loads allowing to realize pergolas or gazebos which do not
require bracings and are open on all sides

INVISIBLE AND DURABLE
The internal knife plates, the upper small plate and the base plate allow a hidden joint and an adequate
distance from the ground, ensuring more durability. Designed to accomodate posts of all dimensions

FIELD OF USE
Moment resisting joints for
outdoor use. Suitable for Service class 1, 2 and 3.

  • XLAM (Cross Laminated Timber)
  • LVL (Laminated Veneer Lumber)
  • solid timber
  • glulam (Glued Laminated
    Timber)

Click here for technical data sheets

Please allow 1 to two weeks for delivery. Contact us  for expedited shipping.

Photos courtesy of Rothoblaas.

Model

TYP XR10, TYP XS10

Width

,
