22×24 Gambrel Roof Plan

$127.00

SKU: 43611 Categories: , , Tags: ,

If you want a timber frame design with style and practicality, look at this 22x24 gambrel roof plan!  The steeper sides of the gambrel roof give the second level extra storage and living space, giving it a classic barn feel. You could make a spacious sitting porch under the attached shed roof area or enclose it for more interior space.

There is a full second level under the gambrel roof. The second level includes a shed dormer for more headroom and the option of adding windows for natural light. You will have plenty of opportunities to add windows on the first level and in the queen post framing on the Gambrel ends.

  • Frame measures 22’x24’ from outside to outside of the posts under Gambrel.
  • 12 feet depth to the shed roof posts.
  • Total of 1056 square feet of space plus 288 square feet under the shed roof.
  • Gambrel roof with knee walls and the shed dormer make comfortable headroom on the second level.

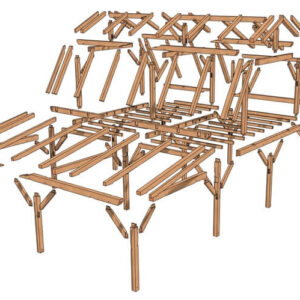

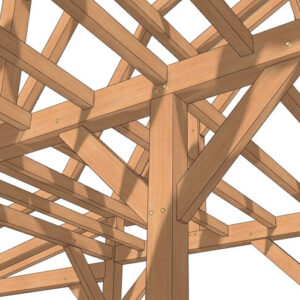

When you purchase this plan, we will email you links to download the PDFs. The construction set has 12 pages, with 3D drawings, post, loft, and rafter plans, and plenty of sections so you can visualize the frame. There are also detailed drawings explaining the finer points.

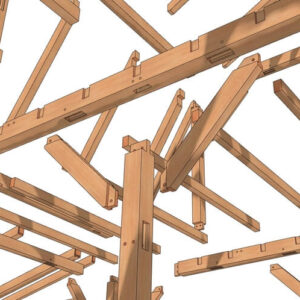

The piece drawing set has  52 pages showing you all the cuts you’ll make on each timber, fully dimensioned. Those drawings are keyed to a 3D view of the construction set so you know exactly where everything goes. We also send links to timber and connector lists to simplify material procurement.

For more information about this plan, please visit its shop page at 22x24 Gambrel Roof.  This plan is included in our Plan Bundle.

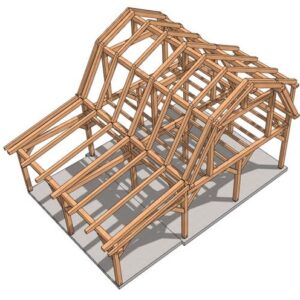

22x24 Gambrel Roof Plan (43611) Interactive 3d Model

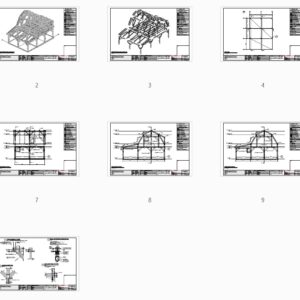

22x24 Gambrel Roof Plan (43611) - Plan Overview
22x24 Gambrel Roof Plan (43611) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 22’ wide by 24’ long outside of post to outside of post
  • 12’ additional to outside of porch post
  • No overhangs on any sides except porch (intended to be constructed from SIP roofing panels)
  • Height to Top of Plate 12’-2 ¼”
  • Height to Top of Ridge  22’-5 13/16” with 10:12, 9:12 and 3.5:12  Roof Pitches

Timbers

  • Posts –8×8
  • Collar Ties – 8×10
  • Ridge –8×10
  • Rafters – 4×8, 6×8, 8×8
  • Plates – 8×10
  • Tie Beams – 8×10
  • Braces – 4×8
  • Total of 6454.0 Board Feet

Plans

  • 66 pages total
  • Construction Drawings – 12 pages (11×17)
  • Detailed Piece Drawings – 52 pages (11×17)
  • Materials Lists – 2 pages (8 1/2×11)
