16×24 Cruck Timber Frame Plan

$97.00

SKU: 43616 Categories: , , , Tag:

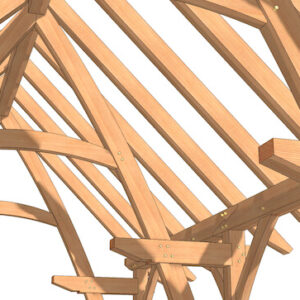

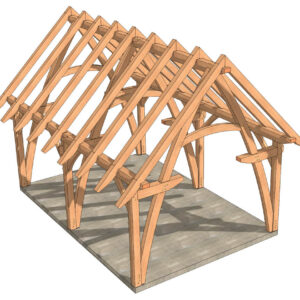

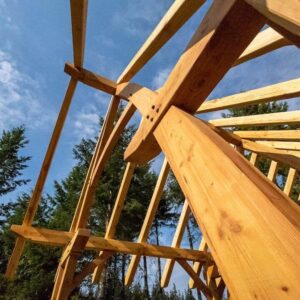

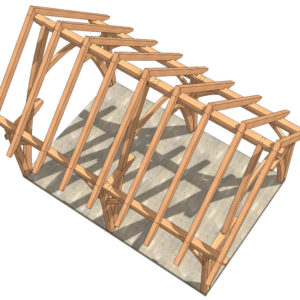

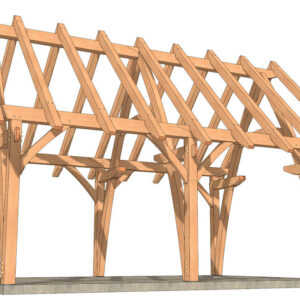

A cruck timber frame is quite possibly the most beautiful and artistic of all the styles of frames. Crucks were often used in medieval times as tithe barns. Now you can build this 16x24 cruck timber frame to grace your own property!  We have designed the curved cruck out of two timbers instead of the long single cruck-blade to make your job easier. We sized the blades so they could be cut by a modern manufacturer. A graceful hammer beam joins and supports them.

  • Dimensions are 16’ x 24’ from outside to outside of the posts; two bay design
  • 2 foot rafter overhangs; 1’-4’ gable overhangs
  • Height to top of rafters at ridge: +/- 18’ - 7 ⅝”
  • Height to top of plates: 10’-0”
  • Embellished rafter tails and hammer beam ends
  • Graceful curves in crucks and tie beam
  • 12:12 roof pitch
  • Plan utilizes 3363 board feet

When you buy this plan, you will receive links to download the plan sets. The construction set contains 9 pages formatted to print on 11x17 paper, although you can print a study set on letter-size paper. In this set you will find 3D drawings, including an exploded one so you can see all the parts of the frame. You will get post and rafter plans, sections and elevations, and detail drawings fully explaining what you need to do. Then there is the piece drawing set, with 15 pages showing you every cut you will be making on each timber. We also include connector, parts and timber lists so you know exactly what materials you need.


This plan is also included in the Master Plan Bundle and the Timber Frame Carport Plan Bundle.

16x24 Cruck Timber Frame Plan Interactive 3d Model
16x24 Cruck Timber Frame Plan - Plan Overview
16x24 Cruck Timber Frame Plan - Piece Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

PLAN PURCHASES AND GRANT OF LICENSE

This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).

Grant of License.

Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).

This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.

Use of License.

Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.

Ownership.

All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.

Fees.

The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).

Termination of License

This Agreement and the License granted hereunder will terminate immediately upon:

(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.

(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.

Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.

No Derivative Works. No Reproduction. No Modification.

You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.

Reservation of Rights.

Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

DISCLAIMER OF WARRANTIES.

EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.

Specifications

Dimensions

  • 16’  wide by 24’ long outside of post to outside of post
  • 2’ overhangs rafter ends, 1’-8” on gable ends
  • Height to Top of Plate 10’-0”
  • Height to Peak of Roof 18’-8” with 12:12 Roof Pitch

Timbers

  • Posts –8×8
  • Collar Ties – 8×10
  • Ridge –8×10
  • Rafters –6×8
  • Plates – 8×10
  • Cruck Brace – 6×12
  • Braces – 4×8

Plans

  • 26 pages total
  • Construction Drawings – 9 pages (11×17)
  • Detailed Piece Drawings – 15 pages (11×17)
  • Materials Lists – 2 pages (8.5×11)

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.

Timber Kit

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joel Edwards

16×24 Cruck Timber Frame Plan

M
Mick Peat (Norway)
Impressive drawings and easy to understand

I sent an email requesting the drawings to be in metric and was quoted a very high price for converting. Some CAD system have the function of converting imperial to metric at the click of a button. Only three countries in the world use the imperial system, maybe if you offered this service your sales may increase globally. Thanks for the great work.
