14×14 Hipped Roof Pavilion Plan

$97.00

SKU: 50552 Categories: , , , Tag:

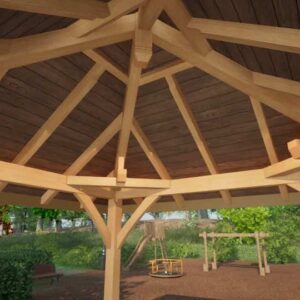

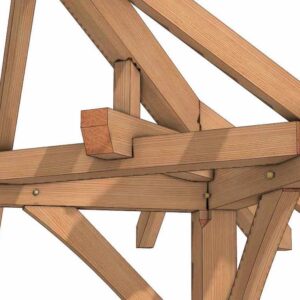

Take a look at this 14×14 hipped roof pavilion plan! It is a smaller timber frame that is big on style. The dragon beams at the corners make for a super strong frame with lots of character.  And the boss pin at the apex of the frame ties the hip rafters together and adds an artistic touch.  Simply cover this frame with some tongue-in-groove and roofing of your choice  to enjoy the beauty while you shelter!

  • This plan is 14x14 from outside to outside of the posts, so it will fit into just about any setting.
  • Two foot overhangs give you extra protection from the elements.
  • 8:12 roof pitch  gives this frame a nice presence.

Download Plan Brochure

 Use this 14×14 hipped roof pavilion plan as a picnic shelter, hot tub enclosure, or anything you can dream up.  This  pavilion is best  cut by a framer with some experience - the hipped roof causes some intricate cutting and compound joinery.  But what a fantastic frame to show off your skills!

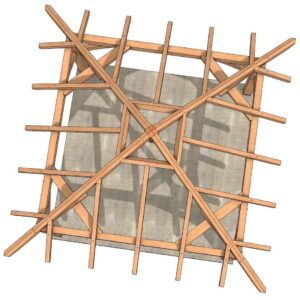

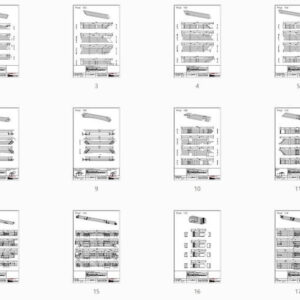

As soon as you make your purchase we will send you links to download the plan set PDFs. The 10-page construction set includes  3D drawings, post and roof plans, several elevations, and detail drawings. The 20-page  piece drawing set shows you every timber in 2D and 3D, with each cut you will  make fully dimensioned. And the connector and timber lists will allow you to gather your materials with confidence!

For more information about this plan in a complete kit package please visit its page at 14×14 Pavilion.  This plan is included in our Plan Bundle.

14x14 Hipped Roof Pavilion Plan (50552) Interactive 3D Model

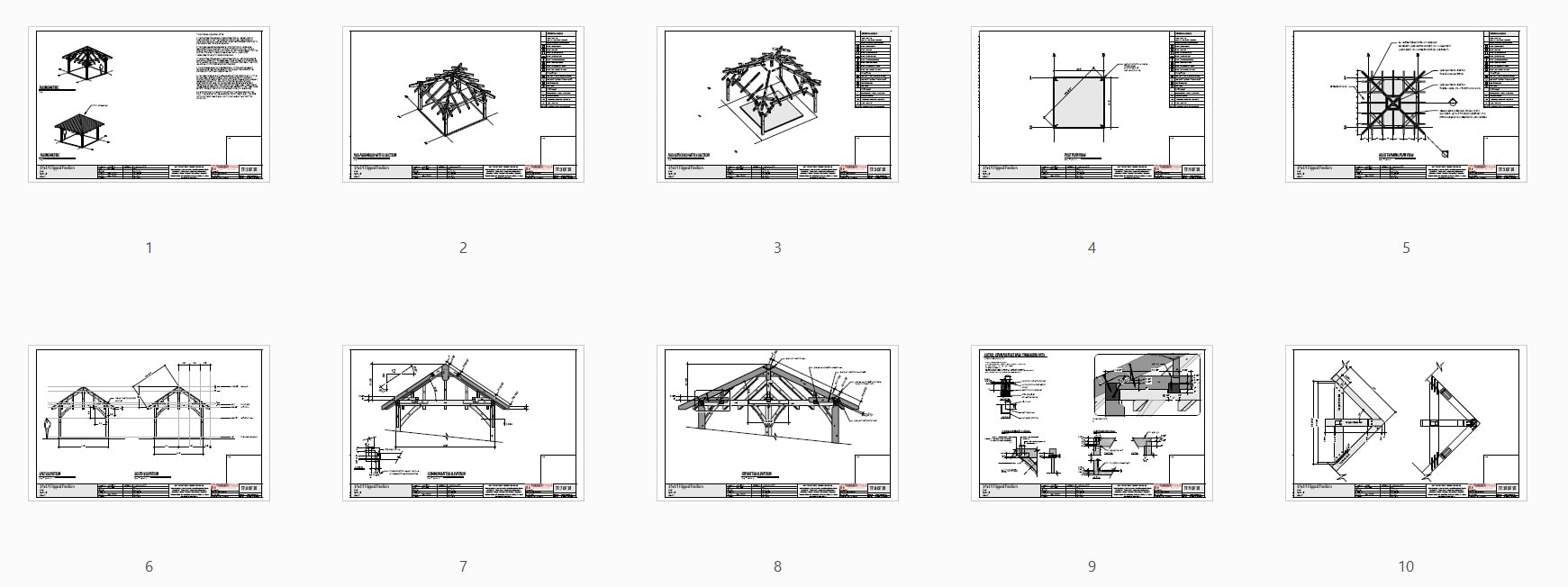

14x14 Hipped Pavilion (50552) - Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.

Ready-To-Raise™ Kit

Designed for ease of assembly, our Ready To Raise™ kits come with detailed instructions and pre-cut components, perfect for DIY enthusiasts. Create your outdoor masterpiece with the satisfaction of building it yourself. Contact Us with any questions or to get started.

  • Phone: Speak directly with our friendly experts by calling 888-552-9379. We’re available 9-5, M-F to answer your questions and provide personalized advice.
  • Email: Would you prefer to write to us? Send your inquiries, ideas, or feedback to projects@timberframehq.com. We strive to respond to all emails within one business day.
  • Online Contact Form: Fill out the contact form below. It’s a quick and easy way to get in touch, and we’ll get back to you promptly.

Specifications

Dimensions

  • 14’ wide by 14’ long outside of post to outside of post
  • 2’ overhangs on all four sides
  • Height to Top of Plate 9’-4”
  • Height to Peak of Roof 14’-5 ⅜” with 8:12  Roof Pitch

Timbers

  • Posts –8×8
  • Dragon Beams – 6×8
  • Rafters – 4×6, 6×10
  • Plates – 6×10
  • Purlins – 4×6
  • Braces – 4×8
  • Total of 1480.0Board Feet

Plans

  • 32 pages total
  • Construction Drawings – 10 pages (11×17)
  • Detailed Piece Drawings – 20 pages (11×17)
  • Materials Lists – 2 pages (8 1/2×11)
