20×20 Timber Frame Plan

$97.00

SKU: 4848 Categories: , Tag:

Transform your backyard into the ultimate sanctuary with this versatile 20'x20' timber frame plan. Whether you're dreaming of a deluxe man-cave or a charming guest cabin, this design offers the flexibility to make your vision a reality.

Key Features:

  • Spacious King Post Area: The generous 15' by 20' king post area is the heart of this design. It's the perfect space to spread out and work on your next big project or to host a casual gathering with friends.

  • Shed Roof Design: The additional 5' by 20' shed roof area is a practical and stylish feature. Use it to organize and store your tools on a bench you build or roll in, or transform it into a cozy outdoor seating area.

  • High Ceilings with Exposed Timbers: The high ceilings are not just functional but also aesthetically pleasing. The exposed timbers add a rustic charm and create a sense of openness that you'll love.

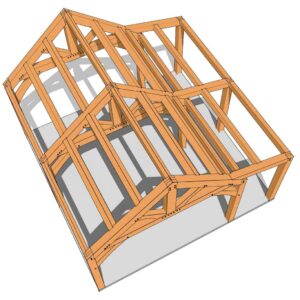

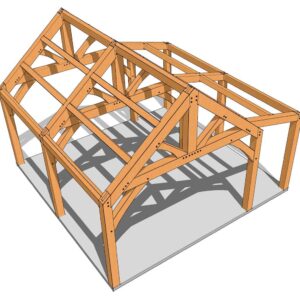

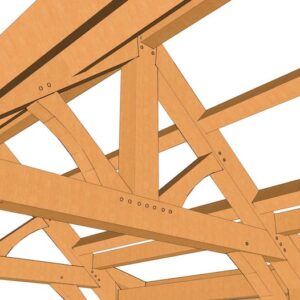

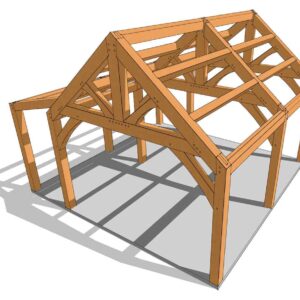

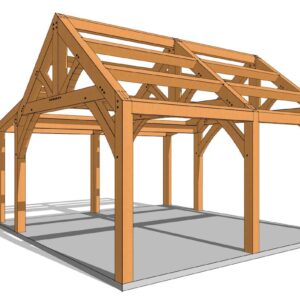

  • Comprehensive Plan Set: The instantly downloadable PDF is a treasure trove of information. It includes 26 pages full of renderings, elevations, sections, individual piece drawings, and a complete timber list. Plus, it's sized at 8.5 x 11, making it easy to print from home.

  • Roof Pitch Details:

The roof pitch in the king post area boasts a 10:12 ratio, providing ample height and architectural interest. Meanwhile, the shed roof features a more relaxed 3:12 pitch, adding to the overall versatility of the design.

Download the plans today to embark on the journey of creating your dream space, right in the comfort of your own backyard.

20x20 Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
