12×16 Timber Frame Plan

$97.00

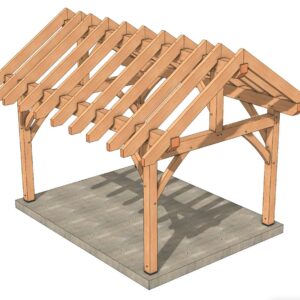

This sweet 12x16 king post plan is big enough to accommodate many different types of activities but small enough to fit comfortably into even a very modest outdoor space. The pavilion has generous two-foot overhangs to allow plenty of room for a conversation area, hot tub shelter or outdoor dining space, and extra protection from rain. Cover the purlins with metal, tongue and groove decking and your roofing material of choice, or leave them exposed for a sunscreen with interesting shadows.

The 8 in 12 roof pitch gives this pavilion a nice stature and plenty of headroom. Leave the king post frame open to use as a pergola, or enclose it and use it as a small workshop or garden shed. You could even use acrylic panels to create a backyard greenhouse to grow your favorite plants during colder weather.

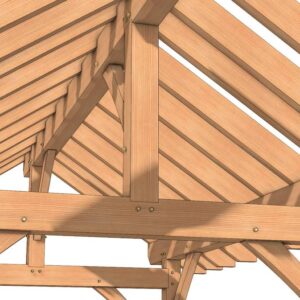

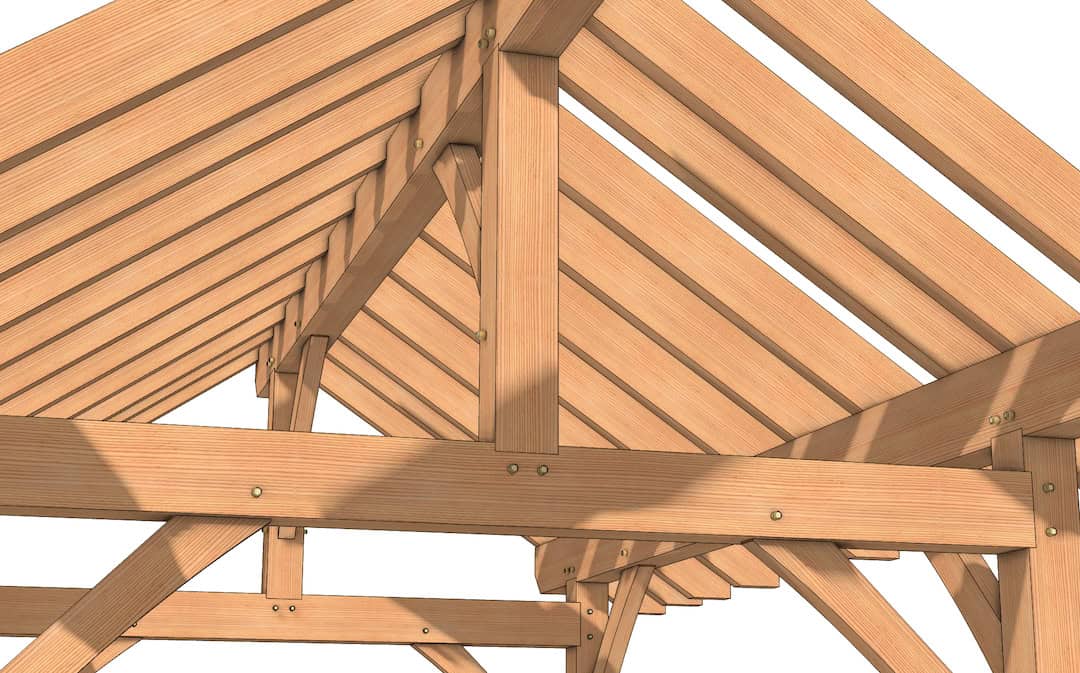

The plan set contains 15 sheets in a pdf that prints on 8.5″x 11″ paper. The set includes piece drawings for all the parts in the frame and a timber list.  We have also included some three-dimensional drawings to help you better visualize the joinery. The drawings are ready for instant download and are easy to runoff from your home printer.

12x16 Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 12’ wide by 16’ long outside of post to outside of post
  • 2’ overhangs on all four sides
  • Height to Top of Plate 9’-10”
  • Height to Top of Ridge  13’-5” with 8:12 Roof Pitch

Timbers

  • Posts –8×8
  • Ridge –8×10
  • Rafters – 4×10
  • Plates –8×10
  • Tie Beams – 8×10
  • Braces – 4×8

Plans

  • 16 pages total
  • Construction Drawings – 15 pages (8.5×11)
  • Materials Lists – 1 pages (8.5×11)
