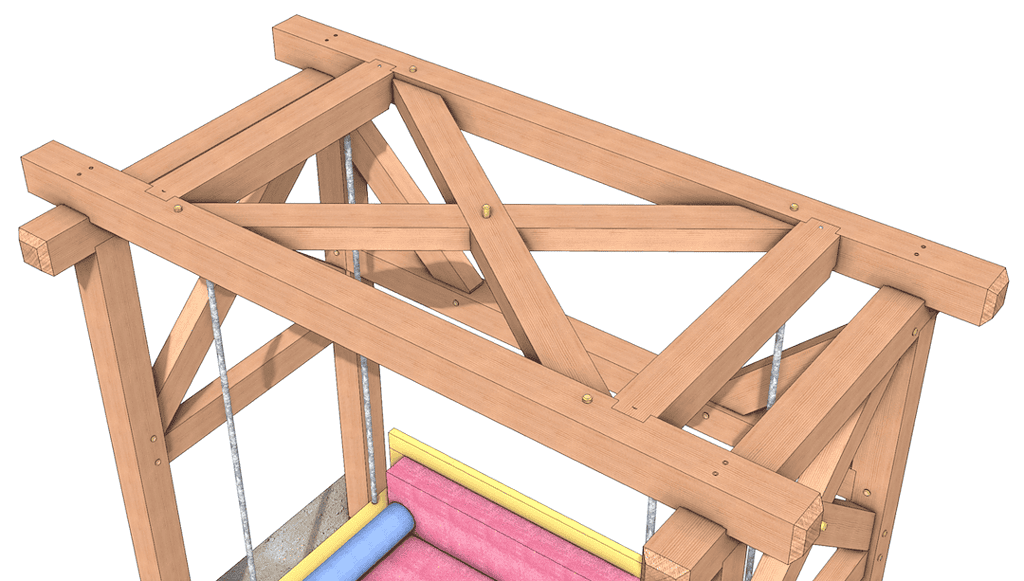

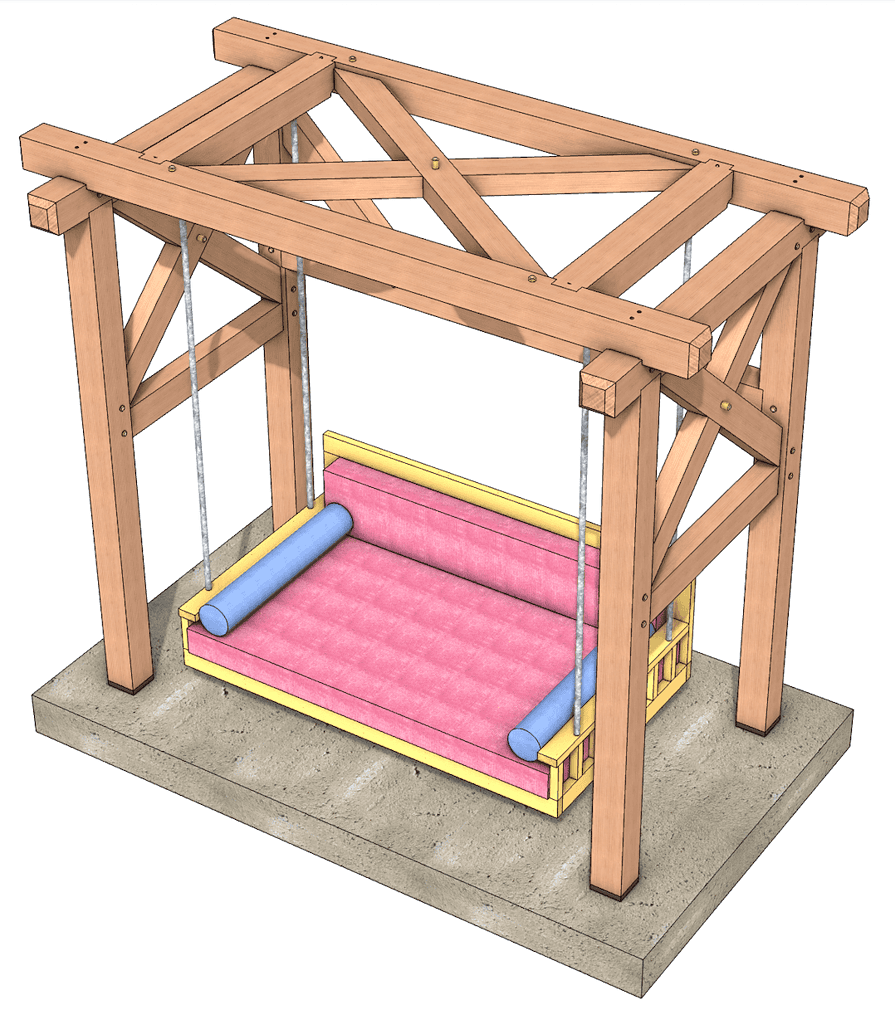

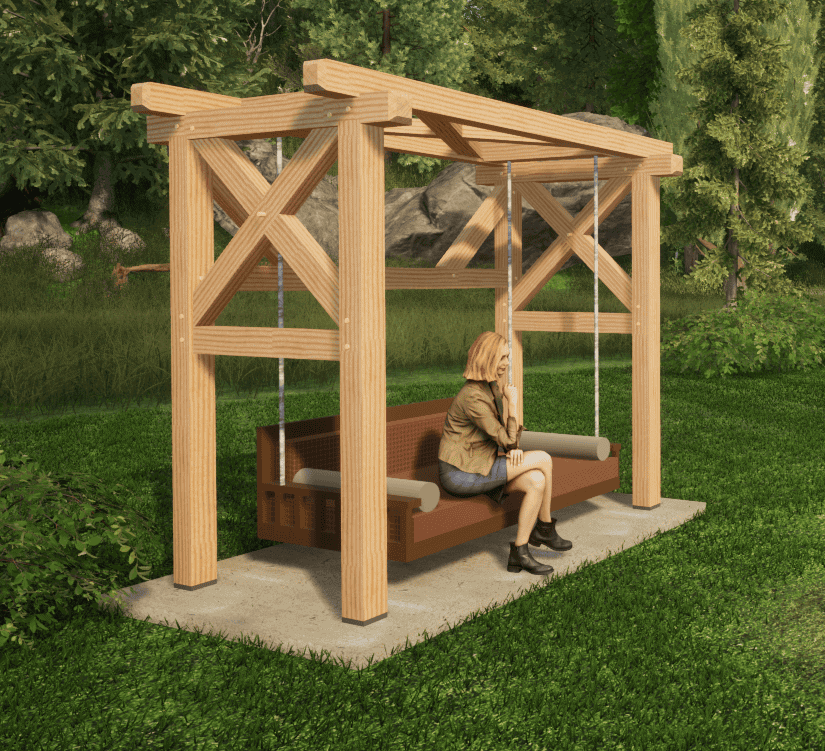

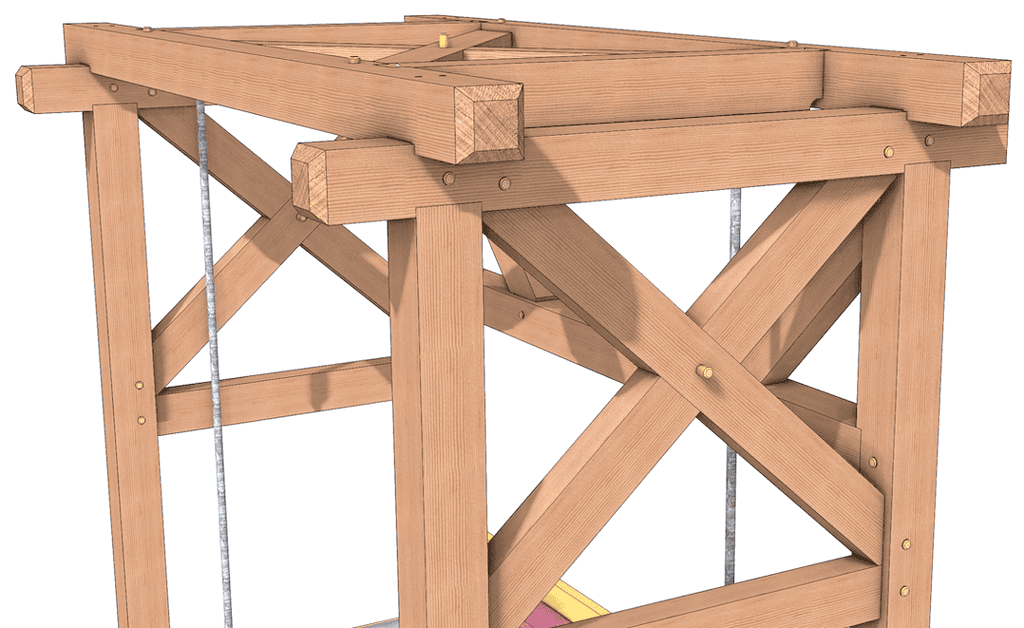

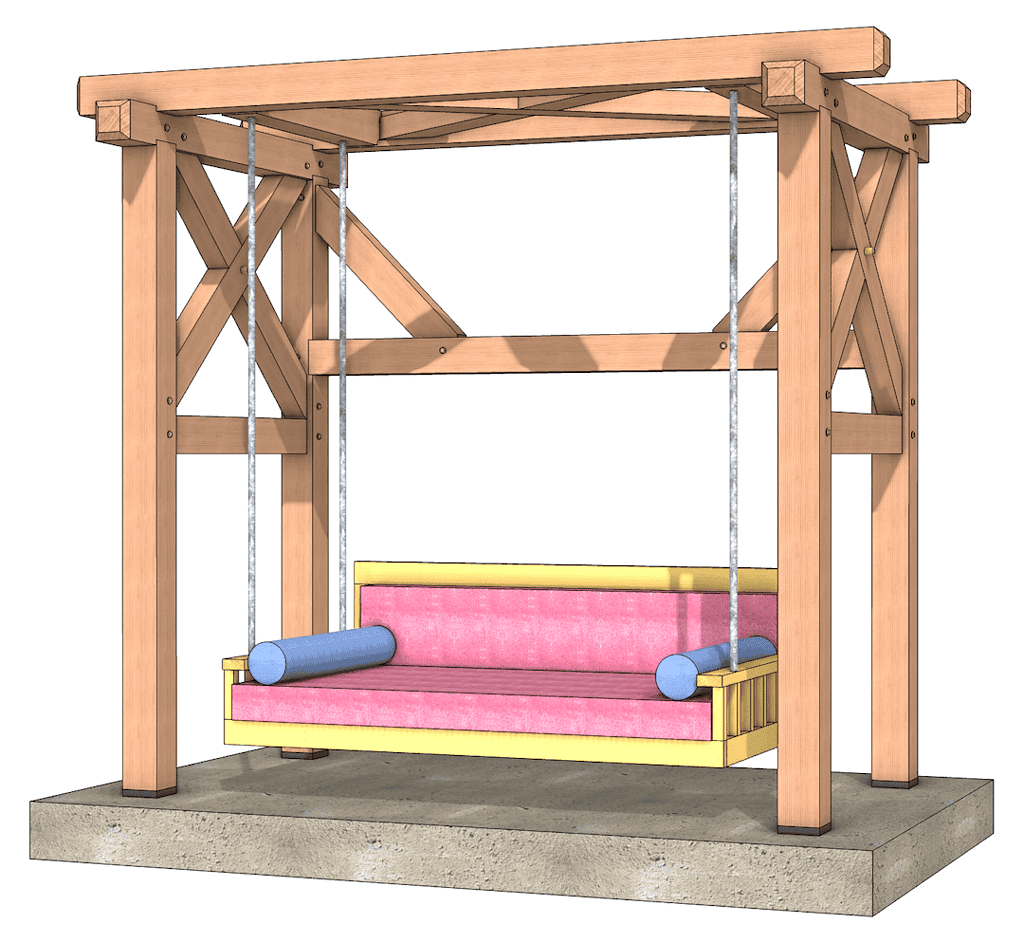

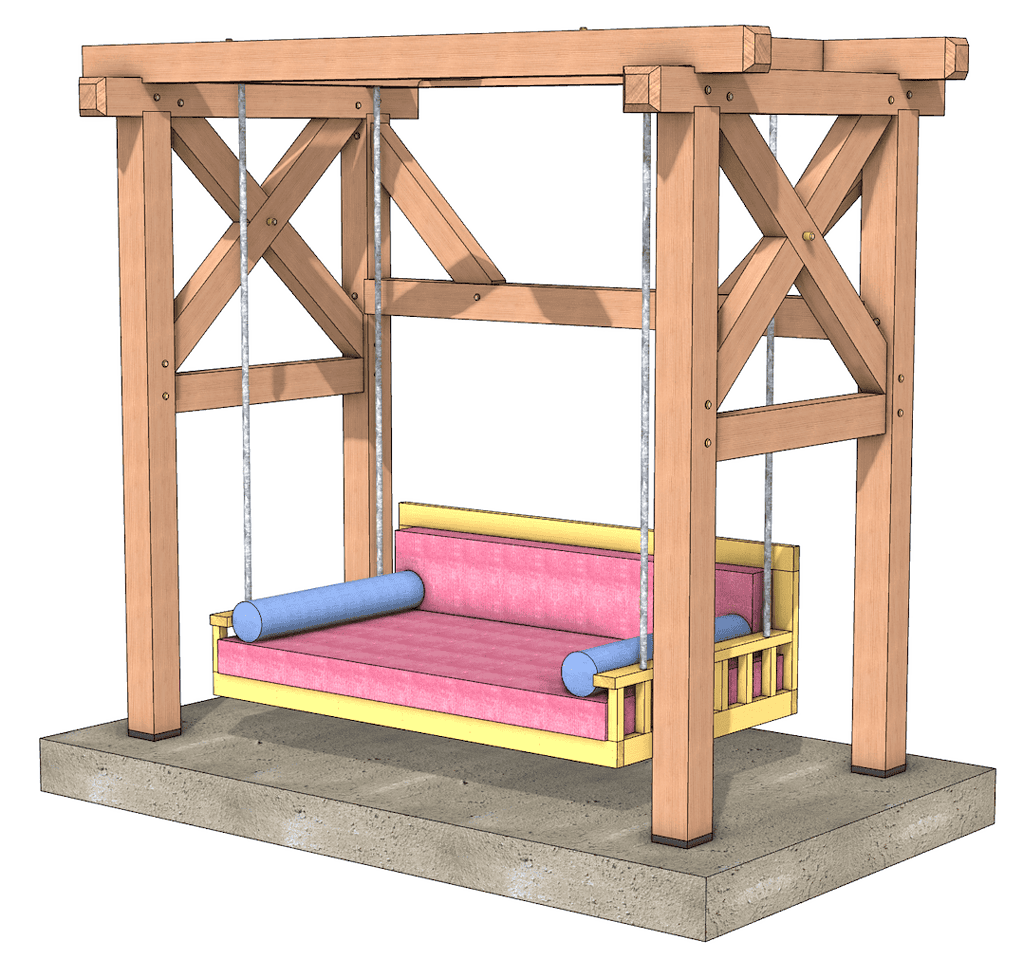

Would you like to laze away an afternoon in your garden, admiring your handiwork? Then you should think about crafting this timber frame bedswing! Once you build the frame you will have plenty of room to add a twin-size mattress and comfy pillows. Lay back and enjoy your accomplishment in cutting the traditional joinery. This would make a great beginner project, because of the small size and moderate amount of timbers.
The footprint measures 8’-5”x4’-5”, but the overall dimensions 9’9”x 5’9 1/2” x 8’5 3/4” tall because of the top beams. The timbers are of smaller dimensions, with 6”x6” posts and top plates, 4”x6” braces and 6”x6” purlins. Keep in mind that the bed frame, mattress, cushions, and pillows, along with chains and swing attachment hardware are to be designed and provided by you.
You can download the pdf of these plans as soon as you make your purchase. You can print them at home on 8 ½”x11” paper, or take them to a copy shop to print at 11”x17”. The plan set contains 8 pages which include 3D drawings and renderings, dimensioned plan and elevation drawings, and plenty of notes so you understand the details. We also include 14 pages of piece drawings, showing all the cuts you will make on every timber. In addition, we provide timber and connector lists to make purchasing your materials easier.
Important Information:
Purchaser agrees that the use of the plan is for the construction of one house or frame only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
Purchaser agrees that the use of the plan is for the construction of one house or frame only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.
Do you deliver your plans also in the metric system?
Our plans are available in Imperial measurements only. There are conversion sites online, however, such as this one: https://www.thecalculatorsite.com/conversions/common/meters-to-feet-inches.php
