HBS Screw

$95.40$121.50

SKU: 9016 Category: Tag:

Countersunk screw
Carbon steel with white galvanic zinc coating

HBS Packaging

PACKAGING
Box + CE paper + BIT

HBS Steel

SPECIAL STEEL
Highly ductile (moves with the
wood) and high-resistant steel
(fy,k = 1000 N/mm2)

HBS Threading

SPECIAL THREADING
Asymmetric “umbrella” threading
for better wood penetration

HBS Eco

ECO-FRIENDLY
Trivalent Cr3
+ ichrome coating,
replacing hexavalent chrome Cr6

HBS Use

FIELDS OF USE
Solid-wood, glulam, X-Lam, LVL,
wood-based panels. Service classes
1 and 2.

STATIC SAFETY

The screws’ fast initial grip makes it possible to create secure structural connections in all assembly conditions

AESTHETICS

The very sharp underhead ribs guarantee an excellent surface finish

STEEL – WOOD

Can also be used with steel plates and hooks, and with turned washers for better performance

HBS Range

APPLICATIONS

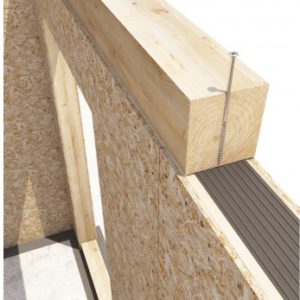

  • Securing X-Lam panels side by side: panel-panel joints
  • Securing platform beams to the framed panel
  • Securing roof rafters to platform beams
HBS Applications
HBS Geometry

Click here for technical data sheets

Please allow 1 to two weeks for delivery. Contact us  for expedited shipping.

Photos courtesy of Rothoblaas.
