24×46 Shed Roof House Plan

$197.00

SKU: 50130 Categories: , , Tags: , ,

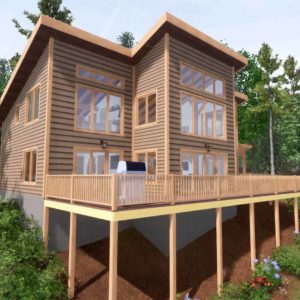

This 24x46 shed roof house plan has loads of contemporary charm! The shed roof and a central bump-out give this house its modern pizzazz. In the central space, the volume ceiling soars up two floors to the main roof line. The first floor has 1,168 square feet of space, and the second floor has 816 square feet. The shed roof would be a great surface to install solar panels with the proper orientation to the sun.

  • Total of 1,984 square feet
  • 3 bedrooms and 3 and ½ bathrooms.
  • Master is on the ground floor and each upstairs bedroom has its own en suite bathroom.
  • Generous kitchen, spacious dining area and the double-tall living room
  • Plenty of windows and doors for light and access to the outside.
  • Clerestory windows in the high face to ensure a sunny interior.

When you purchase this plan we will email you with links to download the plan sets. One is the construction set that contains 5 pages (sized at 11x17) with all the information you need to raise this frame. There are 3D drawings, including an exploded one so you can see all the joinery. There are post beam and rafter plans, as well as section and detail drawings. The piece drawing set has 57 pages showing every cut you will make on the timbers. There is the 5-page architectural plan set with rooms defined. We also include timber and material lists to take the guesswork out of purchasing.


This plan is also included in the Master Plan Bundle and the Timber Frame Home Plan Bundle 1.

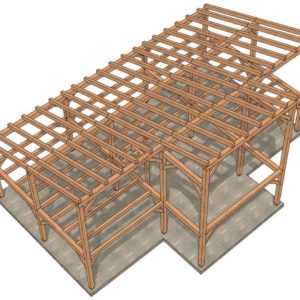

24×46 Shed Roof House Plan (50130) Interactive 3d Model
24×46 Shed Roof House Plan (50130) Architectural Overview
24×46 Shed Roof House Plan (50130) Plan Overview

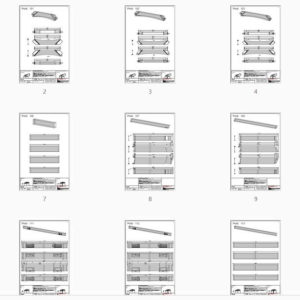

24×46 Shed Roof House Plan (50130) Piece Overview

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 45’ wide by 23’ long outside of post to outside of post
  • 0’ overhangs on any side (overhangs constructed with SIPs)
  • Height to Top of Upper  Plate  22’-11”
  • Height to Top of Lower Plate  12’-10” with 4:12 Roof Pitch

Design

  • First Floor 1248 s/f; Second Floor 888 s/f; Total Heated = 2136 s/f
  • Open Deck 592 s/f; Covered Porch TBD
  • Three Bedrooms
  • Three and one-half Bathrooms, Laundry
  • Great Room and Loft Space

Timbers

  • Posts –8×8
  • Rafters – 6×8
  • Plates – 8×10
  • Tie Beams – 8×10
  • Braces – 4×8

Plans

  • 69 pages total
  • Construction Drawings – 14 pages (11×17)
  • Detailed Piece Drawings – 48 pages (11×17)
  • Architectural Drawings – 5 pages (11×17)
  • Materials Lists – 2 pages (8.5×11)
