24×24 Shed Roof Plan

Name: 24×24 Shed Roof Plan
Brand: Timber Frame HQ
SKU: 22955
Availability: InStock

$97.00

SKU: 22955 Categories: Barn Plans, Cabin Plans, Garage Plans, Pavilion Plans, Shed Plans

Show off your timber framing skills with this 24x24 shed roof timber frame plan! Along with the mortise and tenon joinery, you will cut scarf joints and spline joints, making this a frame you can truly be proud of. And it is proportioned to become practically anything you want it to be! A large carport or garage, workshop or sweet guest house… the shed roof peak soars to over 16 feet, creating a large volume space. Leave it open, or floor in part of the upper area for a storage loft!

576 square feet
Generous two-foot overhangs on all sides
Roof pitch options of 3:12, 4:12 and 5:12
Sturdy 8x post-construction 28-sheet instant-download pdf plans

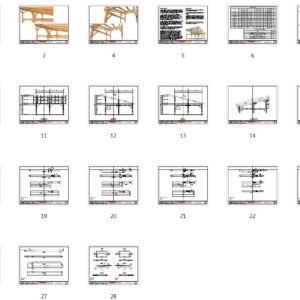

Plans include renderings, plan, elevation and sectional drawings
Detailed drawings show each cut on every timber

These plans include a timber list and fastener schedule so there is no guessing when it comes to acquiring your materials. We also include 3D drawings so you can visualize the end result of your work. The plan set is formatted in 8.5x11 so you can easily print it from home or your neighborhood print shop.

This plan is also included in the Master Plan Bundle and the Timber Frame Carport Plan Bundle.

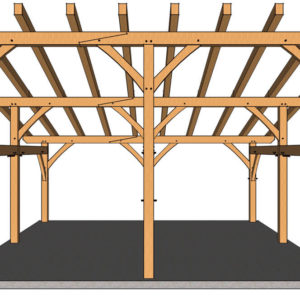

24×24 Shed Roof Plan (22955) Interactive 3d Model

Frequently Asked Questions

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Can you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE.

If that is something that would interest you, fill out the brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting. Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements. Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire. Armed with that information, we can get our heads into your project before we speak. That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Only you may use the License, and such use shall be limited as stated above.
All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
*Please note: You or someone else can print the plans for planning and construction use.
Your License does not allow others to represent our design work as their own.
Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
Any commercial use of the plans is strictly prohibited.

Click HERE *** Read The Complete "Important Information And Plan Licensing Agreement" Before Purchase***

Specifications

Dimensions

24’ wide by 24’ long outside of post to outside of post
2’ overhangs on all four sides
Height to Top of Lower Plate 9’-8”; to Upper Plate 15’-6”
Height to Peak of Roof 16’-8” with 3:12 Roof Pitch

Timbers

Posts –8×8
Rafters – 6×8
Plates – 8×10
Tie Beams – 8×10
Braces –4×8

Plans

29 pages total
Construction Drawings – 28 pages (8.5×11)
Timber List – 1 page (8.5×11)

Timber Kit

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.

24×24 Shed Roof Plan

Great plan, very detailed. I wish it included a few architectural perspectives with a finished exterior for the HOA.

Bien Fait

Des plans clair et bien fait

Just the frame I sketched for my wife!

I went looking for a timber frame plan that matched the sketch I made for my wife’s new art studio. This frame matched the overall design and dimensions.
Thank you for having these plans available for purchase!

24x24 Shed Roof Plan

Albert

So far so good, I will be printing up plans for future use.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

Wind / hurricane / tornado
Seismic / earthquake
Heavy snow
Flood potential
Soil instability
Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
