12×16 Shed Roof Plan

$87.00

This 12×16 shed roof pavilion is a sculptural beauty! The upper plate stands over 12 feet high, creating a nice breezy ceiling volume. With only two bents supporting the plates, this is a relatively easy frame to cut and raise. The ample 24-inch overhangs provide plenty of protection from sun and rain.

There are many possibilities of how this frame could be finished… a small workshop, a bedroom area addition to your home, or a freestanding outdoor dining area. Let your imagination run wild! The interior space is 192 square feet, but the ceiling volume makes it feel much bigger than that.

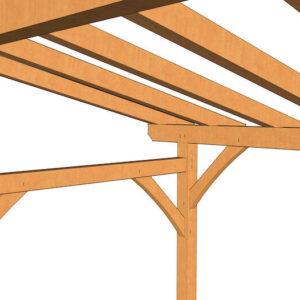

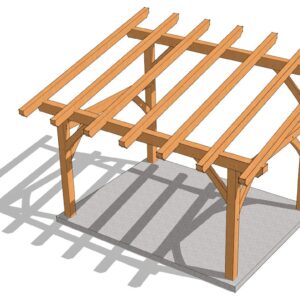

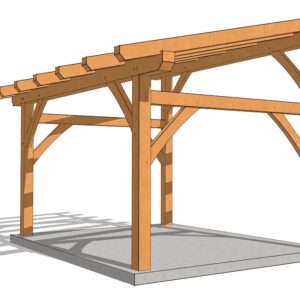

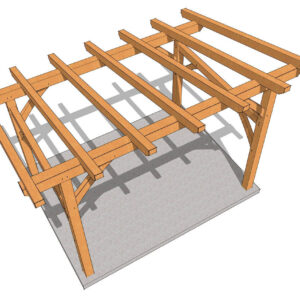

We provide a drawing set full of plan views, elevations, section drawings and individual piece drawings. There is a full timber list to expedite your timber purchase. We also include 3d renderings to help you visualize the frame. The drawings are formatted in PDF for instant download. They are sized at 8 ½” x 11”, for easy printing at home.
