Originally designed as a barbeque gathering area holding a smoker, this hexagonal gazebo plan would be a great addition to any garden! This sturdy gazebo boasts 12x12 posts cut to fit the hexagonal shape. The top of the 4x8 collar beams are 10 feet high, and with a roof pitch of a bit over 8 in 12, this frame has a commanding presence with an overall height of over 16’-5”. It is designed to be constructed of Western Red Cedar. The braces are secured to the collar beams and posts with beautiful mortise and tenon joinery. Other elements of the frame are secured with structural screws and Timberlinx connectors for superior strength.
- Overall size is 17’6 ½” x 15’-2 ¼’ from outside to outside of the posts.
- Each of the 6 flat sides is 8’-9 ¼” wide
- 4x6 braces and rafters, 4x8 collars and struts, 6x6 hips and purlins, 8x8 top plate, 10x10 boss pin
- 2014 total board feet completes this frame

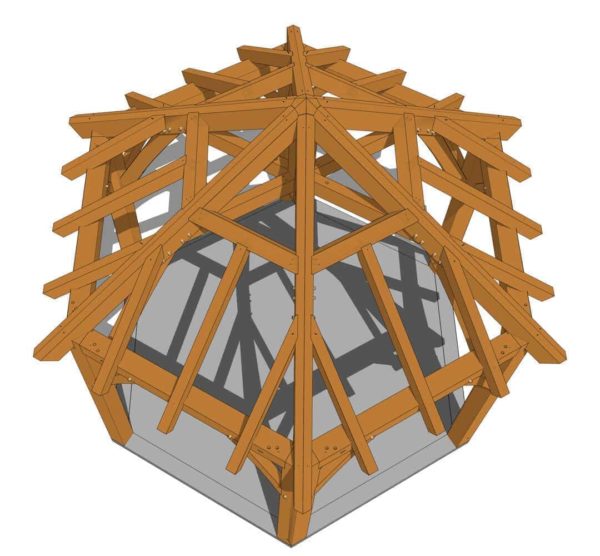

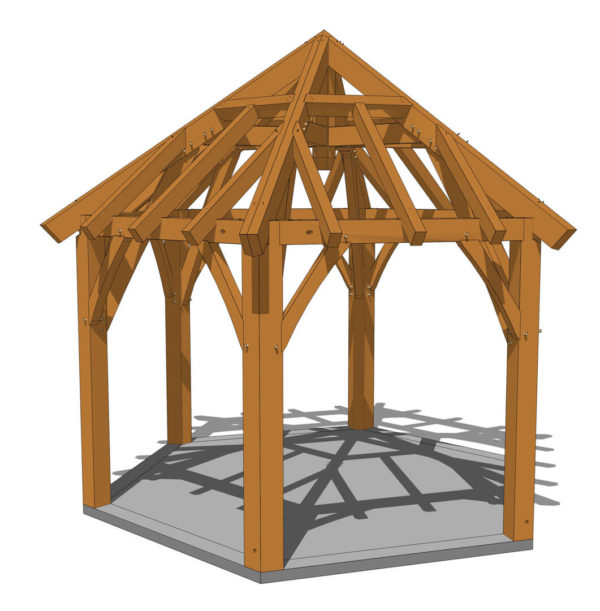

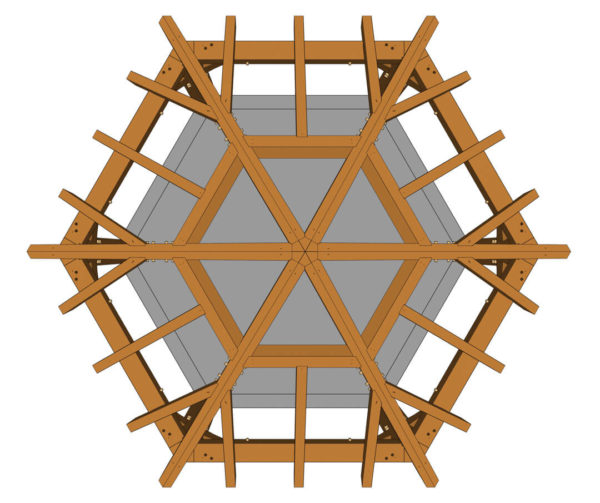

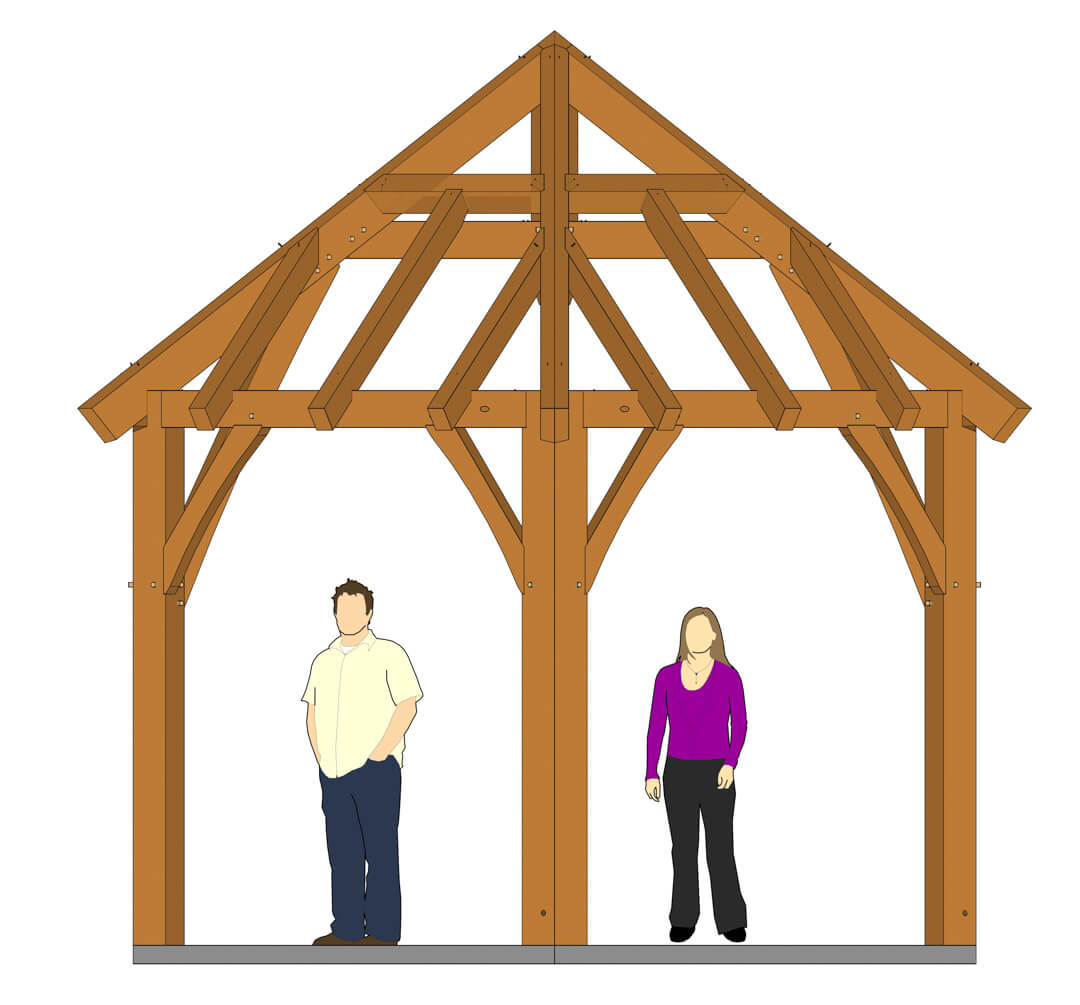

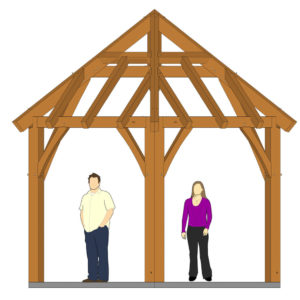

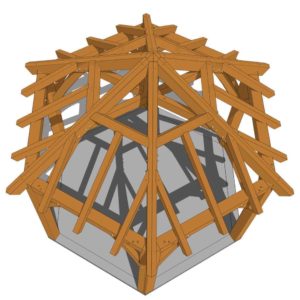

You will receive a link to download the pdfs of the hexagonal gazebo plan as soon as you make your purchase. And the plan sets give you all the information you need to successfully complete this project! The construction set is 14 pages of drawings, including 3D images of the frame, both exploded and assembled. There are post, plate ring, and roof framing plans, and a reflected ceiling plan as well. We provide elevation and section drawings, and detail drawings for clear explanation of the joinery. The piece drawing set has 15 pages showing each cut on every timber. And we also include timber and fastener lists so you know exactly what you need to purchase.
