12×16 Saltbox Plan

$97.00

SKU: 01084 Categories: , , Tags: ,

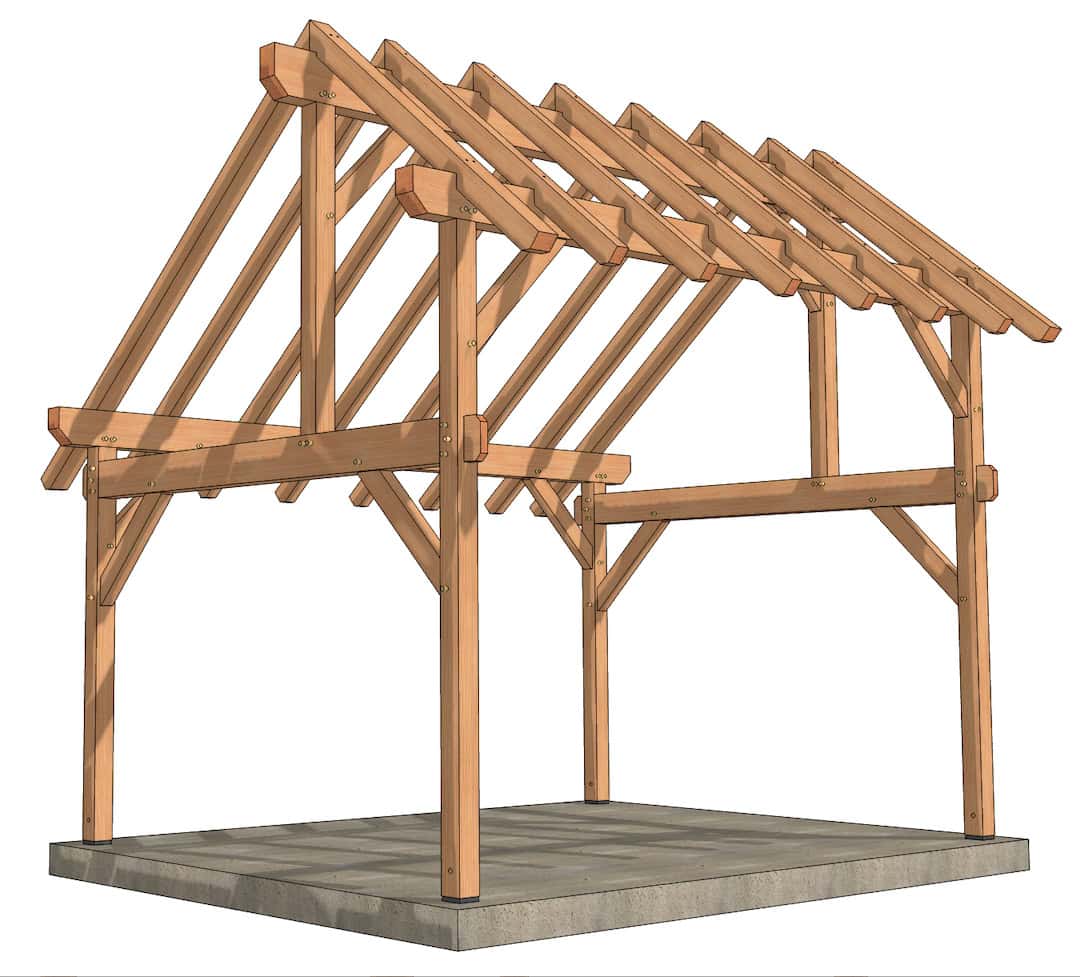

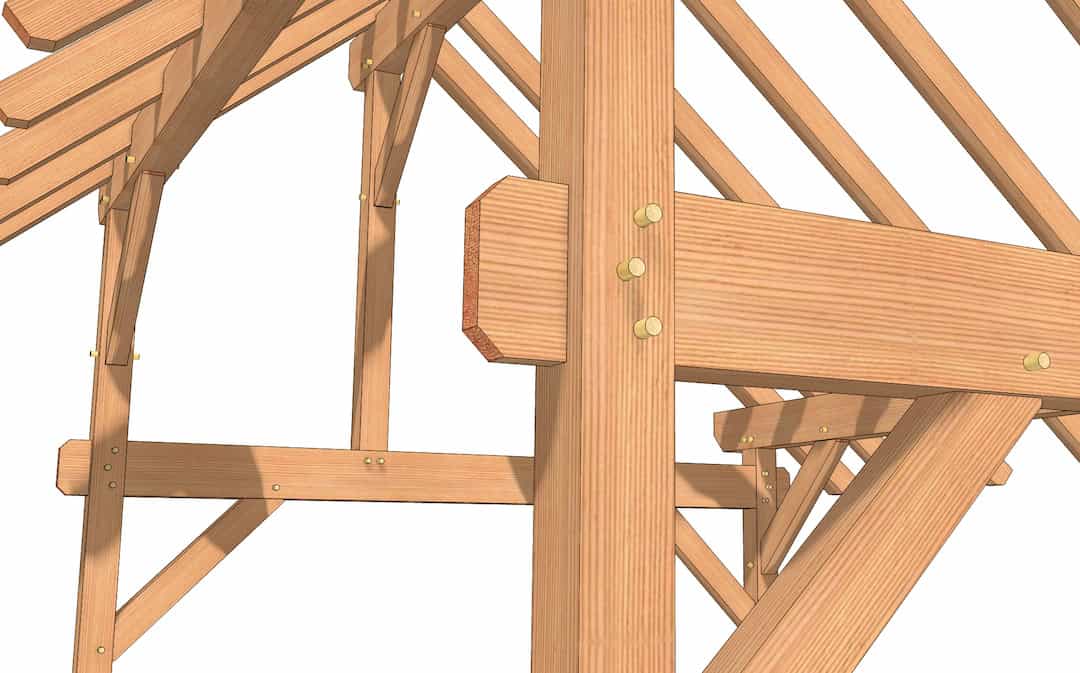

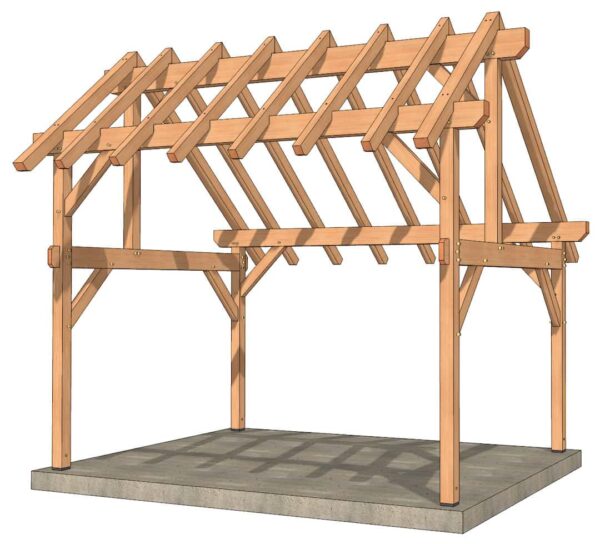

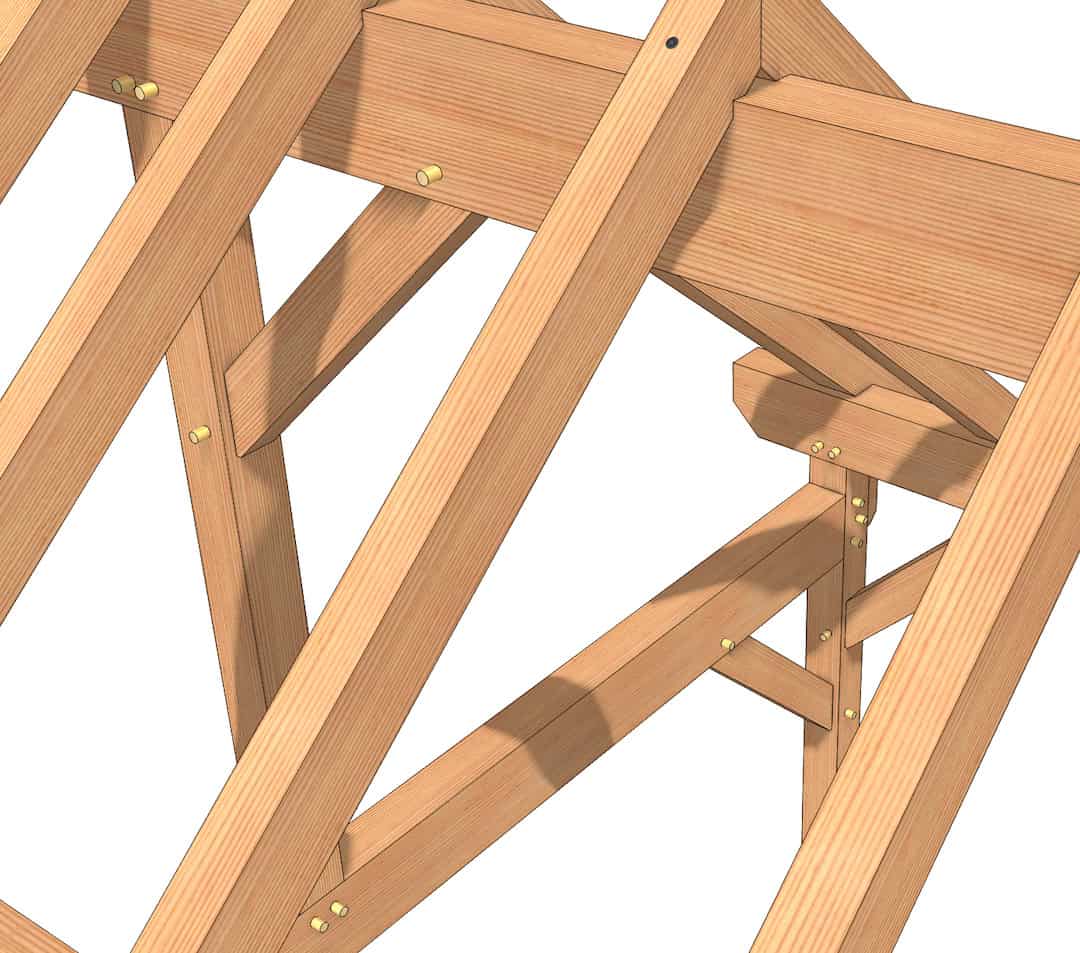

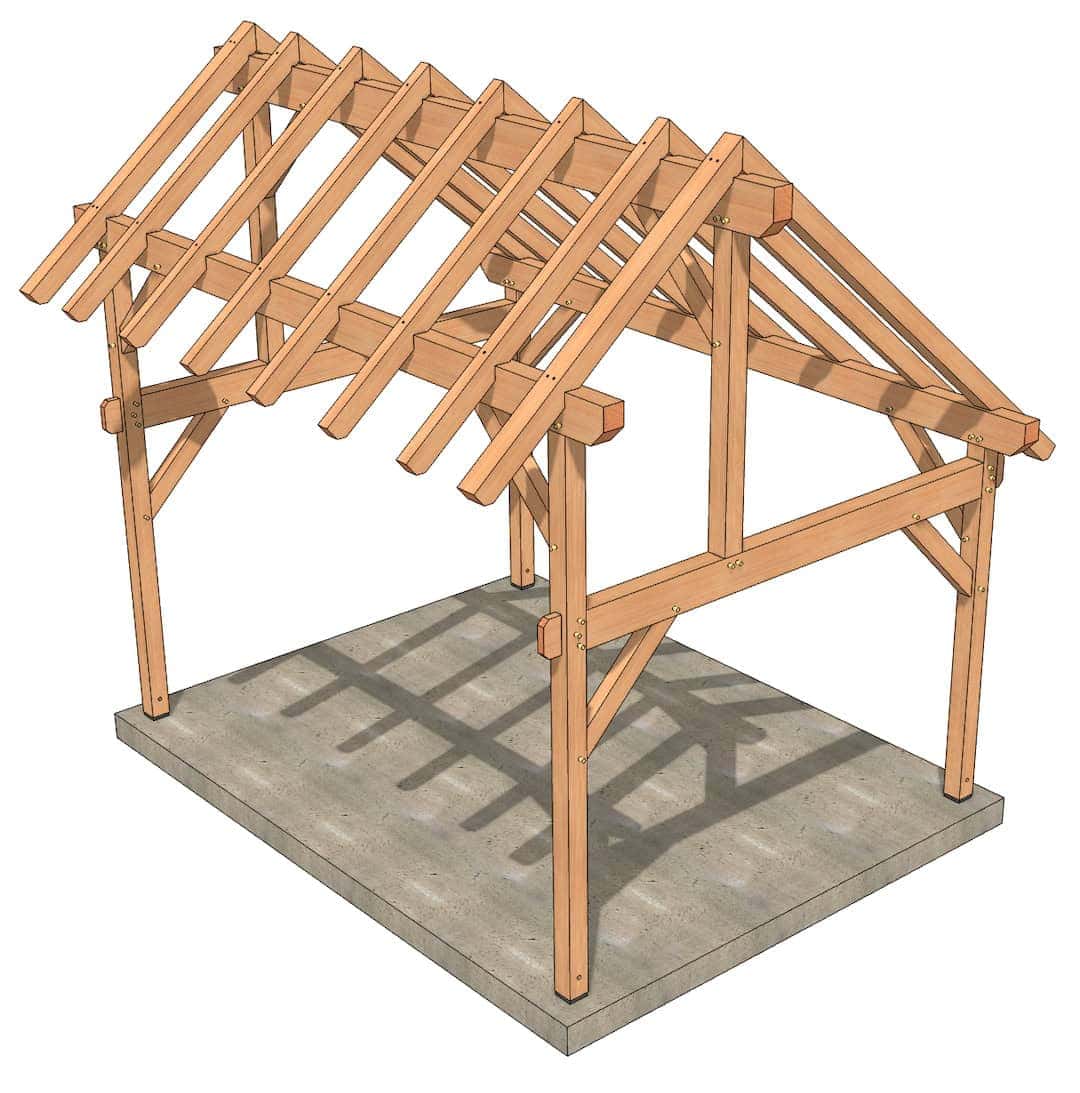

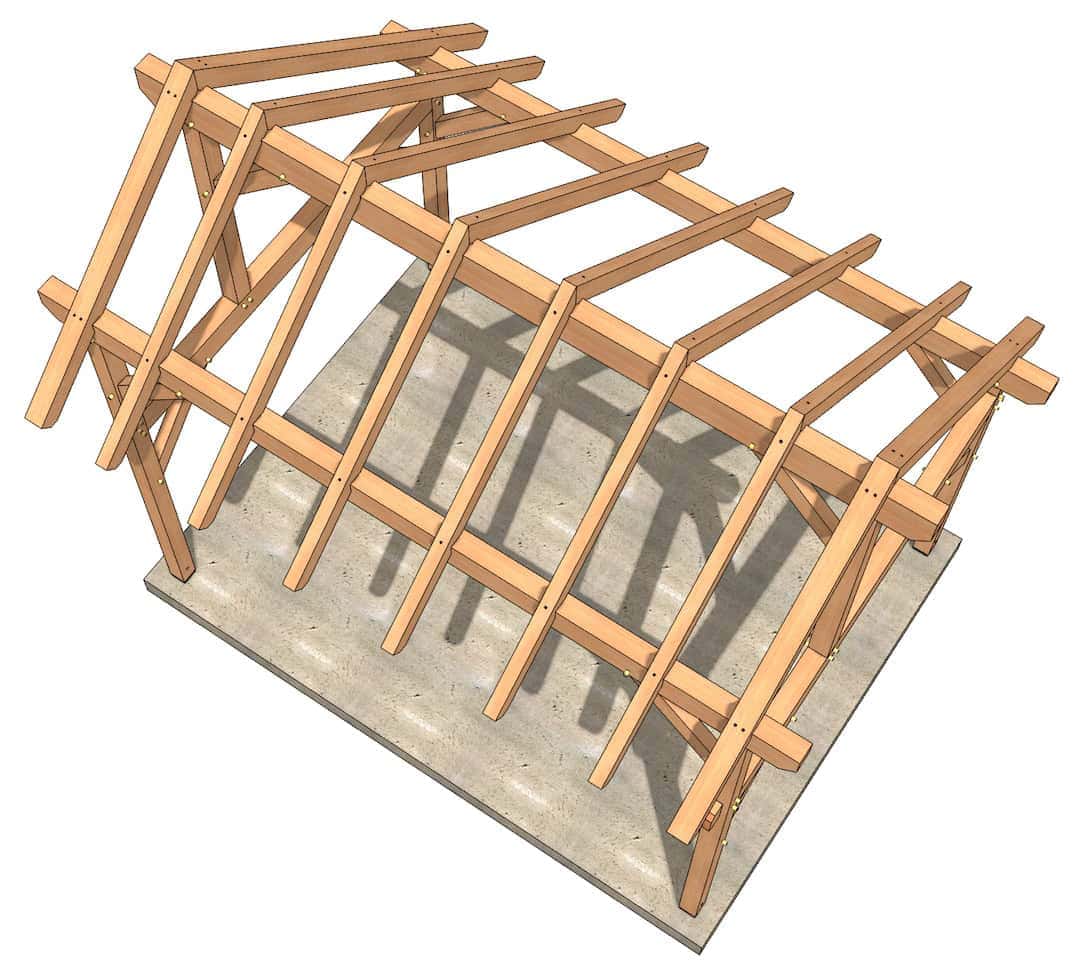

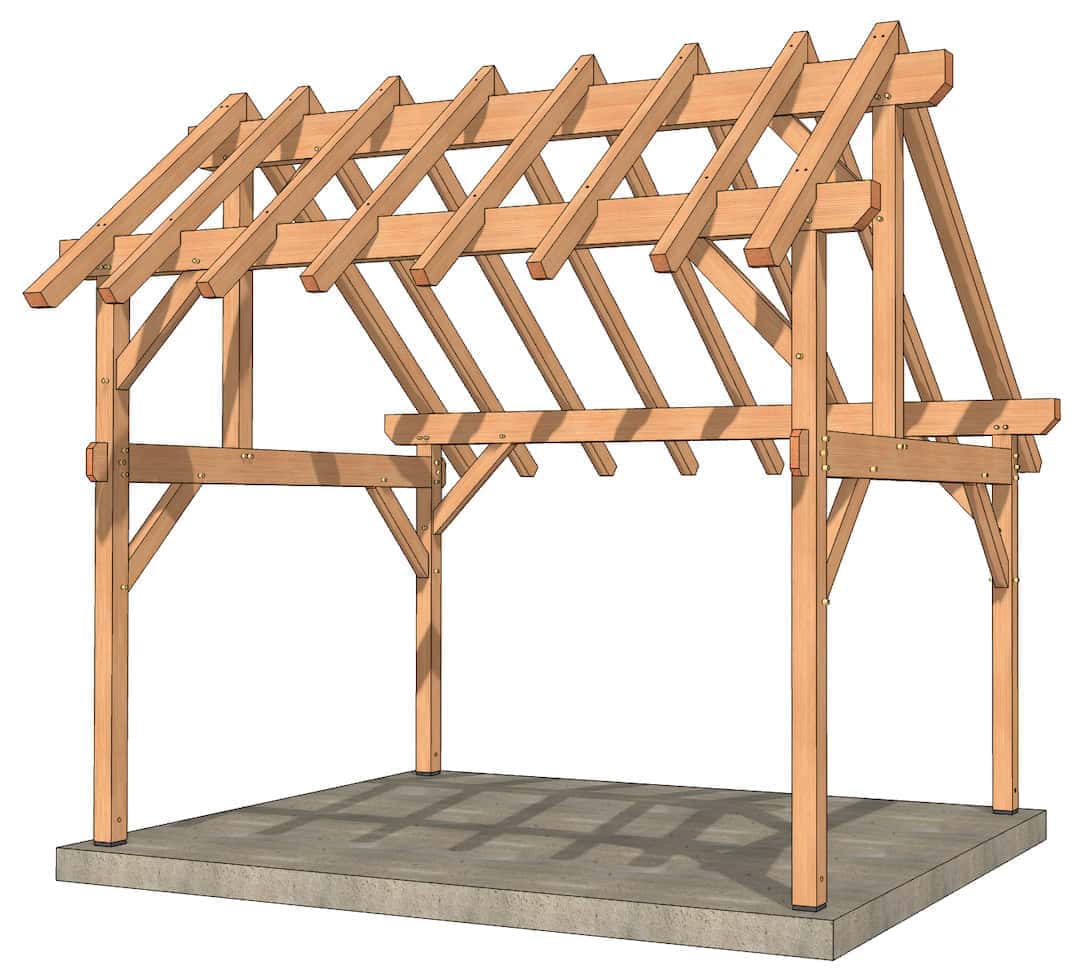

If you want to build a true timber frame structure while using easily-acquired lumber, check out this 12x16 Saltbox Plan!  It uses 4x and 6x material, so it’s also pretty economical to build!  In true saltbox fashion, this frame has an asymmetrical roof.  This makes one top plate stand higher than the other and gives you lots of opportunity to install cladding and windows to suit your purposes.  The common truss design simplifies your work and creates a clean frame.

  • 4x6 braces and common rafters
  • 6x6 posts and principle rafters
  • 6x10 girts, ridges and top plates
  • 1,084 board feet of timber
  • Plan measures 12x16 from outside to outside of the posts, 2 foot overhangs on plate ends
  • 8’-2” to top of girt; 16’-3” to top of rafters; 7’-4” between top of girt and top of ridge
  • 10:12 roof pitch

When you purchase this plan you will receive instant-download links to a wealth of information!

  • The construction plan set contains 10 pages with 3D drawings, including labels that correspond to the piece drawings. There are post and roof plans, and transverse and longitudinal sections so you can see everything you need.
  • The 16-page piece drawing set shows you every cut you will make on each timber, and the labels match up to the 3D drawings so you can see where everything fits into the frame.
  • We also give you timber and connector lists to make your material shopping easier.

This plan is also included in the Master Plan Bundle and the Timber Frame Tiny House Plan Bundle.

12x16 Saltbox (01084) Interactive 3D Model
12x16 Saltbox (00823) - Plan Overview
12x16 Saltbox (00823) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

PLAN PURCHASES AND GRANT OF LICENSE

This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).

Grant of License.

Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).

This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.

Use of License.

Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.

Ownership.

All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.

Fees.

The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).

Termination of License

This Agreement and the License granted hereunder will terminate immediately upon:

(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.

(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.

Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.

No Derivative Works. No Reproduction. No Modification.

You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.

Reservation of Rights.

Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

DISCLAIMER OF WARRANTIES.

EXCEPT FOR TIMBER FRAME HQ'S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.

Specifications

Dimensions

  • 12’ wide by 16’ long outside of post to outside of post
  • 2’ overhangs on all rafter end sides, 1’ overhang on gable end sides
  • Height to Top of Plates 9’-4” and 12’-6”
  • Height to Peak of Roof  16’-3”  with 10:12 Roof Pitch

Timbers

  • Posts –6×6
  • Girts  – 6×10
  • Ridge –6×12
  • Rafters – 6×6, 4×6
  • Plates – 6×10
  • Braces – 4×6

Plans

  • 28 pages total
  • Construction Drawings – 10 pages (11×17)
  • Detailed Piece Drawings – 16pages (11×17)
  • Materials Lists – 2 pages (8.5×11)
