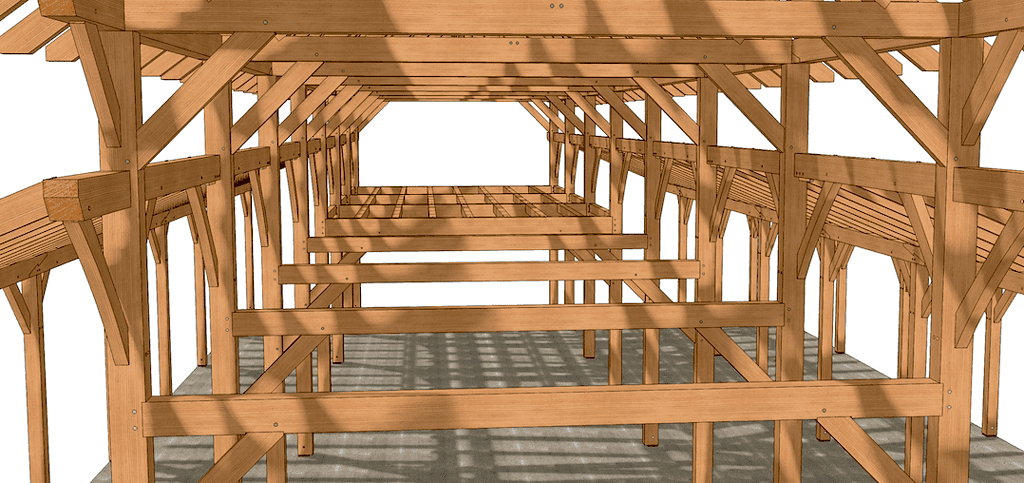

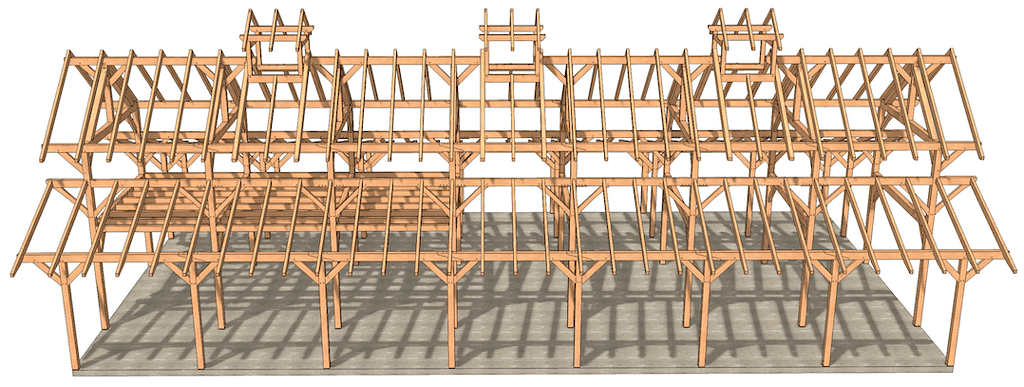

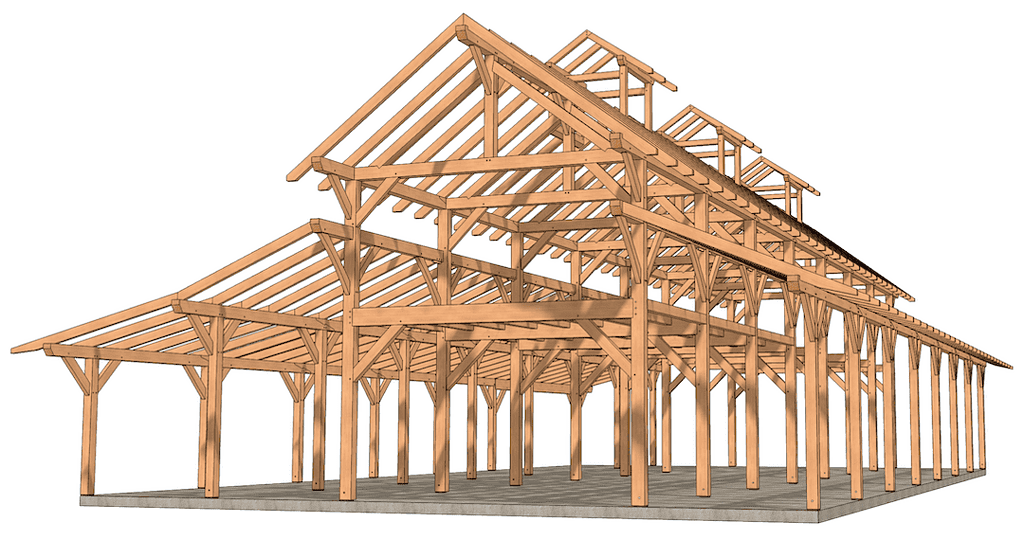

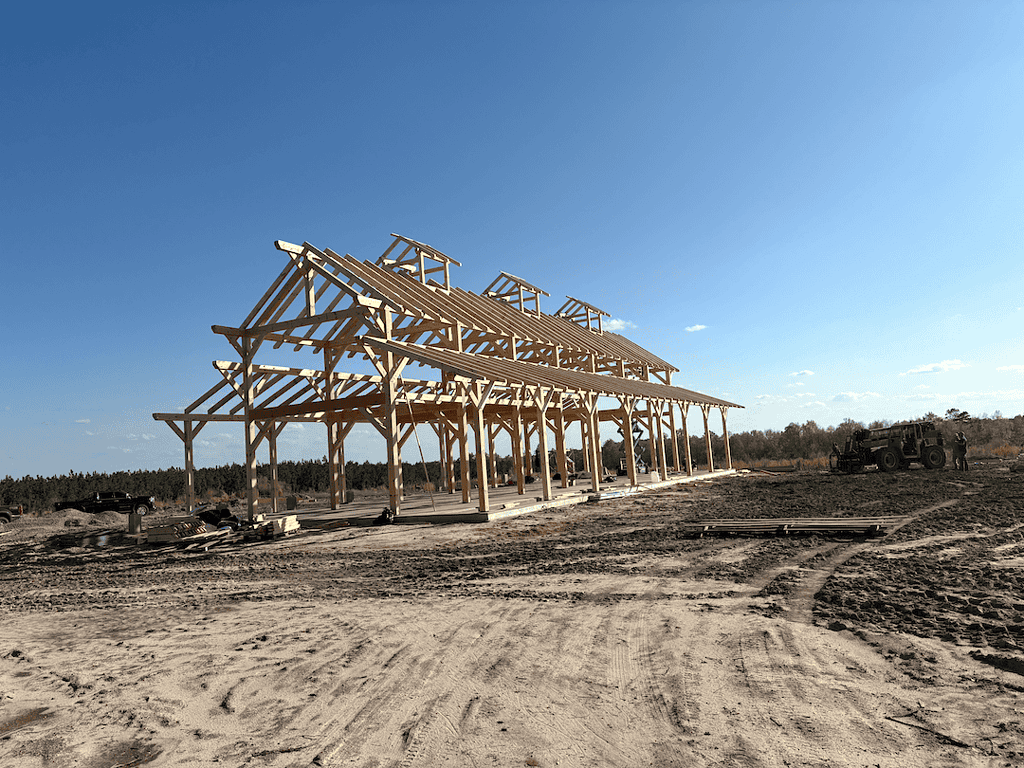

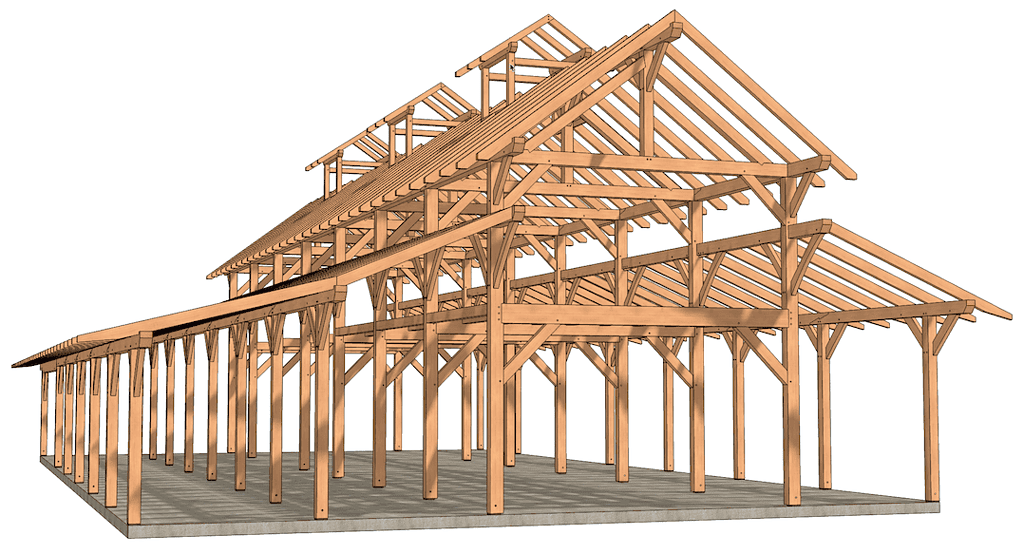

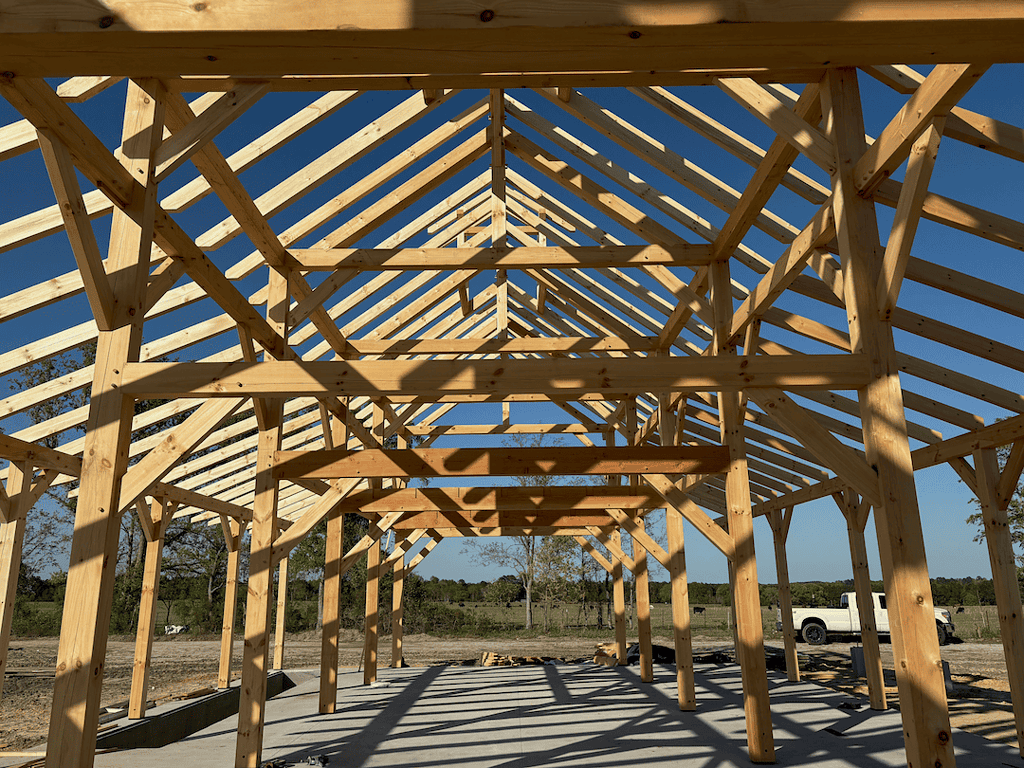

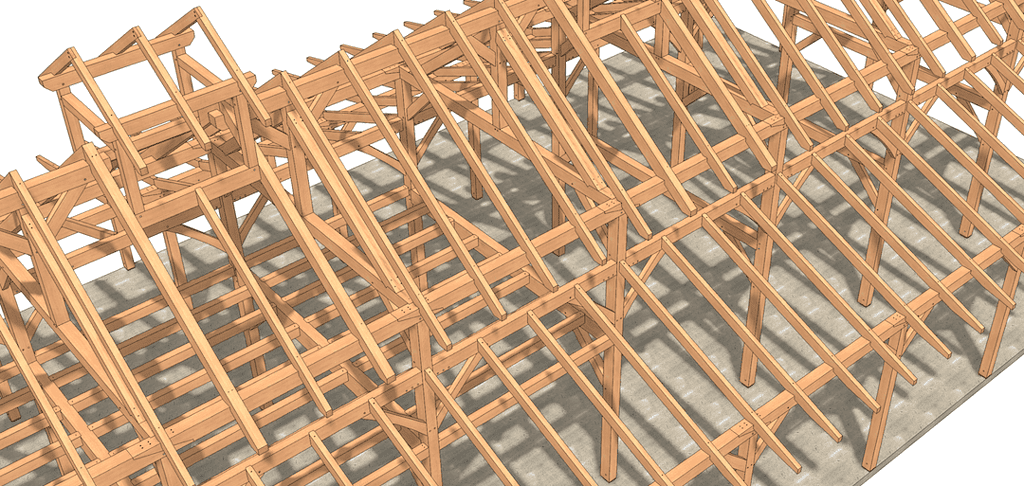

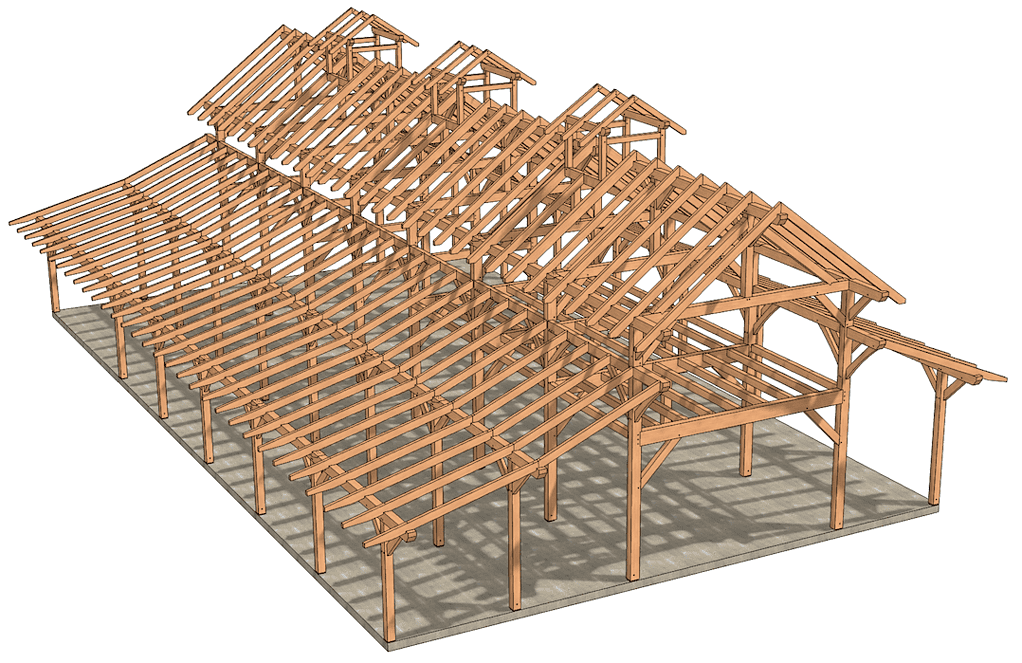

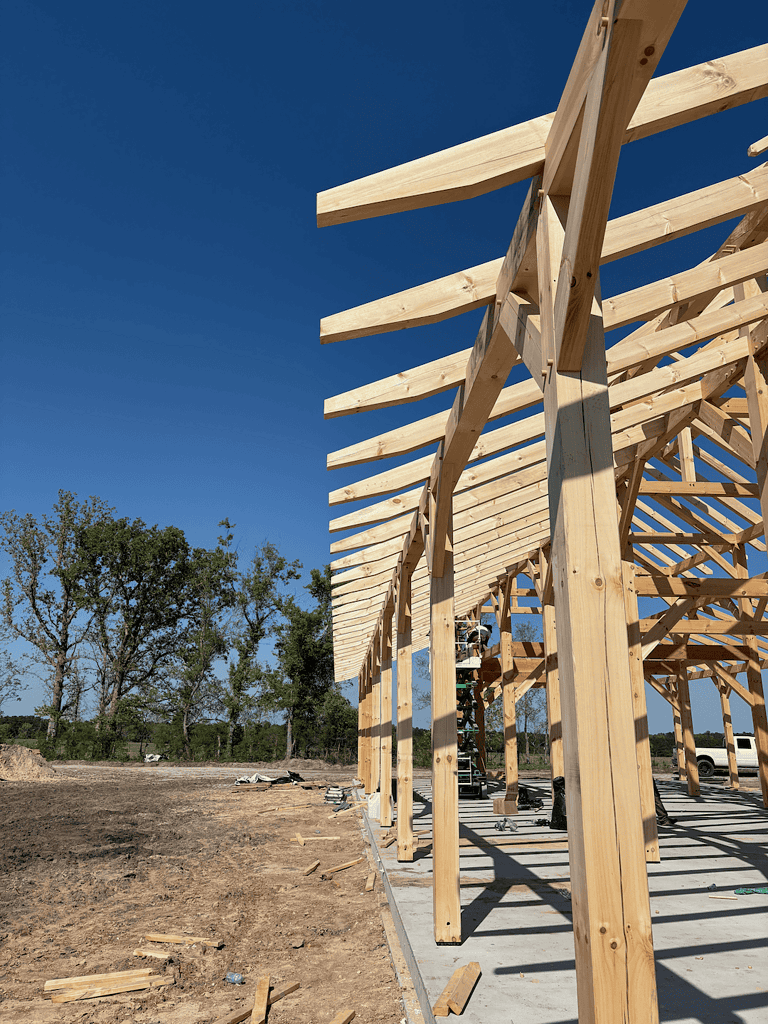

Raised in a week, built for a century, the 50×90 Timber Frame Barn combines impressive scale with traditional craftsmanship. It is a versatile structure constructed with authentic mortise-and-tenon joinery, offering nearly 4,700 square feet of usable space. This impressive design is perfect for agricultural operations, equestrian facilities, equipment storage, or event venues.
Structural Overview:
- Foundation Footprint: 50'×90'
- Main Floor Area: Approximately 4,680 sq ft
- Construction Style: Traditional timber frame with full mortise and tenon joinery
- Wall Compatibility: Engineered for standard wall construction and insulation
Design Highlights:
- Open Floor Plan: Clear-span design maximizes interior flexibility
- High Ceilings: Generous headroom throughout for equipment, livestock, or multi-level use
- Natural Light Ready: Frame designed to accommodate windows and dormers as needed
- Multiple Configuration Options: Divide into stalls, workshops, storage areas, or leave open
Whether you're planning a working farm building, commercial stable, equipment barn, or event space, the 50×90 provides the square footage and structural integrity to match your vision.
Our Ready-to-Raise™ kits come with precision-cut timbers, all the hardware you need, and clear assembly instructions, so building your barn is simple and manageable.
Download Brochure
Like this plan? Want a little more information? Access our downloadable PDF.
Customize or Kit
Do you like this plan but need to change it a little, or do you want a complete Ready-To-Raise Kit?
Get An Instant Quote
Use our online calculator to get a quote for a complete Ready-To-Raise™ Kit. Just need your zip code.
What's Included
We take immense pride in our team of exceptionally skilled timber frame designers. Each member is not only equipped with the finest tools but also possesses a profound understanding of how different materials intricately come together to realize your vision. This deep expertise in both design and material synergy is crucial in crafting the ideal timber frame structure tailored just for you.
Our commitment to excellence extends to our engineering team, specialists in timber frame structures, many of whom hold doctorates in their field. Sharing your passion for timber framing, our engineers work closely with you, ensuring that every aspect of the frame's design is customized to suit your specific location. This collaborative process guarantees that you receive all necessary documentation for permits, including detailed engineered reaction diagrams, ensuring your construction proceeds smoothly and stays on schedule.
The culmination of this meticulous process is a comprehensive set of construction drawings. These detailed plans not only provide a clear guide for your kit's assembly but also include a complete list of timbers and fasteners, serving as an invaluable reference throughout the installation of your frame. Our goal is to ensure that every step, from initial design to final construction, is seamless, transparent, and perfectly aligned with your project's needs.
After we've collaboratively chosen the ideal wood type for your project, we proceed to source the highest quality timber through our network of trusted mills. Ensuring that every piece meets our exacting standards, we then transport the timber to one of our cutting facilities. There, the joinery is meticulously crafted using CNC machines. Every joint, drilling, mortise, and tenon is cut with precision, adhering to tight tolerances for impeccable quality and fit.
Following the cutting process, all timbers are systematically labeled according to the production numbers assigned during the creation of your model and plans. This meticulous process ensures that every component of your timber frame is prepared with the utmost attention to detail, ready for the next phase of your project.
Included with your package are all the pegs, fasteners, screws, and connectors you need to put your ready-to-raise frame together. You will also get a detailed list for you to refer to while raising your frame.
We carefully package and securely transport your timber frame and all necessary hardware directly to your location. In sync with you, we'll coordinate the delivery schedule, ensuring that we agree on an approximate time on the designated date. To facilitate a smooth and safe unloading process, it's important to have equipment on hand capable of lifting up to 5,000 lbs. Once everything is delivered and in place, the exciting phase of bringing your project to life begins.
At Timber Frame HQ, we embrace the philosophy of 'One Person, One Project.' This approach ensures that each client is paired with a dedicated Project Manager who will be your point of contact throughout the entire project. We believe in offering personalized, consistent support to make your journey with us as smooth and fulfilling as possible.
Our commitment extends beyond just providing exceptional timber frames. As your construction resource, we'll be by your side for the duration of your project, ready to offer expert advice, support, and answers to all your queries. Our goal is to make the process of raising your timber frame not just successful, but also a deeply rewarding experience.
We invite you to visit our 'About Us' page to learn more about our values, our team, and how we can bring your timber framing vision to life with a touch of personal care and professional excellence.

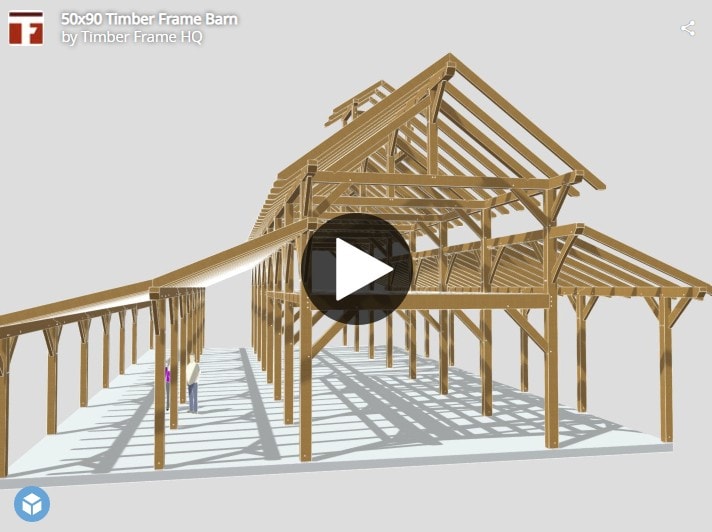

View Our Interactive 3d Model
We understand that every project is unique, so we offer extensive customization options for our plans and kits. Choose from various sizes, roof styles, and finishes to match your style and landscape. Our design team is dedicated to helping you create the perfect plan that reflects your vision.
Here's How You Can Get Started:
- Phone: Call us at 888-552-9379 (9–5, M–F) to speak with one of our experts.
- Email: Send your questions to projects@timberframehq.com, and we will respond within two business days
- Online Form: Please complete the form below, and we will respond promptly.
We are building a church. The 50×90 kit is the right look but we’d need to double the size to 100×180. Is that possible?
Just sent you an email. We can easily accommodate that size with some modifications.
