12×24 Gothic Arch Pavilion

12x24 Gothic Arch Pavilion

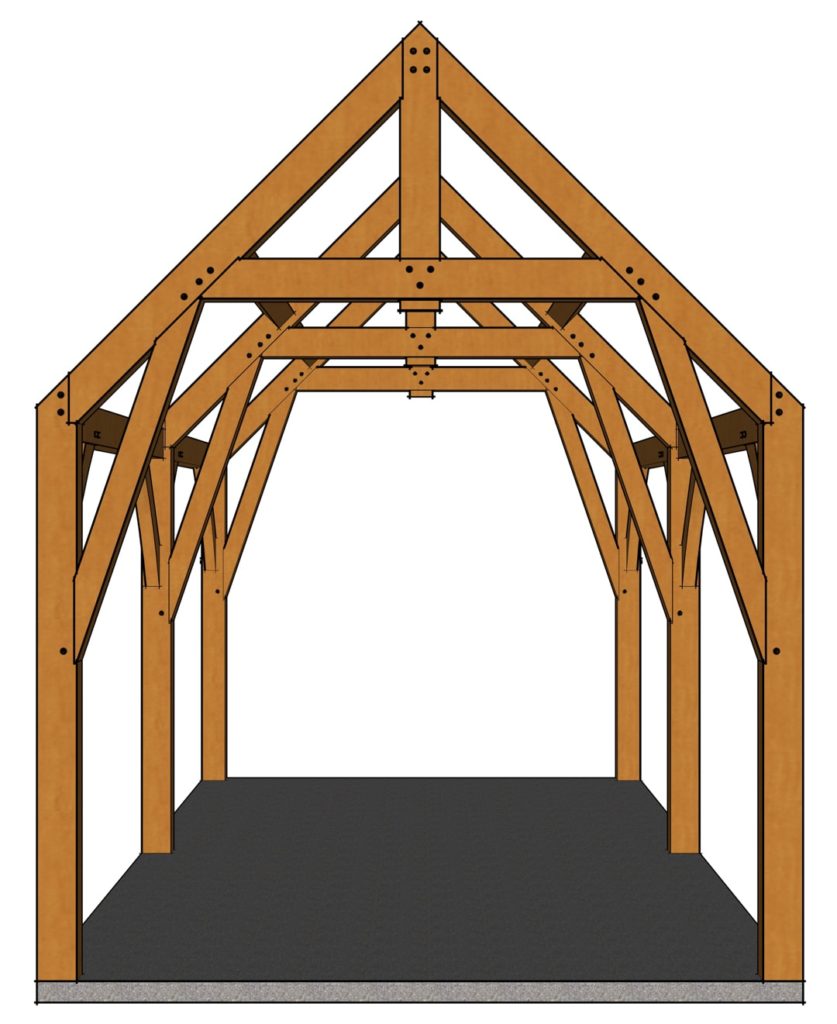

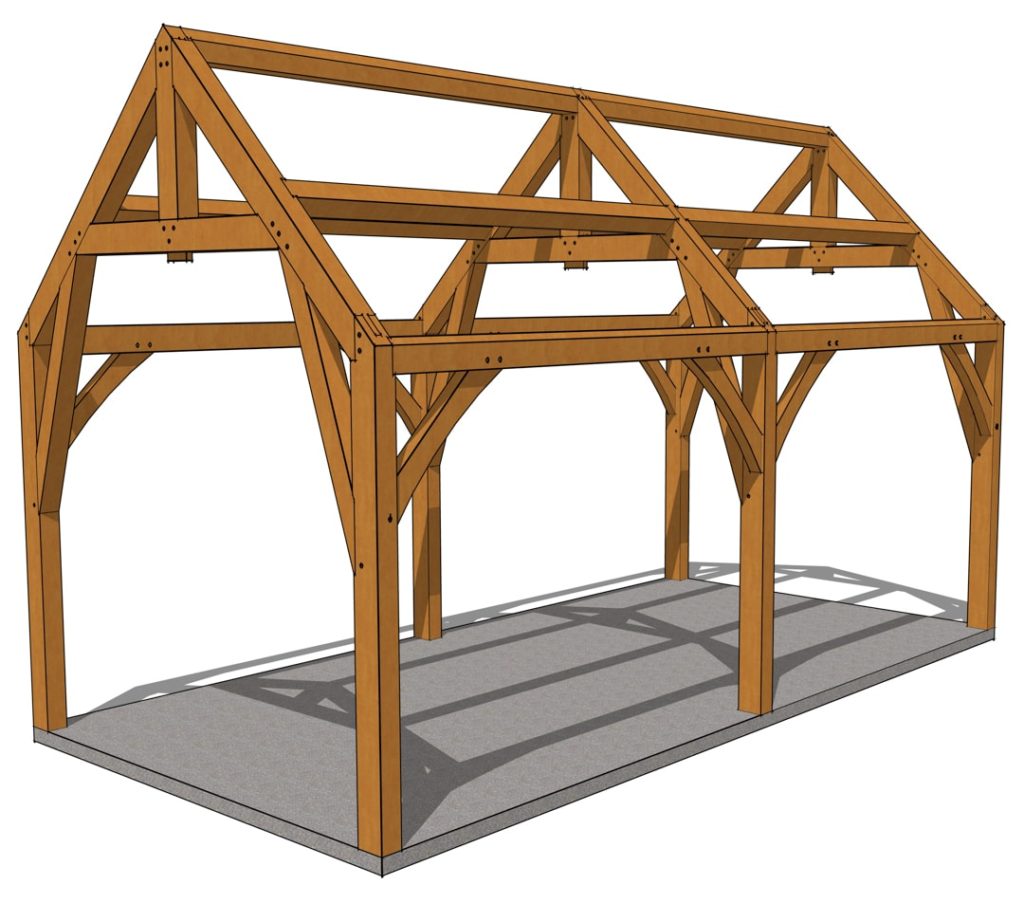

This graceful 12×24 Gothic arch pavilion would make a fantastic addition to your backyard landscape. The sharply angled struts create the gothic style of this generously-sized frame. With 288 square feet, you could enjoy it as an alfresco dining pavilion, glamping cottage, or any number of other uses.

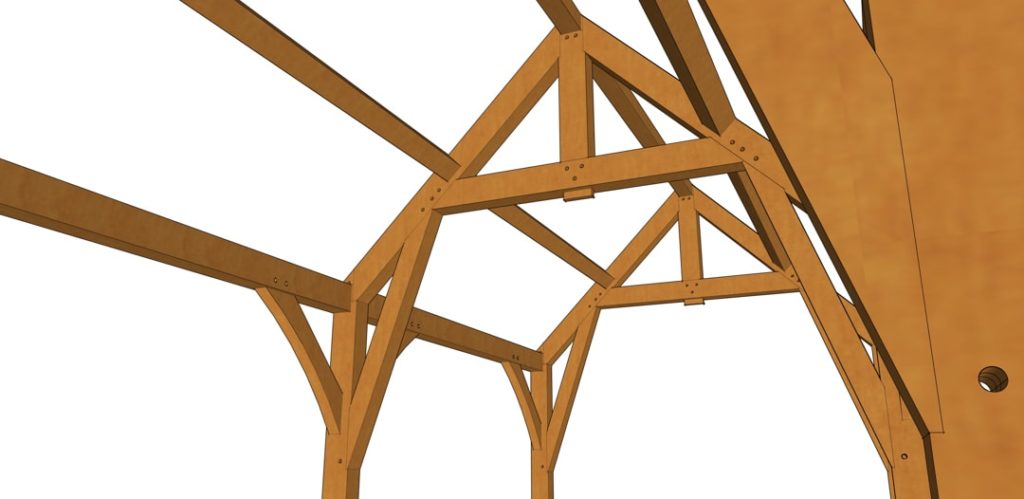

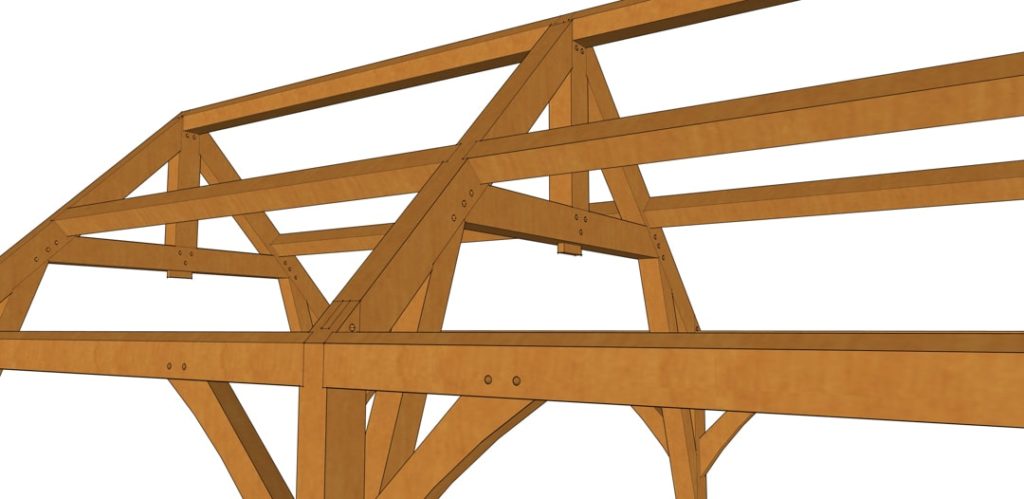

The 12-in-12 roof pitch puts the ridge of this 12×24 Gothic arch pavilion at 16 feet, creating a spacious feeling. The joinery in this frame is beautiful, including the through-tenon on the king post-to-collar tie connections. You will be proud to show off your joinery skills when raising this frame!

The smaller 6×6 and 6×8 lumber will easily move around your shop.  And since this pavilion comprises only two bays, cutting and raising will be quickly accomplished.

When you purchase this plan, you can download the 28 pages of drawings instantly.  We provide three-dimensional renderings so you can see what you’re building and dimensioned plan, elevation, and section drawings.  We also include detailed drawings of every timber, showing each cut you will make. And there is a materials list so you can easily budget and procure your materials.

Check out this plan in our shop: 12×24 Gothic Arch Timber Frame.

12x24 Gothic Arch Pavilion

Plan Guarantee

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Leave a Comment

Your email address will not be published. Required fields are marked *

10 thoughts on “12×24 Gothic Arch Pavilion”

  1. What are the finished height dimensions for this 12X24 Gothic Arch Pavilion? We have an 11 foot tall X 8 foot wide trailer we’d like to house but can’t find the height measurements listed anywhere on this page. What is the pass through height and width?
    Thanks

  2. Hi,
    I live in belgium. Is this plan also available in the metric system?
    I would like to make a pavilion of 10 meters by 3.5 meters. Can I do this with the same plan or does it need to be adjusted?
    Thanks.

  3. Tim, our plans are in Imperial measurements; not metric. There are several websites that calculate the conversions.

  4. Hi,
    I’d like to order these exact plans but with three bays instead of two. Is that something I could possibly have done?
    Thanks,
    Austin.

  5. Katrina Williams

    We do take on custom projects and would like to talk to you further about yours. Check out our page, HERE, describing what we offer and the process of our custom design services. Scroll to the bottom of the page and fill out the design questionnaire so we can understand your needs.

  6. Could this still hold up shingle roofing? Would you still need to add rafters to this to add shingles? Or would this call for a metal roof of some kind?

  7. Could you share the total number of board feet this plan requires, also are there any photos of it completed? Thanks

  8. Katrina Williams

    That design requires 1300.7 board feet. We do not have any photographs, sorry.
