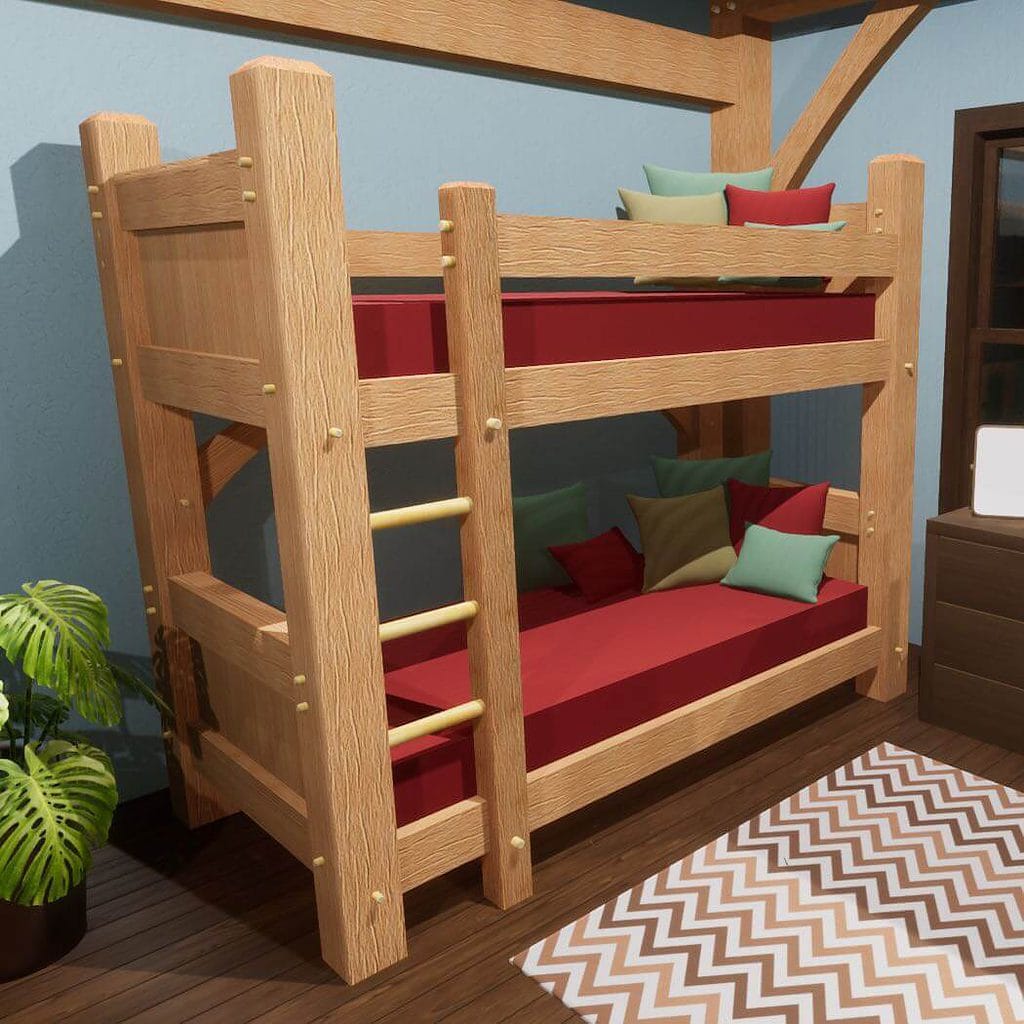

This timber frame twin bunk bed will be a project you can be proud of and your kids will really enjoy! Although there is a good amount of joinery to cut in the posts, this would be a good novice timber framer’s project because of the small quantity and size of the timbers.
This frame is designed to fit a twin size mattress, 38”x75”. The 6x6 posts and 6” rails create a sturdy, rugged appearance, and make this timber frame twin bunk bed super strong. You can insert any kind of 1” material you like into the channels to personalize the headboard and footboard.

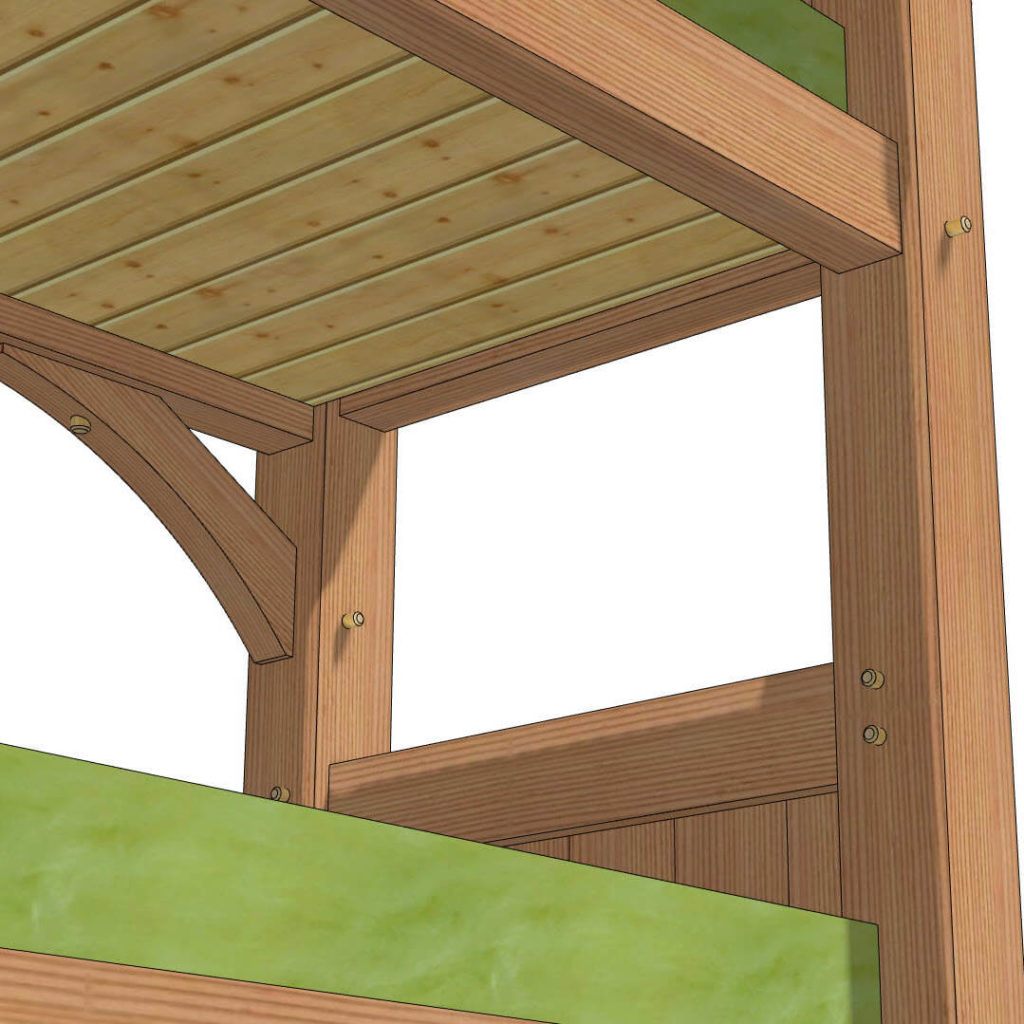

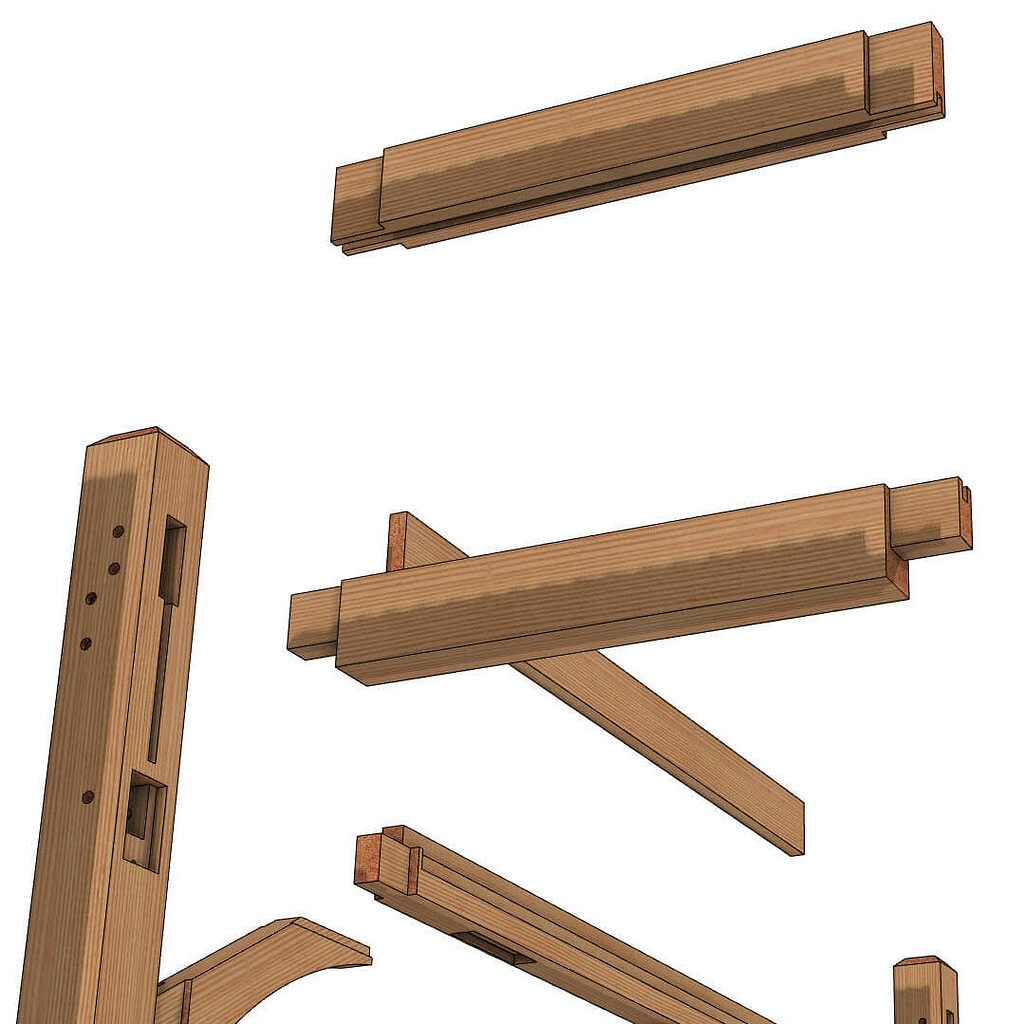

When you purchase these plans, we will email you links to download the plan set PDFs. You’ll get the 6-page construction set showing you the bunk bed in 3D views, both constructed and disassembled. There are plan views and elevation views giving you the information you need to build this frame. The piece drawing set is 12 pages and shows you every cut you need to make, and it’s keyed to the disassembled 3D drawing so you know where the timbers fit. And then we include connector and timber lists, so you know exactly what you need to purchase.
For more information about this plan please visit its shop page at Timber Frame Twin Bunk Bed Plan. This plan is included in our Plan Bundle.
3’-8”wide by 7’-4” long outside of post to outside of post
Height to Top of Post 6’-6”
Rails – 2x6, 3x6, 4x4, 4x6
Tie Beam – 4x6
242 Board Feet
20 pages total
Construction Drawings – 6 pages (11x17)
Detailed Piece Drawings – 12 pages (11x17)
Materials Lists – 2 pages (8.5x11)
