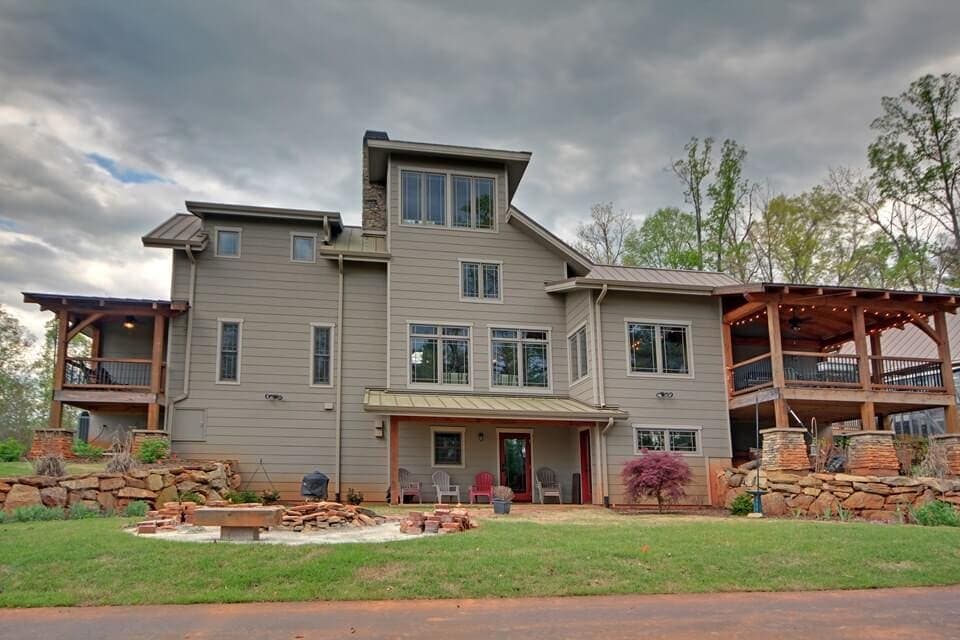

West Fork Front View Photograph

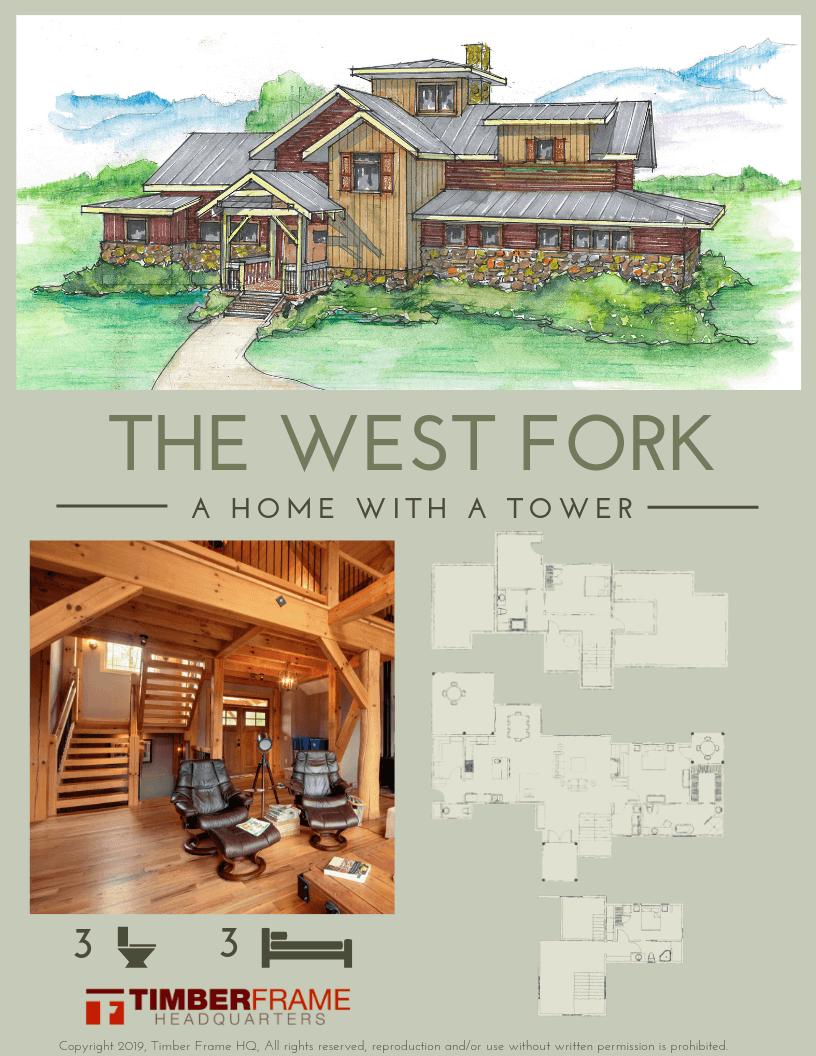

The West Fork
The West Fork Main Floor Plan

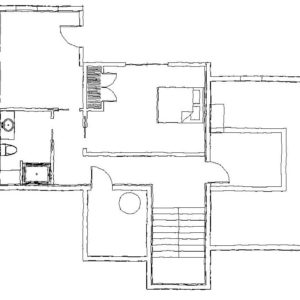

Then West Fork Ground Floor Plan

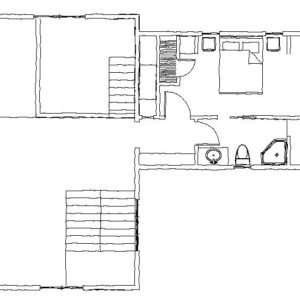

The West Fork Second Floor Plan

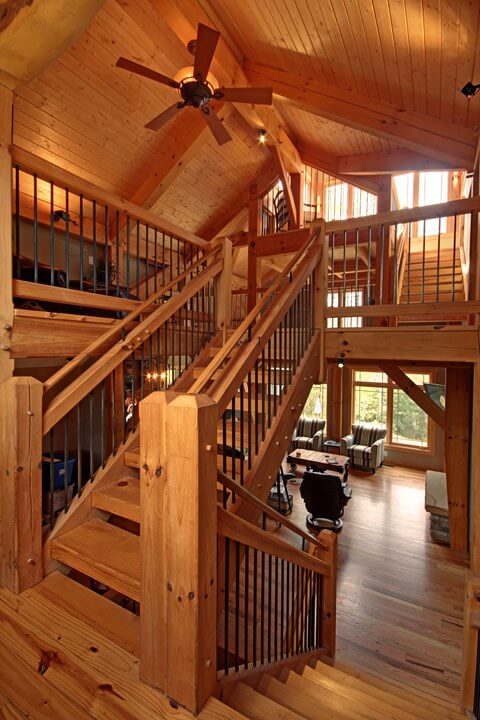

The West Fork

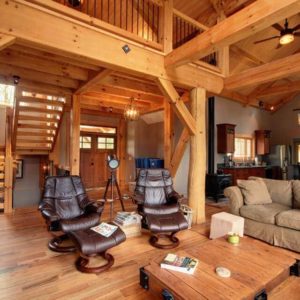

The West Fork
West Fork Entry Photograph
The West Fork

The West Fork

$197.00

SKU: 20758 Category: Tag:

The West Fork hybrid contemporary home utilizes timber framing in the great room, kitchen, loft and tower areas and cost-saving conventional construction in the secondary areas. Topped off with a fun lookout tower, this home makes a great sanctuary.

The open concept design in the West Fork means the great room flows seamlessly into the chef’s kitchen and dining nook. A huge pantry is adjacent to the handy mudroom/family entrance. The master suite with its private porch, walk-in closet, and master bath are conveniently located on the main level. A second bedroom with ensuite is located on the second floor, and there is a great spot for a third bedroom, as well as a craft room or workshop, on the ground floor.

Specifications:

  • Ground Floor 794 sqft
  • 1st Floor 1,873 sqft
  • 2nd Floor 662 sqft
  • Tower 67 sq ft
  • Heated Space: 3,396 sqft
  • Covered Porches: 324 sqft
  • Bedrooms: 3
  • Bathrooms: 3 ½
The West Fork Main Floor Plan

The plans include 49 pages of drawings including full floor plans, sections, and elevations. Also included are lighting plans and timber framing plans with joinery details. Please note that the timber frame piece drawings are not included in the plan set. Formatted as an instantly downloadable pdf file, you can print from home at 8 ½ x 11, or take it to your local copy shop for larger sizes.

Frequently Asked Questions

Can  you modify this plan for me?

Yes, we can modify our plans to the size you need on a custom basis. For more information on the services that we offer and how the process works check out the page HERE

 If that is something that would interest you, fill out the  brief questionnaire HERE or click Get Started Today on the main Design Page from above.

As soon as we get your information and give it a quick review we’ll contact you to schedule a phone meeting.  Please allow a few days for our team to respond.

Before our discussion, we urge you to buy the set of plans that most resembles the alteration that you seek. This will allow you to study the plans thoroughly, think through any other changes or design aspects that you want.

Are your plans engineered?

The plans we offer on our website are not stamped by an engineer. People build our frames all over the country, and in each location, there are different requirements.  Timber species, design loads and values needed are just some of the factors engineers need to take into account in each case.

We do offer engineering services as an add-on to our standard plans. If this is something you are interested in, head HERE and fill out the brief questionnaire.  Armed with that information, we can get our heads into your project before we speak.  That way we are best prepared to answer all of your questions.

As soon as we get your information and give it a quick review we’ll contact you to schedule a meeting.

Do you offer the whole kit?

Yes we do! Just fill out the form HERE and will will be in touch soon with more information and pricing.

Have a question for us?

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow reproduction or modifications of our designs, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Specifications

Dimensions

  • 75’-6” wide by 48’ long
  • 2’ overhangs on all  sides
  •  Roof Pitches 8:12 and 3:12

Design

  • Great Room and Open Kitchen with Large Pantry and Mud Room
  • 2 Bedrooms, 2 ½ Baths
  •  Future Bedroom and Bath Ground Floor
  • Exciting Observation Tower
  • 794 s/f Ground Floor, 1873 s/f 1st FLoor, 662 s/f 2ns Floor, 67 s/f Loft
  • Total 3396 s/f
  •  Covered Porches 324 s/f

Timbers

  • Posts –8×8, 8×10, 8×12
  • Ridge –8×12
  • Rafters – 8×10
  • Plates – 8×12
  • Tie Beams – 8×12
  • Braces –4×8

Plans

  • Construction Drawings – 49 pages (22×34)
    • Includes floor plans, all elevations and section views, foundation plan, framing plan, timber frame details, post plans, electrical plans, and window/door schedules.

30-Day Guarantee

We are so confident that you’ll love the plan, we stand behind it 100% with our 30-Day Money-Back Guarantee. It means you have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company in the business. You can buy from us with full confidence that we’ll be here to help if something goes wrong, or if the plan just doesn’t end up working out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. If for some reason it’s not working out, you can return it for a full refund. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues whatsoever with your plan, even if you’re not sure you want to return it, please get in touch with us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-Day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
