24′ Clear Span King Post Truss Roof with Purlins

$97.00

SKU: 02037 Category: Tag:

If you are building or adding a space to your home and want to incorporate the beauty and strength of timber frame, these 24' clear span trusses might just be the ticket! The king posts with through tenons create a gorgeous style that you just don’t get with conventional construction.  These trusses are designed to sit atop your load bearing walls, and are a rafter and purlin system.

  • 10:12 roof pitch climbs almost 10 feet above your supporting walls.
  • 24’ outside dimensions; 12’ maximum spacing on center of the trusses
  • You can decide how many trusses you want and determine the depth of your space
  • 8x10  timbers with 6x6 struts and 6x8 purlins

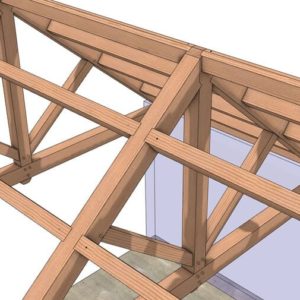

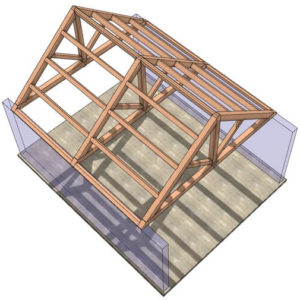

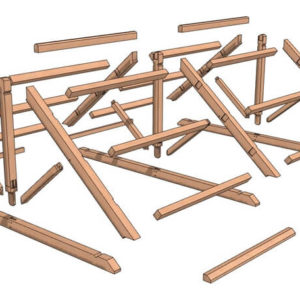

When you purchase these plans you will receive links to download the pdf sets. The construction set contains 4 pages with 3D drawings,  plan and elevation drawings, and an exploded 3D so you can see all of the timbers.  The piece drawing set has 10 pages with dimensioned drawings of each timber, showing every cut  you will make. Then we include timber and connector lists to make procuring your materials easier.

24' Clear Span King Post Truss Roof with Purlins Interactive 3D Model
24' Clear Span Trusses () - Plan Overview
24' Clear Span Trusses - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

  1. Wind / hurricane / tornado
  2. Seismic / earthquake
  3. Heavy snow
  4. Flood potential
  5. Soil instability
  6. Timber Frame Engineering

Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Plan Licensing Agreement:

When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow reproduction or modifications of our designs, without permission. Your copyright license does not allow another professional to represent our design work as their own.

Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.

Specifications

Dimensions

  • 24’ wide bottom chord

Timbers

  • Strut –6×6
  • Purlin–6×8
  • Kingpost–8×8
  • Top Chord– 8×10

Plans

  • 16 pages total
  • Construction Drawings – 4 pages (11×17)
  • Detailed Piece Drawings – 10 pages (11×17)
  • Materials Lists – 2 pages (8.5×11)

30-Day Guarantee

We are so confident you’ll love the plan that we stand behind it 100% with our 30-Day Money-Back Guarantee. You have 30 days to initiate a return with us for any reason.

It’s the best Return and Warranty Policy of any company. You can buy from us with full confidence that we’ll be here to help if something goes wrong or the plan doesn’t work out for you.

Return Policy

Our money-back guarantee gives you 30 days to decide whether this plan is everything you hoped for. You can return it for a full refund if it’s not working out. Here’s how that works:

Email us within 30 days of placing your order. We will refund you the full purchase price of this plan.

And remember, if you have any issues with your plan, even if you’re not sure you want to return it, please contact us personally. We want you and every other Timber Frame HQ customer to have the best possible experience with us.

Please note the 30-day Guarantee is for individual plan purchases and not for our Timber Frame Plan Bundle or other plan bundles for which we do not offer refunds due to the nature of the product.
