22×24 King Post Plan

$127.00

This 22x24 King Post Plan is a great medium-sized pavilion! It’s small enough to fit into most landscapes, but large enough to accommodate many types of activities! You can use it for an open-air playspace, an al-fresco kitchen and dining area, or whatever you can dream up!

The rafter and purlin roof system on this 22x24 king post plan  creates a nice rhythm in the ceiling. You could top it with tongue-in-groove material for a lovely look! You get great character from the  king post trusses that compose the bents. And you'll also love the gentle curves on the knee braces.

  • Footprint is 22’ x 24’ from outside to outside of the posts. The 24’ depth runs parallel with the ridge.
  • 528 square feet between posts plus generous 2 foot overhangs
  • Roof pitch is 8:12
  • Top of ridge beam +18’ 6”, top of collar +11’-7”
  • 8”x8” posts, 8”x10” ridge and chords, 6”x8” webs and purlins

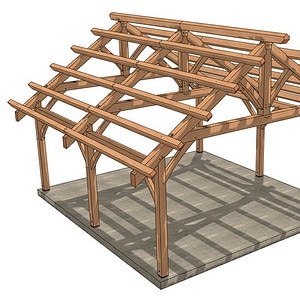

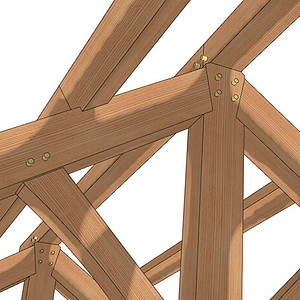

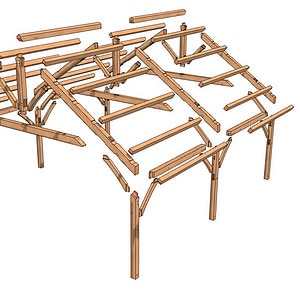

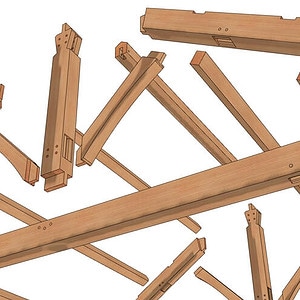

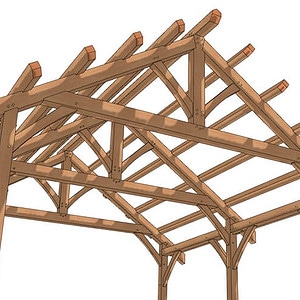

When you make your purchase, you will receive an email with the links to download the PDF plan sets (watch your Spam box!).  The construction set contains 10 pages full of the information you need to put this frame together. There are several 3D drawings, showing the frame both disassembled and joined.  You get post and roof plans, section drawings and detail drawings showing the more intricate areas.  The piece drawing set is 12 pages that shows you every cut on each timber- and the pieces are keyed back to the 3D drawings so you know exactly what goes where. Then we include timber and fastener lists to make your purchasing guess-free.

For more information about this plan please visit its page at 22x24 King Post.  This plan is included in our Plan Bundle.

22x24 King Post Plan (53088) Interactive 3D Model
22x24 King Post Plan (53088) - Plan Overview
22x24 King Post Plan (53088) - Piece Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.
