This 12x24 timber frame pergola design has such versatile dimensions! Attach it to your house for a generous outdoor living area, or locate it poolside for a place to catch some shade. Leave the rafters exposed, or train flowering vines on them for extra shade and ambience. There is plenty of room for dining furniture in one bay, and lounge chairs or conversation grouping in the second bay.
With only two bents and a flat roof pitch, this design is relatively quick and easy to build for the space it offers. Be aware that it is not recommended to cover a flat pitch with metal or shingles if you are in a wet or snowy area.

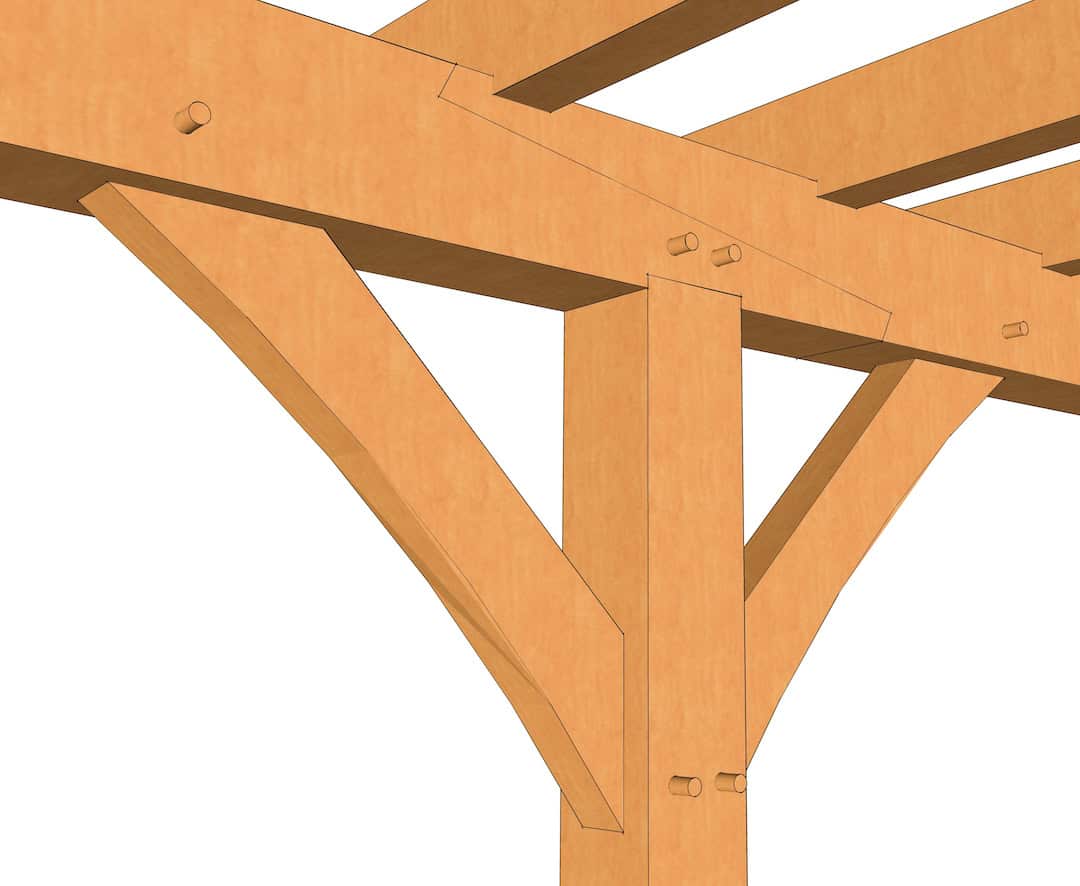

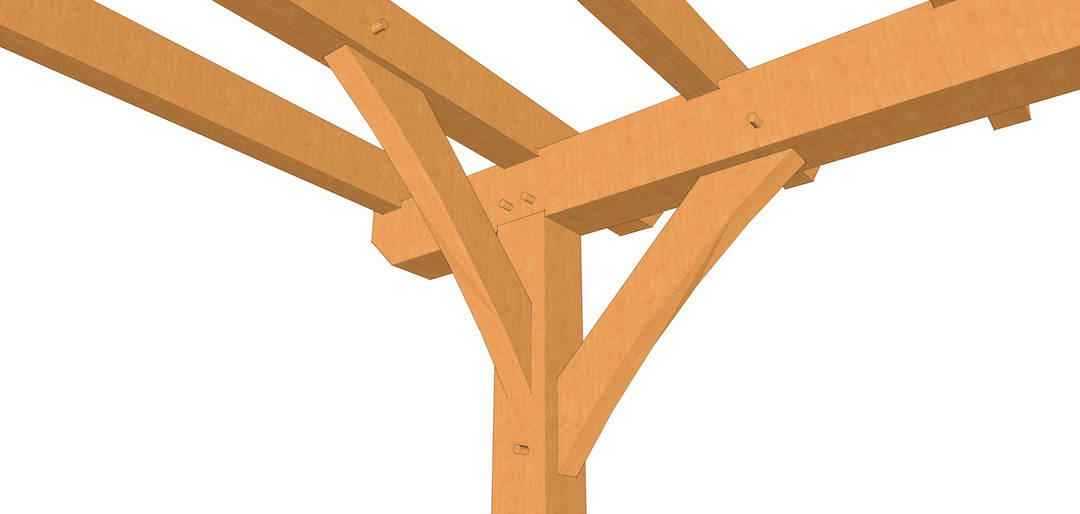

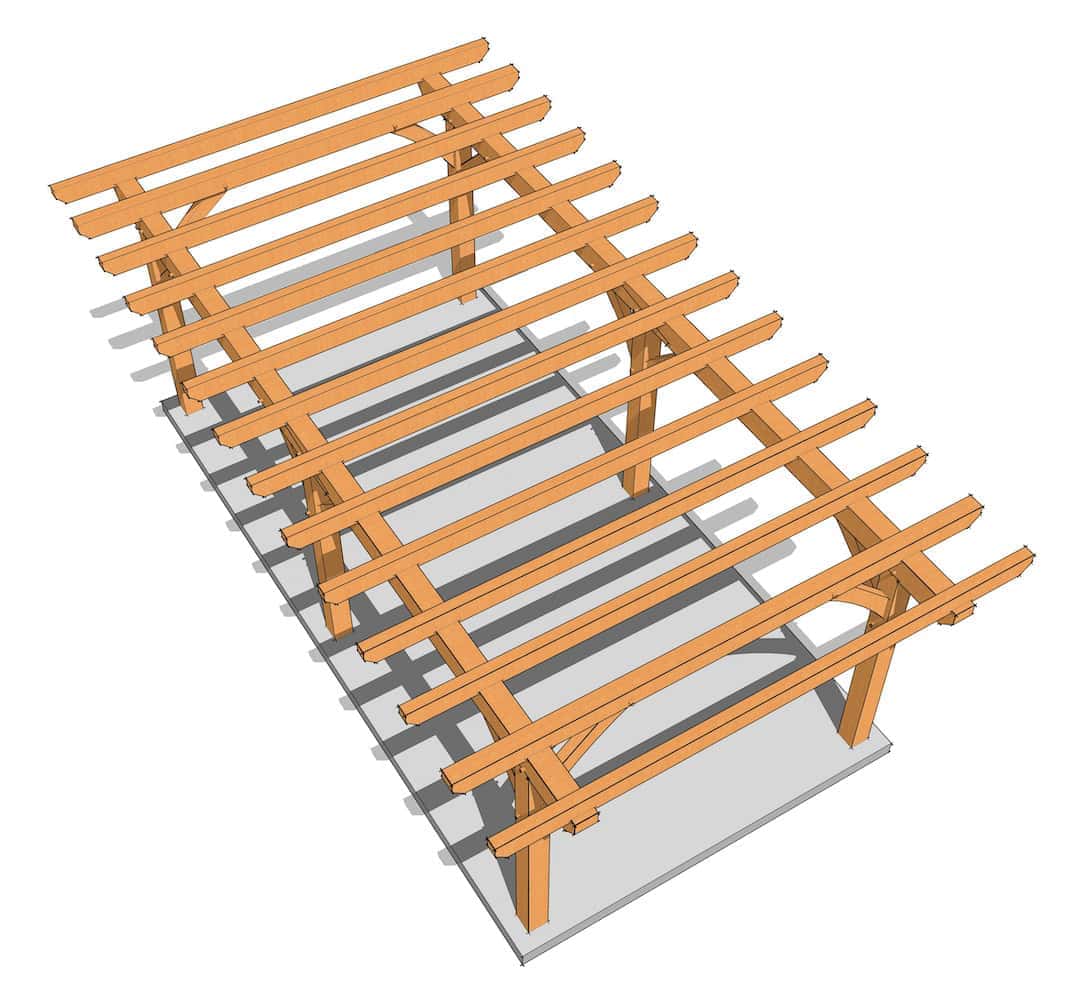

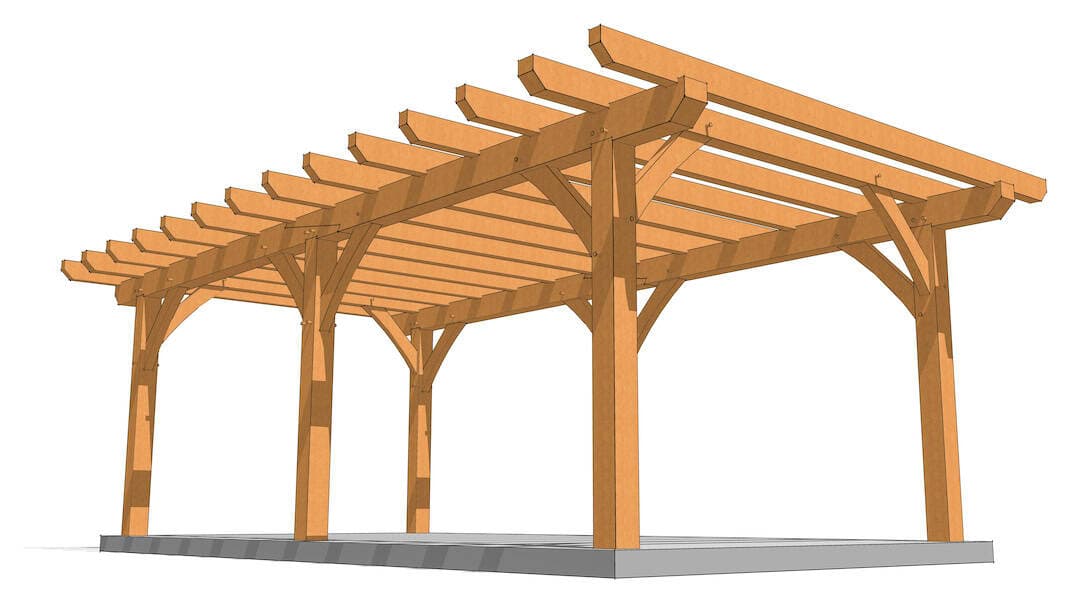

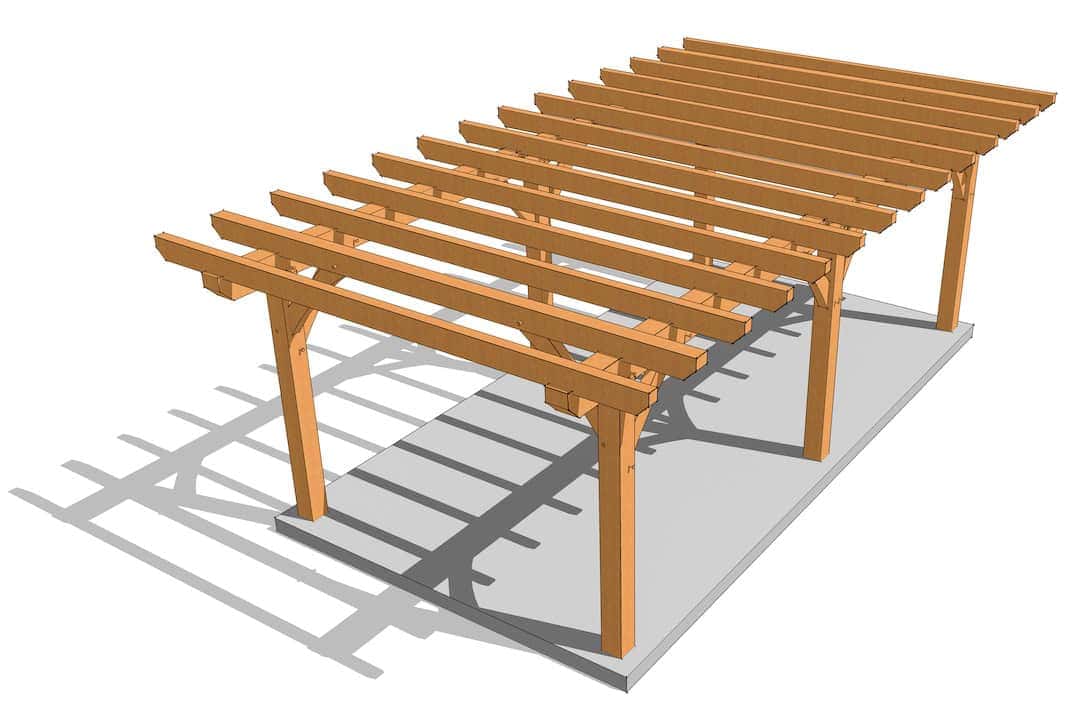

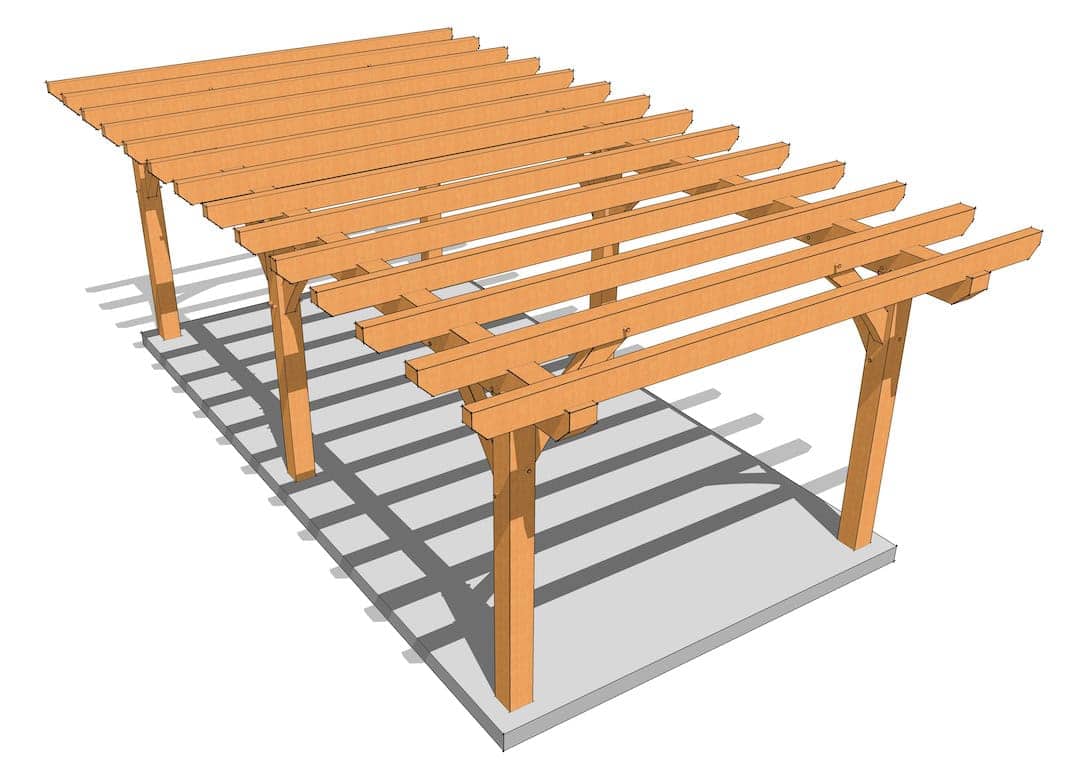

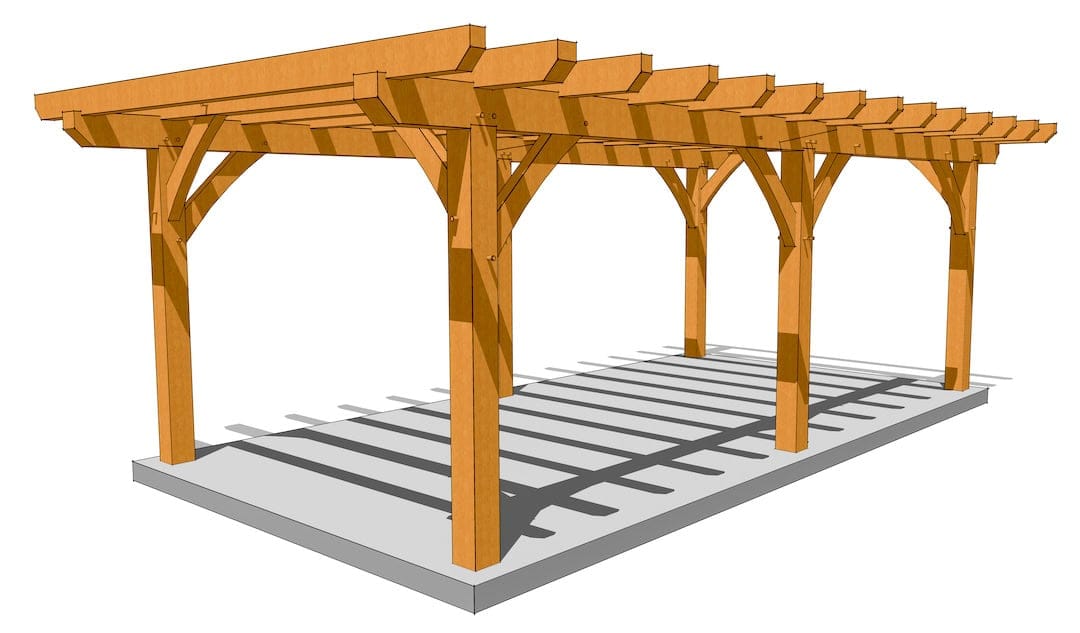

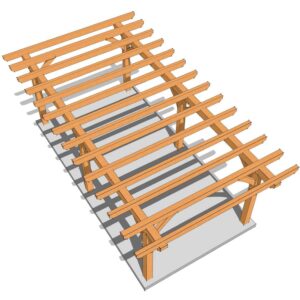

The drawings are made up of 17 sheets, which include 3D renderings with solid and X-ray views, plan, elevation and sectional drawings along with all the piece and joinery details you will need to build this timber frame. We also include a timber list, to make it easy for you to plan your lumber acquisition. Formatted in PDF for 8-½” x 11’ paper, ready for immediate download to run off from your home printer.
This plan is also included in the Master Plan Bundle and the Timber Frame Pergola Plan Bundle.
