12×18 Timber Frame

$97.00

SKU: 3503 Categories: , , Tag:

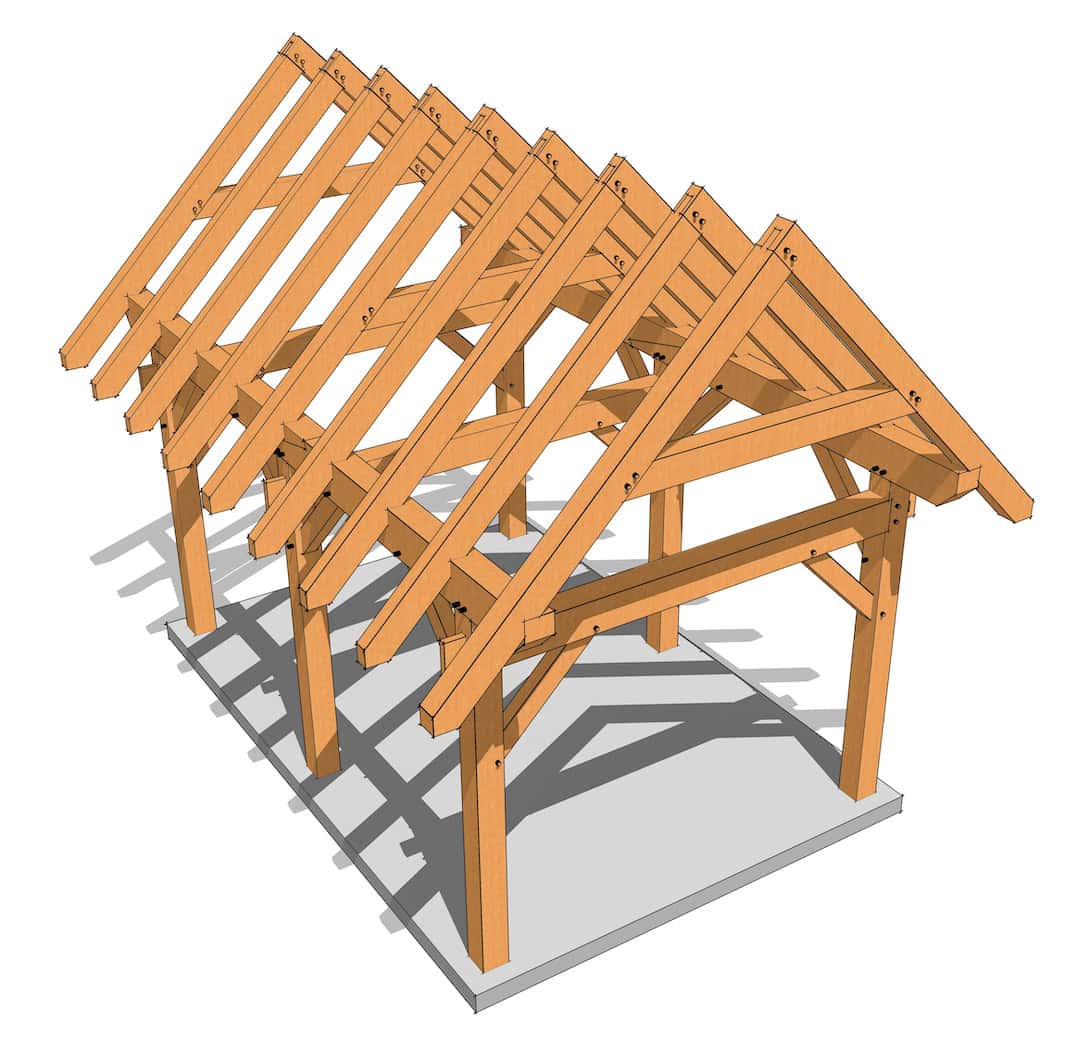

If you are looking for a fun and challenging project that will add value to your property and give you enjoyment for years to come, this 12x18 timber frame plan may be a great match for you.  The frame measures 12’ wide x 18’ long and has a 12-inch roof pitch (45 degrees) that utilizes a simple roof system allowing anyone to raise this great looking frame with ease.

Of course, use your imagination for how to use the frame, but some possible options are a pavilion, shed, workshop or even as a pergola.

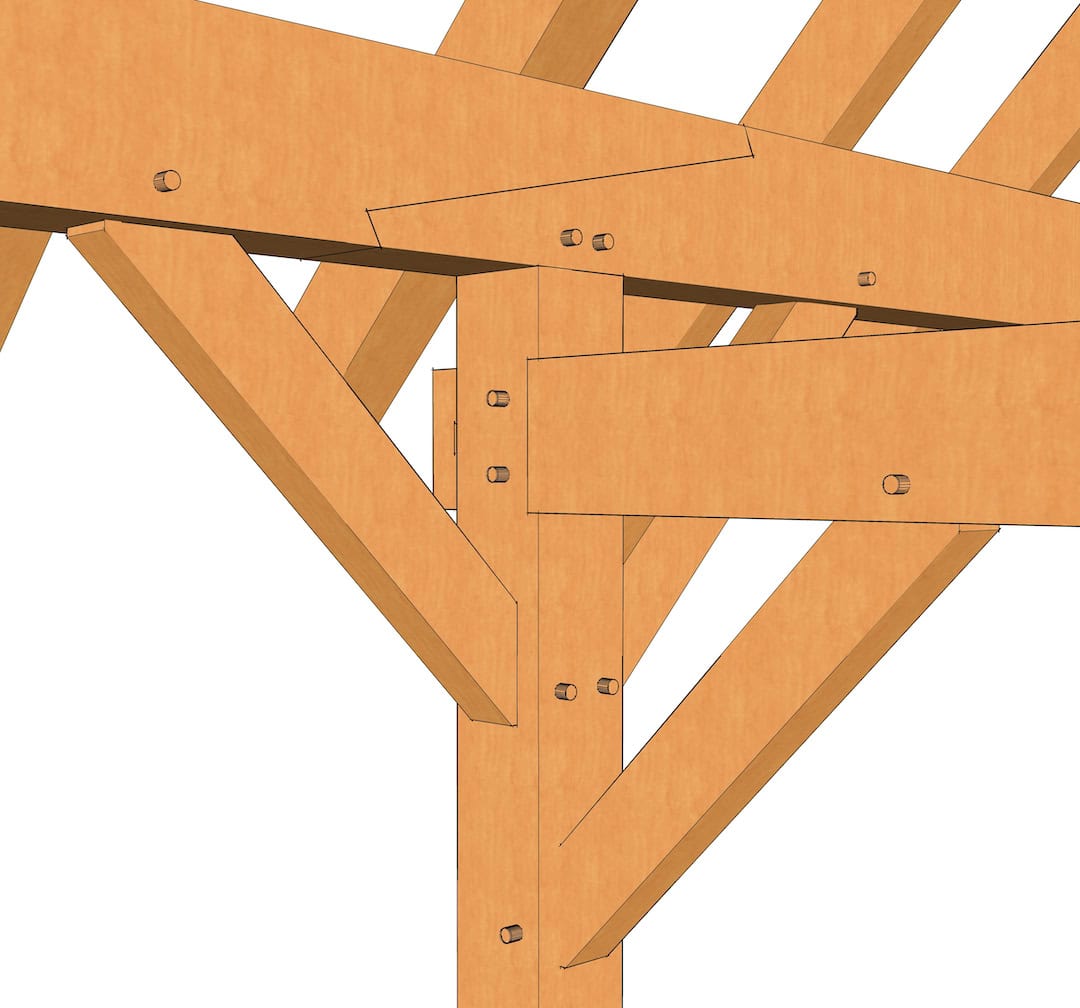

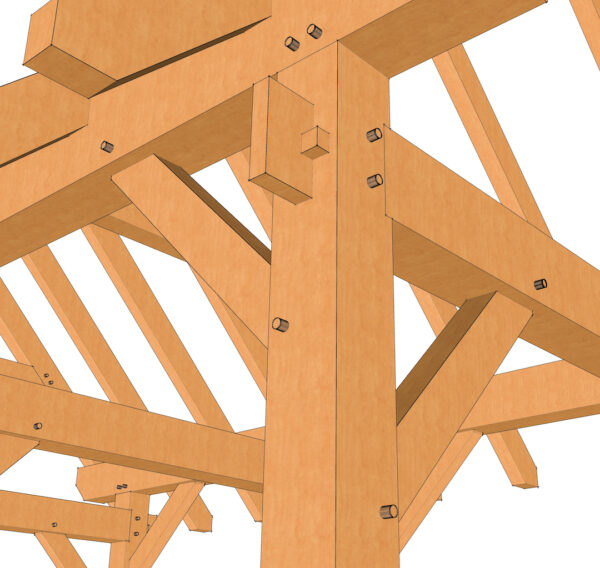

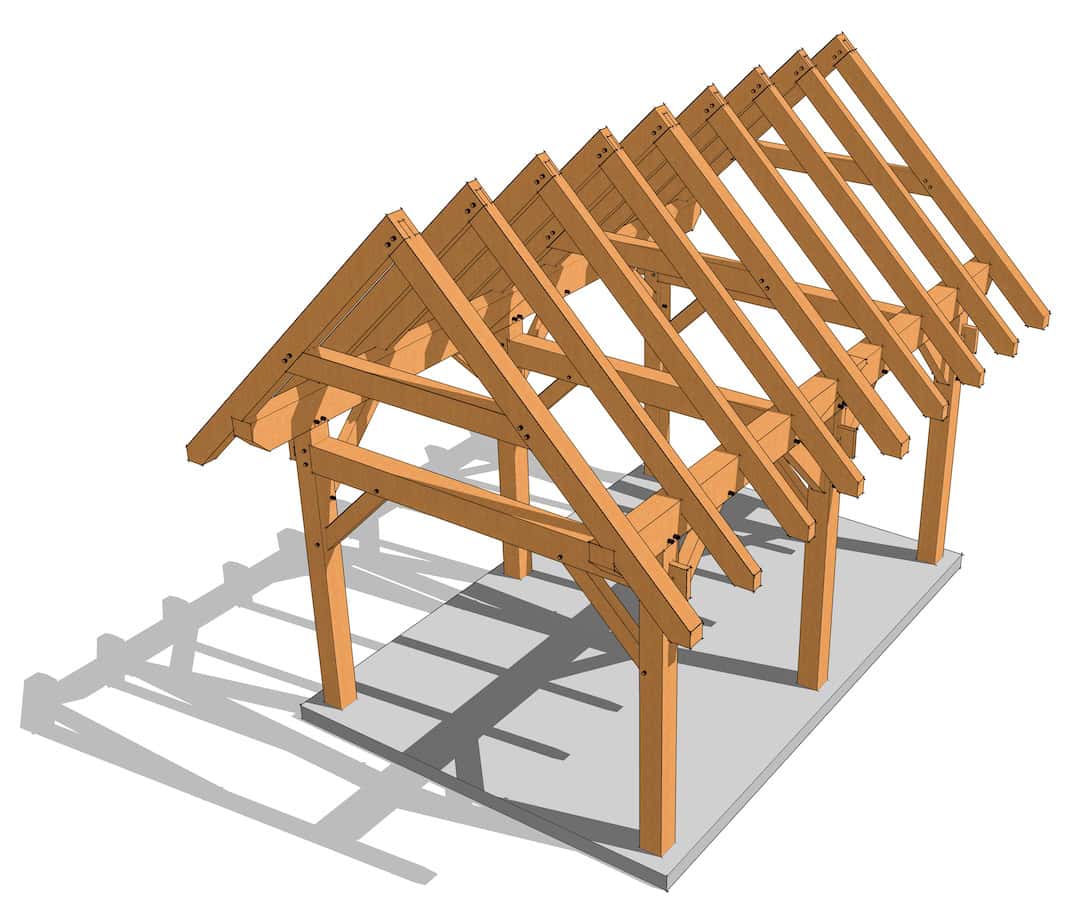

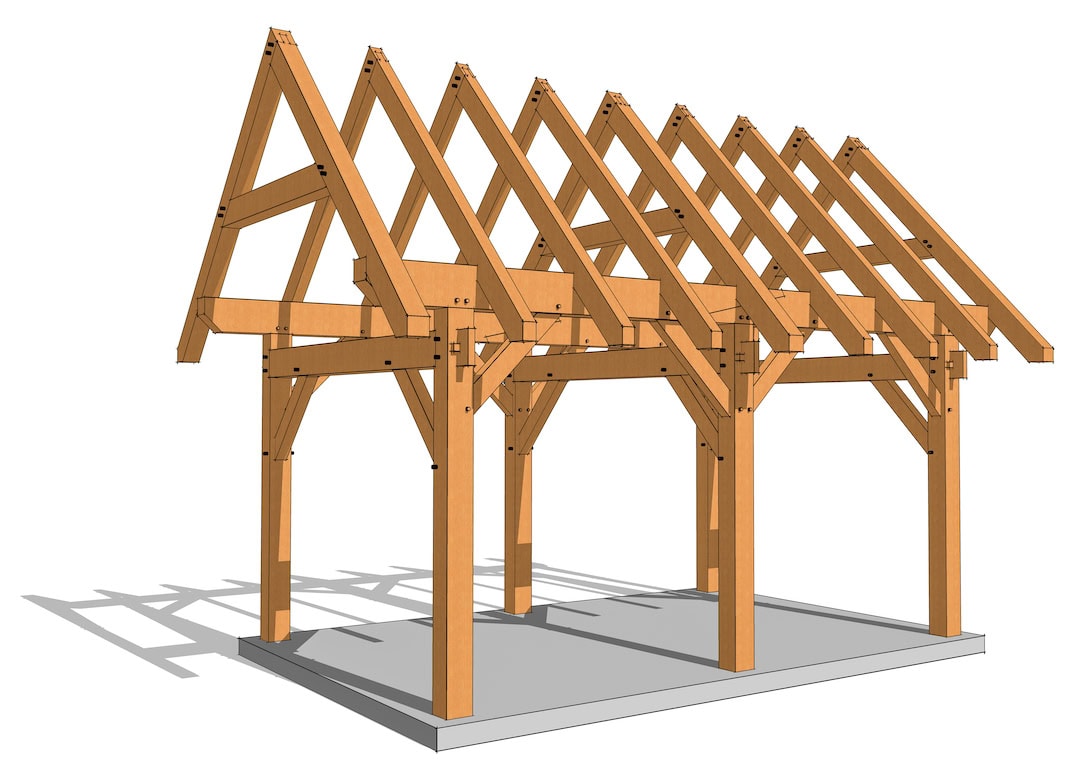

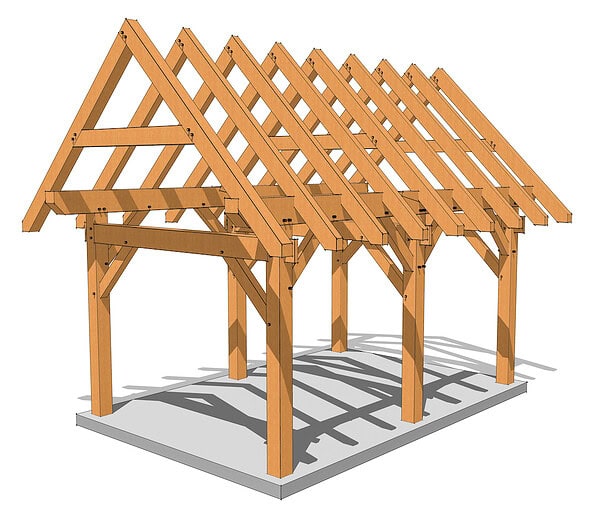

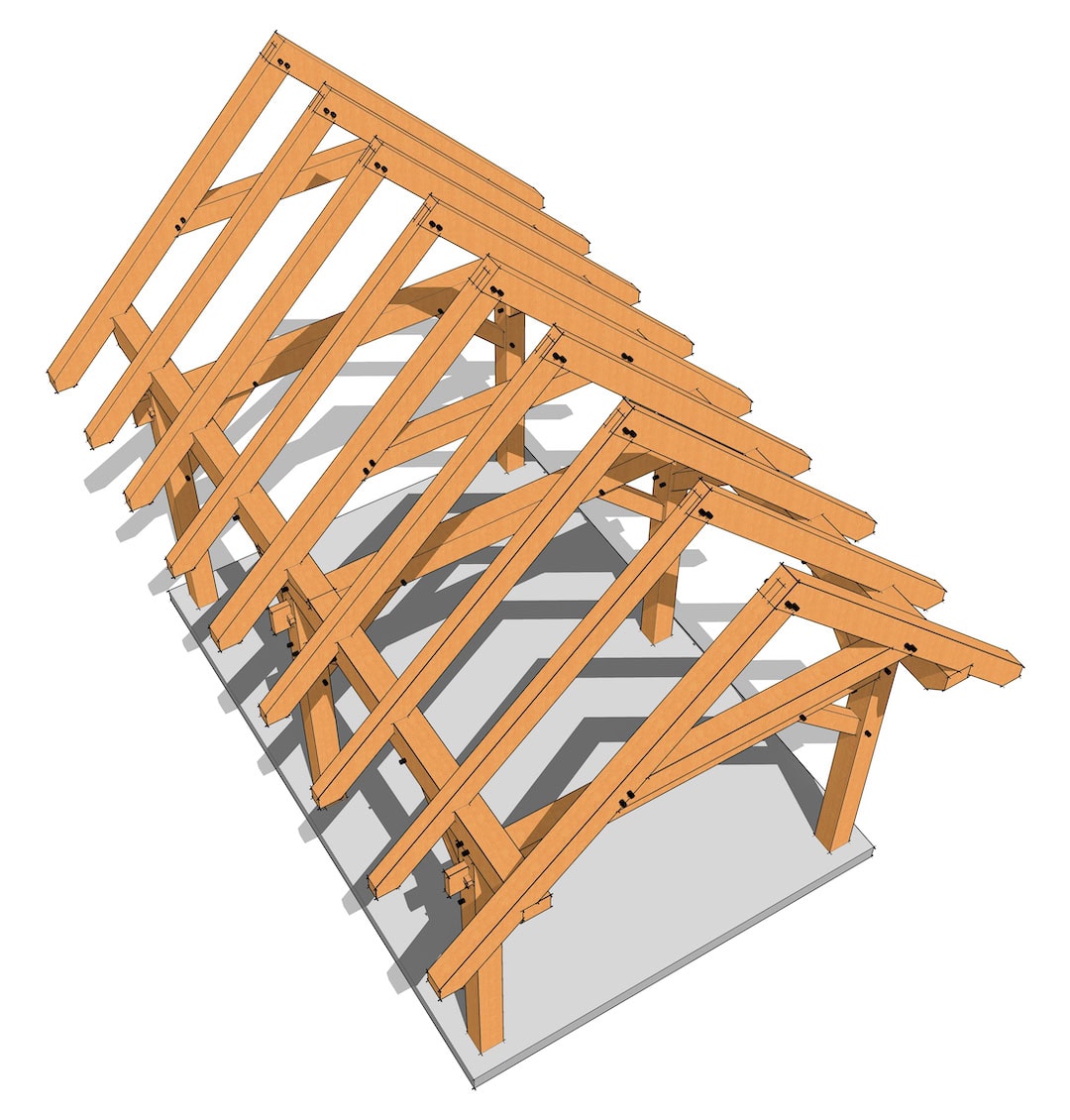

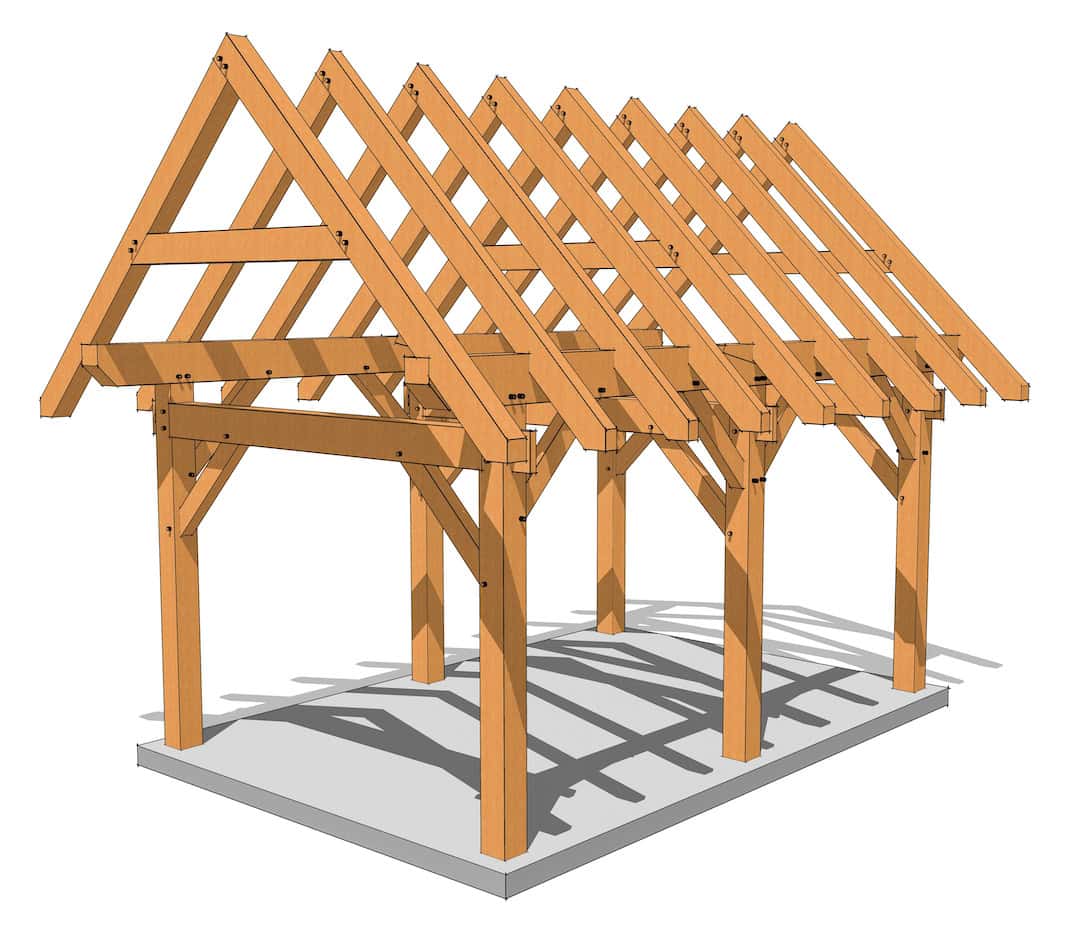

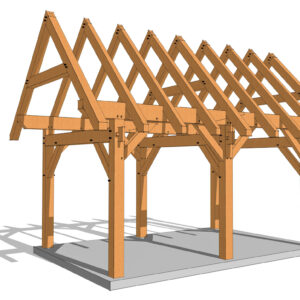

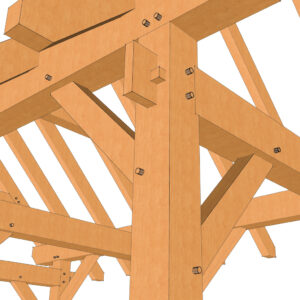

The instantly-downloadable PDF plans contain 25 pages of drawings, 3D renderings and a timber list providing you with everything that you will need to cut the frame fast and accurate.

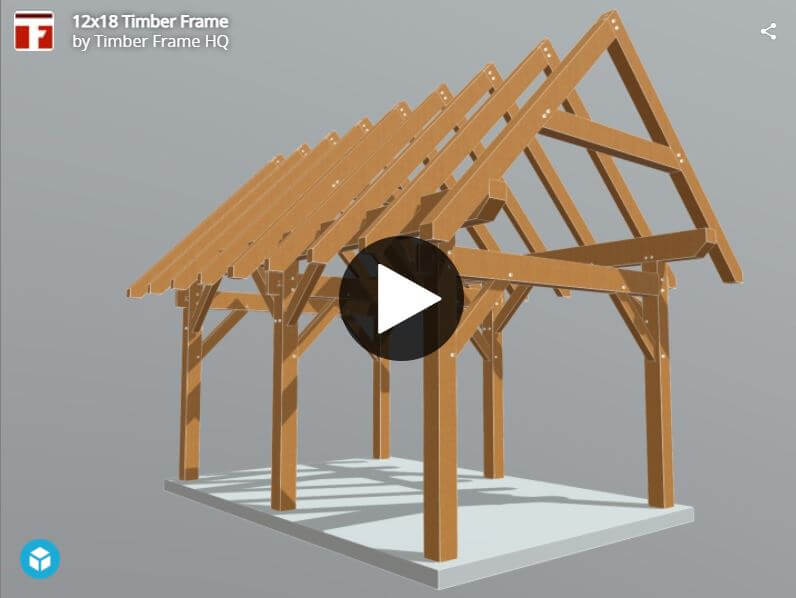

12x18 Timber Frame Plan Overview

100% Money Back Guarantee for 30-Days

Purchase With Confidence...It's Risk Free!

If, for any reason, you don't like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they'll either help you out until you get the results you need or give you a swift refund.

Important Information and Plan Licensing Agreement:

  • Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all measurements before construction.
  • Timber Frame HQ grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame HQ website.
  • This License is personal to you only. You may not use the License for any other purpose except for personal purposes.
  • When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location.  Only you may use the License, and such use shall be limited as stated above.
  • All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the full terms of this Agreement.
  • You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing* the plans in any fashion on any medium, except printing the plans directly from the PDF's you will receive. You may not modify the plans. Your License does not allow others to represent our design work as their own.
    *Please note:  You or someone else can print the plans for planning and construction use.
  • Your License does not allow others to represent our design work as their own.
  • Timber Frame HQ specifically disclaims and warranty that the plans will be error free and will not be responsible for any loss suffered by you because of the plans or otherwise.
  • Any commercial use of the plans is strictly prohibited.

Specifications

Dimensions

  • 12’ wide by 18’ long outside of post to outside of post
  • 2’ overhangs on all four sides
  • Height to Top of Plate 10’-4”
  • Height to Peak of Roof 16’-11” with 12:12 Roof Pitch

Timbers

  • Posts –8×8
  • Collar Ties – 6×8
  • Rafters – 4×8, 6×8
  • Plates – 8×12
  • Tie Beams – 8×10
  • Braces – 4×6

Plans

  • 26  pages total
  • Construction Drawings – 25 pages (8.5×11)
  • Timber List – 1 page (8.5×11)
