This 24x46 shed roof house will shelter you and your family in contemporary style! Generously sized, the first floor has 1168 square feet of space, and the second floor has 816 square feet.  The frame is designed with a central double-height space, where the volume ceiling soars up to the main roof line.  The single-plane shed roof and the central bump-out give this  24x46 shed roof house its modern pizzazz. The roof design  sheds water well, and would be a great surface to add solar panels with the proper orientation to the sun.

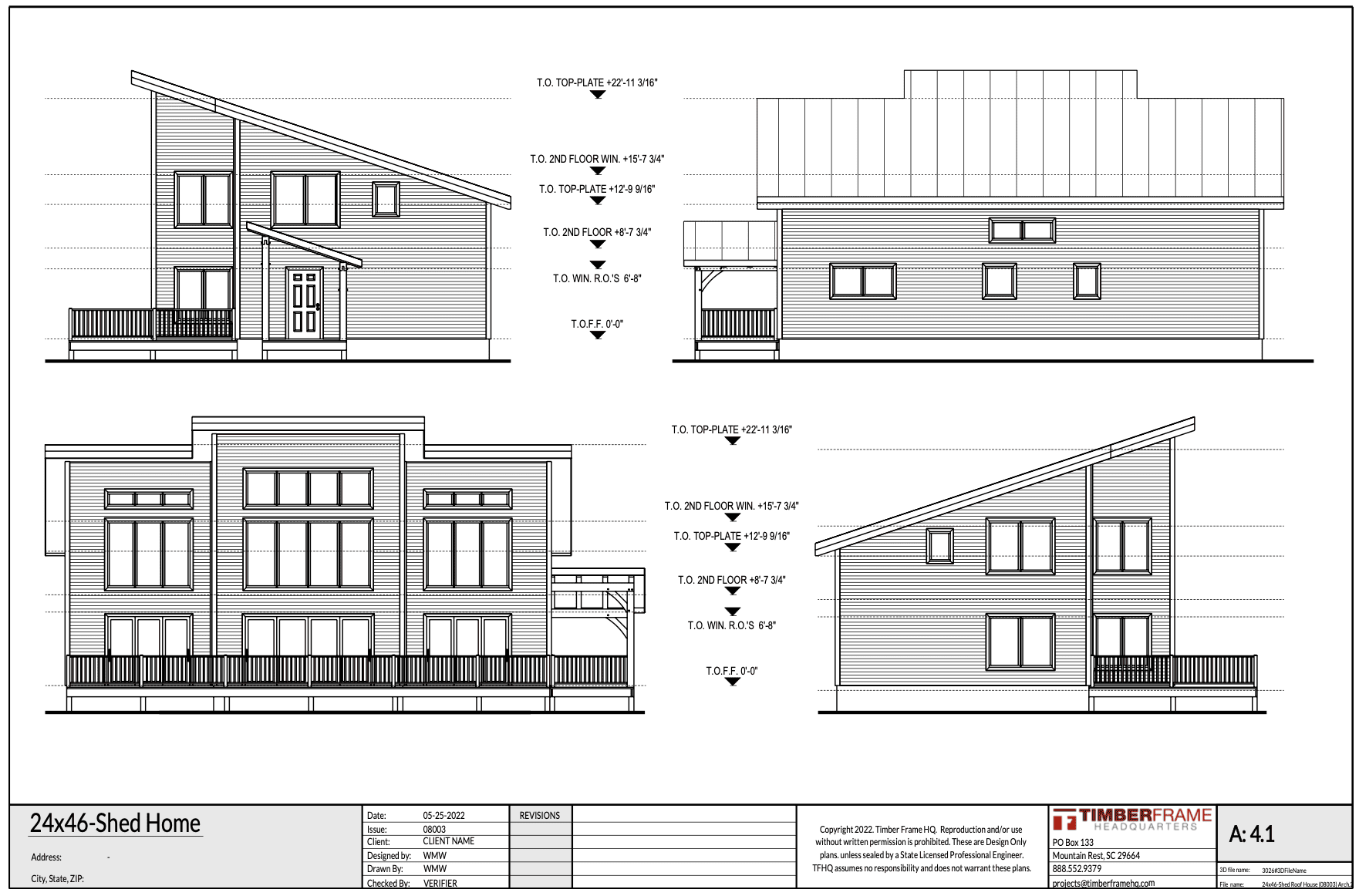

We include a  well-developed architectural plan set fleshed out as a comfortable home! It’s designed with 3 bedrooms (master on the first floor) and 3 and ½ bathrooms. Each upstairs bedroom has its own ensuite bathroom.  There’s a generous kitchen, spacious dining area and the living room with that soaring ceiling. There are plenty of windows and doors to flood the house with light and access the outside. There are clerestory windows in the high face to ensure a sunny interior.

When you purchase this plan you will receive an email with links to download the plan sets. First is the timber frame construction set that has 5 pages (sized at 11x17) with all the information you need to raise this frame. There are 3D drawings, including an exploded one so you can see all the joinery. There are  post beam and rafter plans, as well as several sections and detail drawings. The piece drawing set contains 57 pages showing every cut you will make on the timbers. And then there is the 5-page architectural plan set. We also include timber and material lists to take the guesswork out of purchasing.

For more information about this plan please visit its shop page at 24×46 Shed Roof House Plan.  This plan is included in our Plan Bundle.
