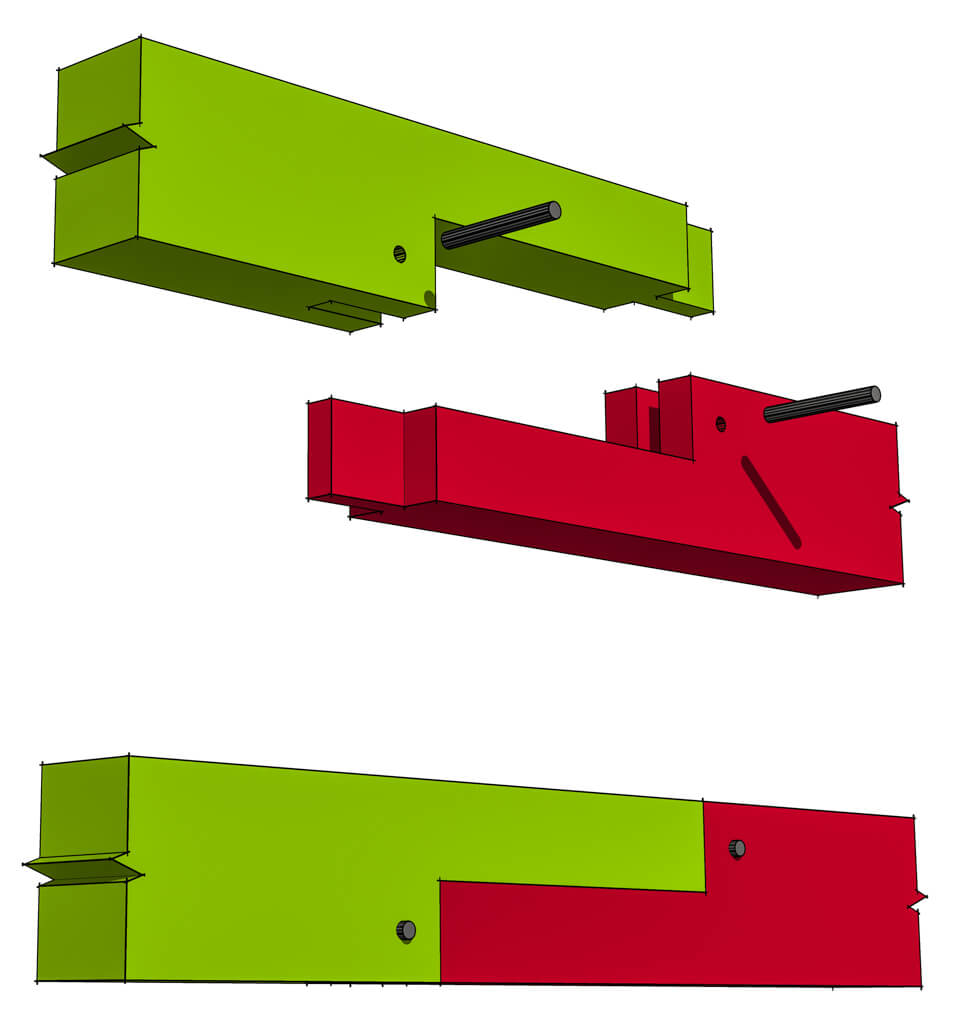

When you need a beam longer than the sizes of your lumber, a scarf joint is the way to go. In this attractive half and bridled scarf joint, each beam is split longitudinally and connects to its partner with a mortise on one end and a tenon on the opposite end. That creates a super strong and durable connection. Hardwood pegs secure the joinery and add interest to any frame utilizing this type of joint.
Evening.. I have been attempting to recreate each joint as it comes out, but I’m guessing at the dimensions. Of course, I’m working at about 1/4 scale, or so I would assume. It would be great if there were some dimensions given so that I could maintain scale when reducing – as it is, I’m just guessing. Blessings!
Give me a week or so and I will send you a drawing of this joint.
That is awesome, and very nice. Just post?
Thanks!
So how does this compare with a undersquinted scarf with a wedge (and probably some grx screws or all-thread) or the double bladed scarf or th e others you also show on this site?
Most of the time it is a personal preference which scarf joint you choose. An undersquinted scarf joint does resist twist in the timber better than others.
What is the best joint to use if my beams aren’t long enough on the bottom
of a truss?
That will most likely be in tension and I would recommend getting an engineer involved to help you out.
NEED SCARF JOINT ADVICE
I’m looking at 2×8 joists spanning 22 feet. They will sit on top parallel 6×8 beams spaced evenly (one end beam is in a tree using TABs in a tri-beam configuration, but that’s another story). I could use 11 or 12 foot 2x8s and have them overlap on top of the mid beam, bolted together for strength or go with a joint. Note: I plan to add joist bridging 2x3s to help with horizontal forces. Which scarf joint would make the most sense?
I would not use a scarf joint in this case and instead use the mid beam to join everything together as you mentioned.
Because my joists are too narrow?
Hi, Brice. Can I have the dimensions of this joint as well? Thanks.
Yuri, we don’t have this detail with dimensions.
