Originally designed as a pool pavilion, this versatile 19×22 frame could be great for several uses, including a one-car garage or workshop. A purlin roof system tops this timber frame along with a king post and common trusses options. Another thought would be to enclose half of the building and make a small getaway or guest cottage in the woods.

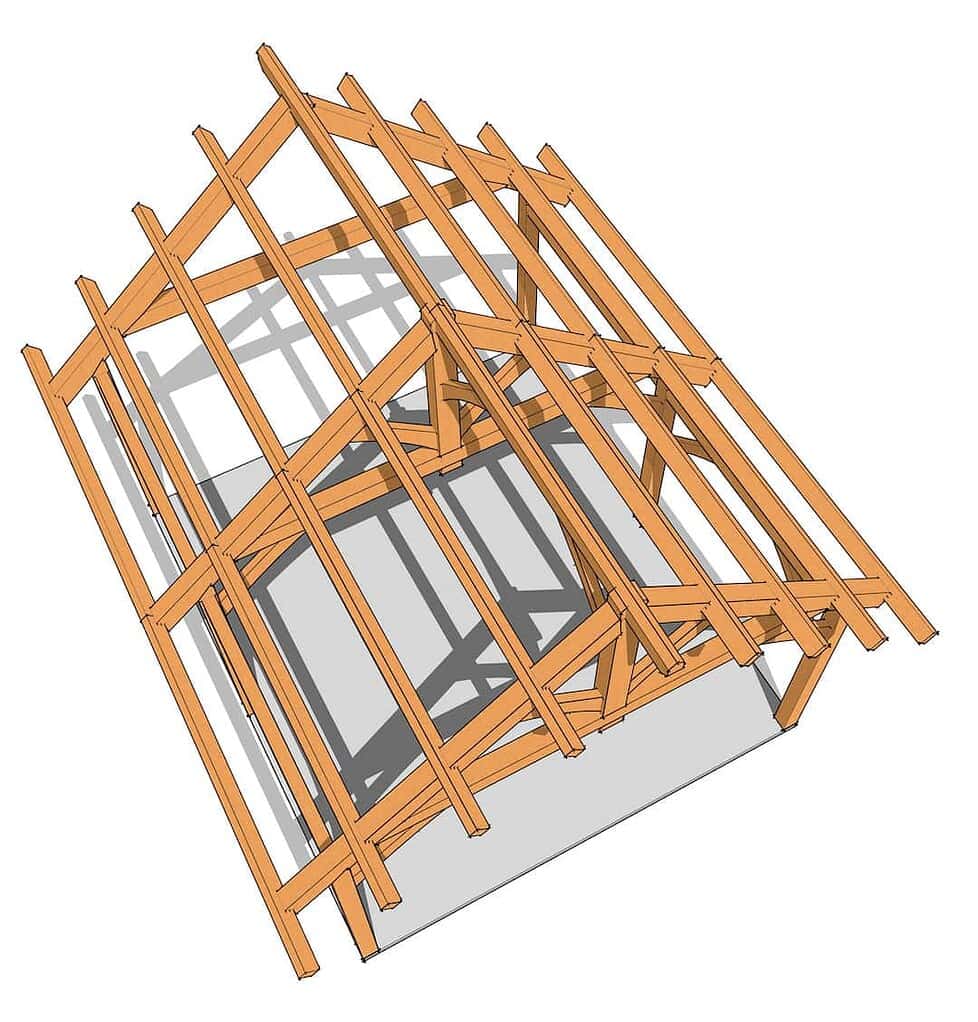

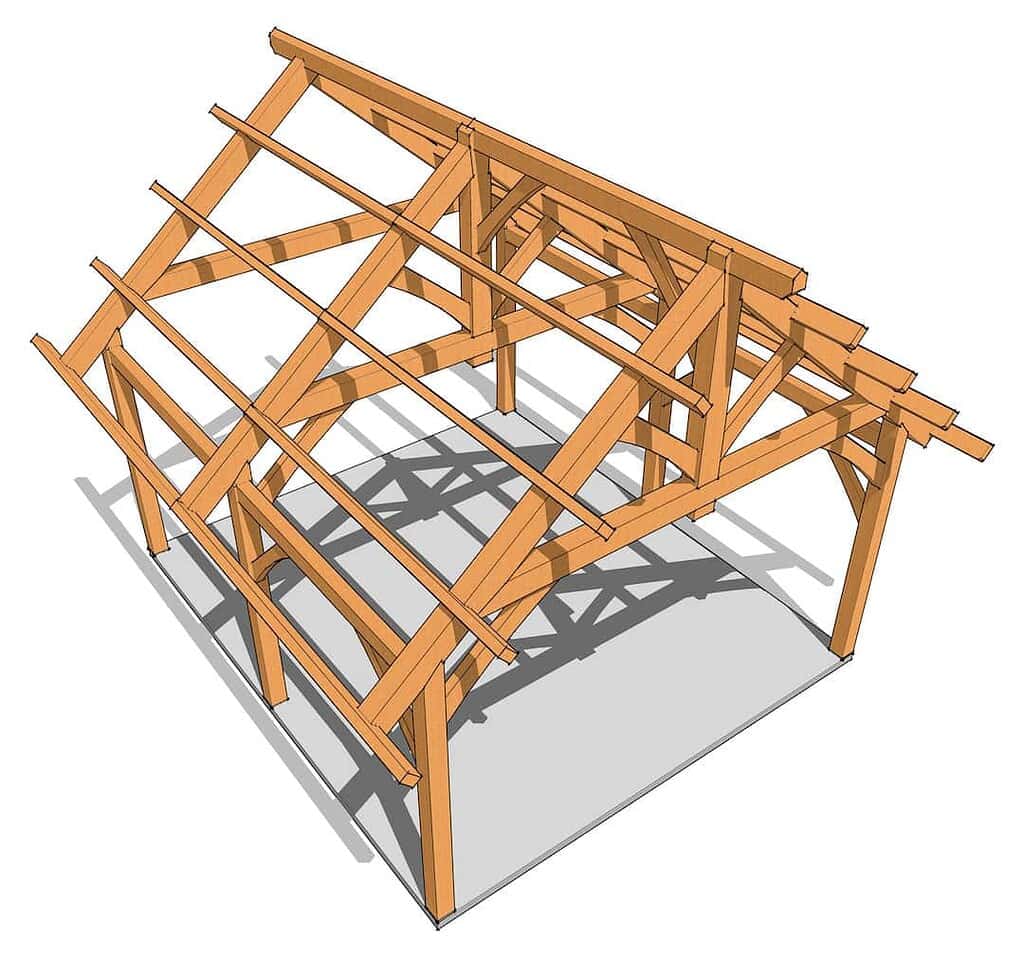

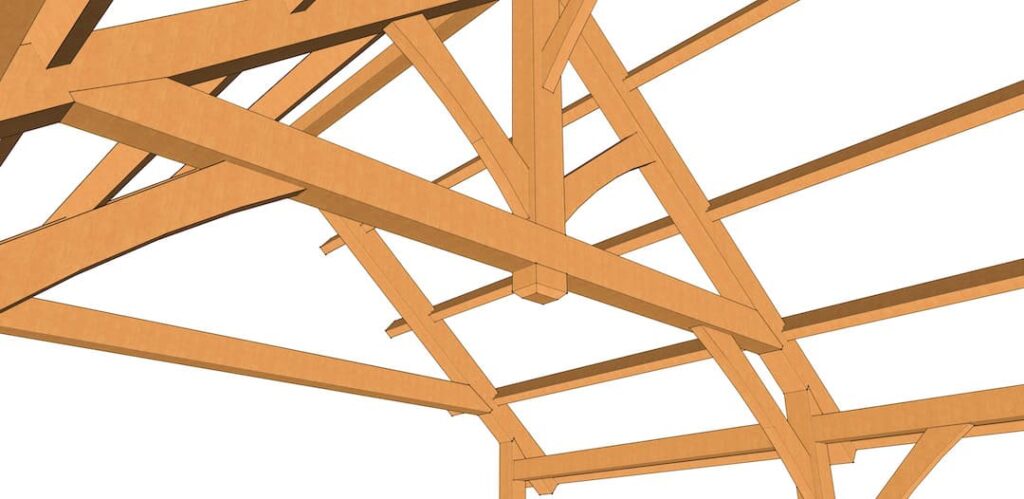

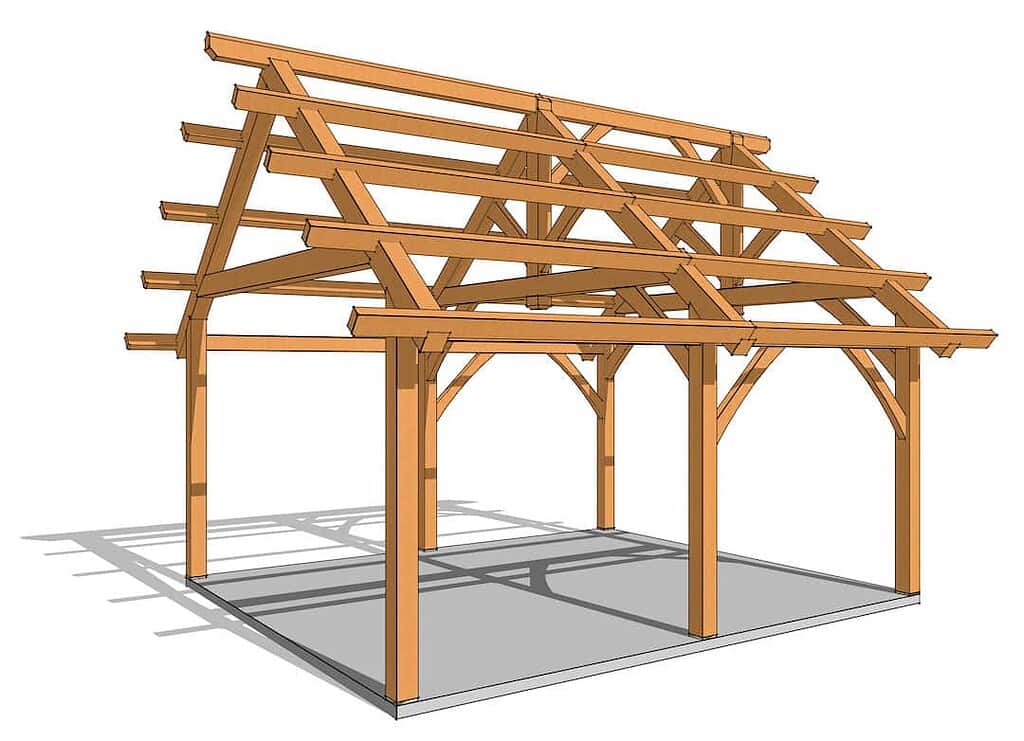

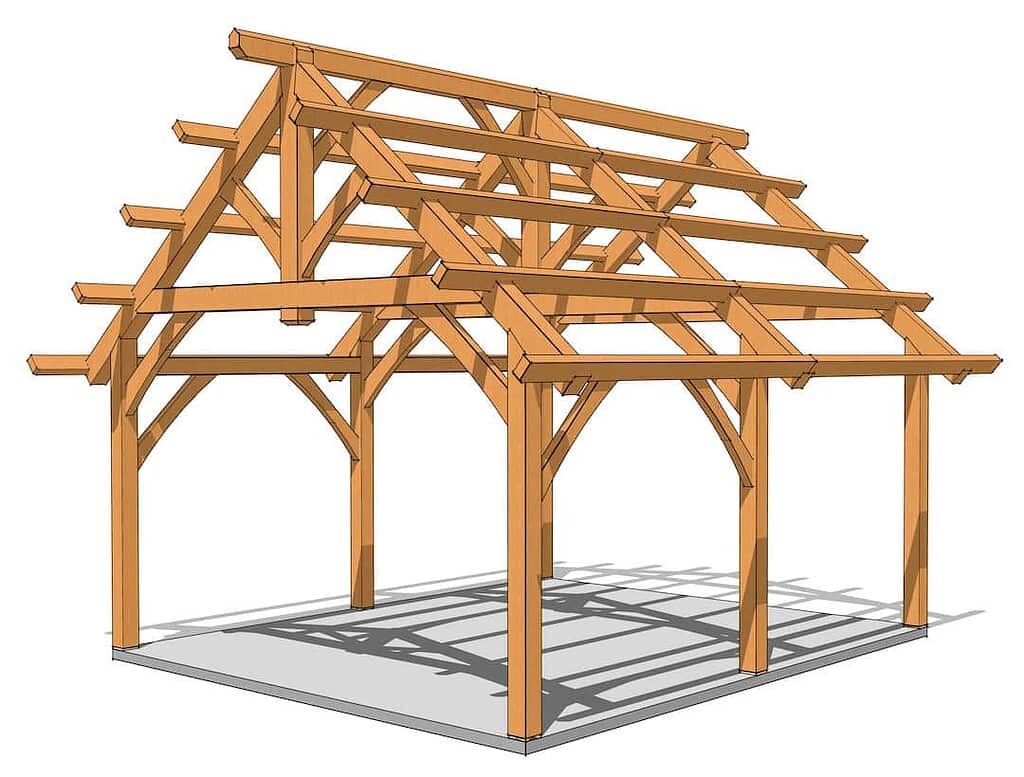

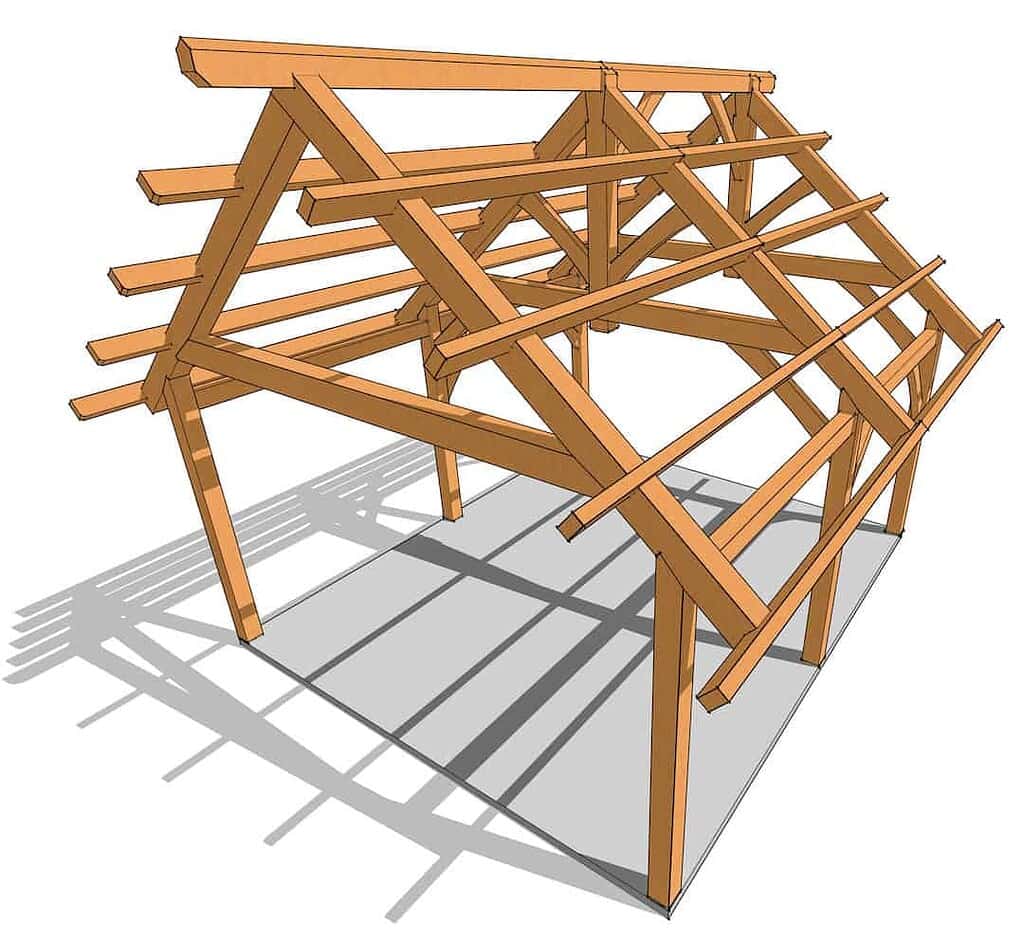

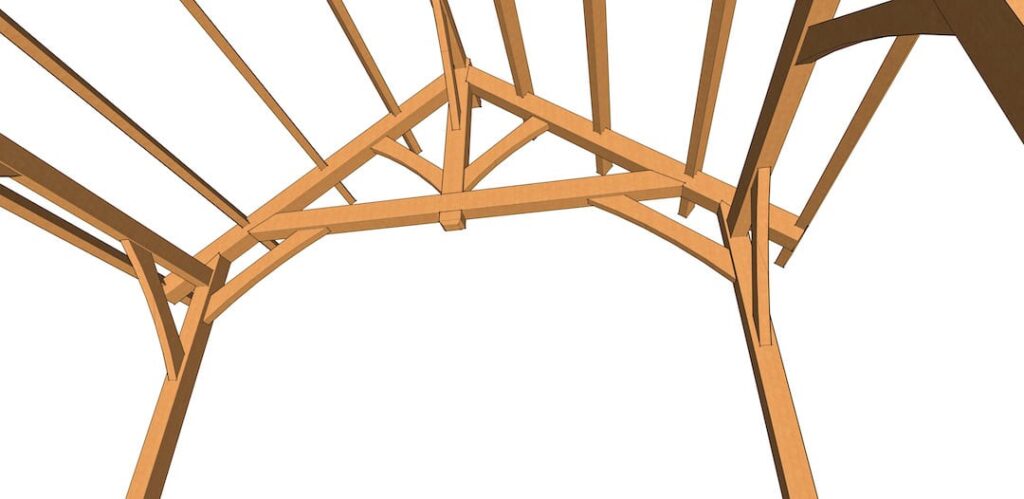

Please take a look at the renderings and let us know if you have any questions about the frame and plans.
Please note that the actual plan width and length are 18’10 1/2″ x 22’6″. The file is formatted in PDF for instant download.
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.
Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
Great design, what is the timber list? So I can go price it out. Thanks! Also can I adjust the plans for an 18×20?
Thanks
Check out an image that I uploaded to the site at for the complete timber list.
I have also been working on a 18′ wide version on this plan that would easily be converted to 20′ long, let us know if you are interested in this plan and we will finish it up.
I’m interested in an 18 wide pavilion. Thank you!
Working on one, will be ready in about a month will let you know.
Do you have the plans ready for the 18 wide pavilion ? I would like to do this pavilion in a 18×20. Thank you.
We have the 18 x available, it will be posted on the site in December. If you you purchase the 19×22 and send me a note I will send you the 18x plan as well.
Brice
I am interested in using the purlin design (full length purlins on a 28′ by 40′ timber frame house) to have a nice overhang on the sides. My question is on the depth of the notchs on the principal rafters and purlins. I have what I think is the design I want to make. Do you design houses other than the ones for sale. What should I pay for a set of plans?
Thanks so much
Great website
Dale
Looking for the 18 x 20 version of this particular pavilion.
Have you seen our 18′ plan at https://timberframehq.com/shop/18×24-foot-timber-frame-pavilion-plan/ to adjust it to be 20′ long you simplily shorten the purlins, ridge and plates by 2′ on each side.
What kind of roof do you recommend for this plan?
We would recommend and tongue and groove ceiling with a metal roof. If you need to insulate it, then use some SIP’s on the roof in between the metal and T&G.
Any thoughts on using 6x’s instead of 8x’s? 1&1/2″ mortises?
Yes, it is possible to use 6x material but you would need to add another bent in order to carry the load.
Do you have this plan 12×16?
No, not this exact design but we do have these: https://timberframehq.com/shop/12×16-timber-frame-plan/ , https://timberframehq.com/shop/12×16-post-and-beam-cabin/ , https://timberframehq.com/shop/12×16-king-post-truss-plan/ , https://timberframehq.com/shop/12×16-timber-frame/ , https://timberframehq.com/shop/12×16-king-post-plan/
Do you have plans for a 14 X 20?
I’m in need of this design plan in 22 x 24.
Is that possible without additional center posts?
We can make that plan for you, take a look at our Custom Design page at https://timberframehq.com/custom-design/.
How hard would it be to add more length to it so it is 33′ ? The roof specs is what I would be needing.
Not hard, you can add a bent to take care of the additional length or depending on loads/etc. you can keep just the three bents. If keeping the bent count the same you are only adding the additional lengths to the purlins, plates, and ridge. Let us know if you need some custom work done.
Can you make a plan for a 34’wide by 24’deep pavilion?
Becky, that would be a custom plan- if you are interested in us creating that for you, please check out our Custom Design page.
I need this plan in 18 x 18
Have you seen the plan at https://timberframehq.com/18×24-timber-frame-with-purlins/?
what type of wood do you recommend?
I like Douglas Fir and White Pine.
I am looking at purchasing these 19×22 plans (10 Drawings), after reading the posts and looking at the 18 x 24 plans (25 drawings) it appears there are more drawings for the 18 x24, is this correct? This will be my first large Timber Frame build and I could use the additional documentation.
Robert, the 18×24 Foot Timber Frame Pavilion Plan includes more detailed piece drawings. But look at the 18×24 King Post Plan, because it is a simpler frame and has 33 pages.
What is the roof pitch on this?
It’s a 10:12 pitch
