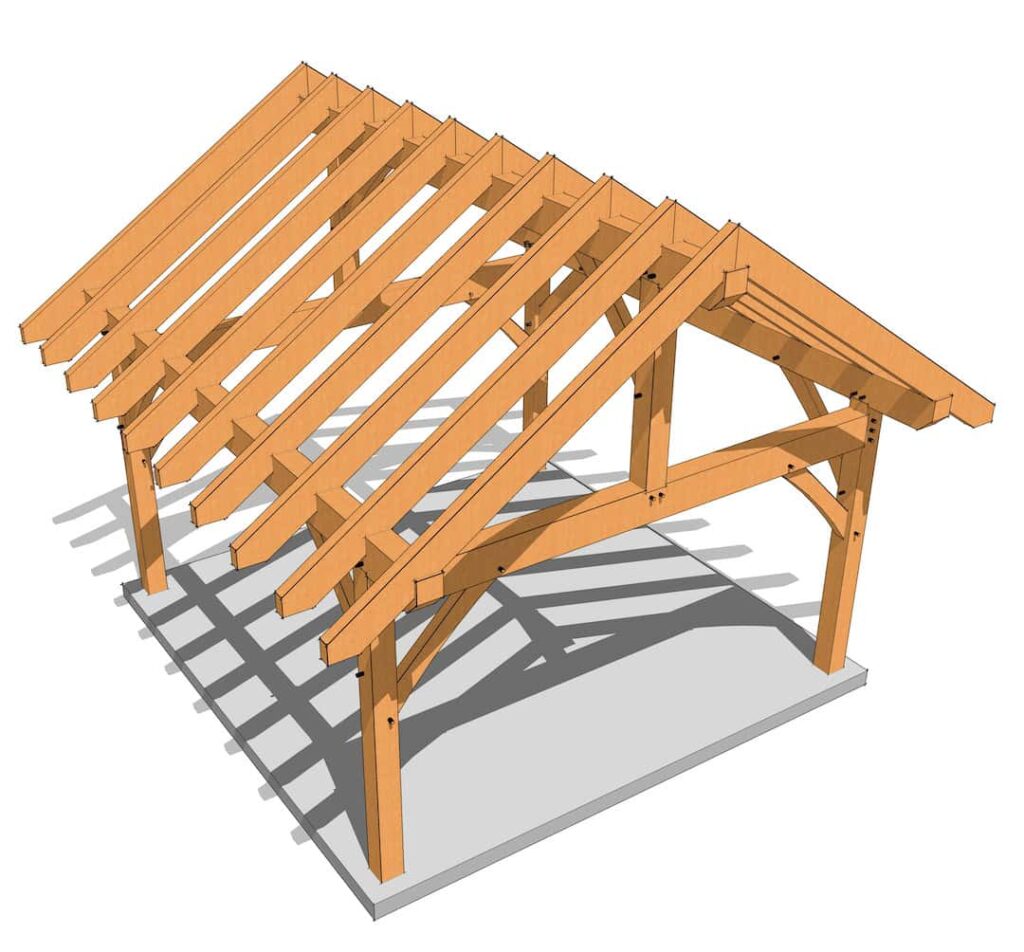

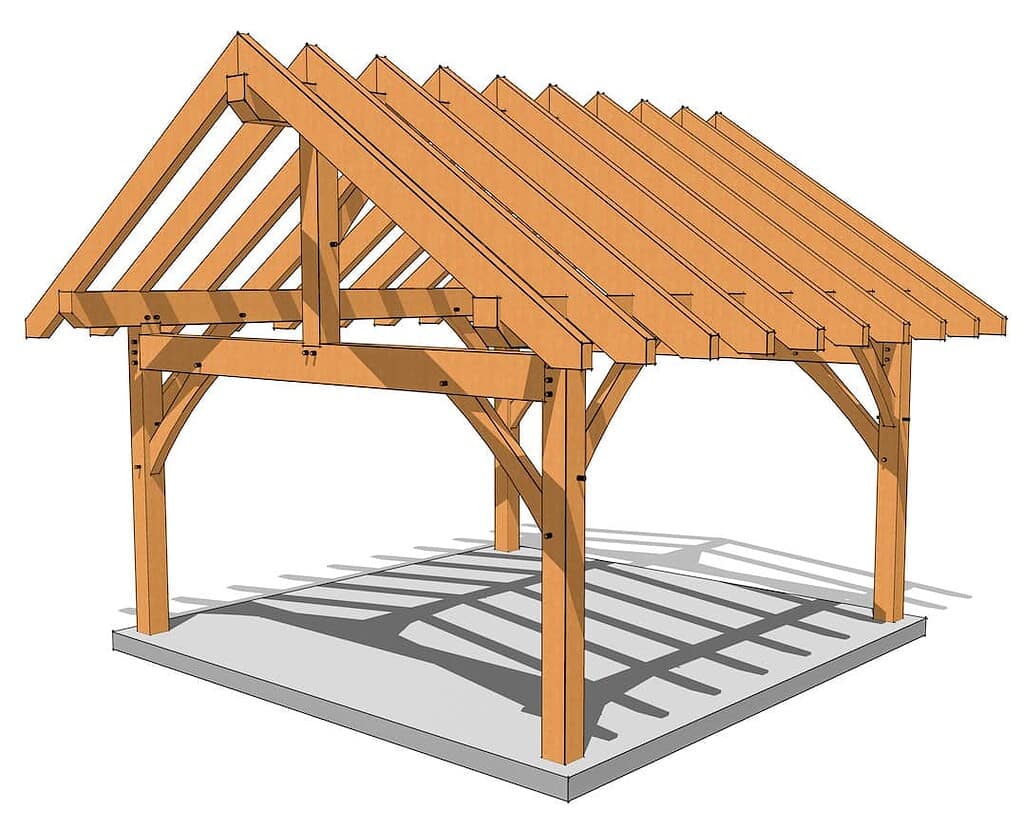

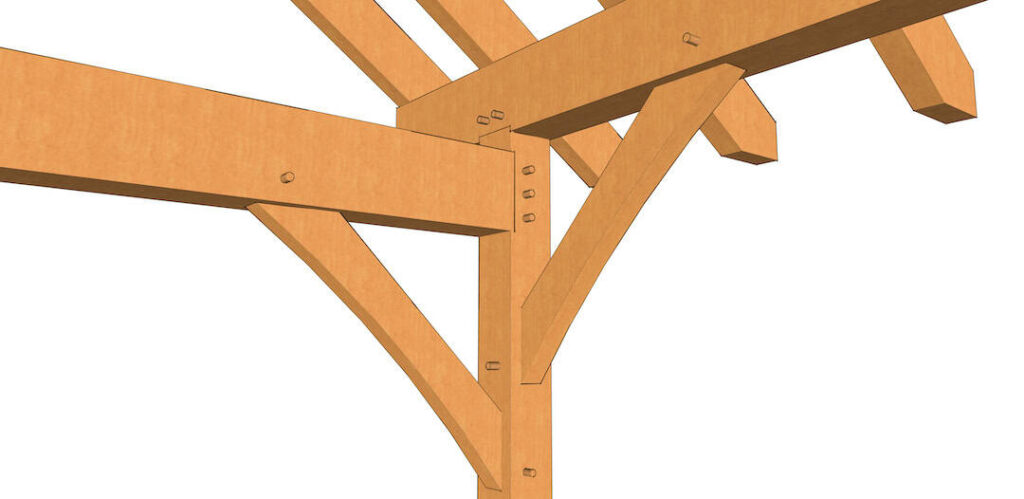

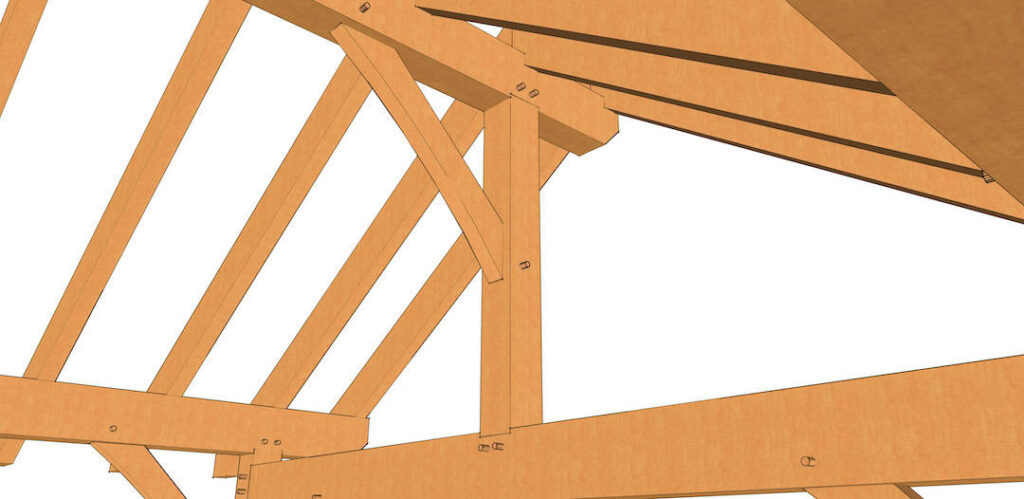

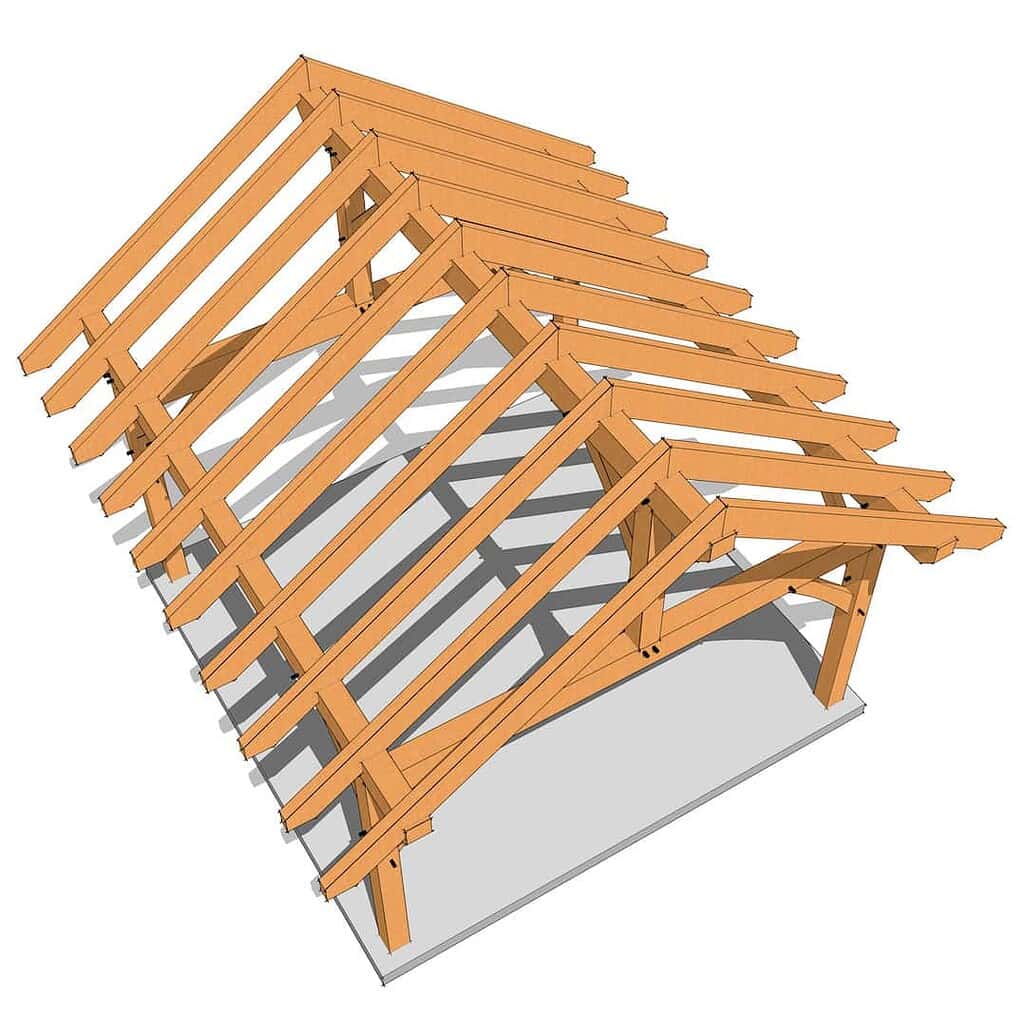

This 16×16 timber frame plan sports an 8-inch roof pitch and utilizes a simple but effective roof system, allowing anyone to cut and raise this great-looking frame. The 256 square feet structure would make a great garden shed, artist studio, or, if left open-sided, a dining pavilion.
The pdf plans contain 21 pages full of drawings, 3d renderings, and a timber list, providing you with everything you will need to cut the frame quickly and accurately. The plans are in PDF format, ready for instant download.
Of course, use the frame as you would like, but some possible options include a pavilion, shed, workshop, or even a pergola.
100% Money Back Guarantee for 30-Days
Purchase With Confidence…It’s Risk Free!
If, for any reason, you don’t like this plan, you can get a full refund anytime within 30 days after your purchase. If you have any issues, just get in touch with our support team and they’ll either help you out until you get the results you need or give you a swift refund.
Important Information:
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
Plan Licensing Agreement:
PLAN PURCHASES AND GRANT OF LICENSE
This Copyright License Agreement (herein “Agreement”) governs your license with regard to the plans provided to you by Timber Frame HQ (“Timber Frame”).
Grant of License.
Subject to the terms of this Agreement, Timber Frame grants you a non-exclusive, non-sub-licensable and non-transferable license to use the plans purchased from the Timber Frame website or otherwise provided to you by Timber Frame (the “License”).
This License is personal to you only. You may not use the License for any other purpose except for personal purposes. Commercial use of the License is strictly prohibited. Provided you abide by the terms of this Agreement, the term of the License will continue in full force and effect. If you are in default or in breach of your obligations under this Agreement this License automatically terminates.
Use of License.
Only you may use the License, and such use shall be limited as stated above. While Timber Frame HQ provides plans under the License for construction purposes, Timber Frame does not oversee the construction. Your are responsible for assuring the plan meets local codes and regulations. It is your responsibility to obtain any and all structural analysis, engineering, and specifications that may be required in the municipality in which it is to be built. You are to verify all lot conditions and measurements before construction. You are responsible for additional expenses incurred in order to meet local code and engineering requirements.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your License was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ.
Ownership.
All materials provided under this License are owned by Timber Frame HQ. Any License granted under this Agreement shall only convey a non-exclusive, non-sub-licensable, and non-transferable right to use the plans in accordance with the terms of this Agreement.
Fees.
The fee for the license granted under this Agreement is the price paid when you purchase the plans (the “License Fee”).
Termination of License
This Agreement and the License granted hereunder will terminate immediately upon:
(a)Violation. The violation or breach of any term of this Agreement by you or any other person you allow to use your License.
(b)Attempted Assignment. Your attempted assignment, sublicense, or transfer of this Agreement or any license granted under this Agreement.
Upon the termination or expiration of this you must immediately cease using the plans. Termination will not entitle you to any refund of the License Fees. You will remain liable for your violations or breaches of this Agreement that occurred before the termination of this Agreement.
No Derivative Works. No Reproduction. No Modification.
You are expressly prohibited from creating any derivative works in the plans or permit any other person to create any such derivative works. You are further expressly prohibited from reproducing the plans in any fashion on any medium. You may not modify the plans. Your License does not allow others to represent our design work as their own. Any commercial use of the plans is strictly prohibited.
Reservation of Rights.
Timber Frame HQ retains all common law, statutory, and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
DISCLAIMER OF WARRANTIES.
EXCEPT FOR TIMBER FRAME HQ’S WARRANTIES THAT TIMBER FRAME HQ POSSESSES THE RIGHT TO LICENSE THE PLANS TO THE YOU AND THAT THE PLANS WILL NOT INFRINGE UPON ANY OTHER PERSON’S INTELLECTUAL PROPERTY RIGHTS IN EXISTENCE AS OF THE DATE OF THE EFFECTIVE DATE OF THIS AGREEMENT, WHICH IS THE LATER DATE SHOWN BELOW, TIMBER FRAME HQ IS PROVIDING THE PLANS “AS IS” WITHOUT ANY WARRANTY OR CONDITION OF ANY KIND, EXPRESS OR IMPLIED, AND TIMBER FRAME HQ EXPRESSLY DISCLAIMS ALL WARRANTIES, INCLUDING ANY WARRANTY OF DESIGN, FITNESS FOR A PARTICULAR PURPOSE, OR MERCHANTABILITY. IN ADDITION, TIMBER FRAME HQ SPECIFICALLY DISCLAIMS ANY WARRANTY THAT THE PLANS WILL BE ERROR FREE AND TIMBER FRAME WILL NOT BE RESPONSIBLE FOR ANY LOSS SUFFERED BY YOU BECAUSE OF THE PLANS OR OTHERWISE.
I would like to buy this plan in the near future and I am wondering if the plans come with detailed cut information for the mortis and tenon joints? I am new to mortis and tenon and I am trying to find plans that include this information.
An example, I do not notice any pins on the rafter beams. I wondering if you use a butt joint style, closed with a screw & bolt on this design? I would like to stick to traditional dowel and mortis and tenon type rafter. If this is not available on the plans presented is it possible to get the style I would like to adhere to?
Darren,
The plans do have all the similar timbers pulled out and detailed with dimensions. On the rafter tails some folks like to used pegs but I prefer to screw them with a GRK RSS screw. Let me know if you have any other questions. And remember that we do offer a 30 day refund if you are not happy with them.
Thanks,
Brice
Hi Brice
I am looking to build a 17X17 foot timber frame cover so the support lags match up to block columns that are already in place. Is the dimension taken at the support post or at the roof line. If detention is taken at the support leg then you are showing a 2 foot over hang at each end. The support beams would around 21ft. I want to make sure my lumber is the right dimension. Can I call you. thanks richard
The 16×16 is from outside of post to outside of post with a 2′ overhang as you mentioned. Will email you my direct number.
Can you make the plans for lap joints rather than mortise and tenon?
I’m curious if these beams need to be a specific type of lumber. I want to build this out of red cedar. Would these beam spans be suffice for a 16 x 16′ plan?
There are only a couple of places in the frame that we could use a lap joint. To simplify the cutting of the frame you can just leave off the tenons, house all the joints (as shown in the plans) and use a structural to hold everything together.
It depend on where you live and the roof loads. Cedar by nature is not very strong. If you could send me an email at info(at)timberframehq.com with your location and I will look into it.
I am considering using these plans for a pavilion on public property. My local building department requires that my drawings are sealed by a licensed Illinois architect or engineer. Is this the case with your plans or would I need to have them redrawn?
Thanks,
Royce
The plans are not stamped and we would need to do a little work to get them ready for an engineer to stamp them. Let us know and we can work with you to get that completed.
Do your plans come with a complete materials list? Are Simpson type ties required or suggested and included with a materials list?
There is a complete timber list and there are callouts on the drawings for where screws are needed. The plan includes traditional timber frame joinery so no simpson ties are needed. You can find out more about the concrete to timber connections at https://timberframehq.com/construction-details/.
I am looking to build a 16×16 Timber Frame and my HOA is being very specific. Can you tell me the overall height and do you make any modifications for height if needed?
The plans come with all the different roof pitches so you should be able to find one that works within you HOA. What height are you after?
See below for the timber list.
In the timber list, we add some length to accommodate two things.
1- You can never end up with a rough timber that is too short for what you need.
2- More importantly though is the extra length allows you to more the final piece up or down on the timber so that you don’t end up with a knot or other defect where the joinery will be. Just makes it easier/more enjoyable to cut.
I’m interested in these plans. Would it be possible to know the post size? The exact dimension between post to post?
Post to post in either direction is 16’x16′ and it has a 24″ overhang all the way around. The posts are 8×8’s. Let us know if you have any questions.
Thanks Brice, really appreciate the info. Last question and I think Im going to pull the trigger on this. I’m have a 5:12 roof pitch and I’m look to match that or just a bit lower so it doesn’t look un-proportional to the house. Can you tell me if 5:12 or 4:12 is an option in the set and what the height is to the bottom of the tie beams as currently spec’d I may need to add a few feet to the posts to get my desired height.
Without adding length to the posts it is 7’9 to the bottom of the tie beam, easily adjusts to meet your needs. The plans do come with those roof pitches as options.
Hey Brice,
I am logging out some hemlock logs and was wondering about your thoughts on using this kind of wood for this, and some of the other, structure(s).
Best,
Ben
I think hemlock is a great type of wood to use. They have been using hemlock for timber frames for a long time.
Is there a way to modify the plans to make it 16w x 14L?
The plans at https://timberframehq.com/shop/14×16-timber-frame/ should meet your needs.
Can T. rex mounting plates be used? Very little knowledge on how to make those required cuts into the beams
You can certainly use the T-rex connectors with this plan. You will just need to omit the mortise and tenons.
Hi I like this plan , possible to get a 18 x 16 with a foot overhang on 16 ft dimension and Simpson connectors ?
We do not have the plan designed currently. You can, however, modify the plan at https://timberframehq.com/shop/18×24-foot-timber-frame-pavilion-plan/ to meet your needs.
They are that big because we do not know where the frame is going to be built we went with larger timbers in case there are any downloads that need to be dealt with. Where do you live?
I live in south Louisiana. Funny thing, it is snowing right now. This only happens once a decade.
You can certainly cut the sizes of the timbers down. Give us a call if you would like to discuss further, enjoy the snow!
Chris, please see Brice’s reply above (March 12, 2017 at 2:56 ) including his comments
Hi Katrina, I am obviously an idiot! I believe that I should have stated that I am looking for this plan in a 16′ X 18′ layout? Would there be such a plan available? Sorry for the error on the first request.
Brice,
What carries the most weight? Is it the ties or the plates?
Thanks,
Allen
The tie beams carry more in this design.
does this plan come in 6×6 post option?
No it does not- you might want to request a custom design
