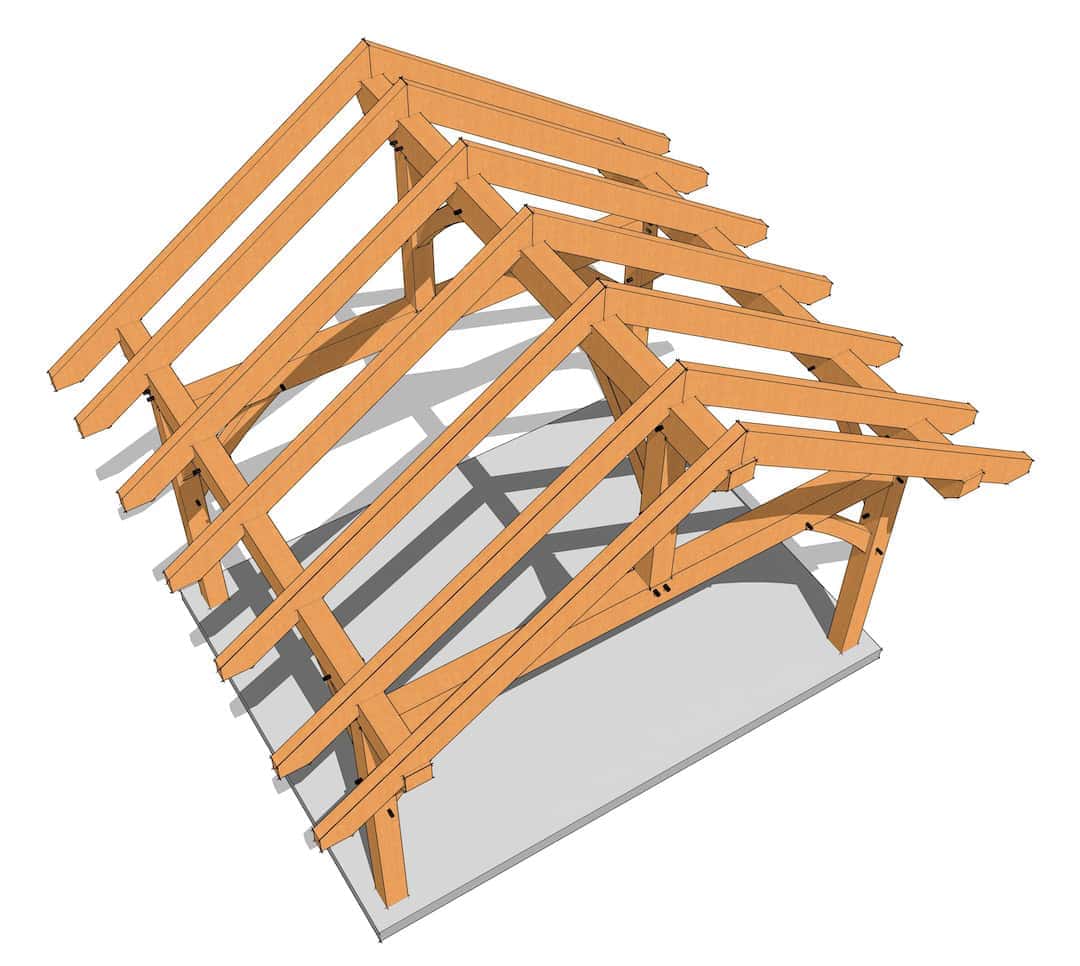

This 16′ wide x 12’ deep two bent timber frame shed plan features an 8/12 roof pitch. While the plan has an 8″ roof pitch by default we have added the dimensions for 3, 4, 5, 6, 7, 9, 10, 11, 12-inch roof pitches to allow you the option to choose. This size and shape is perfect for a small cabin, workshop or storage shed, and the plans are easily customizable to suit your specific needs.

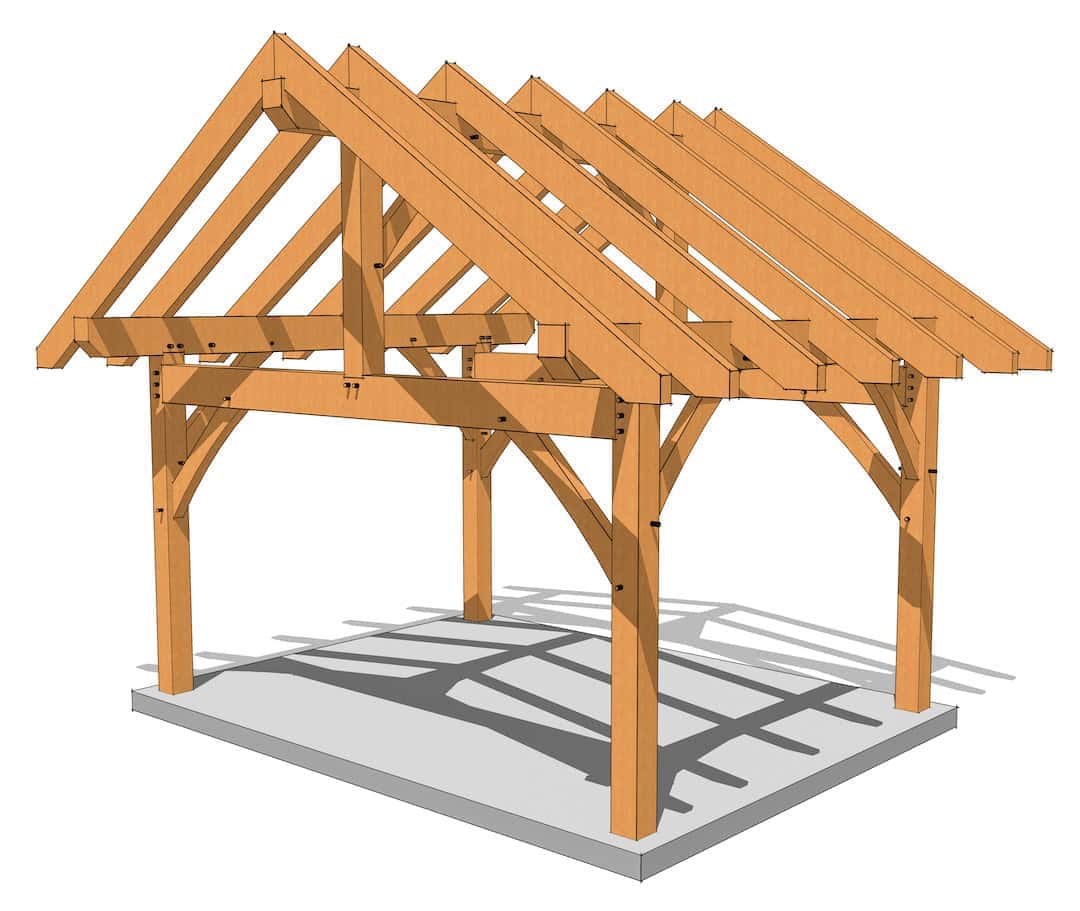

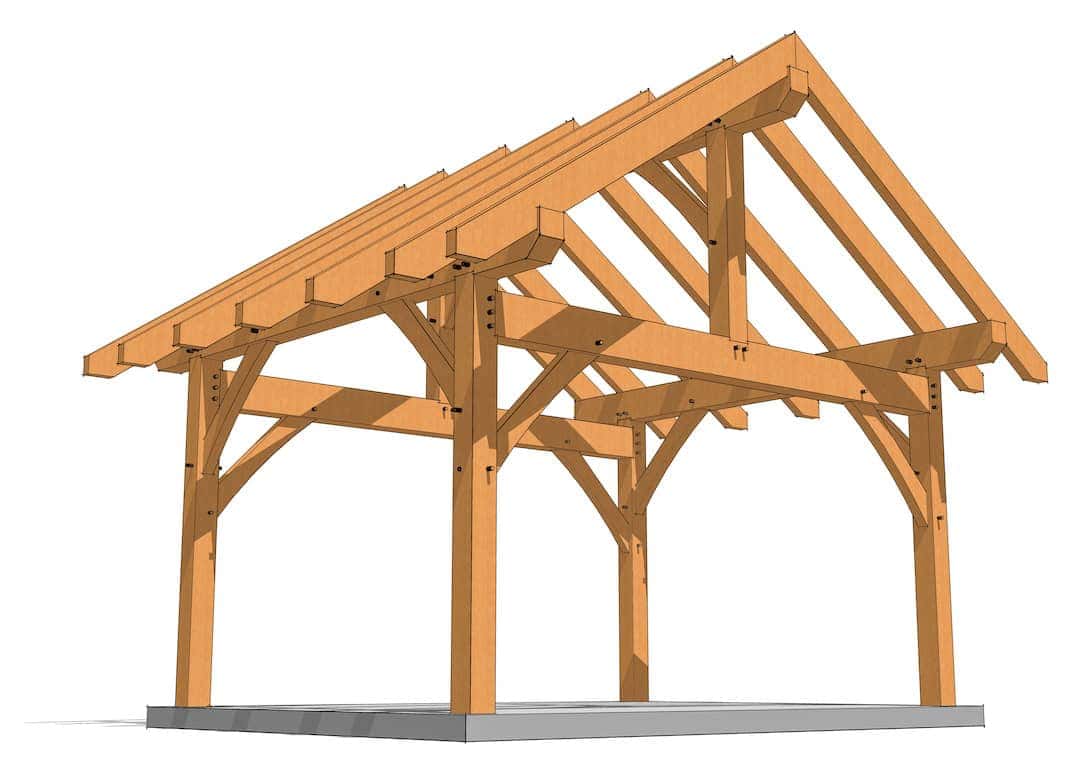

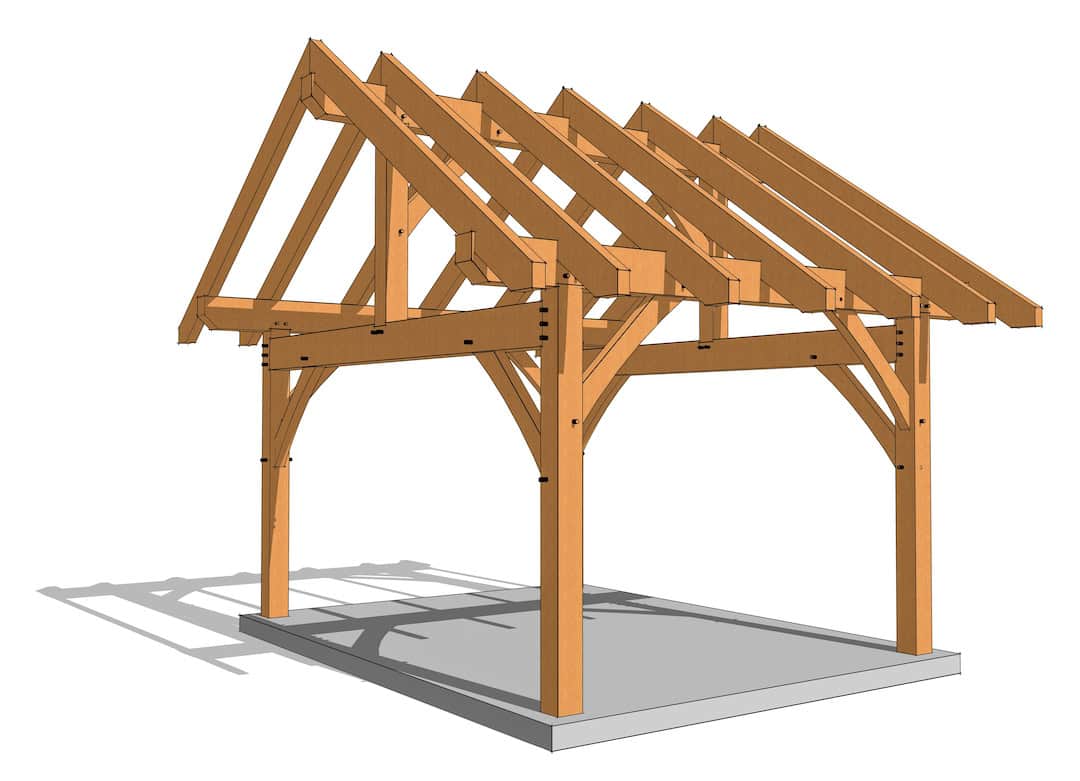

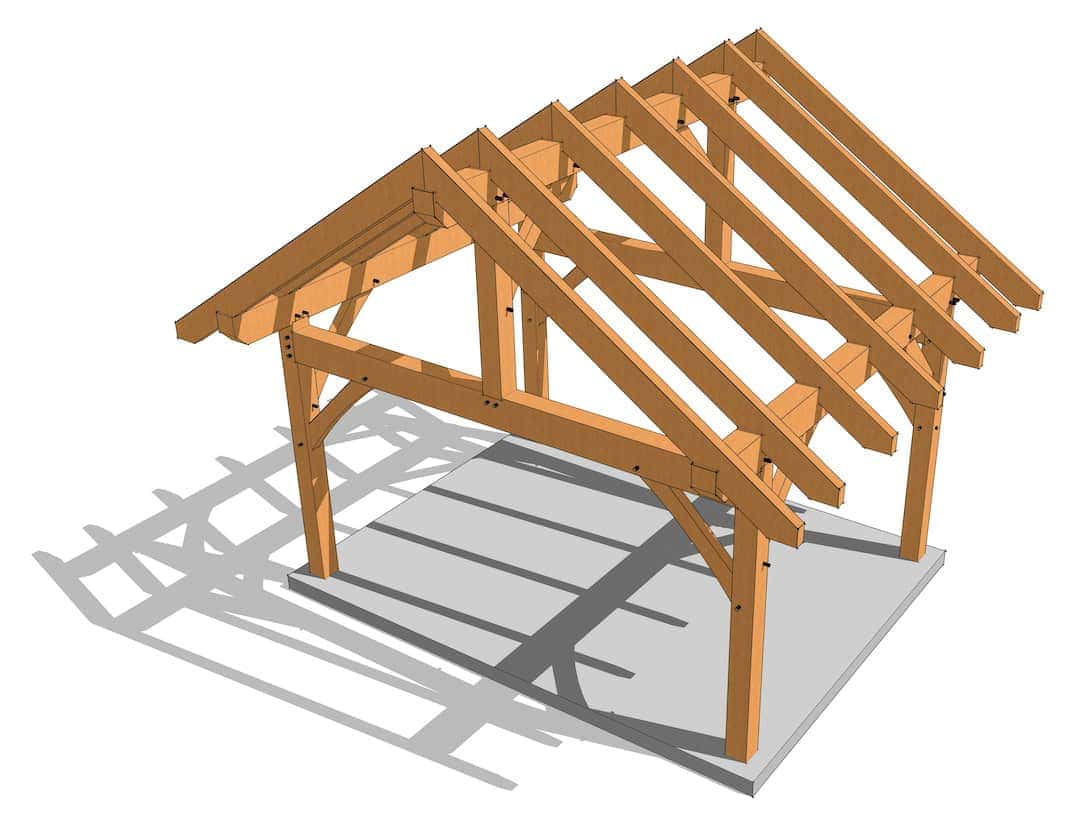

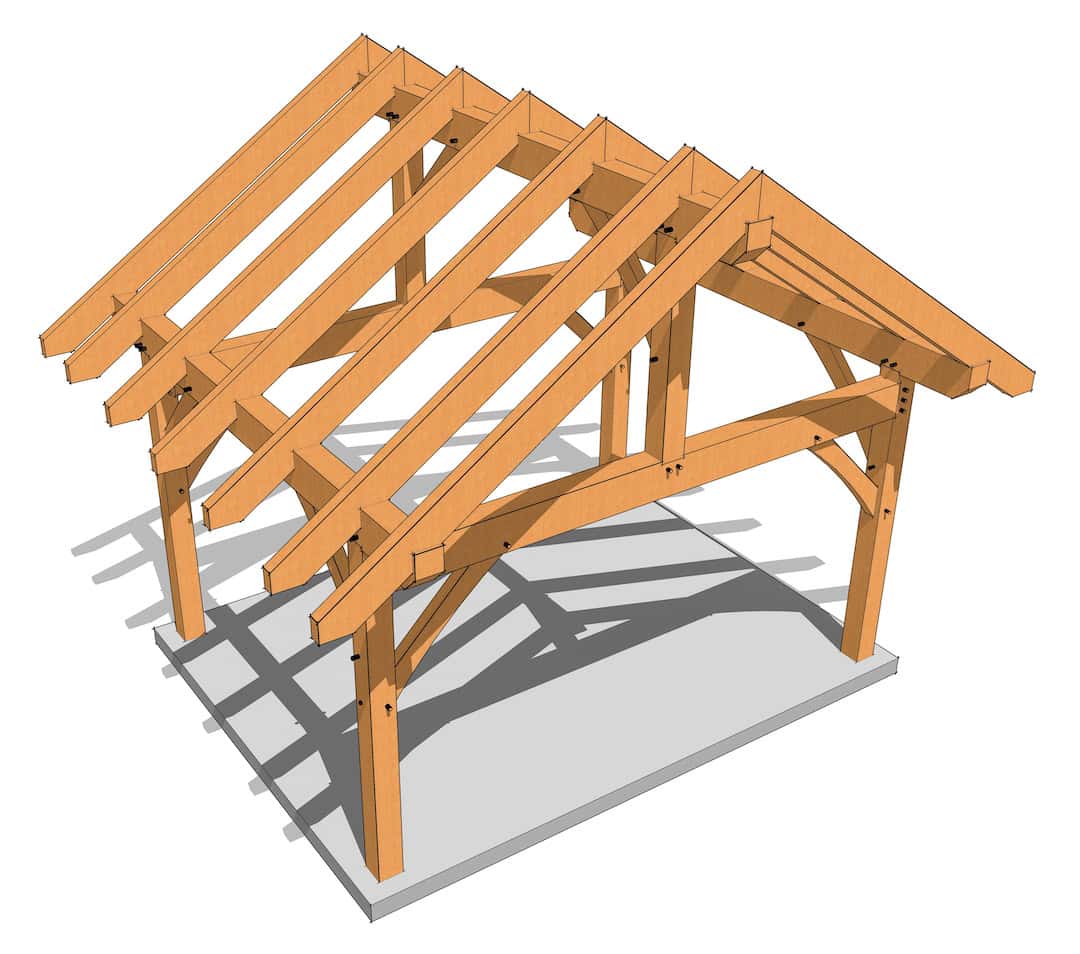

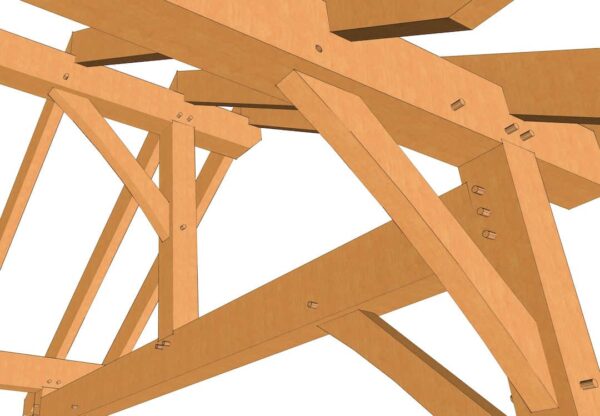

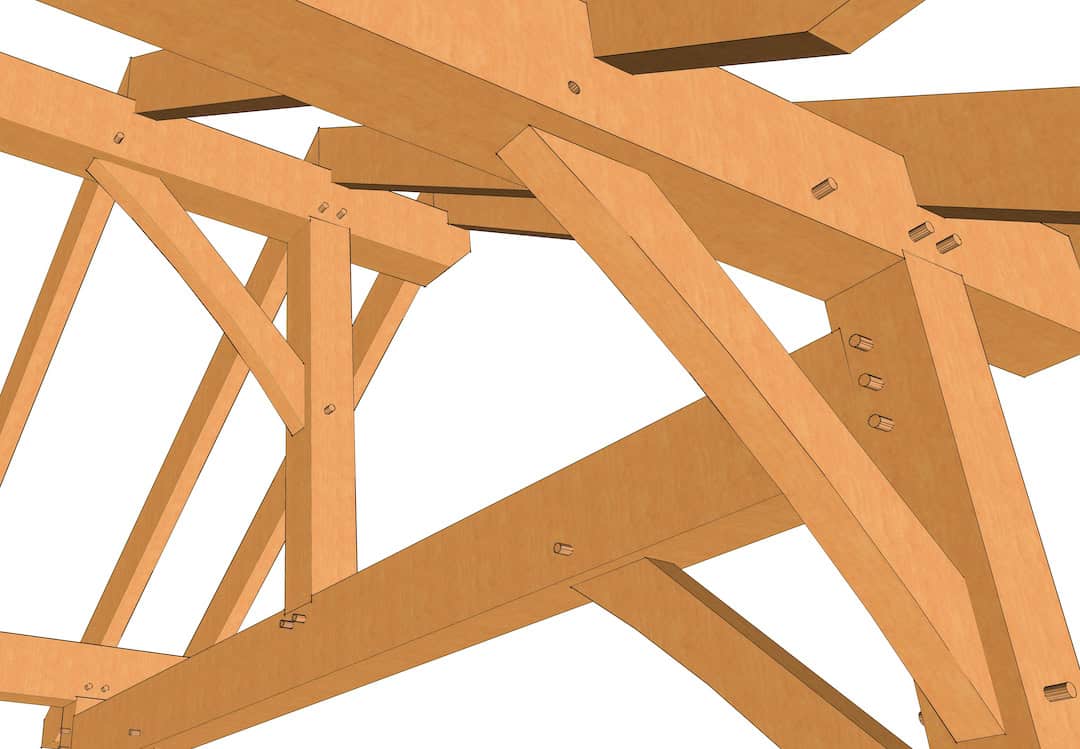

The plans are instant-download PDFs which print out on standard, 8-1/2” x 11” sheets, so you can save your blueprints neatly and safely in a binder. The set comes complete with a materials list, so you know the quantity and size of each member used to build your shed. It also includes dimensioned plans, bent and wall views, as well as 3-D framing views to give you a clear picture of the joinery. The 3-D views show the locations of all joints and housings. These joint views are also dimensioned, so construction methods are clear and easy to follow.
Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
- Wind / hurricane / tornado
- Seismic / earthquake
- Heavy snow
- Flood potential
- Soil instability
- Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.
When you purchase a set of plans, you are purchasing a limited copyright license for a design giving you the right to build that structure one time at your location. Your copyright license was granted when you paid the purchase fee. You do not have the right to build the design a second time unless you have a signed agreement with Timber Frame HQ. Please note that copyright law protects “derivative works” the same as it protects the original design. That means that making some changes doesn’t make it a new design. We do not allow modifications of our designs by others, without permission. Your copyright license does not allow another professional to represent our design work as their own.
Timber Frame HQ retains all common law, statutory and other reserved rights, including the copyright. This applies even when you have participated in the development of the design to a significant degree.
