Laurel Creek Hybrid Timber Frame Cabin Plan

$147.00

SKU: 18020 Categories: , Tag:

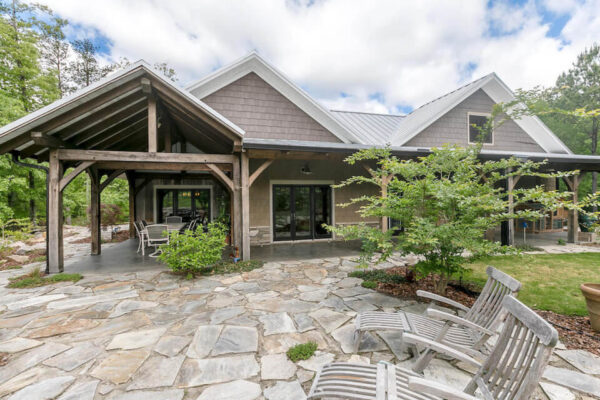

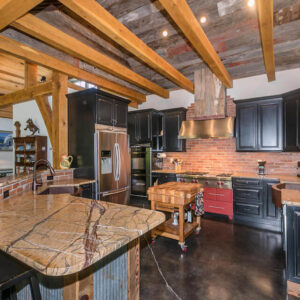

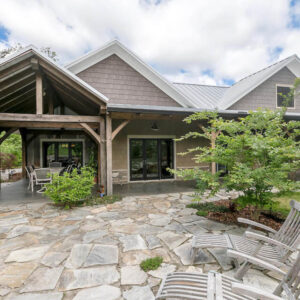

The Laurel Creek hybrid cabin utilizes timber frame in the public areas and strong, energy-efficient ICF construction in the secondary areas. The master suite with its huge walk-in closet and master bath, roomy office, and second bedroom are all on the main level. The great room flows seamlessly into the dining, which is open to the adjacent kitchen and breakfast nook. Double walk-in pantries provide plenty of storage, and there is a huge laundry room next to the attached two-car garage.

Specifications:

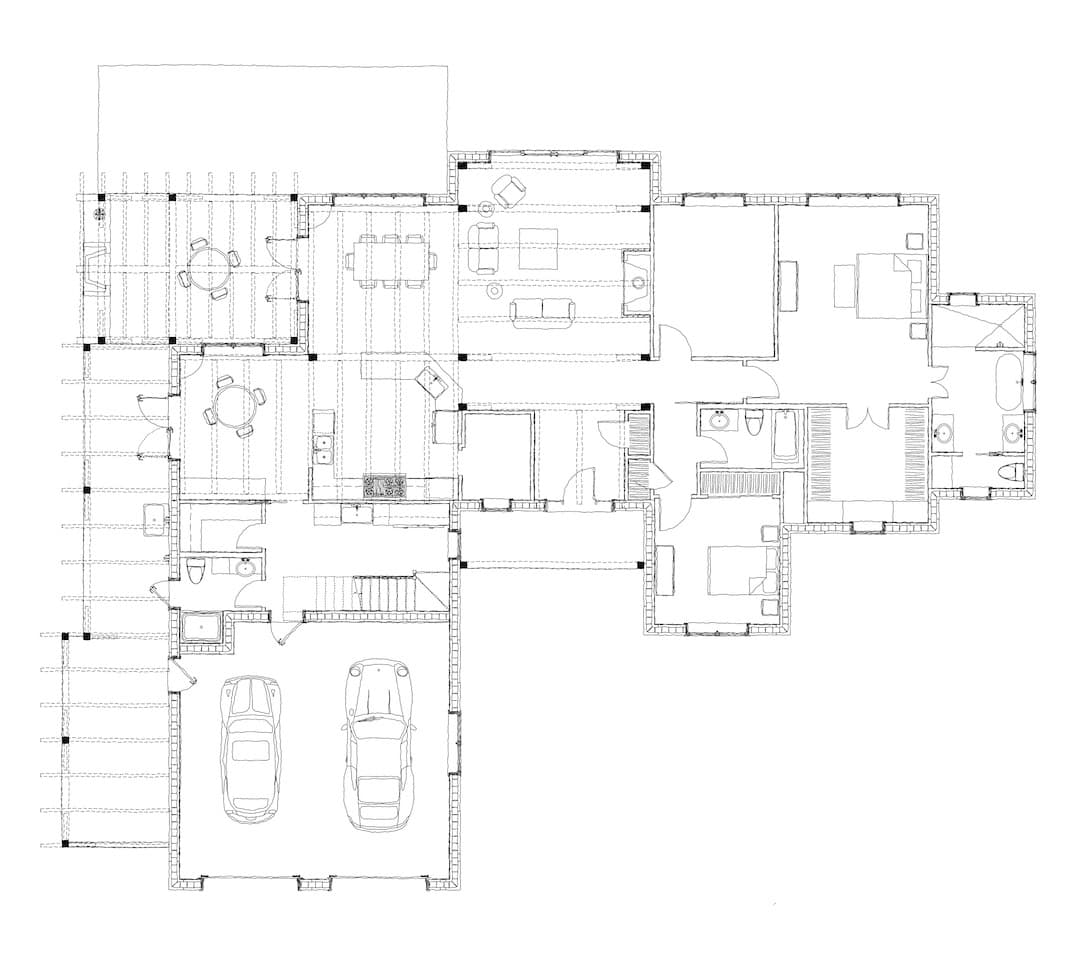

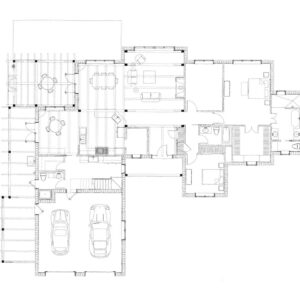

1st Floor 2,702 sqft

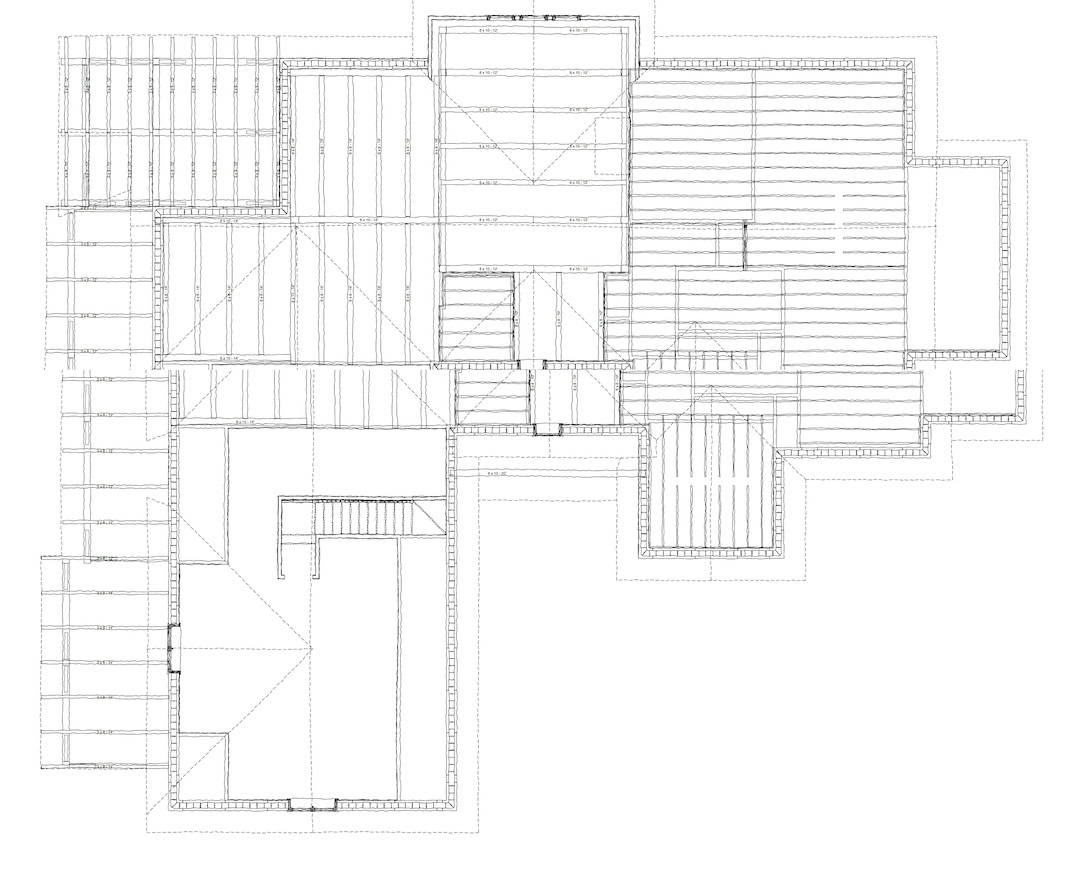

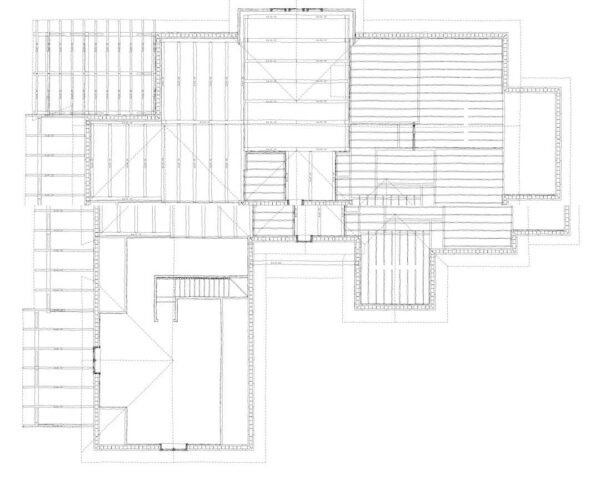

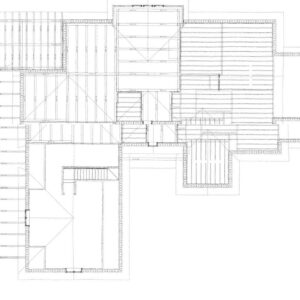

2nd Floor 655 sqft
Heated Space: 3,357 sqft
Covered Decks: 604 sqft
Decks: 384 sqft
Garage: 621 sqft
Carport: 200 sqft
Total Square Feet: 5,166 sqft
Bedrooms: 4
Bathrooms: 3

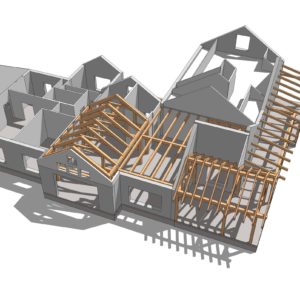

See the 3d model below to see the home with the exterior walls on it.

  • Please note that the timber frame piece drawings are not included in the plan set.Plan GuaranteeImportant Information:

Timber Frame HQ provides plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.

Customer understands that the following conditions in your specific area may require additional engineering:

Wind / hurricane / tornado
Seismic / earthquake
Heavy snow
Flood potential
Soil instability
Timber Frame Engineering
Customer understands that HVAC, Plumbing & Electrical will not be included in all plans.

Purchaser agrees that the use of the plan is for the construction of one house or frame only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.
